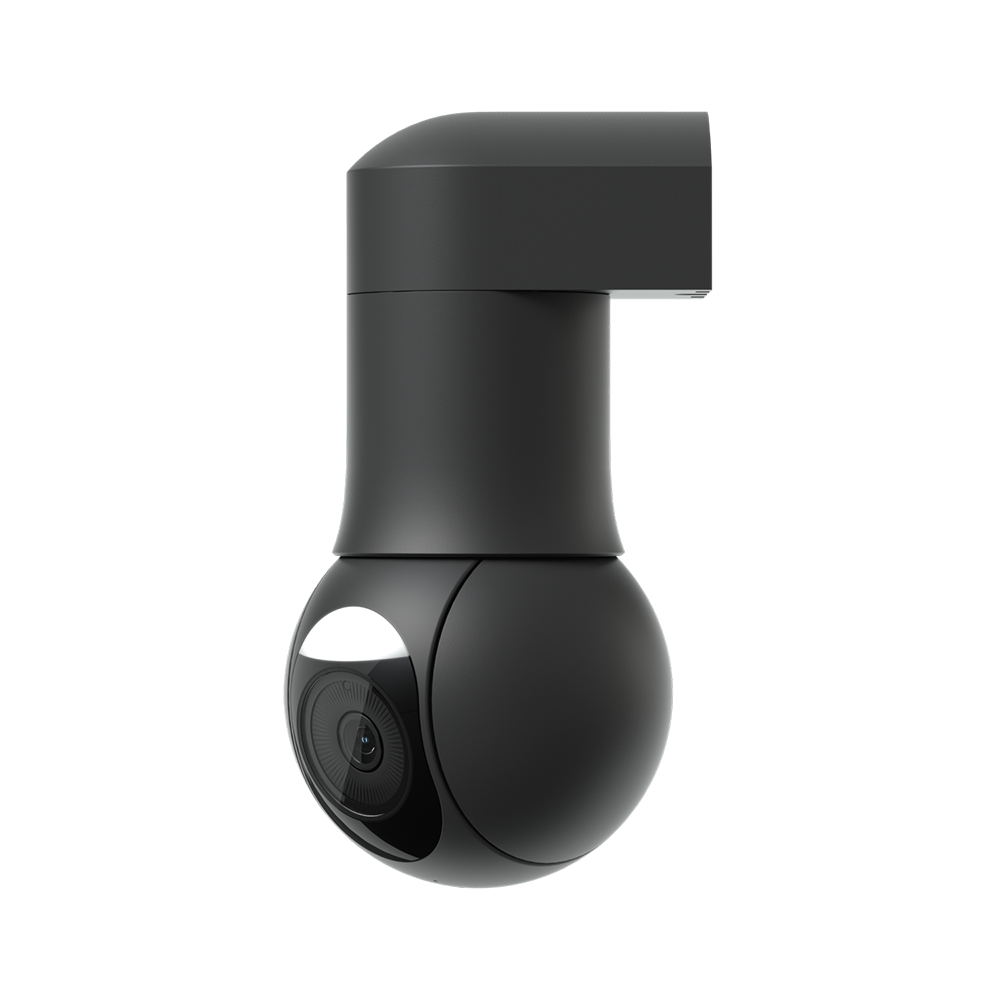

he Ubiquiti G5 PTZ is an IP camera designed for use with the UniFi Protect system. It features a 4 MP lens that supports a 2K resolution of 2688 x 1512 px, with a focal length ranging from 3.42 to 6.85 mm. It offers 2x optical zoom, with a field of view of 99.7° horizontal / 51.9° vertical (121° diagonal) in wide-angle mode and 45.5° horizontal / 25.4° vertical (52.4° diagonal) in telephoto mode. The device supports PTZ functionality, allowing the camera to rotate so it is always facing the correct direction. It has a horizontal rotation range of 350° and a vertical tilt range of 100°. The camera supports essential features such as smart detection (people, vehicles, and animals). PTZ also enables automatic tracking of detected persons in the monitored area. An additional advantage is the built-in microphone, allowing for the recording of both video and audio. The camera is equipped with IR LEDs, providing a night vision range of up to 20 meters. The housing is fully suited for outdoor use, with an IP66 protection rating. The device includes one 100M Ethernet port (10/100 Mbps), which also serves as a PoE+ (802.3at) power input. The maximum power consumption is 14 W. Using the accessories included in the package, the camera can be mounted on a wall or pole. A variety of optional mounting brackets are also available for purchase.

4 MP (2K) Camera
The offered product is an IP camera equipped with a 4 MP lens that supports 2K resolution (2688 x 1512 px). It delivers significantly better image quality than standard 2 MP 1080P cameras while being more affordable than 4K cameras.
2x Optical Zoom
The manufacturer has equipped the camera with a varifocal lens featuring two focal length ranges. You can take advantage of the 2x optical zoom, which provides a greater recording range compared to a standard camera. The field of view is 99.7° horizontal / 51.9° vertical (121° diagonal) in wide-angle mode, and 45.5° horizontal / 25.4° vertical (52.4° diagonal) in telephoto mode.


PTZ Function (Pan-Tilt-Zoom Capability)
The camera supports PTZ functionality—it can rotate 350° horizontally and 100° vertically. This ensures it is always directed toward the most important area. When combined with smart detection, the PTZ feature enables precise and automatic tracking of people.
UniFi Protect
G5 PTZ Industrial is a camera designed to operate under the UniFi Protect system. It requires configuration within the control panel and the use of a recorder compatible with UniFi or a gateway with recording functionality. The camera can be conveniently managed from the same panel as access points and other devices from Ubiquiti’s extensive UniFi product line.


Microphone
The camera is equipped with an integrated microphone, allowing it to record not only video but also audio.
Outdoor Use
The housing is fully designed for outdoor use, with an IP66 protection rating. Using the accessories included with the G5 PTZ, the camera can be mounted on a wall or pole. A wide range of optional mounting accessories is also available for purchase.


100M Ethernet Port, PoE+ Power Supply
The device is equipped with a single 100M Ethernet port (10/100 Mbps), which also serves as the PoE+ (802.3at) power input. The maximum power consumption is 14 W. Power can only be supplied via PoE; no other power input method is supported.
Specifications
Ubiquiti UVC-G5-PTZ-B | |
Overview | |
---|---|
Dimensions |

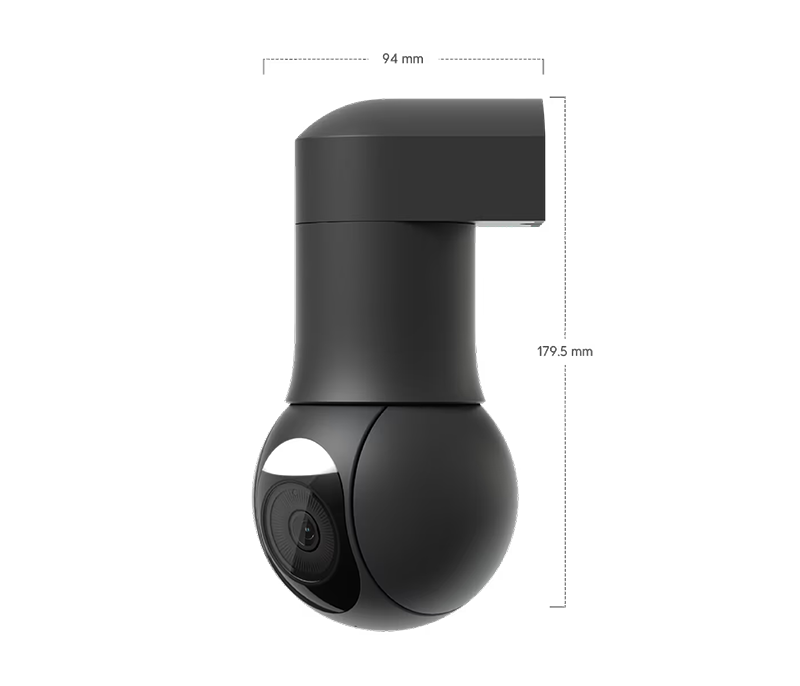

Without mount: Ø90 x 152.5 mm (Ø3.5 x 6") With mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7") |
IR Night Vision | 20 m (65 ft) |
Zoom Mode | 2x Optical |
Smart Detections (People, Vehicles, Animals) | Yes |
Resolution | 2K |
Field of View |
Wide: H: 99.7°, V: 51.9°, D: 121° Tele: H: 45.5°, V: 25.4°, D: 52.4° |
Pan-Tilt Range |
Pan: 350° Tilt: 100° |
Audio | Microphone |
Weatherproofing | IP66 |
Tamper Resistance | IK04 |
Mounting |
Wall mount, pole mount (Included) Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional) |
Performance | |
Networking Interface | 10/100 MbE RJ45 port |
Max. Frame Rate | 30 FPS |
Resolution | 4MP 2688 x 1512 px (16:9) |
Sensor | 5MP 1/2.7" CMOS |
Lens | F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 |
Night Mode | Built-in IR & white LED illumination with IR cut filter |
Hardware | |
Max. Power Consumption | 14 W |
Supported Voltage Range | 37 - 57 V DC |
Power Method | PoE+ (802.3at) |
Pole Mount Diameter | 1.5–2" (38–50 mm) |
Weight |
Without mount: 580 g (1.3 lb) With mount: 650 g (1.4 lb) |
Enclosure Material | Aluminum alloy, polycarbonate |
Mount Material |
Wall mount: polycarbonate Pole mount: aluminum alloy |
Button | (1) Factory-reset |
Ambient Operating Temperature | -30 to 45º C (-22 to 113º F) |
Ambient Operating Humidity | 0 to 90% noncondensing |
NDAA Compliant | Yes |
