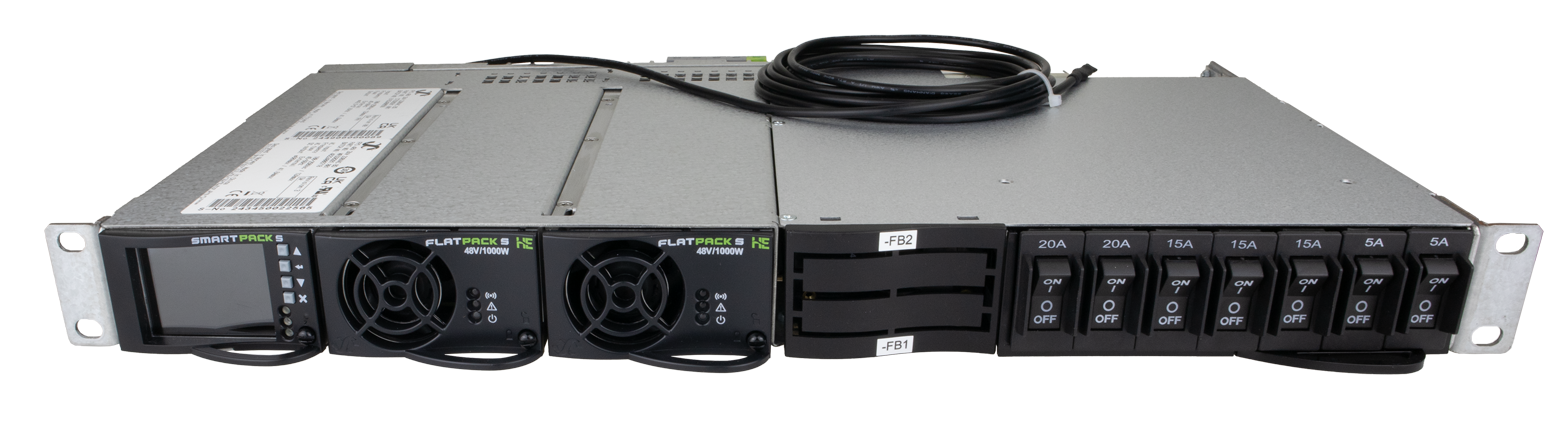

ELTEK Flatpack S 1U 48V 2kW 230VAC BD Rectifier
Brand: Eltek
Product Code: ELTEK-CTOS0201.001
Catalog number: 3794
Warranty (months):
Price
880,99
1 083,62incl. tax
Unavailable
favoriteAdd to wishlist
Description

Eltek Flatpack S 1U is a 48 V telecommunications power plant. It is equipped with two HE rectifiers with a power of 1 kW each. The distinguishing feature of Flatpack S 1U is the graphic Smartpack S controller. It provides management via LAN or local, using the control buttons located next to the TFT panel (resolution 320x240 pixels). The controller is equipped with the latest version of the 5th generation software. Supports Power Suite / SNMP / HTTP (WWW) / MODBUS RTU protocols.

The housing of the device is 1U high and 262 mm deep, so it fits in most cabinets (which makes it a good replacement device). The main applications are mobile, wired and fixed telecommunications. The gym is characterized by high efficiency:> 95% with a load of 40-100%.

Datasheet

The most important features:

  • complete system - 2 rectifiers, Smartpack S controller, battery distribution and load distribution;
  • small size - height 1U, depth 262 mm;
  • advanced control and monitoring method via the Ethernet port;
  • Hot Plug rectifiers and driver;
  • voltage 48 V, power 2000 W;
  • rectifiers in HE technology.

Specification

Flatpack S 1U 2000 W
Input parameters
Voltage 100 - 250 V AC
Configuration of AC connectors Single-phase 230 V AC or 2x 230 V AC
Power connection 2.5mm2 connectors on the rear
Frequency 45 - 66 Hz
Output parameters
Nominal voltage - 48 V DC
Maximum current 40 A
Battery
Battery contactor (LVBD) Default
Zabezpieczenie (wyłącznik) 2x 40 A
Connection (rear) Connectors16 mm2
Energy receivers
Podejście kablem od tyłu

Dostęp od przodu: 7x 20 A MCB

Podłączenie - złącza śrubowe 7x 4mm2

Opcjonalnie stycznik odbiorów (LVLD) na MCB 1 i 2

Podłączenie od przodu

wtykowe złącza śrubowe

4x 20 A MCB / 7x 15 A bezpiecznik

4 mm2

Kontrola i monitoring
Smartpack S 6 wejść / wyjść oraz Ethernet
Parametry mechaniczne
Wymiary

19" x 1U x 262 mm

Zalecana głębokość szafy: minimum 300 mm

Waga razem ze sterownikiem i dystrybucją, bez prostowników 5,3 kg
Standardy wykonania
Bezpieczeństwo

UL 60950-1

EN 60950-1

EMS

ETSI EN 300 386 V.1.4.1

EN 61000-6-1 (odporność, lekki przemysł)

EN 61000-6-2 (odporność, przemysł)

EN 61000-6-3 (emisja, lekki przemysł)

EN 61000-6-4 (emisja, przemysł)

Środowiskowe

ETSI EN 300 019-2-1 klasa 1,2

ETSI EN 300 019-2-2 klasa 2,3

ETSI EN 300 019-2-3 klasa 3,2
