TP-Link RE305 Dual Band WiFi Range Extender / Access Point AC1200
Brand: TP-Link
Product Code: TL-RE305
Catalog number: 6347
Warranty (months):
Price
26,94
33,14incl. tax
Qty.
-
+
favoriteAdd to wishlist
Description

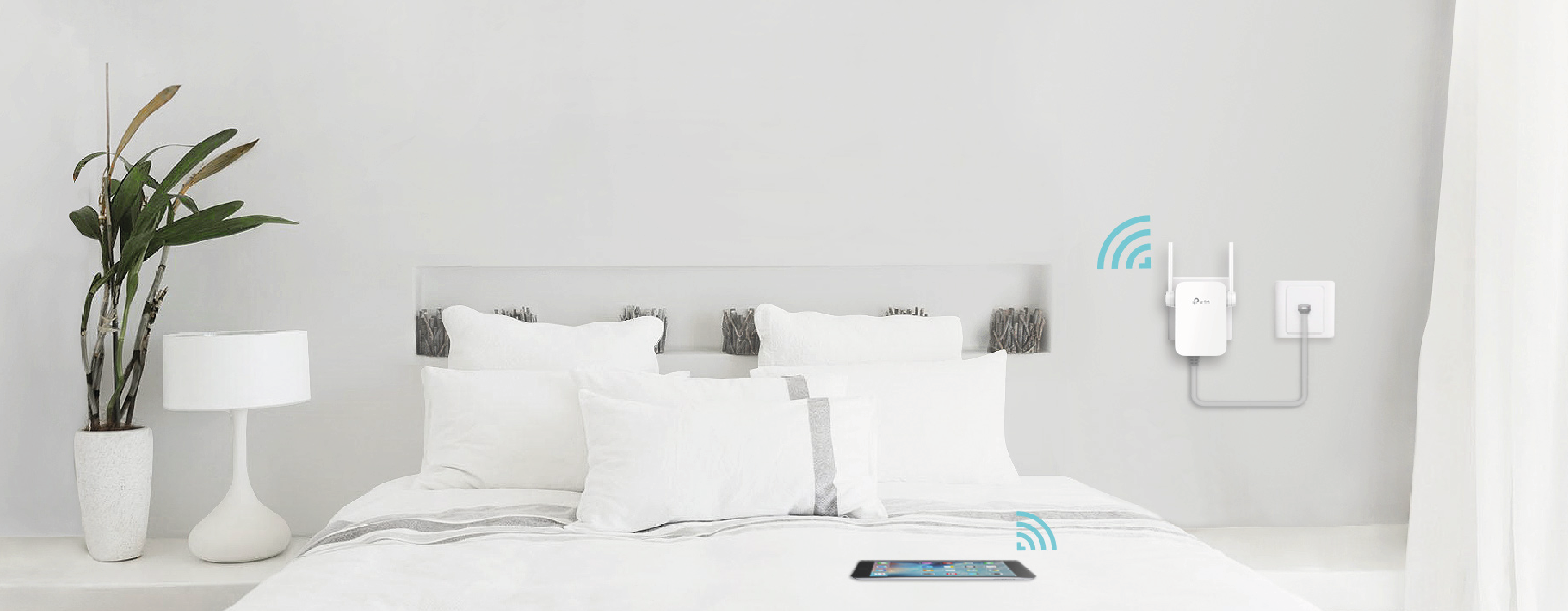

TP-Link RE305 is a dual-bandsignal amplifier (repeater) that can work in 2.4 and 5 GHz bands simultaneously. It is equipped with one fast Ethernet port, it can also work as an access point. The repeater is plugged directly into the power socket (EU plug).The  configuration takes place in a simple and intuitive way, it can be done, among others, through the Tether application available on mobile devices.

The offered product has two external omni-directional antennas, supports 2x2 MIMO / dual-chain technology in both bands. It uses IEEE 802.11 b / g / n (2.4 GHz) / IEEE 802.11 a / n / ac (5 GHz) standards. Thanks to this, it is possible to achieve the maximum theoretical bandwidth of 300 Mb / s (2.4 GHz) / 867 Mb / s (5 GHz). The amplifier also supports some useful functions such as wireless transmission statistics, access control and diode control.

Specification

TL-RE305
Hardware Properties
Plug type EU
Ports

1 fast Ethernet port

10/100 Mb/s

Buttons

WPS

Reset

Maximum power consumption 7,3 W

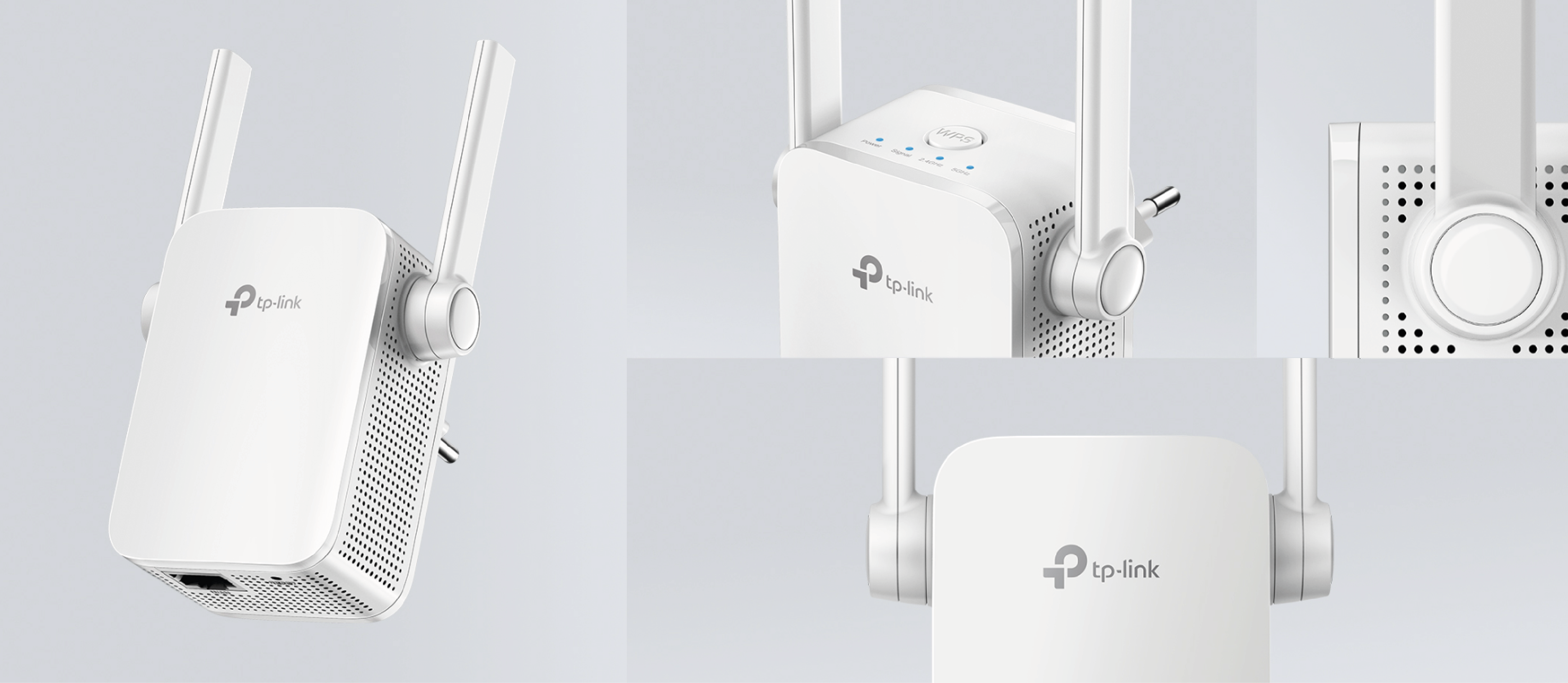

Antennas 2 external
Dimensions 80 x 78 x 77 mm
Właściwości transmisji bezprzewodowej
Standards

2,4 GHz: IEEE 802.11 b/g/n

5 GHz: IEEE 802.11 a/n/ac

Work band 2,4 i 5 GHz simultaneously
Theoretical transmision bandwidth

2,4 GHz: up to  300 Mb/s

5 GHz: up to 867 Mb/s

Reception sensitivity

2,4 GHz:

11g 54M: -79 dBm

11n HT20 MCS7: -77 dBm

11n HT40 MCS7: -74 dBm



5 GHz:

11a 6M: -91 dBm

11a 54M: -74 dBm

11ac HT20 MCS8: -68 dBm

11ac HT40 MCS9: -63 dBm

11ac HT80 MCS9: -59 dBm

Wireless modes

Range Extender

Access Point

Wireless transmission features

Wireless transmission statistics

Simultaneous amplification of dual bandwidths

Access control

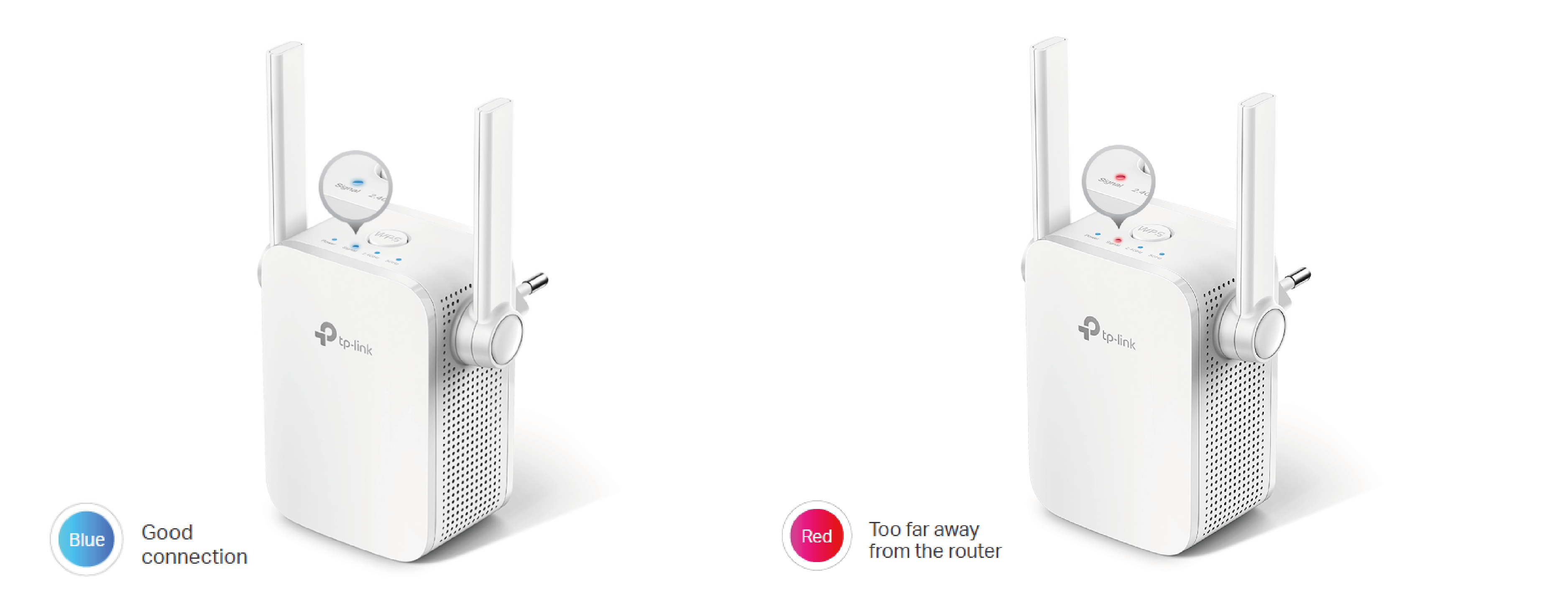

Diode check

Login using a domain name

Wireless security

64/128 bit:

WEP

WPA-PSK / WPA2-PSK

Transmission power < 17 dBm
Other properties
Certifications CE, FCC, RoHS
Kit contents The device

Quick installation guide

System requirements

Windows 98SE

Windows NT

Windows 2000

Windows XP

Windows Vista

Windows 7

Windows 8

MAC OS

NetWare

UNIX

Linux

Permissible operating temperature From 0 to 30 degrees C
Permissible storage temperature From -40 to 70 degrees C
Permissible air humidity 10% -90% non-condensing

Permissible air humidity during storage



5%-90% non-condensing
