Ubiquiti Pro XG 24 PoE is a managed switch designed to operate under the UniFi system. It stands out for its high throughput, featuring 16 10G Ethernet ports, 8 2.5G Ethernet ports, and 2 SFP28 slots (25 Gbps). Each Ethernet port supports PoE+++ power output, with a maximum output per port depending on the standard: 15.4 W for PoE (802.3af), 30 W for PoE+ (802.3at), 60 W for PoE++ (802.3bt type 3), or 90 W for PoE+++ (802.3bt type 4). The total PoE power budget across all ports is 720 W. The Pro XG 24 PoE supports the Etherlighting feature (enabling port illumination when using compatible patch cords) and selected Layer 3 management functions—DHCP server, DHCP relay, inter-VLAN routing, and static routing. This product is ideal for use as an access switch in networks based on Wi-Fi 7 access points. The high-throughput ports allow full utilization of modern Wi-Fi generation capabilities, and the high-power PoE supply enables the connection of most UniFi APs. The switch is equipped with a built-in 870 W AC power supply and includes a USP RPS DC connector for backup power (compatible only with USP-RPS).

UniFi L3 Switch

The offered product is a managed switch designed to operate under the UniFi system. It supports select Layer 3 functions—DHCP server, DHCP Relay, inter-VLAN routing, and static routing. In addition, the switch supports most standard Layer 2 functions; the full list can be found in the specifications below. Due to the lack of standalone operation capability, the device is best suited for networks based on UniFi solutions.

16 10G Ethernet Ports, 8 2.5G Ethernet Ports, 2 SFP28 Slots (25 Gbps)

The device is equipped with 16 10G Ethernet ports, 8 2.5G Ethernet ports, and 2 SFP28 slots (25 Gbps). All Ethernet ports support automatic speed negotiation and are backward compatible—even down to 10 Mbps. The switch stands out with very high switching capacity—460 Gbps—and a packet forwarding rate of 342 Mpps. This product can be effectively used in networks with infrastructure based on 2.5 Gbps or even 10 Gbps speeds.

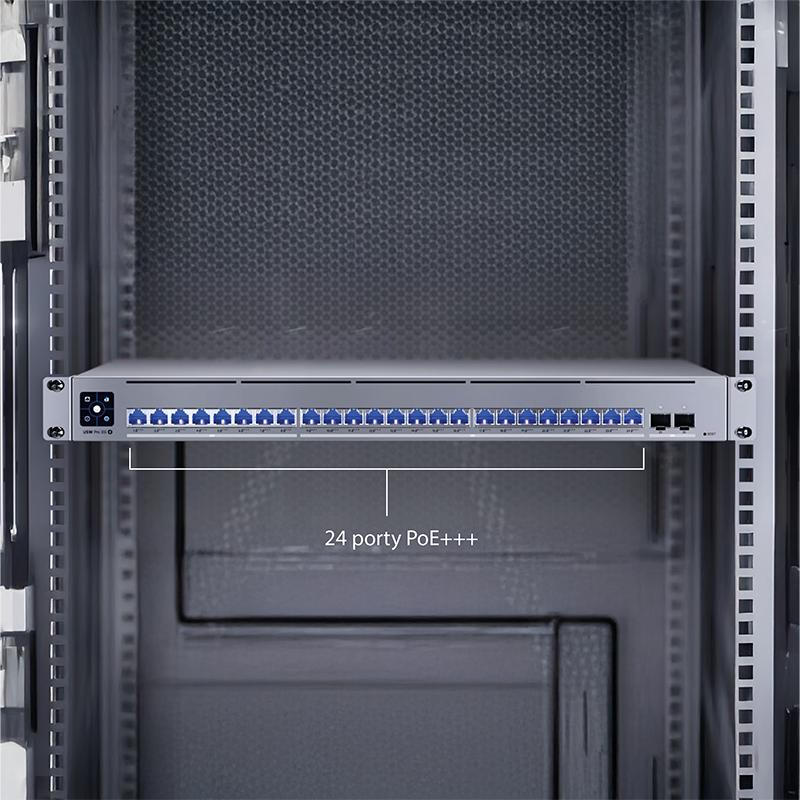

24 PoE+++ Ports, 720 W Power Budget

Each Ethernet port features PoE+++ power output. The maximum output power per port depends on the specific standard: 15.4 W for PoE (802.3af), 30 W for PoE+ (802.3at), 60 W for PoE++ (802.3bt type 3), or 90 W for PoE+++ (802.3bt type 4). The total power output budget across all ports is 720 W. The switch stands out for its high power capacity and compatibility with the latest standards, allowing you to power most access points on the market without worrying about their number.

19" Rack-Mount Enclosure, Built-in Power Supply, and USP RPS DC Connector

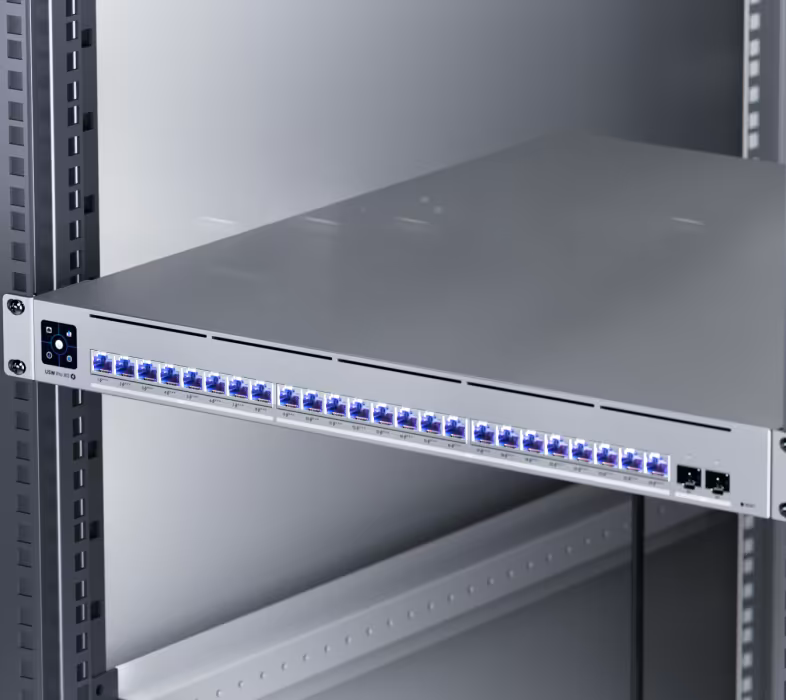

The device is housed in a 19" rack-mountable enclosure. Due to the switch's size and weight, the manufacturer recommends using 4 mounting rails, with a suggested rail spacing of 600–1066 mm. The Pro XG 24 PoE is equipped with an integrated 870 W AC power supply featuring a universal input connector, supporting an input voltage range of 100–240 V AC. Additionally, the switch includes a USP RPS DC input—allowing you to connect a UniFi Power Backup unit to ensure emergency power availability.

Use Case

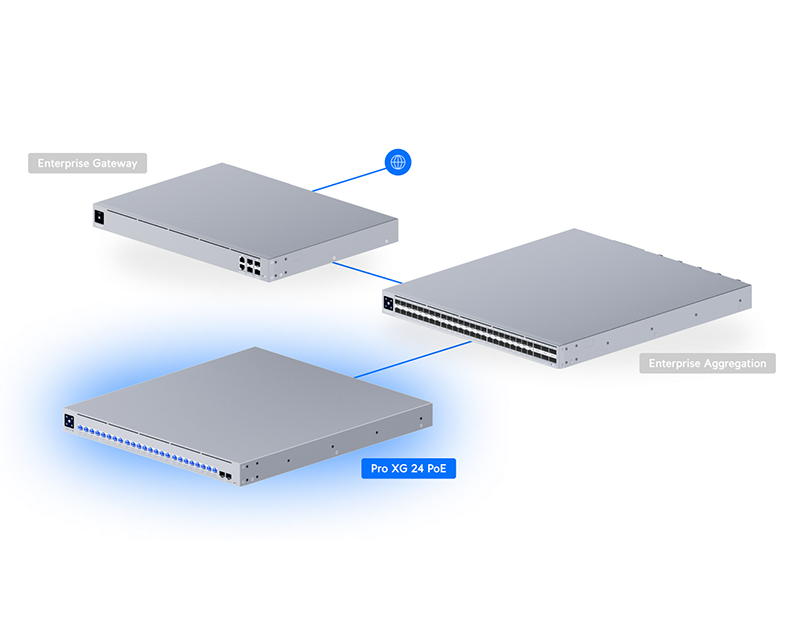

The offered product is an ideal solution for use as an access switch in large networks utilizing Wi-Fi 7 access points. Its high power budget and 2.5G / 10G ports ensure optimal performance for wireless networks. Thanks to its 16 10G Ethernet ports, the Pro XG 24 PoE is perfectly suited for integration with access points equipped with the same Ethernet interfaces. The device delivers the necessary performance for the entire network, while the SFP28 slots allow for uplink connections to a core or aggregation switch.

Specifications
