Ubiquiti G3 Gate Starter Kit for UniFi Access

Ubiquiti G3 Gate Starter Kit for UniFi Access

Brand: Ubiquiti Networks

Product Code: UQ-UA-G3-SK-GATE

Catalog number: 10568

Warranty (months):

Price

541,19 €

665,66 € incl. tax

favoriteAdd to wishlist

Description

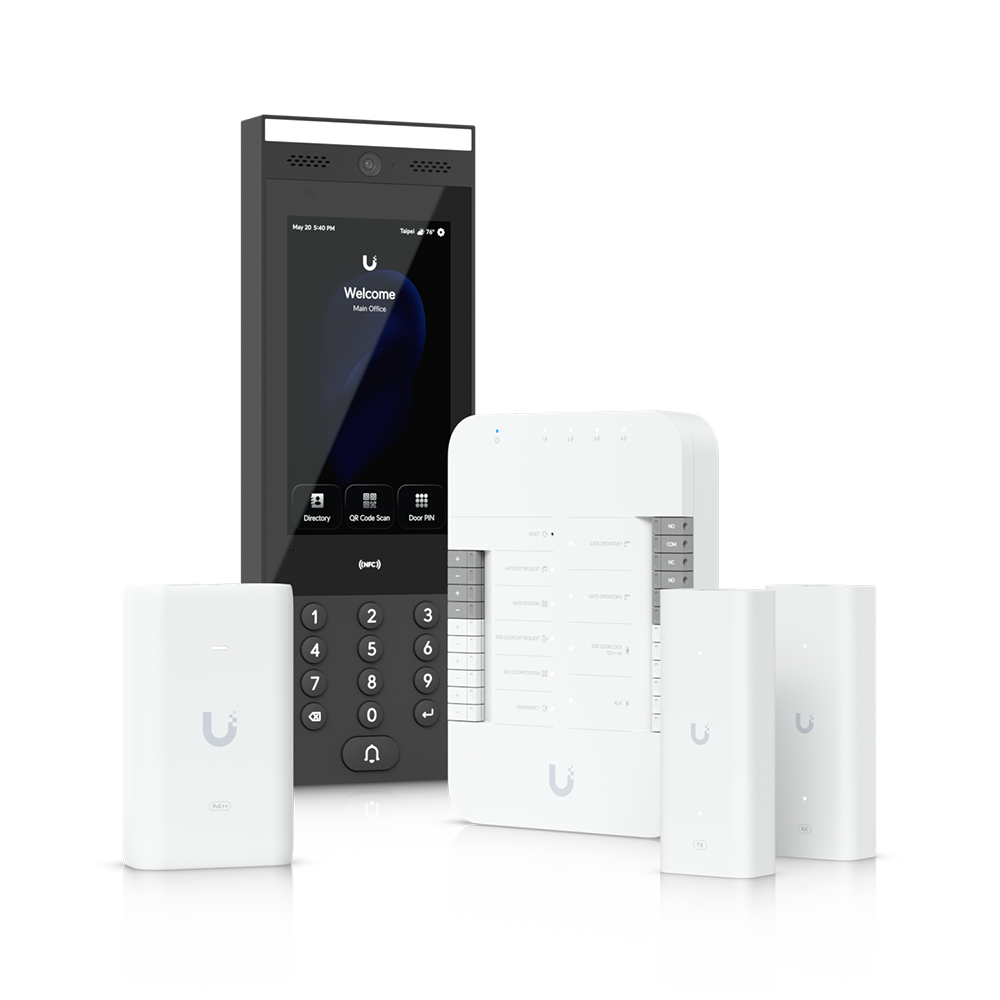

Ubiquiti G3 Gate Starter Kit is a starter set designed for the UniFi Access system. It enables gate control and consists of a hub (Gate Hub), intercom (G3 Intercom), PoE++ power supply, and converters for transmitting Ethernet over coaxial/two-wire cables. The hub should be connected directly to the electronics provided by the gate manufacturer, allowing you to operate a standard sliding, double-leaf, lifting gate, or various types of garage doors. Additionally, you can also monitor the status of a side gate. The included intercom functions as a video door phone, allowing guests to make voice calls and the owner to remotely open the gate via the app. The G3 Intercom also enables gate access using NFC cards/keyfobs, a PIN code, phone tap (linked with an Apple/Google account), or directly from the app. The last component in the kit is a pair of converters that allow you to convert the signal from Ethernet cables to coaxial or two-wire cabling. Thanks to this, you can modernize your building’s access system without the need for new wiring.

Gate Hub

The kit includes a hub designed to monitor the gate’s open/close status. It can be used to operate various types of parking or garage gates. Additionally, it offers the option to connect side doors or a pedestrian gate, depending on the application. The hub is equipped with 5 gigabit Ethernet ports (10/100/1000 Mb/s). The first port provides a PoE++ (802.3bt) input, while the remaining four deliver PoE (802.3af) output. The total maximum PoE output budget is 55 W.

G3 Intercom

The intercom is intended to control access for people entering the parking area, serving a role similar to that of a video door phone. Guests can make a voice call, which you then receive in the app, allowing you to decide whether to open the gate. In business applications, the intercom also functions as a reader that grants access to authorized individuals, such as employees. It supports NFC cards/keyfobs, PIN code unlocking, the mobile app, or phone tap (via Apple/Google Wallet). The device is designed for outdoor use and features an IP65 protection rating.

Converter Set

The included converters allow you to transmit Ethernet over coaxial cable or any two-wire cable. This way, when connecting the G3 Intercom and Gate Hub, you can take advantage of older, existing infrastructure without the need to install new cabling.

PoE++ Power Supply

The kit includes a PoE++ power supply (60 W) designed for the Gate Hub.

Application

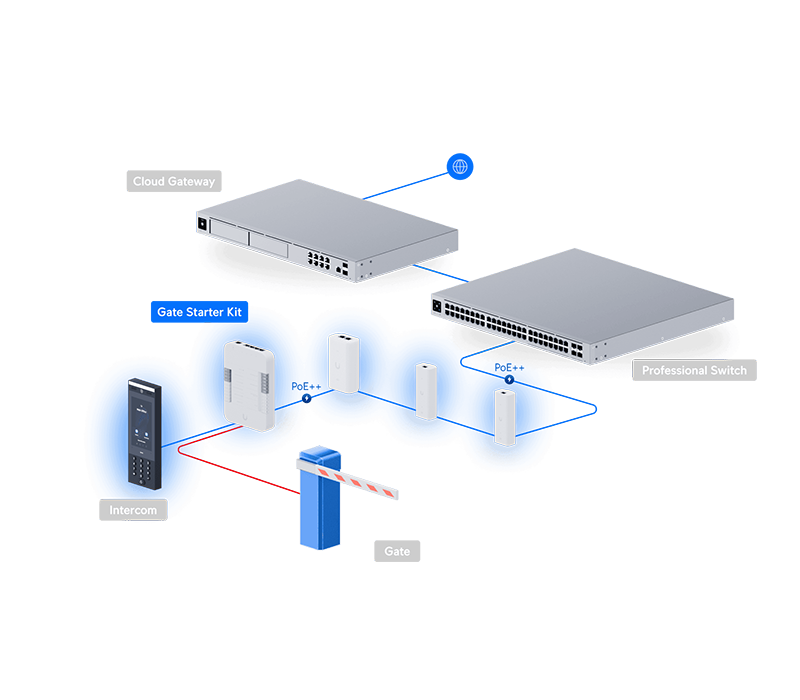

The kit allows you to integrate gate status control into the UniFi Access system. It is suitable for a wide range of use cases, both residential (for entrance and garage gates) and commercial. The system can be expanded with additional LPR-enabled cameras (sold separately), which enable automatic gate opening by recognizing a vehicle’s license plate. An additional advantage is the inclusion of Ethernet-to-coaxial/two-wire converters, allowing you to use existing cabling to connect the Gate Hub.

Specifications

Overview
Ubiquiti UA-G3-SK-Gate
In the Box	(1) Gate Hub (1) G3 Intercom (1) PoE++ adapter (2) 2-wire Retrofit Extenders
Touch Pass	10 free 1-year Touch Passes included
Gate Hub
Dimensions	175 x 126 x 26 mm (6.9 x 5 x 1")
Supported Doors	1 gate, 1 side door
Input Terminals	(1) Gate exit request (1) Gate position (1) Side door exit (1) Side door position (1) Emergency
Power Method	PoE++ (802.bt)
Enclosure Material	Polycarbonate
Mounting	DIN-rail (Included)
Weight	460 g (1 lb)
Indoor and Outdoor Use	Indoor only: device itself Outdoor: with waterproof junction box
NDAA Compliant	Yes
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Ambient Operating Temperature	-30 to 60° C (-22 to 104° F)
Ambient Operating Humidity	5 to 90% noncondensing
Networking Interface	(5) 10/100/1000 Base-T
PoE Interface	(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 55W aggregated)
Max. Power Consumption	22W (Without PoE output) 60W (With PoE output)
Digital Input	Gate exit request, gate position, side door exit request, side door position, emergency
Dry Output Relay	(2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A
Powered Output Relay	Side door lock: 12V DC, up to 1A
LEDs	W/B
Button	(1) Factory-reset
Recommend Max. Cable Length	UA-Lock-Electric (400 mA) 24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) UA-Lock-Magnetic-540kg (500 mA) 24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) UA-Lock-Magnetic-270kg (800 mA) 24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) Other locks (1 A) 24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
G3 Intercom
Dimensions	324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
Integrated Camera	Yes (View angle: H: 79.4°, V: 97.5°, D: 118.2°)
NFC Card & Keyfob Access	Yes
PIN Access	Yes
Apple/Google Wallet	Yes
Mobile Unlock	Yes
Two-Way Intercom & Doorbell Access	Yes
Weatherproofing	IP65
NDAA	Yes
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight	Device: 965 g (2.1 lb) Bracket: 445 g (1 lb)
Enclosure Material	Aluminum alloy, UV-stabilized polycarbonate, glass
Mount Material	Powder-coated stainless steel
Mounting	Wall mount, adapter to the gooseneck pedestal (Included)
Indoor and Outdoor Use	Yes
Ambient Operating Temperature	Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F)
Ambient Operating Humidity	5 to 90% noncondensing
Networking Interface	(1) GbE RJ45 port
Connectivity	BLE 4.2 NFC
Power Method	PoE (802.3af)
Max. Power Consumption	13 W
Supported Voltage Range	48 V DC
Sensor	Proximity sensor ALS sensor
Display	177 mm (7") diagonal
Touch Screen Technology	Capacitive multi-touch
Display Luminance	Max. 1000 nits (Typical)
Resolution	1024 x 600 px
Microphone	Yes
Speaker	(1) Yes, 2W
NFC Read Range	< 30 mm (1.18'')
NFC Technology	ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
LEDs	Amber
Buttons	(1) Factory-reset
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
Retrofit Extender
Dimensions	PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1") Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")
Weight	PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz) Adapter: 140 g (4.9 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Coaxial Connector	BNC female
Networking Interface	(1) 10/100 MbE (1) Homeplug AV
Power Method	PoE++ (802.3bt)
PoE Interface	PoE in: (1) PoE++, 50V DC, 1.2A PoE out: (1) PoE+, 48V DC, 0.6A
Max. Power Consumption	3W (Without PoE output)
ESD/EMP Protection	Air: ±8kV, contact: ±4kV
LEDs	White
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Ambient Operating Humidity	5 to 90% noncondensing
NDAA Compliant	Yes
PoE++ Adapter
Model	U-PoE++
Dimensions	106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight	210 g (7.4 oz)
Output Voltage	48V DC @ 1.25A
Gigabit LAN Port	Yes
Rated Voltage	100—240V AC @ 50/60Hz
Input Current	1.3A @ 120V AC 0.75A @ 230V AC
Efficiency	85+%
Output Ripple	1% max.
Switching Frequency	65 kHz
Line Regulation	≤ 1%
Load Regulation	≤ 3%
4-pair Powering	Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC Connector	IEC-320 C6
Data In / PoE	RJ45 shielded socket
Surge Protection	Difference and common mode
Clamping Protection	11V data, 60V power
Max. Surge Discharge	1500A (8/20 μs)
Peak Pulse Current	36A (10/1000 μs) (data)
Shunt Capacitance	<5 pF (data)
Response Time	< 1 ns
Power Method	Universal AC input, 100—240V AC, 50/60 Hz
Power Supply	AC/DC
Supported Voltage Range	100 - 240 V AC
Max. PoE+ Wattage per Port by PSE	60 W
Ambient Storage Temperature	-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	10 to 95% noncondensing
NDAA Compliant	Yes
