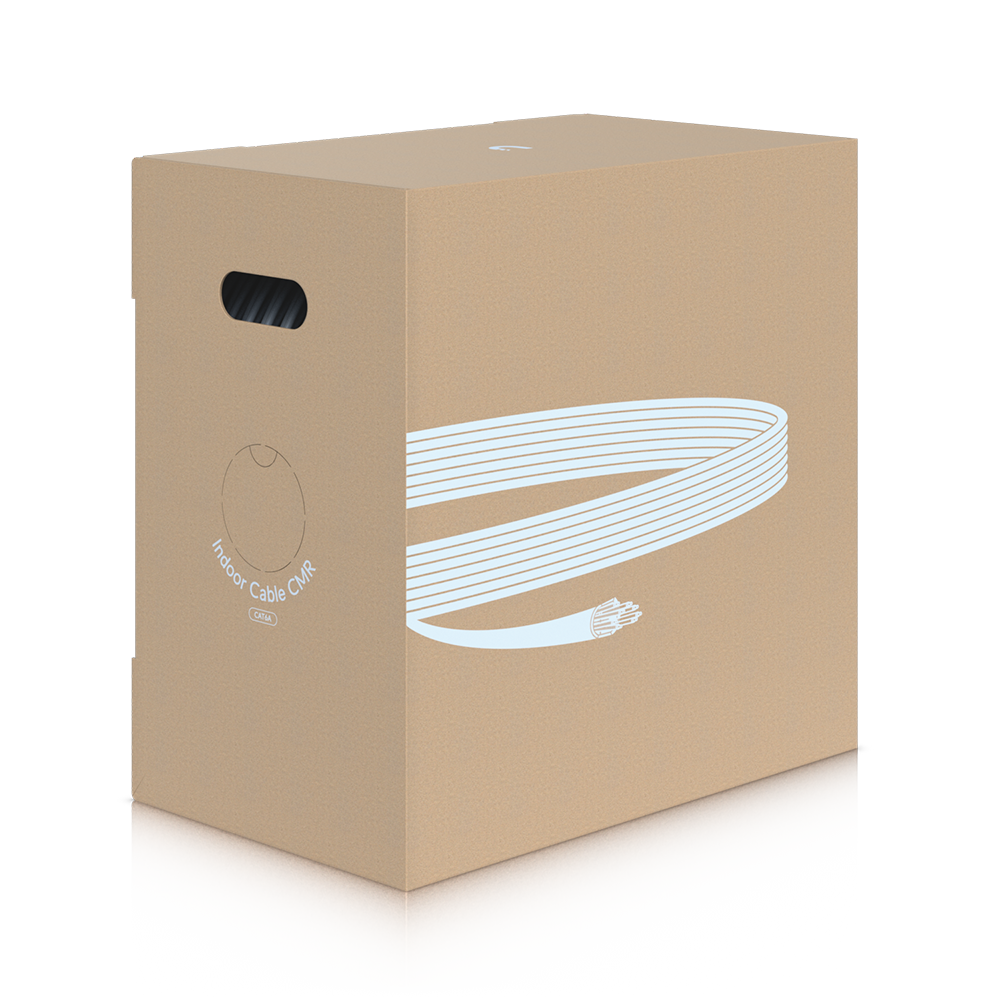

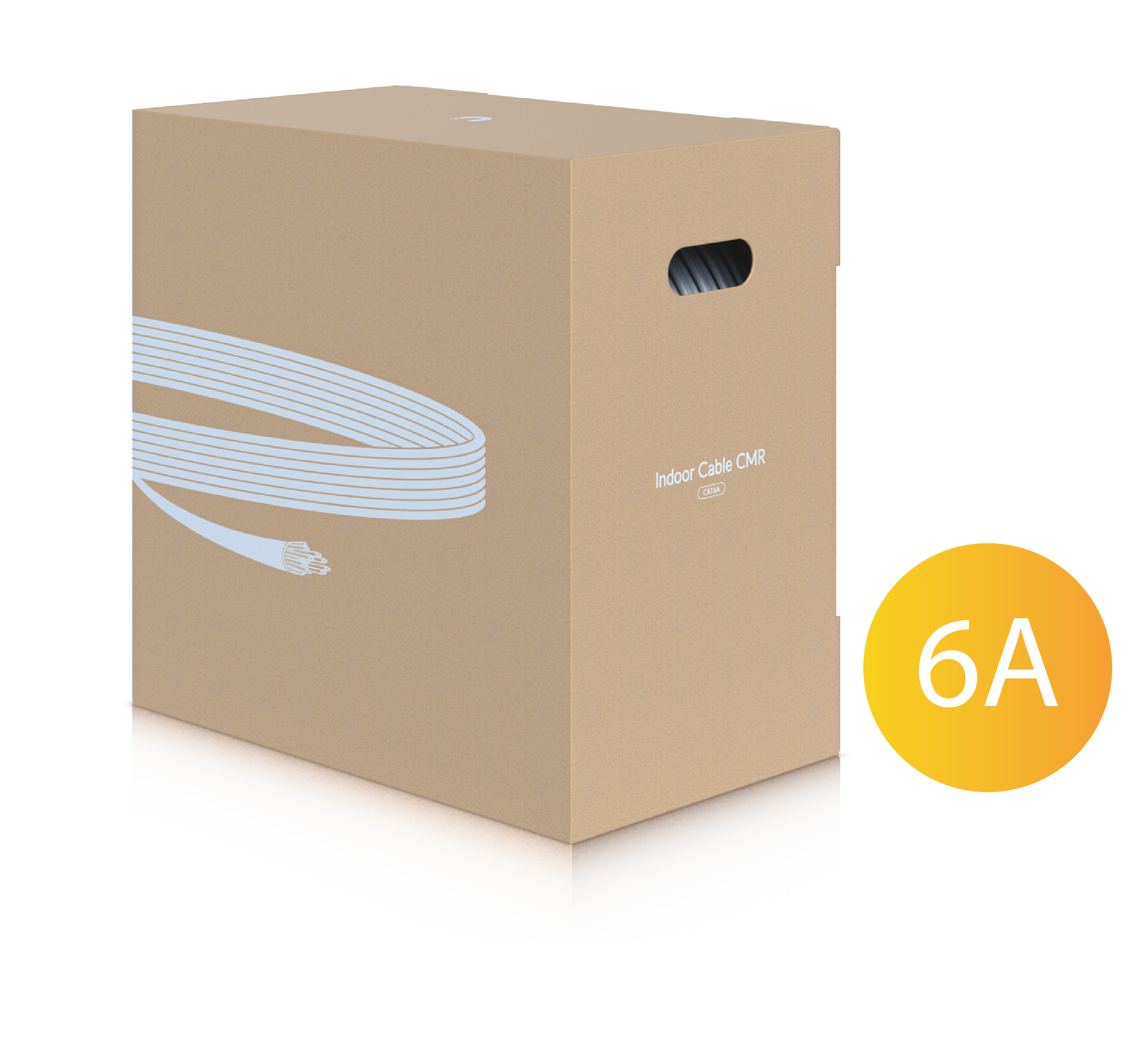

Ubiquiti UACC-Cable-C6A-CMR is an Ethernet cable (twisted pair) that meets Category 6A requirements. It has a white PVC jacket and is suitable for indoor use; the manufacturer did not apply any shielding. When purchasing the product, you receive a box containing 305 m of cable. The outer diameter of the cable is 7.05 mm, and the conductor diameter is 23 AWG. The offered product is designed for modern networks using high-throughput transmission and stands out with significantly better parameters compared to popular Cat. 5e / 6 cables.
Ethernet Cable U/UTP Cat. 6A (305 m)
The offered product is an Ethernet cable (twisted pair) that meets Category 6A requirements. When purchasing, you receive a box containing 305 m of cable. The manufacturer did not use shielding, but a special separator is placed between the wire pairs to improve transmission quality.


White Jacket, 23AWG, for Indoor Use
The cable’s outer jacket is made of PVC and comes in white; the cable is suitable for indoor installations. The conductors (solid wire) have a diameter of 23 AWG, in accordance with the 6A standard. The outer diameter of the cable is approximately 7.05 mm.
Specifications
Ubiquiti UACC-Cable-C6A-CMR | |
Overview | |
---|---|
Length | 305 m (1,000 ft) |
Type | Category 6A |
Flame Rating | CMR |
Shielding Type | UTP |
Conductor Type | Solid bare copper |
Conductor Wire Gauge | 23 AWG |
Box Dimensions | 494 x 302 x 481 mm (19.4 x 11.9 x 18.9") |
Color | White |
Box Weight | 19.3 kg (42.5 lb) |
Jacket Diameter | 7.05 ±0.2 mm |
Jacket Material | PVC |
Anti-Crosstalk Divider | Yes |
Ripcord | Yes |
Installation Temperature | 0 to 60°C (32 to 140°F) |
Ambient Operating Temperature | -20 to 75°C (-4 to 167°F) |
