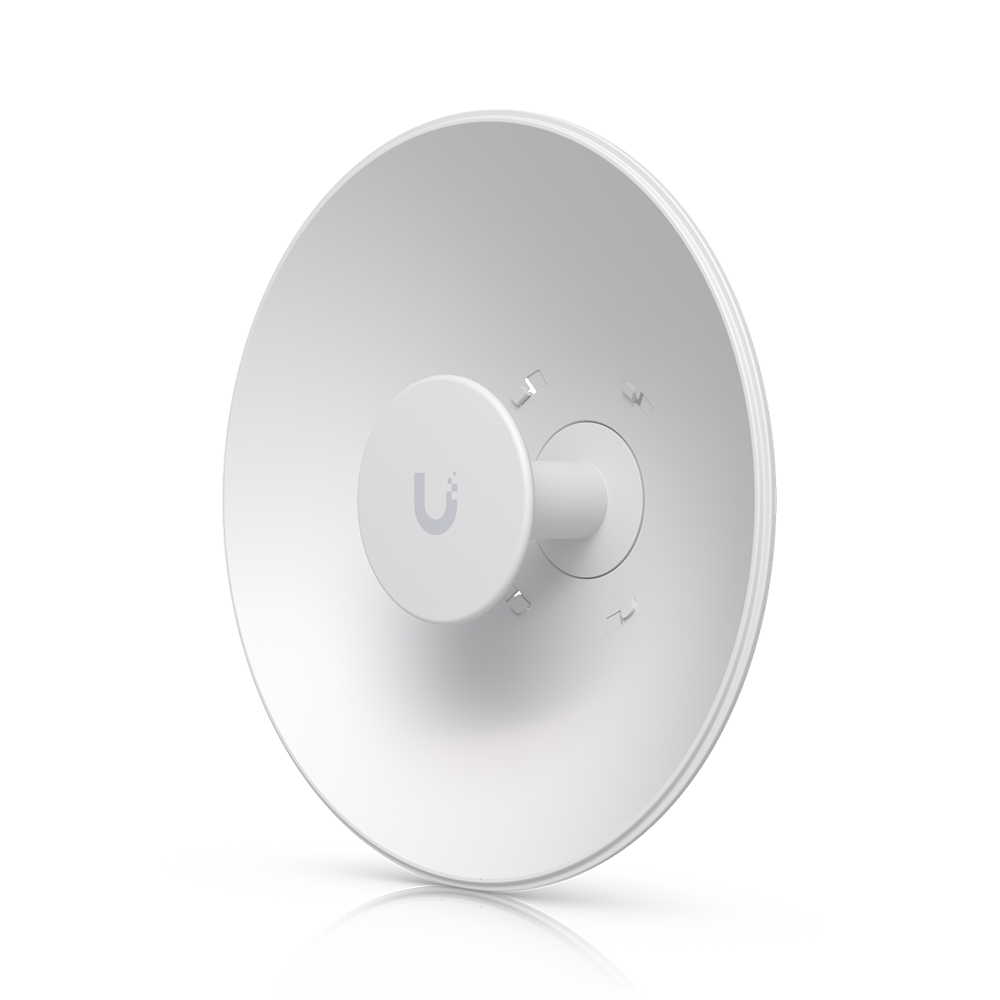

Ubiquiti UISP Dish Mini is a directional antenna designed for point-to-point connections. It operates in the 5150 MHz - 6875 MHz frequency range and uses dual polarization. The main beamwidth at 3dB ranges from 5.8° to 9° both vertically and horizontally. The gain is 26 dBi, which, according to the manufacturer, should be sufficient to establish a connection over a distance of up to 30 km. The antenna is compatible with Wave-MLO5, AF-5XHD, and RP-5AC-Gen2 radios. The outer diameter of the dish is only 42 cm, and the UISP Dish Mini is designed for outdoor installation on poles with a diameter of 32 - 76 mm.

Directional antenna 5150 - 6875 MHz for selected Ubiquiti devices

The offered product is a directional antenna designed to operate in the 5150 - 6875 MHz frequency range. The main beamwidth ranges from 5.8° to 9°, both vertically and horizontally. The directional pattern makes the UISP Dish Mini ideal for point-to-point (PTP) connections. The product is designed for direct mounting of radios such as the Wave-MLO5, AF-5XHD, or RP-5AC-Gen2.

Gain 26 dBi, diameter 42 cm, range up to 30 km

The antenna’s gain is 26 dBi, which, according to the manufacturer’s data, should be sufficient to establish a point-to-point connection over a maximum distance of 30 km. Despite its strong performance, the antenna is compact in size, with a diameter of only 42 cm.

Pole mounting, tilt adjustment

The antenna is designed for pole mounting, and the set includes a suitable mounting bracket. The bracket allows you to adjust the tilt angle in the horizontal plane within a range of +/- 20°.
