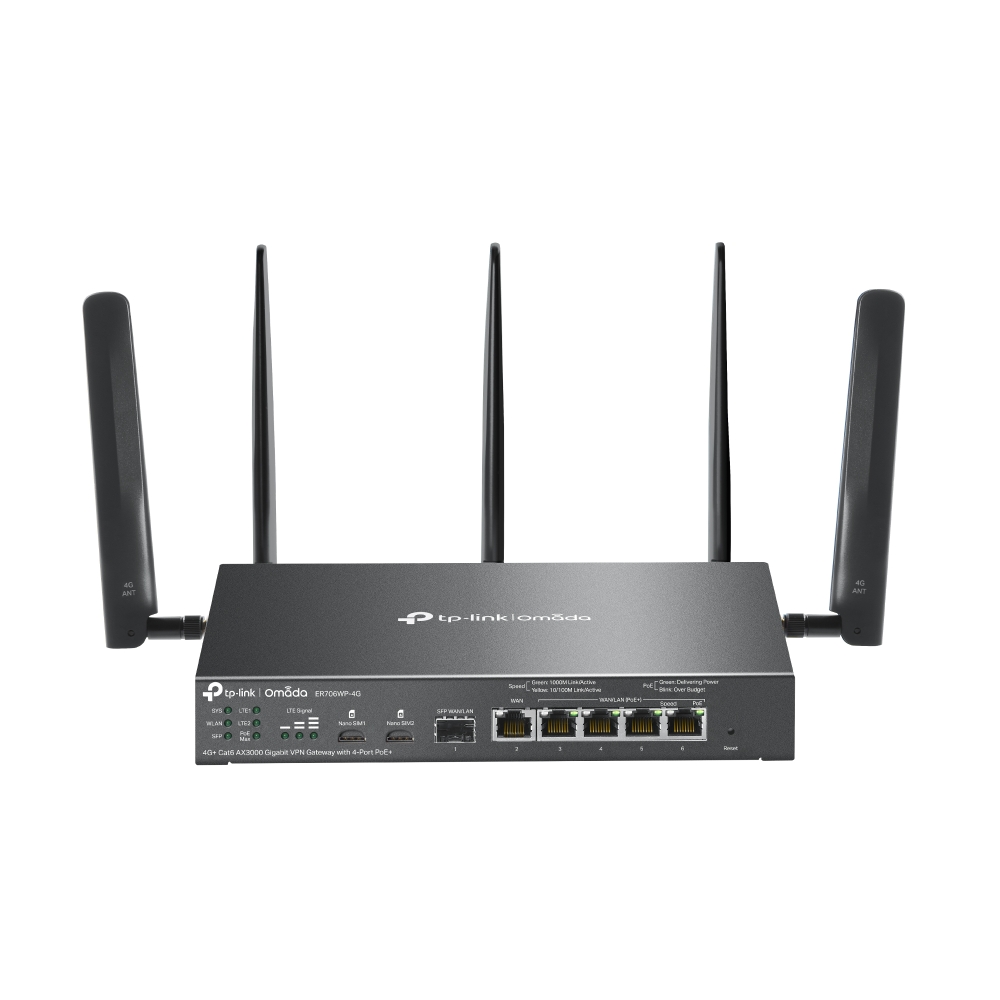

TP-Link ER706WP-4G gigabit VPN Omada router 4G+, Wi-Fi 6, AX3000, 6x GE
Price
249,26 €
306,59 € incl. tax
favoriteAdd to wishlist
The TP-Link ER706WP-4G is a Gigabit VPN Omada Gateway with integrated router, 4G/LTE modem, Wi-Fi 6 access point, and a 4-port PoE+ switch functionalities. The AX3000 class device offers dual-band Wi-Fi 6 with speeds up to 2976 Mbps. WAN connectivity is provided by an integrated 4G+ Cat6 modem (up to 300 Mbps) with two SIM slots, a dedicated WAN (RJ45) port, and one SFP port, along with the ability to reconfigure four LAN/WAN (RJ45) ports with PoE+ functionality (45W budget), thus supporting Multi-WAN operation. The gateway enables secure connections through IPsec, SSL, WireGuard, and OpenVPN protocols, and is fully managed within the Omada SDN ecosystem.

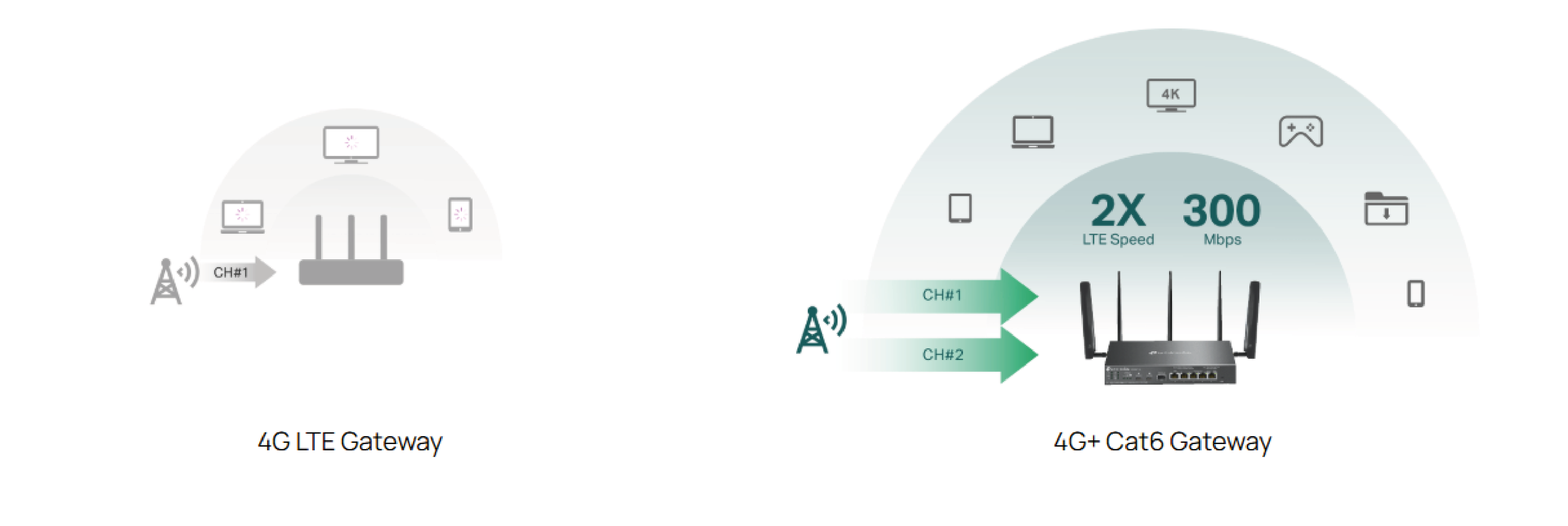

Instant 4G+ LTE Internet Access at Speeds up to 300 Mbps

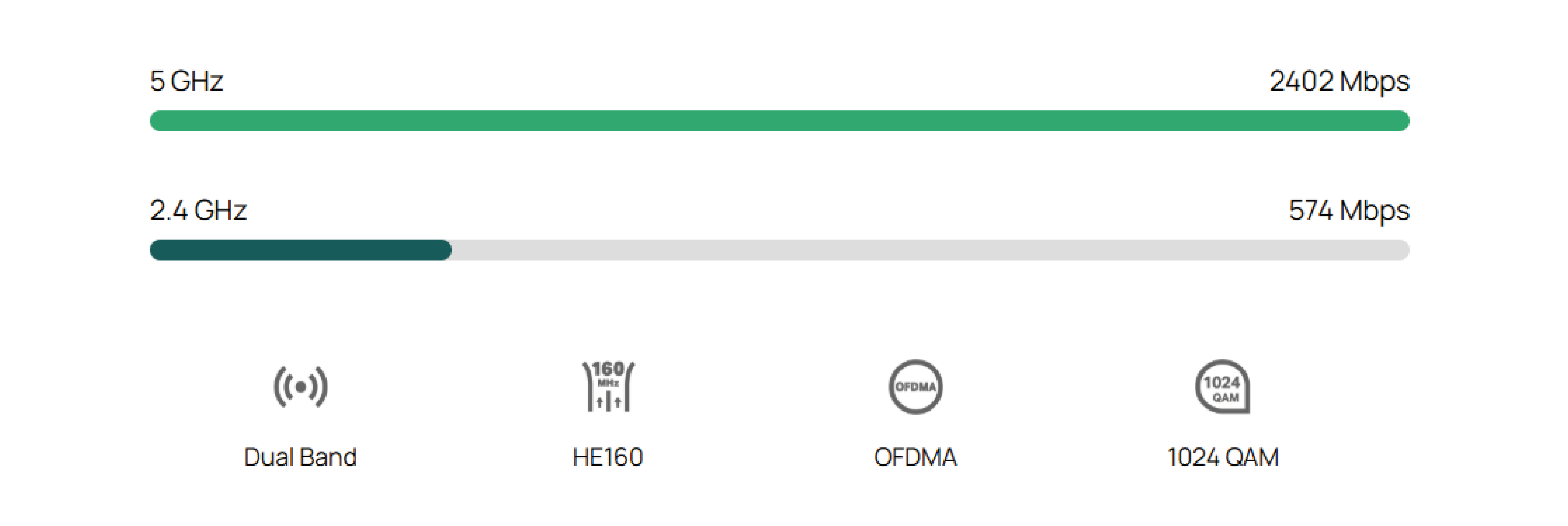

Wi-Fi 6 in AX3000 Standard

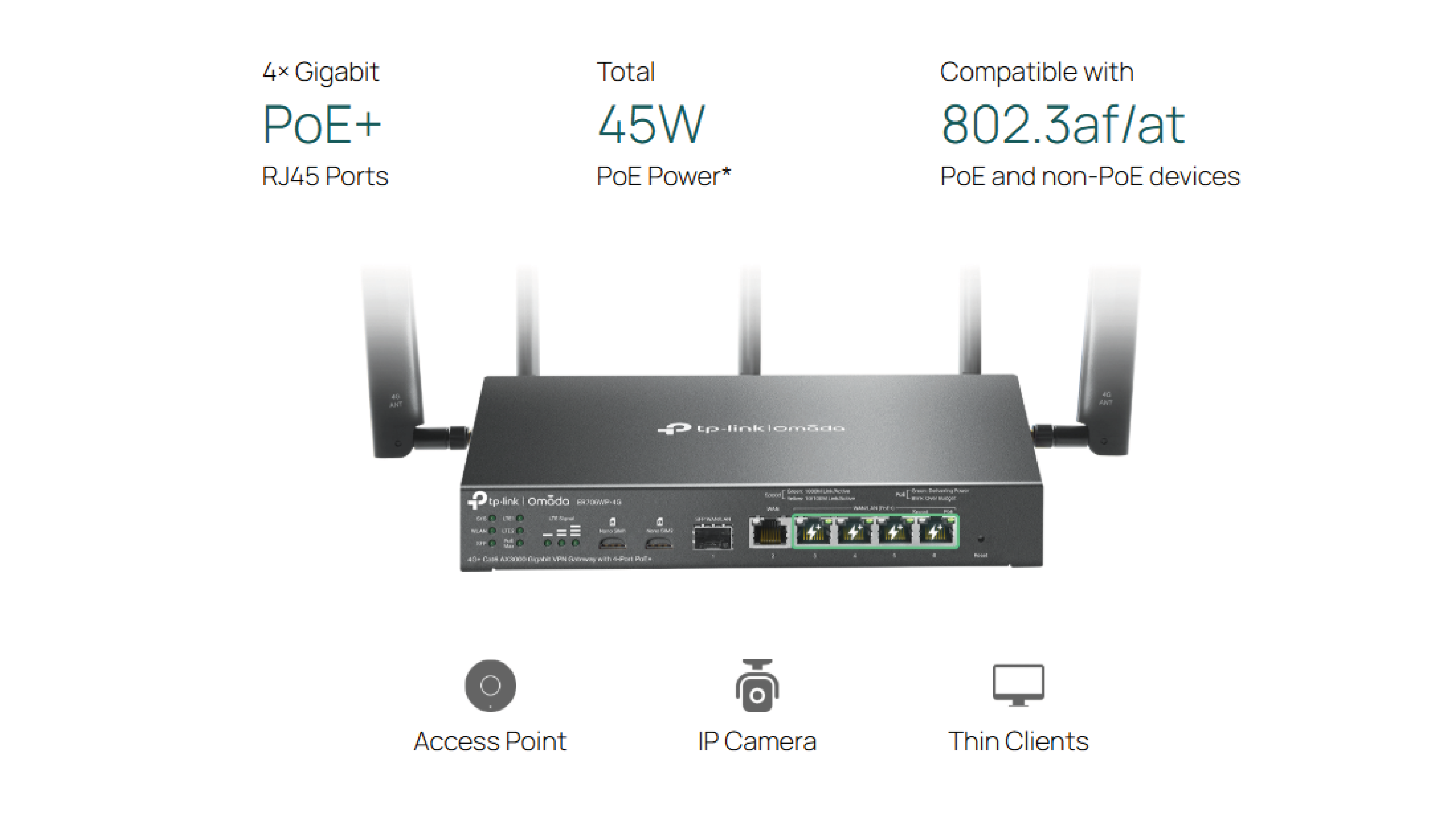

Power over Ethernet, Flexible Network Deployment
Ideal Device for Use in Small Businesses

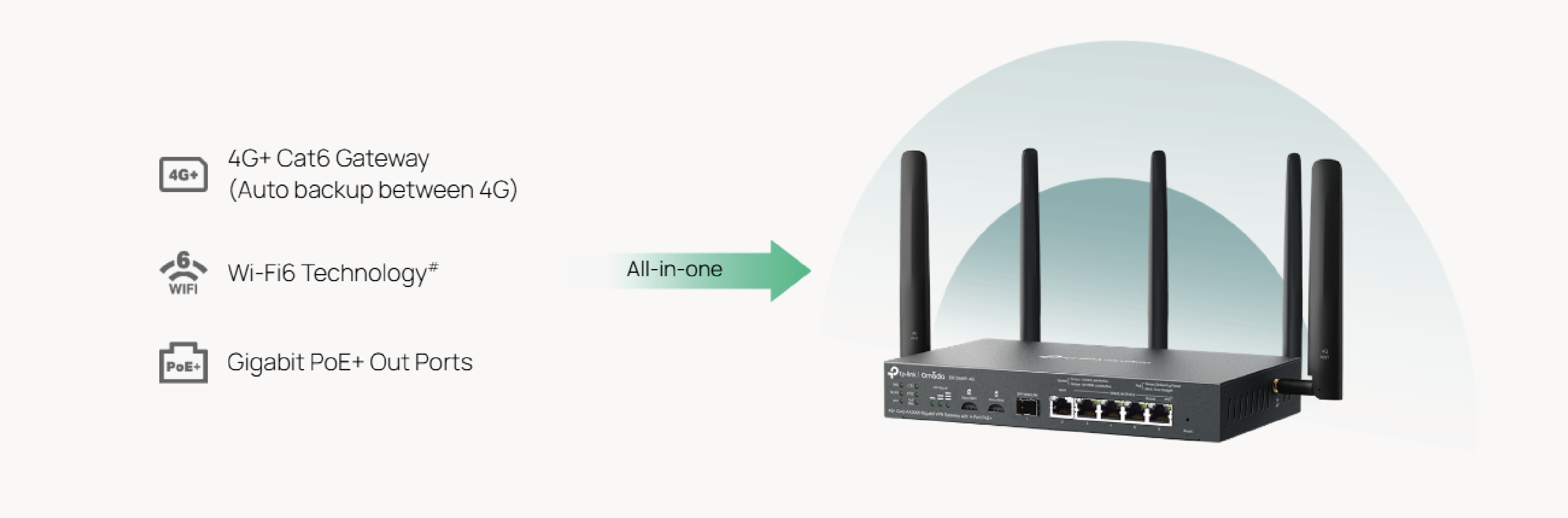

The ER706WP-4G combines 4G Internet access, Wi-Fi 6 technology, and 4 Gigabit PoE+ ports.
Stable Internet Access for Your Business

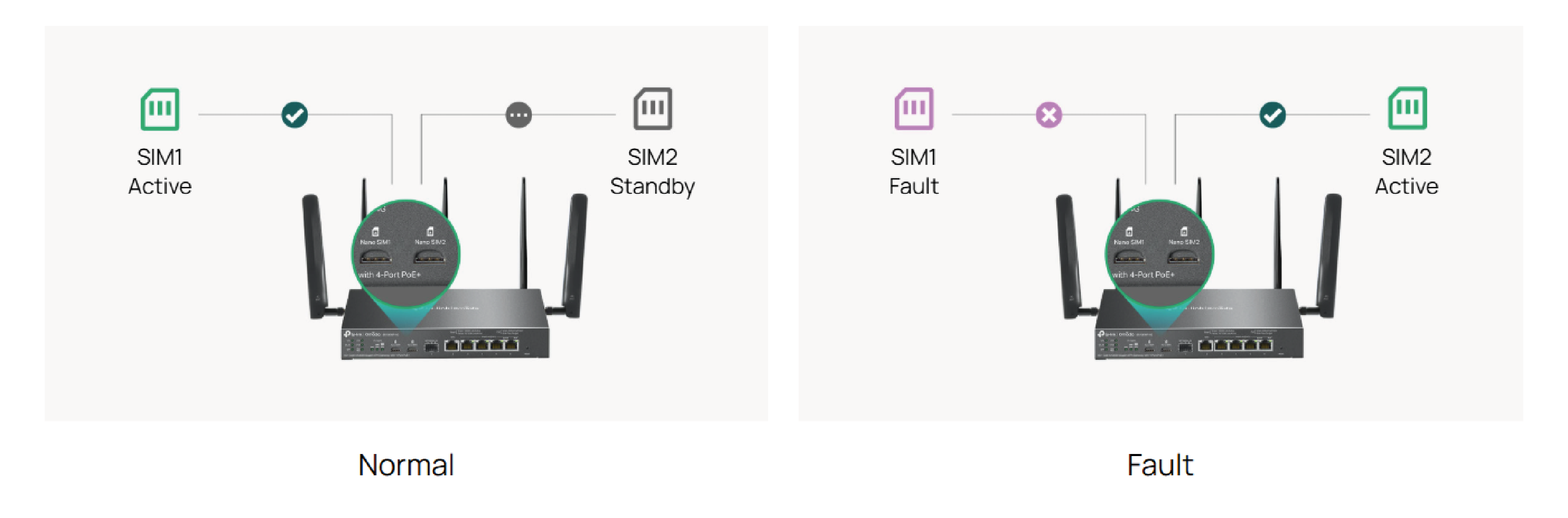

Two SIM card slots ensure business continuity and redundancy even in scenarios where other backup WAN connections fail.

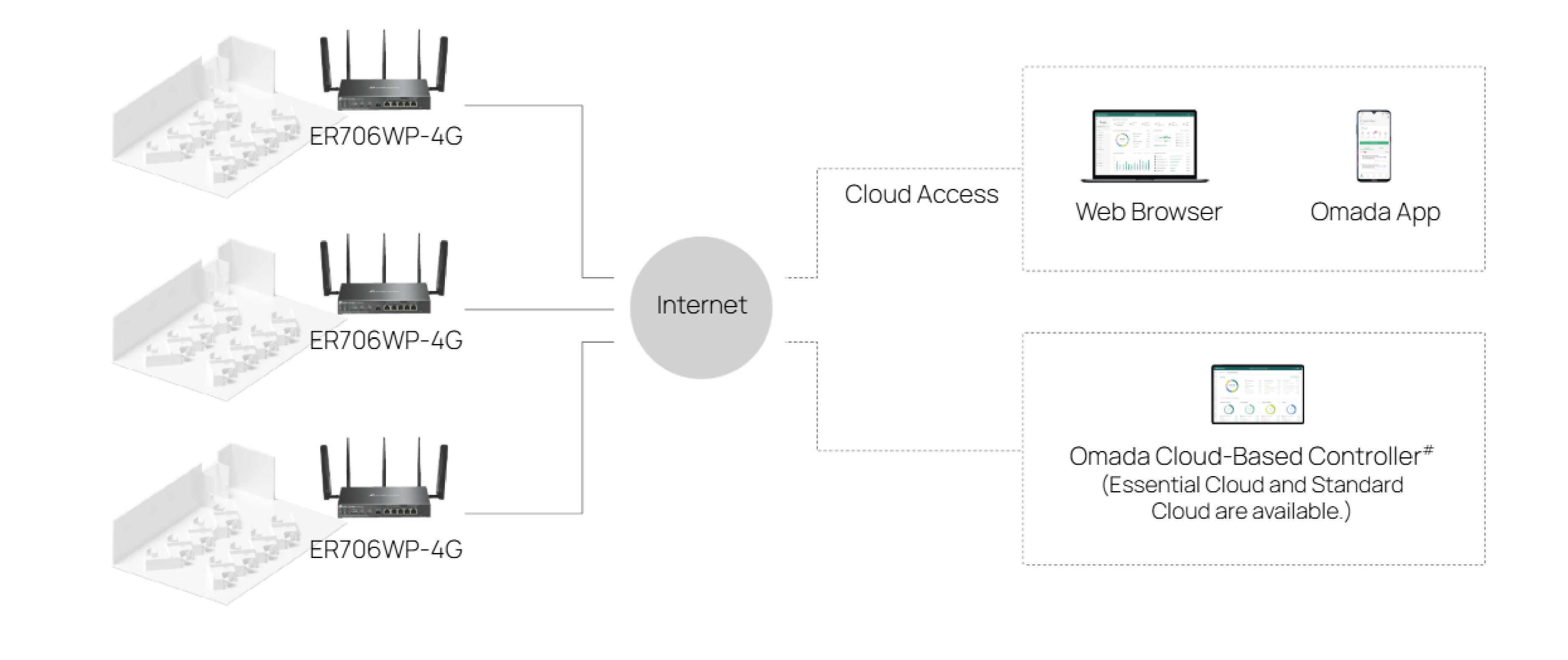

Omada SDN Platform and Cloud Access
Centralized Cloud Management for Omada Gateways, Switches, and Access Points located in multiple locations, thanks to the Cloud-based Omada Controller, offering a free Essentials version of cloud services and reducing maintenance costs.

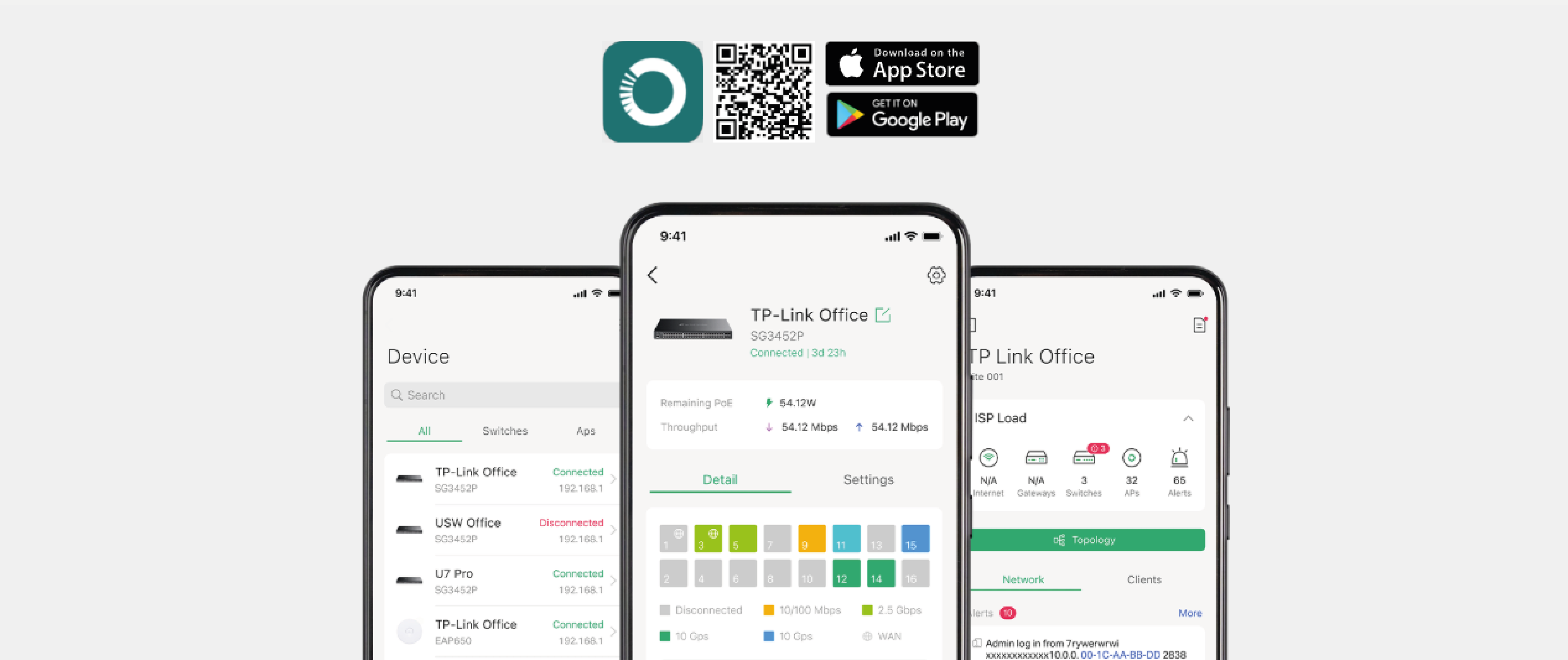

Easy Management via Omada App
Specification
| TP-Link ER706WP-4G | |
| 4G | |
|---|---|
| Network Type |
Bands: Band Aggregation: |
| SIM Card Size | 2 nano SIM card slots (4G+ Cat6) |
| Frequency/Speed | Downlink: 300 Mb/s Uplink: 50 Mb/s |
| Transmission Security | |
| DPI | Application Control via DPI / updated Application Library |
| IDS/IPS | IPS/IDS threat detection based on signatures |
| Access Control | Access Control based on Source/Destination IP Address |
| Filtering | WEB Group Filtering URL Filtering Network Security |
| ARP Attack Protection | Sending GARP Packets ARP Scanning† IP and MAC Address Binding |
| Network Attack Protection | TCP/UDP/ICMP Flood Defense Blocking of TCP Scanning (Stealth FIN/Xmas/Null) Blocking of ping packets from the WAN |
| Hardware Features | |
| Ports | 1 Gigabit SFP WAN/LAN slot 1 Gigabit RJ45 WAN port 4 Gigabit RJ45 WAN/LAN ports |
| Network Cabling | 10BASE-T: UTP cable Category 3, 4, 5 (Max. 100 m) EIA/TIA-568 100Ω STP (Max. 100 m) 100BASE-TX: UTP cable Category 5, 5e (Max. 100 m) EIA/TIA-568 100Ω STP (Max. 100 m) 1000BASE-T: UTP cable Category 5, 5e, 6 (Max. 100 m) |
| Buttons | Reset |
| Power Supply | 4 ports with PoE+ output Total PoE Power Budget 45W |
| Wi-Fi Frequency & Transfer Rate | 2.4 GHz: 574 Mb/s 5 GHz: 2402 Mb/s (HE160) |
| Flash Memory | 256 MB NAND |
| DRAM Memory | 512 MB DDR4 |
| LED Indicators | SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal Strength, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act, PoE) |
| Dimensions (W x D x H) | 226 × 131 × 35 mm (8.9 × 5.2 × 1.4 inches) (Antenna dimensions are not included) |
| Antennas | Wi-Fi: 3 detachable, dual-band (5GHz gain 5.5dBi, 2.4GHz gain 4.5dBi) LTE: 2 detachable (4.0dBi gain) |
| Mounting | Desktop Wall-mountable Rack-mountable |
| Max. Power Consumption | Maximum 64.9W with PoE Maximum 19.8W without PoE |
| Performance | |
| IPS Throughput | TCP: 229 Mb/s UDP: 188 Mb/s |
| DPI Throughput | TCP: 933 Mb/s UDP: 927 Mb/s |
| GRE | Unencrypted: 545.3 Mb/s Encrypted: 282.6 Mb/s |
| WireGuard VPN | 387.7 Mb/s |
| Concurrent Sessions | 150,000 |
| New Sessions per Second | 5,100 |
| NAT (Static IP) | 947.1 Mb/s / 940.1 Mb/s |
| NAT(DHCP) | 949.2 Mb/s / 941.1 Mb/s |
| NAT(PPPoE) | 942.6 Mb/s / 941.1 Mb/s |
| NAT (L2TP) | 875.4 Mb/s / 892.0 Mb/s |
| NAT (PPTP) | 881.2 Mb/s / 895.8 Mb/s |
| IPsec VPN Throughput | ESP-SHA1-AES256: 652.2 Mb/s ESP-SHA256-AES256: 654.4 Mb/s ESP-SHA384-AES256: 646.5 Mb/s ESP-SHA512-AES256: 670.5 Mb/s |
| OpenVPN | 115.5 Mb/s |
| L2TP VPN Throughput | Unencrypted: 990.0 Mb/s Encrypted: 475.0 Mb/s |
| PPTP VPN Throughput | Unencrypted: 1177.9 Mb/s Encrypted: 177.4 Mb/s |
| SSL VPN Throughput | 122.5 Mb/s |
| 66 Byte Packet Forwarding Rate | 1,453,489 p/s / 1,453,488 p/s |
| 1,518 Byte Packet Forwarding Rate | 81,274 p/s / 91,275 p/s |
| Wireless Transmission Properties | |
| Advanced Features | Seamless Roaming Mesh (with Mesh-supporting EAPs) OFDMA Beamforming MU-MIMO Rate Limit: SSID/Client-based Airtime Fairness Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise Multi SSID: 16 total (8 per band) |
| Guest Network Function | Yes |
| Basic Functions | |
| WAN Connection Type | Static IP Assignment Dynamic IP Assignment PPPoE (MRU configuration support) PPTP L2TP |
| MAC Address Cloning | WAN Address Modification |
| DHCP | DHCP Server DHCPv6 PD Server (Standalone Mode Only) DHCP Option Customization DHCP Address Reservation Multi-IP Interfaces* Multi-Net DHCP* |
| SMS | SMS Receiving / Sending |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode |
| VLAN | 802.1Q VLAN |
| IPTV | IPTV |
| Advanced Functions | |
| Access Control Lists (ACL) | Filtering by IP/Port/Protocol/Domain Name |
| Advanced Routing | Static Routing Policy Routing RIP OSPF |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balancing | Intelligent Load Balancing Application Optimized Routing Backup Link (Time, Failover) Online Detection |
| NAT | One-to-One NAT Multi-Net NAT Virtual Servers Port Triggering† NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Session Limit | IP-based Session Limit |
| VPN Networks | |
| GRE | Standalone Mode Only |
| SSL VPN | 50 Tunnels |
| IPsec VPN | 100 IPsec VPN Tunnels LAN-to-LAN, Client-to-LAN 2 Negotiation Modes - Main/Aggressive Encryption DES, 3DES, AES128, AES192, AES256 IPsec Failover IKE v1/v2 Authentication MD5, SHA1, SHA2-384 and SHA2-512 NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server 10 PPTP VPN Clients 50 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server 10 L2TP VPN Clients 50 Tunnels L2TP over IPSec |
| OpenVPN | OpenVPN Server 5 OpenVPN Clients 55 OpenVPN Tunnels "Certificate + Account" Mode Full Mode |
| WireGuard VPN | 20 Tunnels |
| Authentication | |
| Network Authentication | No Authentication Simple Password§ Hotspot (Local User§ / Voucher§ / SMS§ / Radius§) External Radius Server External Portal Server§ LDAP |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-Based Controller |
| Cloud Access | Yes |
| Services | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, Custom DDNS) |
| Support | Web-based Management Remote Management Configuration Export and Import SNMP v1/v2c/v3 Diagnostics (Ping and Traceroute)† NTP Synchronization† Port Mirroring CLI (Standalone Mode Only) System Log Support |
| Zero-Touch Provisioning (ZTP) | Yes. Requires Omada Cloud-Based Controller. |
| Management Panel Features | Automatic Device Discovery Intelligent Network Status Monitoring Unusual Event Alerts Unified Configuration Process Restart Schedule Personalized Network Login Page |
| Other | |
| Package Contents | ER706WP-4G Power Adapter Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™, 7, 8, 8.1, 10, 11 MAC OS NetWare UNIX Linux |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90%, non-condensing Storage Humidity: 5–90% non-condensing |
