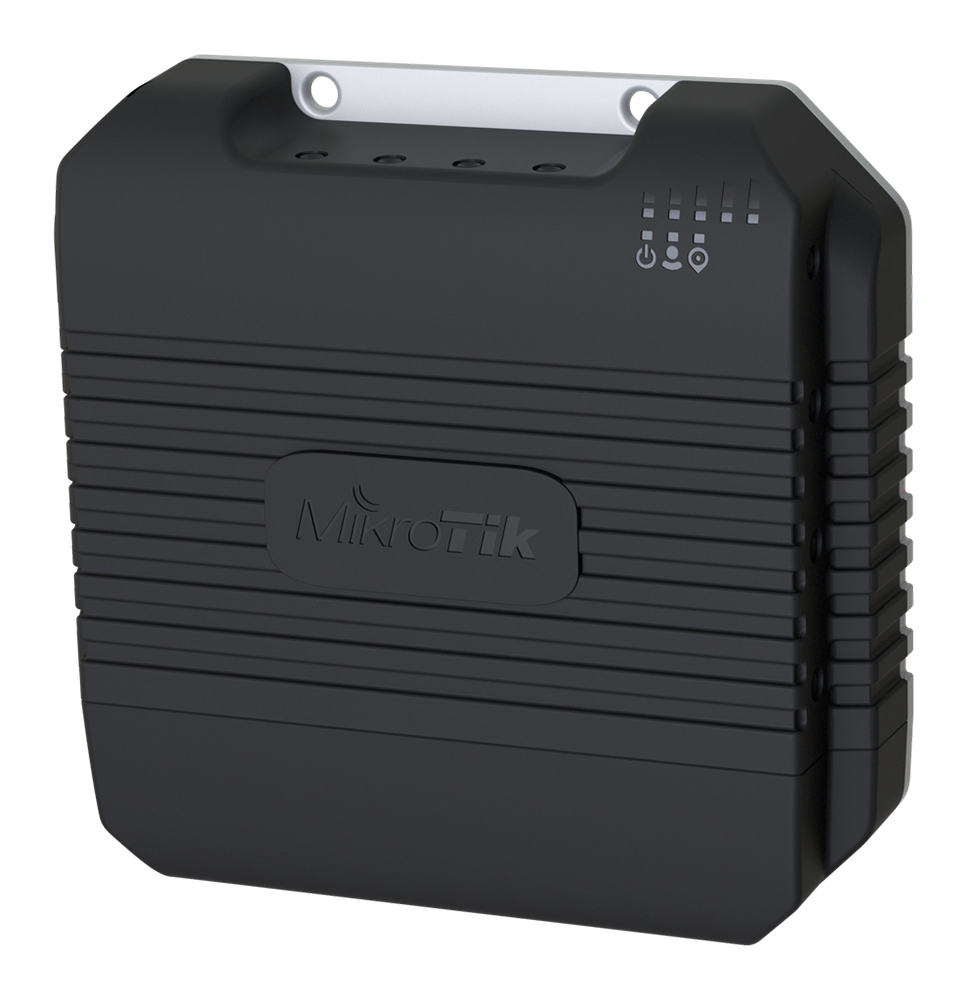

MikroTik LtAP LTE7 kit is a versatile router offering advanced configuration options and a wide range of applications. It is the successor to the previously sold LtAP LTE6 kit, featuring a higher-category LTE modem while being offered at a lower price. The maximum theoretical mobile data throughput is 300 Mbps for downloads and 100 Mbps for uploads. The device is backward-compatible with 3G standards. The LtAP LTE7 kit can transmit a Wi-Fi 4 network, supports the 2.4 GHz band, and IEEE 802.11 b/g/n protocols. The maximum theoretical Wi-Fi throughput is 300 Mbps. An additional advantage is GPS support — the product is designed, among other uses, for the automotive industry. The router features a durable enclosure and a very wide operating temperature range, from -40°C to 70°C. It is equipped with one 1G Ethernet port and can be powered in three ways: via PoE (passive, 12–30 V DC), DC socket (12–30 V DC), or automotive connector (12–27 V DC). The LtAP LTE7 kit has a total of three miniSIM slots, allowing the use of SIM cards from different operators to ensure redundancy.

LTE Cat. 7 connectivity, 3 SIM slots, GPS

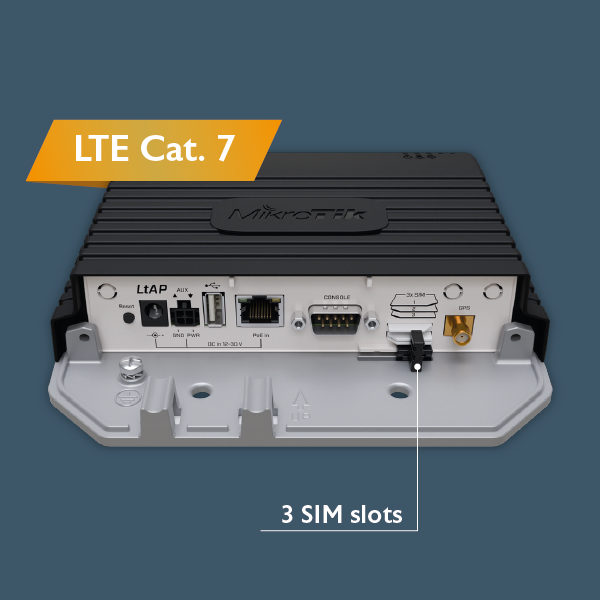

The offered product is equipped with an LTE Cat. 7 modem and is the direct successor to the previously sold model. The maximum theoretical throughput is 300 Mbps for downloads and 100 Mbps for uploads. The modem can aggregate two bands; the full list of supported frequencies can be found in the specification below. Inside the enclosure, there are three mini SIM slots, allowing the use of SIM cards from different operators. This is especially useful in the transportation industry, as it helps reduce roaming costs when the device operates across borders. The LtAP LTE7 kit also supports GPS transmission, enabling location tracking.

Wi-Fi 4 N300

The device can transmit a Wi-Fi 4 network in the 2.4 GHz band. It uses IEEE 802.11 b/g/n protocols, with a maximum theoretical connection throughput of 300 Mbps. Inside the enclosure, there are integrated omnidirectional antennas with a gain of 2.5 dBi.

Durable metal enclosure

The LtAP LTE7 kit features a durable metal enclosure that is additionally protected against moisture and dust ingress. It is designed for installation in challenging environments, such as inside vehicles, forklifts, agricultural machinery, or in attics and warehouse halls. The set includes a kit of anchors allowing wall mounting of the LtAP.

1x 1G Ethernet port, 2x miniPCIe slots, 3 power options

The router is equipped with one 1G Ethernet port (10/100/1000 Mbps), which also serves as a PoE input (passive PoE 12–30 V DC). Power can also be supplied via a standard DC socket or an automotive connector. Inside the enclosure, there are two miniPCIe slots — one of them already houses the LTE modem, while the second can be used to install an additional modem or radio card as needed.

Applications

The device is primarily designed for use in locations where GPS location tracking is required. It is ideal for delivery vans, buses, and various types of agricultural or warehouse machinery. It is built for use in challenging conditions and offers significantly greater durability and sealing compared to competing solutions.

Specifications
