Ubiquiti Ethernet Surge Protection Outdoor 20 kA
Price
13,76 €
16,92 € incl. tax
favoriteAdd to wishlist

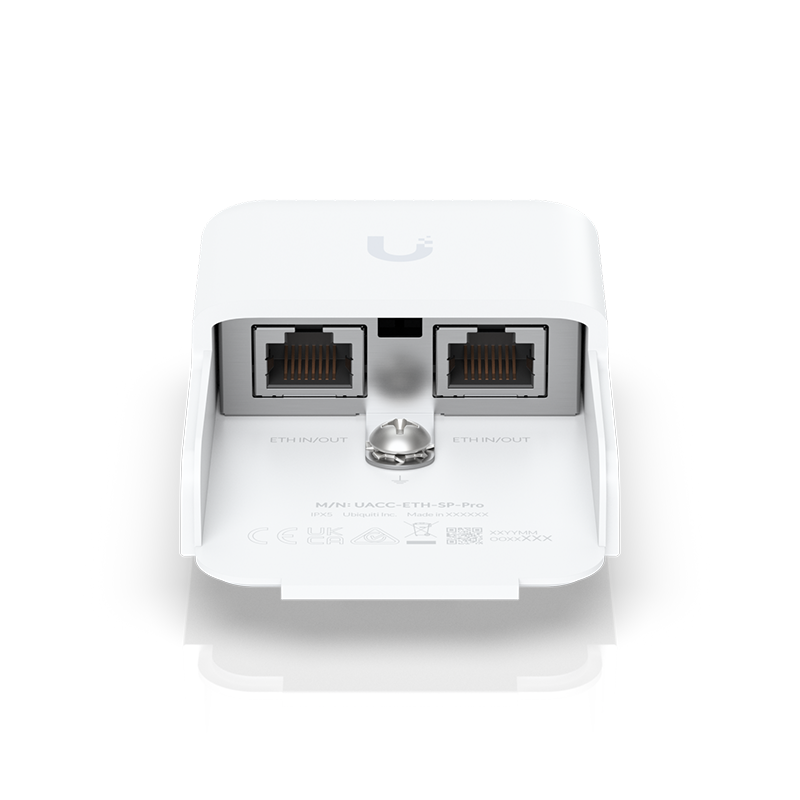

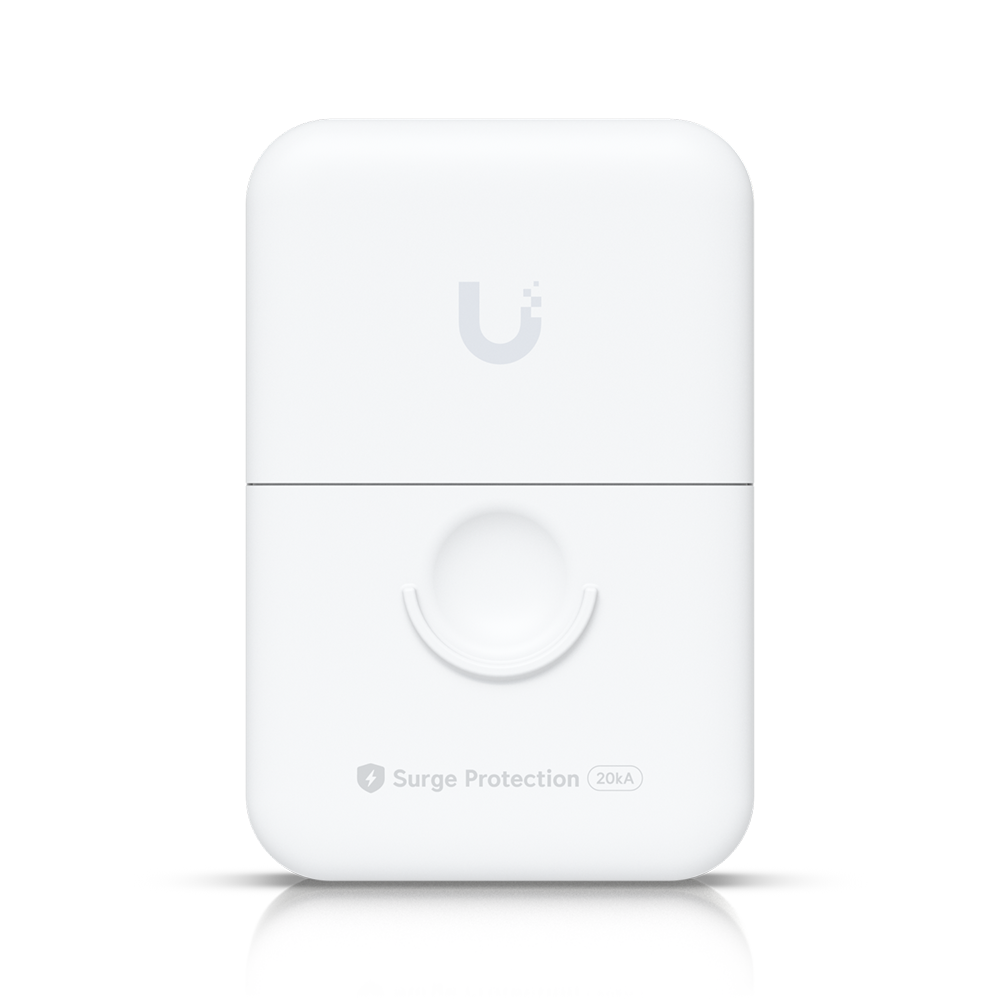

The Ubiquiti UACC-ETH-SP-Pro is designed for surge protection of connected devices and can also be used to safeguard PoE connections. It features 2 Ethernet ports and an enclosure suitable for outdoor installation. It supports data throughput up to 10 Gb/s, with a maximum discharge current of 20 kA.
Surge Protection for a Single Device, PoE Support, Up to 10 Gb/s Throughput
The offered product provides surge protection for a single device. It is equipped with two Ethernet ports and supports a maximum data throughput of 10 Gb/s. It offers surge protection up to 20 kA, safeguarding the connected device from various types of electrical surges. It is an essential component in networks that utilize devices installed outdoors.
For Outdoor Use

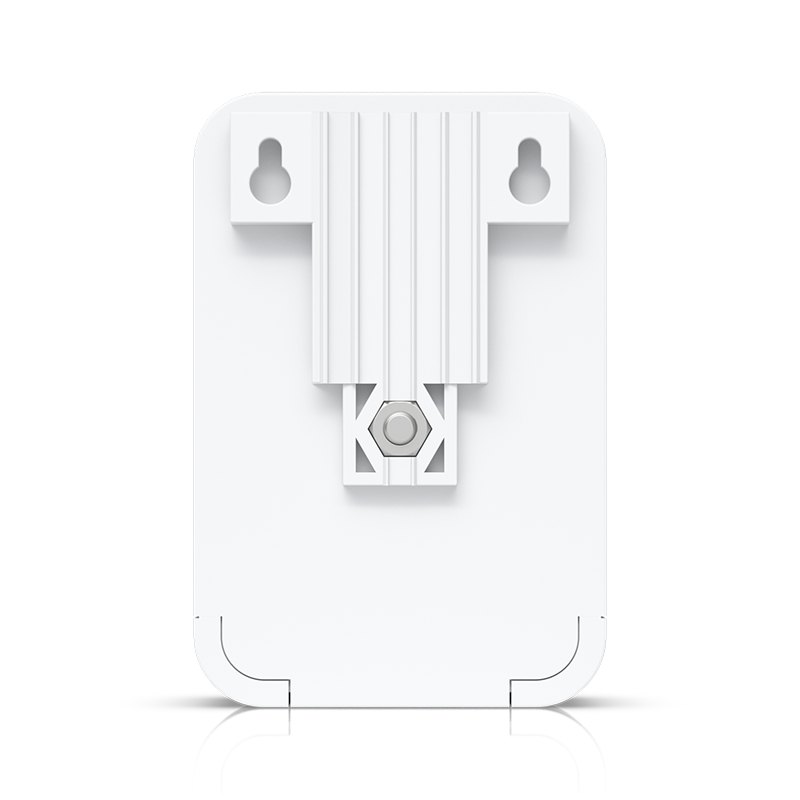

The UACC-ETH-SP-Pro features an enclosure designed for outdoor deployment, with an IPX5 protection rating. Using the included accessories, the device can be mounted on a pole or a wall.
Specifications
| Ubiquiti UACC-ETH-SP-Pro | |
| Mechanical | |
|---|---|
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3") |
| Weight | 95 g (3.35 oz) |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20 kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| PoE Support | Yes (up to PoE++) |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -30 to 65° C (-22 to 149° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
