Ubiquiti OM4 Fiber Patch Cord LC/UPC - LC/UPC OM4 MM Duplex 0.5m (50-pack)

Ubiquiti OM4 Fiber Patch Cord LC/UPC - LC/UPC OM4 MM Duplex 0.5m (50-pack)

Brand: Ubiquiti Networks

Product Code: UQ-UAOF2-LULU-05M-50

Catalog number: 10845

Warranty (months):

Price

137,15 €

168,69 € incl. tax

favoriteAdd to wishlist

Description

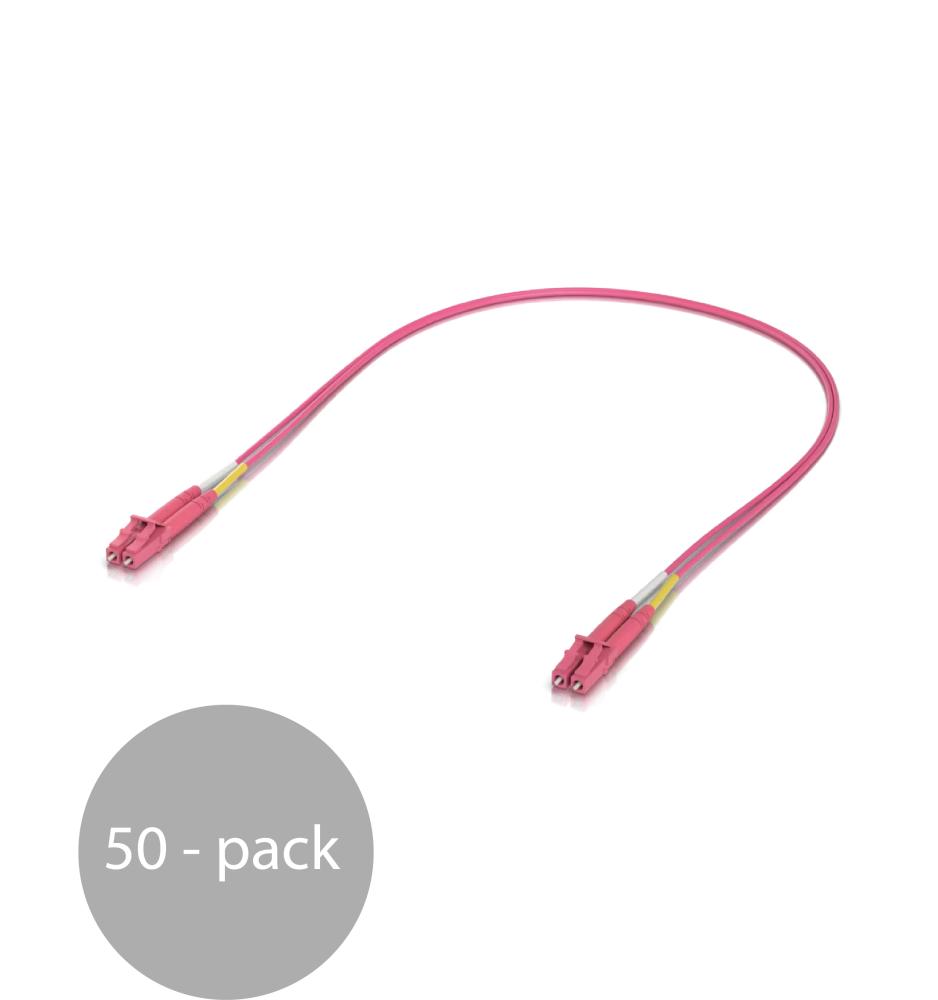

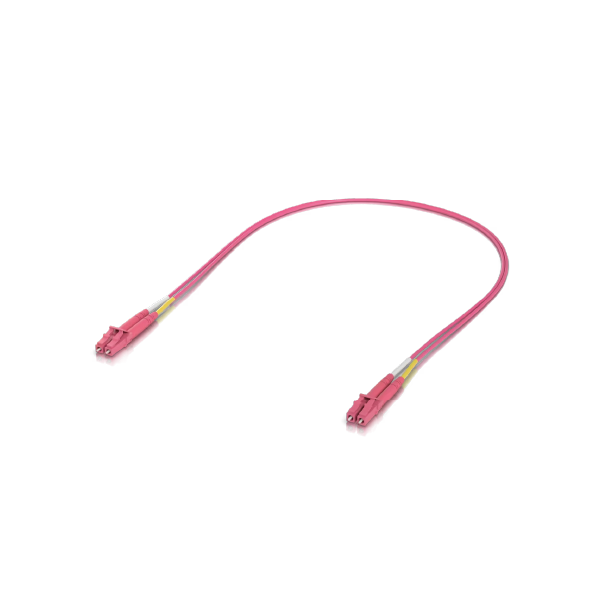

Patch cord LC/UPC – LC/UPC OM4

The offered product is a fiber optic patch cord equipped on both ends with LC/UPC – LC/UPC Duplex connectors. It has an OM4 fiber, so it can be used to connect Multimode transceivers. It supports higher transmission speeds than previously used OM3 and OM2 fibers.

Length 0.5 m, LSZH jacket

The cable length is 0.5 m, the outer jacket is made of LSZH, and the patch cord can be used inside buildings. It is perfectly suited for connecting network devices equipped with high-bandwidth optical transceivers.

Specifications

Ubiquiti UACC-OFC-M2-LULU-0.5M-50
Cable lenght	0.5 m (1.6 ft)
Connector type	LC-LC
Fiber mode	OM4
Fiber type	Duplex (2)
Polish	UPC - UPC
Wavelength	850 / 1300 nm
Cable jacket material	LSZH (Low Smoke Zero Halogen)
Jacket OD	2 mm
Jacket color	Rose
Insertion loss	≤ 0.3 dB
Return loss	≥ 35 dB
Repeatability	≤ 0.1 dB
Durability	≤ 0.2 dB (1,000 times mating)
Ambient operating temperature	-40 to 75° C (-40 to 167° F)
