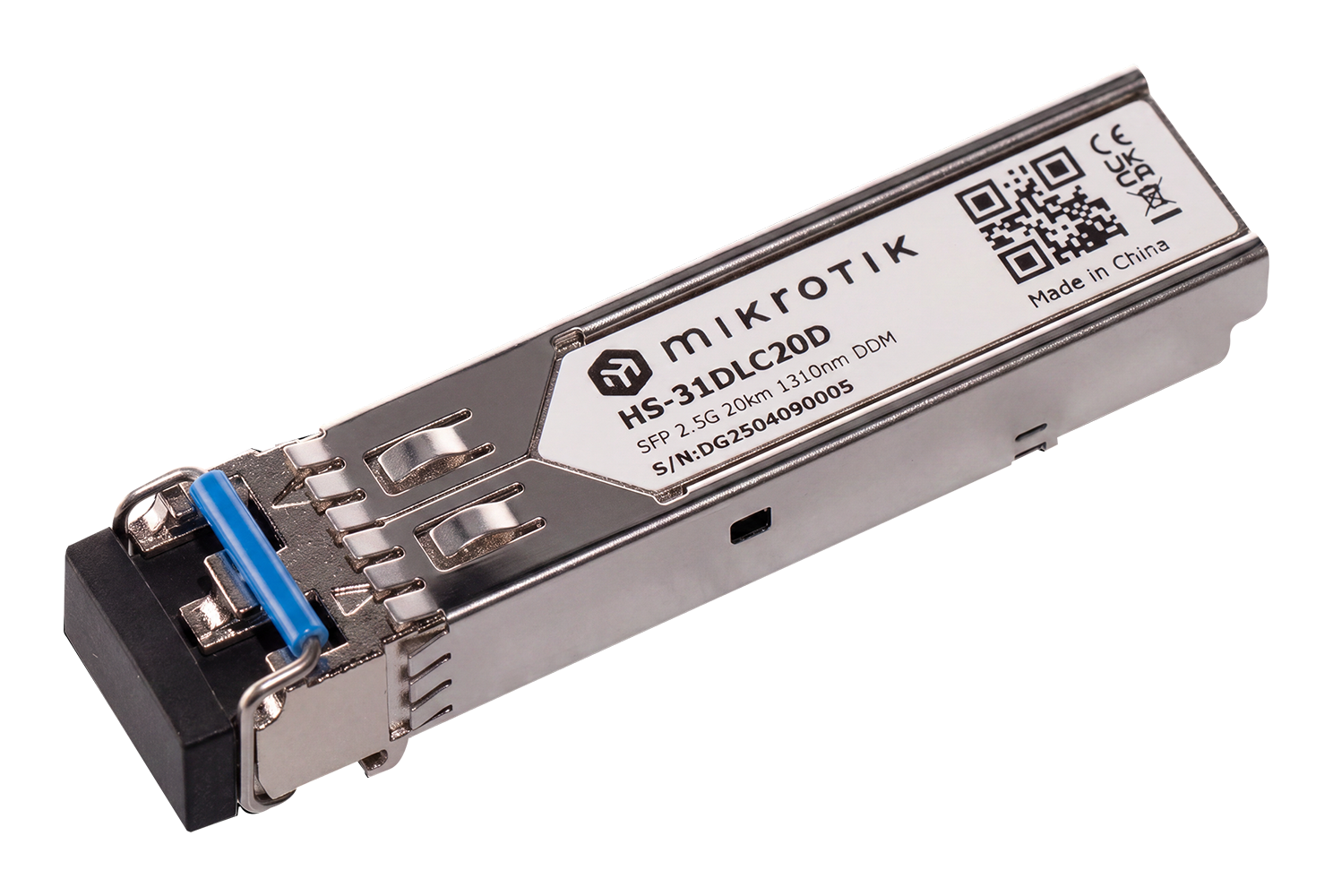

The MikroTik HS-31DLC20D is an SFP transceiver that offers throughput of up to 2.5 Gb/s, unlike standard 1 Gb/s modules. It is designed for MikroTik devices whose SFP interfaces also support 2.5 Gb/s bandwidth. Transmission is carried out over single-mode (SM) fiber, with a maximum link distance of up to 20 km. Two optical fibers are required to establish the connection, and the module is equipped with LC/UPC connectors. Data transmission operates at a wavelength of 1310 nm.

2.5 Gb/s SFP Module

The offered product is an SFP transceiver that supports throughput of up to 2.5 Gb/s, unlike most modules that support 1 Gb/s. It has been designed for use in MikroTik devices equipped with 2.5 Gb/s SFP ports.

Single-Mode Fiber, Up to 20 km Range

The module is compatible with single-mode fiber and operates at a wavelength of 1310 nm. The maximum link distance is up to 20 km. The transmitter output power ranges from -5 to 0 dBm, while the receiver sensitivity is -20 dBm.

LC/UPC Connectors

The module is equipped with two (duplex) LC/UPC connectors.

Duplex Module

A duplex fiber optic connection requires two optical fibers. The module is equipped with two connectors: one designated for Tx (transmission) and the other for Rx (reception).

Specifications
