Ubiquiti Retrofit PSU 12V

Ubiquiti Retrofit PSU 12V

Brand: Ubiquiti Networks

Product Code: UQ-UA-RETRO-PSU-12V

Catalog number: 11085

Warranty (months):

Price

75,57 €

92,95 € incl. tax

favoriteAdd to wishlist

Description

12 V Backup Power Supply for Retrofit Hub

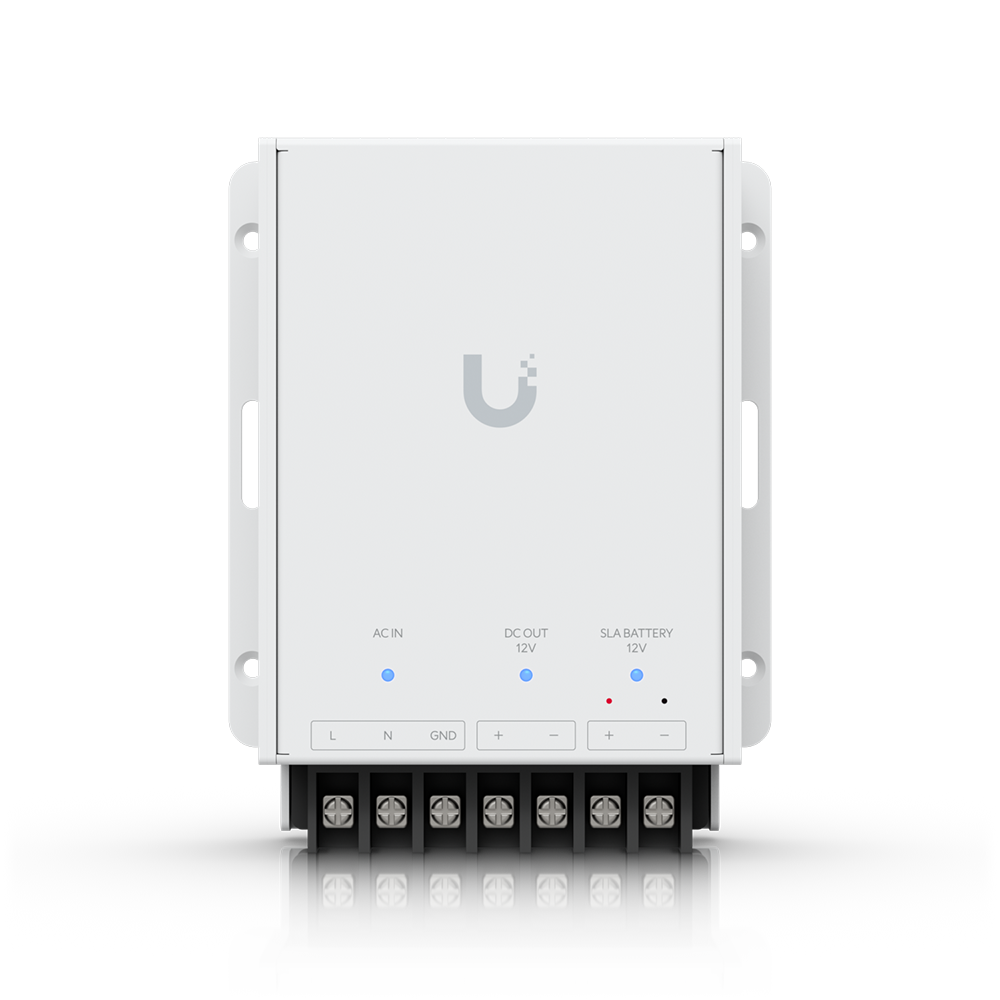

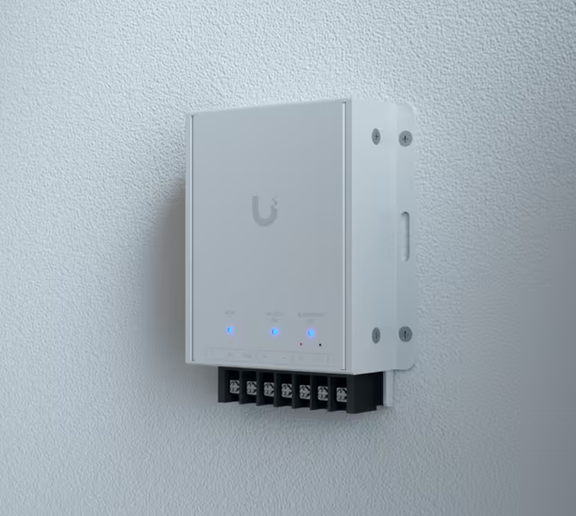

The Ubiquiti Retrofit PSU 12V is a power supply dedicated to Retrofit Hub devices. It provides a 12 V output voltage with a maximum supported power of 60 W. Additionally, you can connect an external AGM battery to the power supply, which will provide backup power in the event of a power failure. Once the main power supply is restored, the battery is recharged (with a maximum charging current of up to 0.5 A). The enclosure is designed for wall mounting.

Specifications

Mechanical
Ubiquiti UACC-Retrofit-PSU-12V
Dimensions	127 x 76 x 35 mm (5 x 3 x 1.4")
Weight	350 g (12.3 oz)
Hardware
Power Method	100–240V AC, 50/60 Hz 12V SLA battery
SLA Backup Battery	Voltage: 12V Charging current 0.5A
Wiring Connection	(1) AC input (1) DC output (For Retrofit Hub) (1) DC input/output (For Battery)
Max. Power Consumption	80 W
Efficiency	85%
Output Rating	12 V DC, 5 A
LEDs	(3) Status
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Ambient Storage Temperature	-40 to 70 C (-40 to 158 F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	Yes
