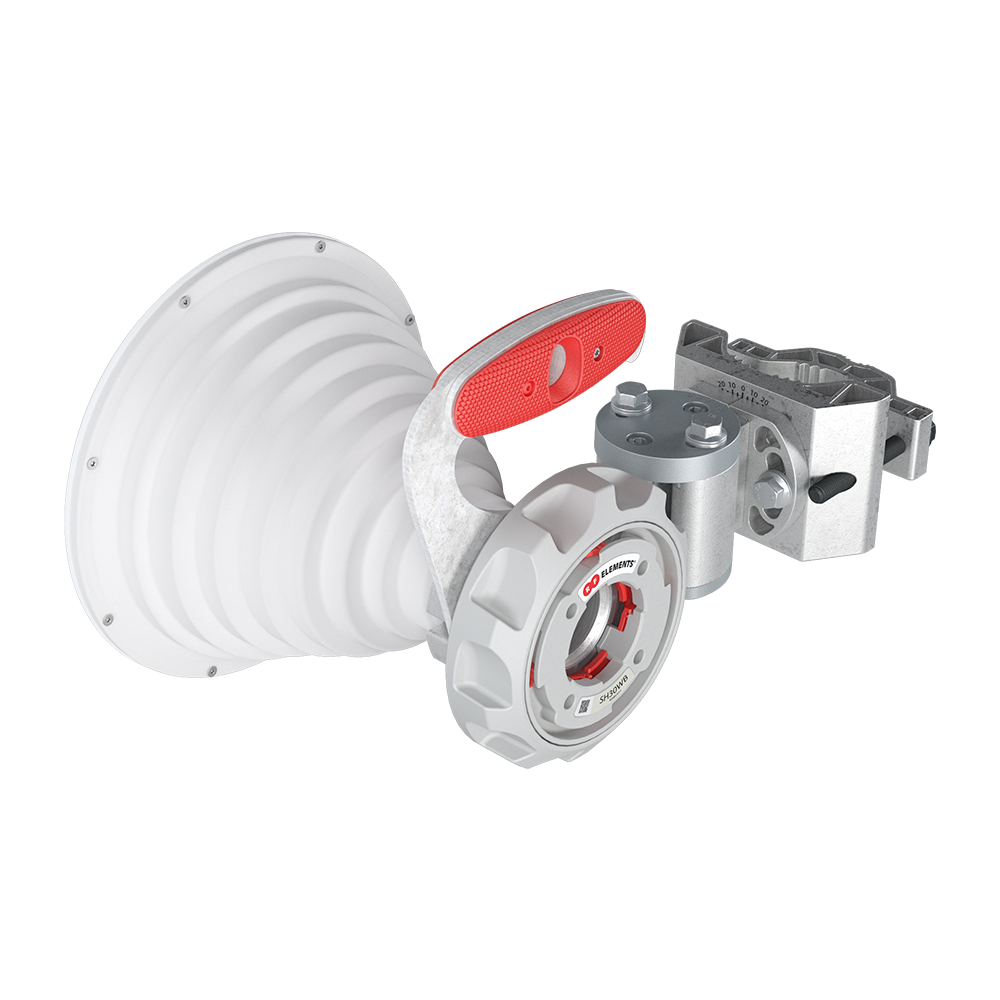

RF Elements SH30WB is a sector antenna designed for operation in the 5 and 6 GHz bands (4900–7125 MHz). The main beam has a symmetrical, circular shape with a beamwidth of 30°. The antenna gain is +/- 18 dBi regardless of the frequency. The product features a compact design and zero back radiation, significantly simplifying the installation of multiple base stations on a single pole and helping to prevent mutual interference between devices. The SH30WB is equipped with a TwistPort antenna connector, which provides low signal loss. TwistPort adapters for devices from various manufacturers are available, allowing you to adapt the antenna to the solutions you use.

30° Sector Antenna, 18 dBi

The offered product is a sector antenna designed for creating base stations in combination with a radio device. The main beamwidth is 30°, while the antenna gain is 18 dBi.

Wide Frequency Range

The operating frequency range is 4900–7200 MHz, fully covering the 5 and 6 GHz bands while also providing an even wider frequency range. It is suitable for a wide variety of applications.

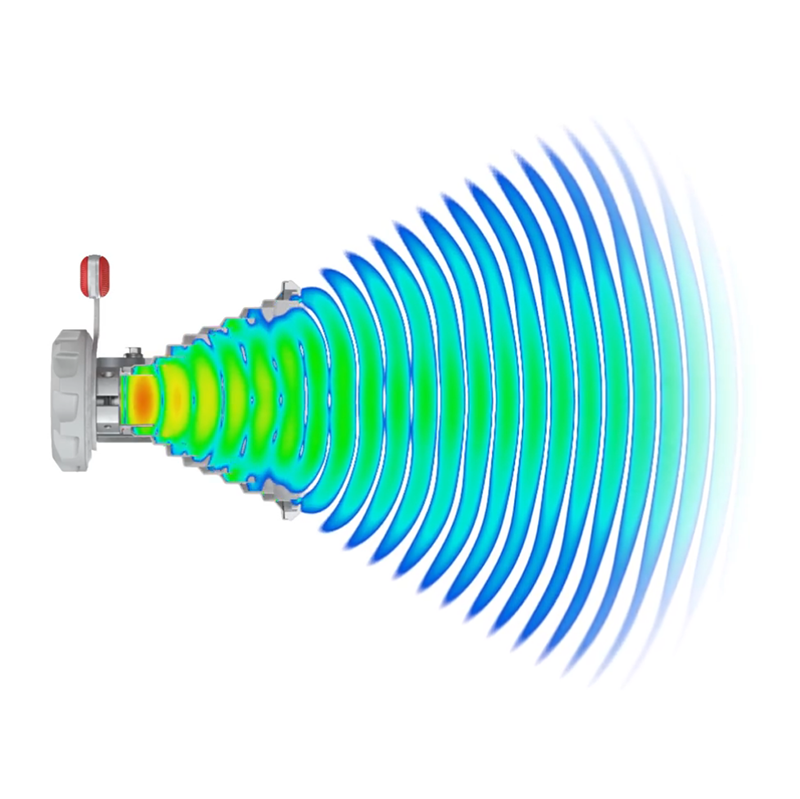

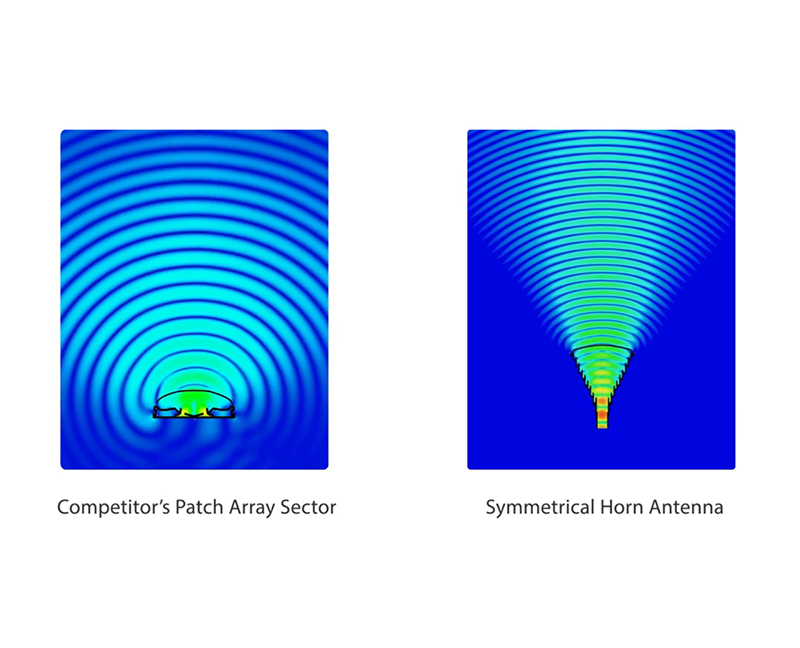

Symmetrical Beam Pattern

The main beam features a symmetrical, circular shape, allowing it to be precisely directed toward the desired area. The antenna has a very low side-lobe and back-radiation level, making it ideal for installations where multiple base stations are mounted close to one another.

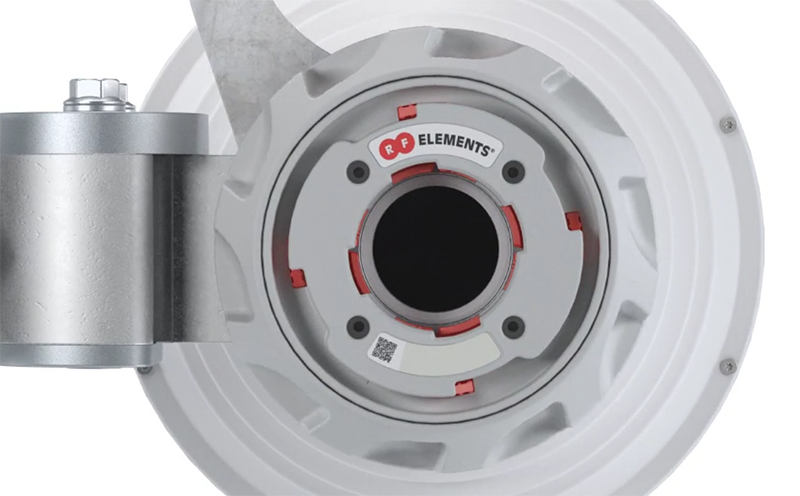

TwistPort Connector

The antenna is equipped with a TwistPort connector, which provides very low signal loss. It ensures a better connection between the radio and the antenna than standard connectors with pigtails. TwistPort adapters designed for various types of devices are available for purchase.

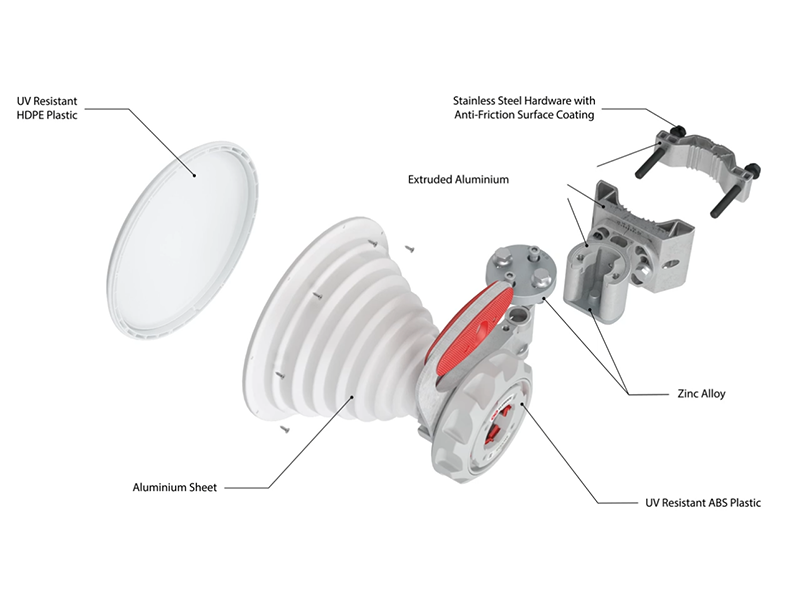

Durable Components, Pole Mounting

The product is made of durable materials, including aluminum, stainless steel, alloy, and UV-resistant plastic. The antenna is fully designed for outdoor use, and the included mounting accessories allow you to install it on a pole.

Specifications
