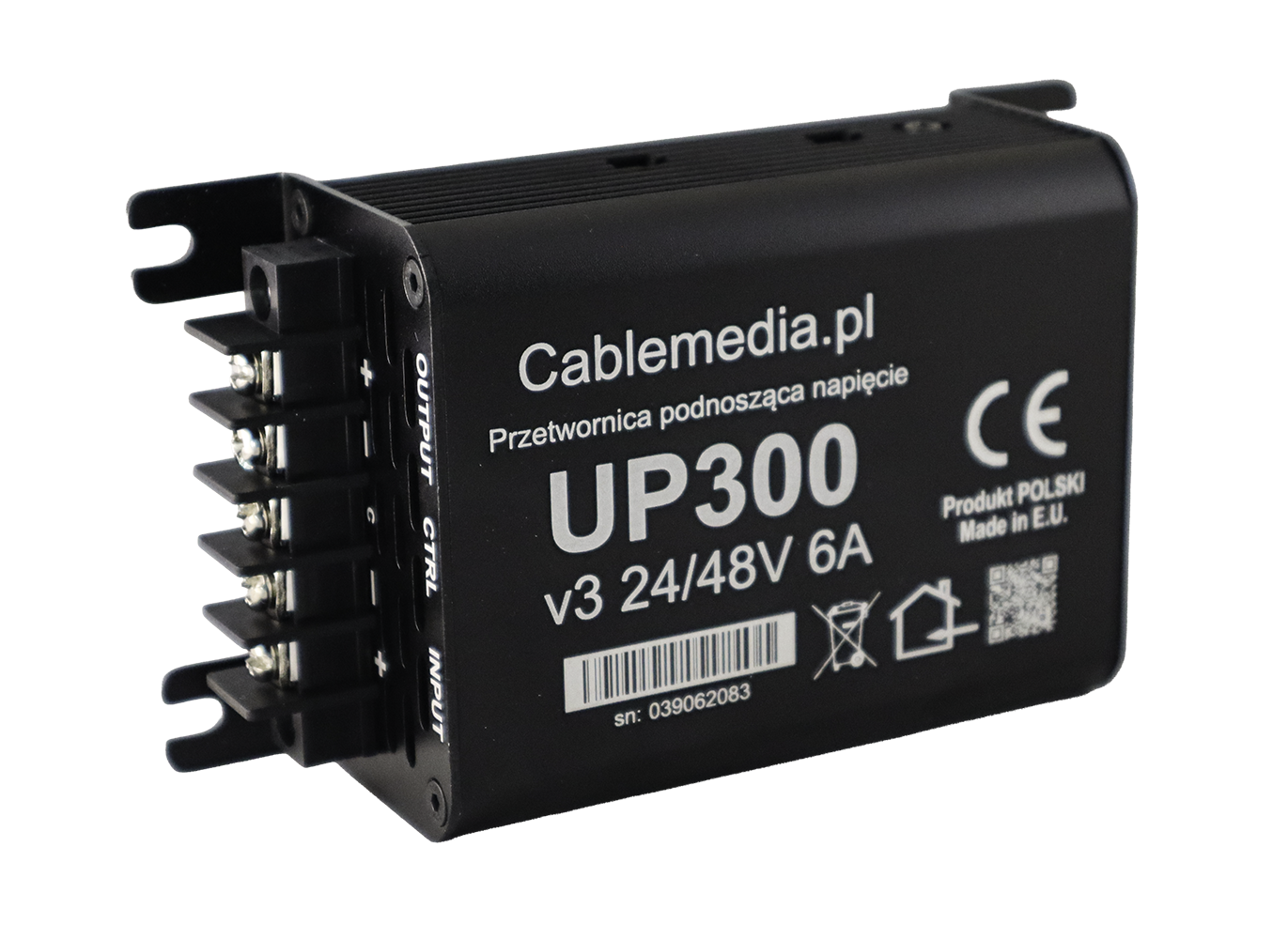

Voltage converter 24 -> 48V, 300W
Brand: Cablemedia
Product Code: CABM-24/48-300W
Catalog number: 5552
Warranty (months):
Price
37,44
46,05incl. tax
Qty.
-
+
favoriteAdd to wishlist
Description

A high-quality converter from Cablemedia. It boosts the voltage from 20-30 V to 48 V. The output power is 300 W, with a current of 6 A. The device stands out for its high efficiency, which reaches 95.6% at a current of 3 A. The converter should be installed with the power connector positioned at the bottom of the device to allow for proper gravitational cooling. An additional advantage of the device is the use of a CTRL input, which allows for operational control (a positive voltage must be applied to turn the converter on).

Specifications

Cablemedia UP-300 24/48V 6A 300W
Input voltage 20 - 30 V
Output voltage 48 V
Output power 300 W
Output current

6 A

Thermal protection 75°
Output voltage stability 1%
Output voltage tolerance 2%
Efficiency 96,5% at 3 A
No-load current consumption < 40 mA
