TP-Link EAP255-OUTDOOR is a dual-band access point designed for outdoor installations, evidenced by its IP65 ingress protection rating. The device supports simultaneous wireless transmission in the 2.4 GHz and 5 GHz bands, complying with IEEE 802.11 b/g/n and IEEE 802.11 a/n/ac standards. The combined maximum theoretical data throughput is 1167 Mbps, split between 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band. Communication is facilitated by detachable antennas with a gain of 3 dBi for 2.4 GHz and 4 dBi for 5 GHz, allowing for replacement with higher gain models. Wireless functionality is enhanced by MU-MIMO (Multi-User Multiple-Input Multiple-Output) technology, which optimizes performance by simultaneously handling data transmission to multiple client devices. The wired interface consists of a single Gigabit Ethernet port. Power for the access point is delivered via Power over Ethernet (PoE), supporting both the 802.3af standard (48 V) and Passive PoE (24 V), with a passive PoE injector included in the set. The device is fully compatible with the EAP Controller centralized management system, which provides free tools for configuration, real-time monitoring, remote software updates, and coverage visualization for multi-point networks, including the ability to create Captive Portal welcome pages and manage authentication. The EAP255-OUTDOOR's construction is adapted for wall or pole mounting, and the necessary mounting hardware is included in the set.

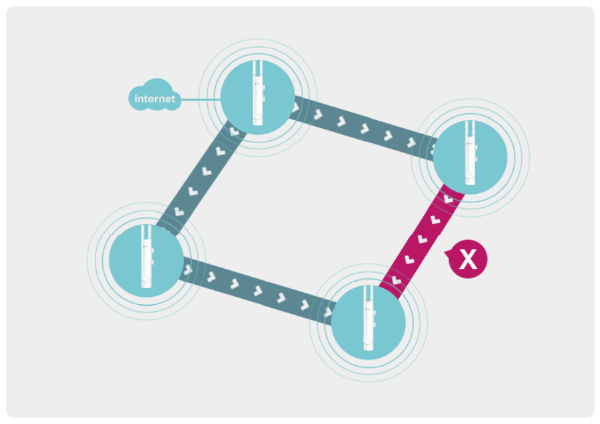

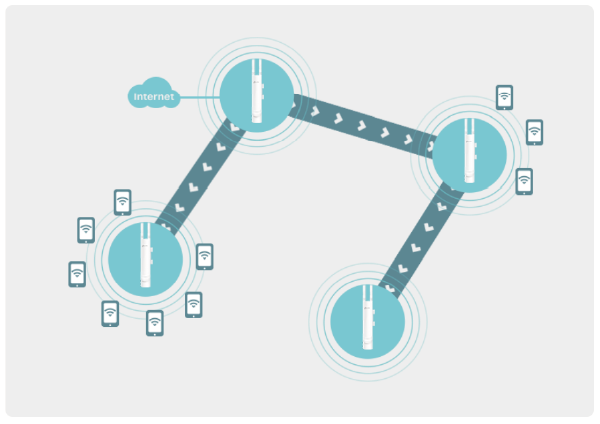

Omada Mesh Technology

Intelligent Self-Organization

Omada EAP devices with Mesh technology automatically select the best route for data transmission to quickly and conveniently extend the range of your wireless network.

Self-Healing Connections

If a problem occurs on one of the devices, the system automatically reroutes data to other Omada devices so you never lose connection.

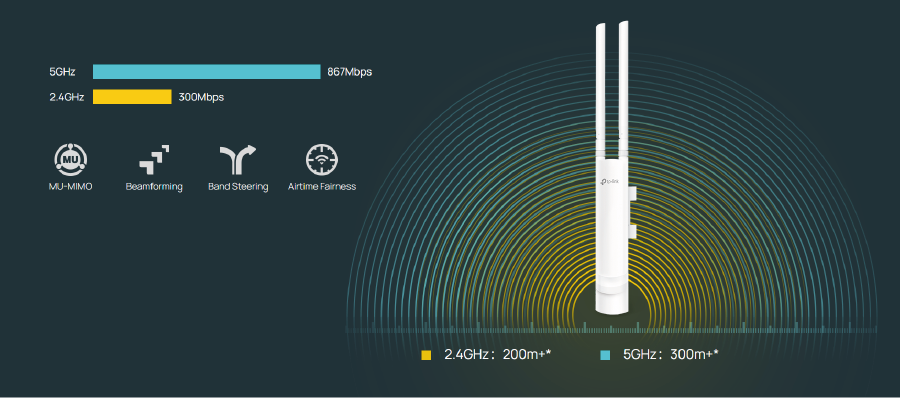

Fastest Wi-Fi Speeds and Long Range

A high-power amplifier and efficient antenna, combined with next-generation Wave 2 MU-MIMO 802.11ac technology, ensure very large network coverage in both bands, as well as combined speeds reaching 1167 Mbps.

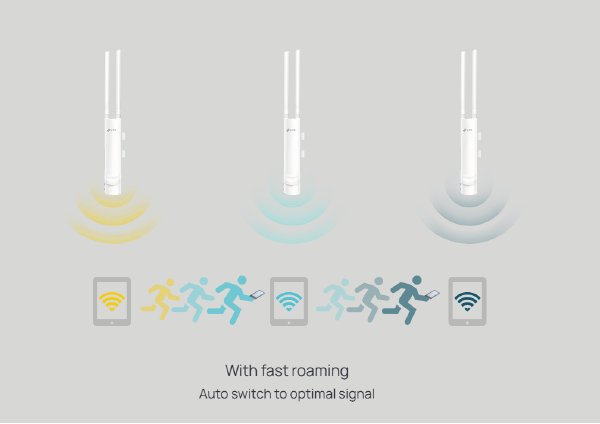

Seamless Roaming

Thanks to 802.11k/802.11v seamless roaming technology, clients automatically connect to the access point that currently guarantees the best signal quality. The user will not lose the signal even for a moment, which is extremely important when using interference-sensitive services like VoIP or during video conferencing.

Weatherproof Housing, Designed for Outdoor Use

The IP65 certification obtained during testing guarantees that the access point will withstand even the toughest weather conditions.

Top-Class Design

Thanks to the well-thought-out design of the housing, antennas, and flexible powering and mounting options, the EAP225-Outdoor is ideal for use both inside and outside the building.

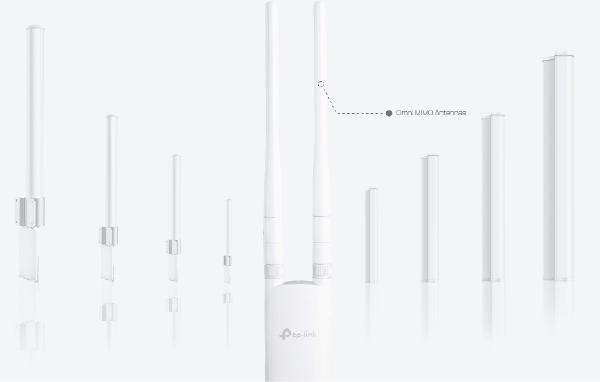

Detachable Antennas

The EAP225-Outdoor is equipped with 2 detachable omnidirectional antennas, which means it is also possible to install other antennas if needed.

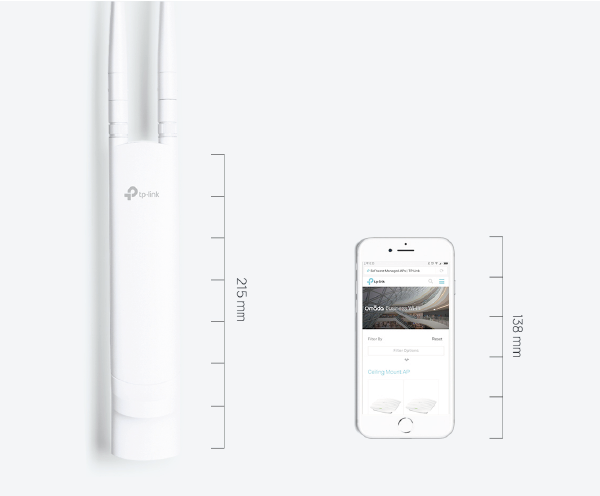

The Device's Slim Design Also Suits Indoors

The EAP225-Outdoor is a very handy device, with dimensions only slightly larger than a smartphone: 215 x  46  x 27 mm.

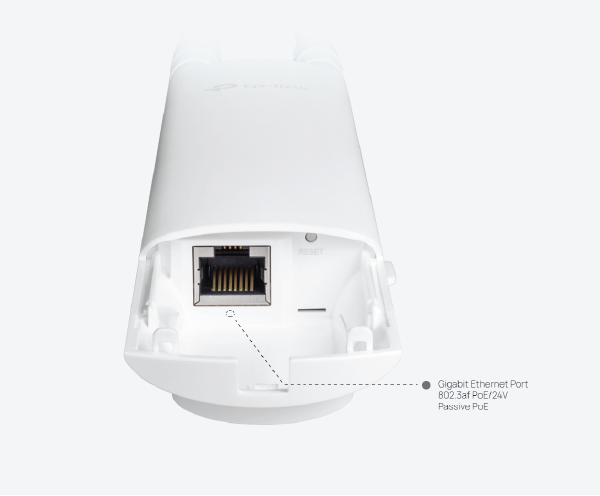

PoE Powering and Easy Installation

The EAP225-Outdoor supports 802.3af PoE and Passive PoE power supply. It can be powered using a PoE switch or the included PoE injector.

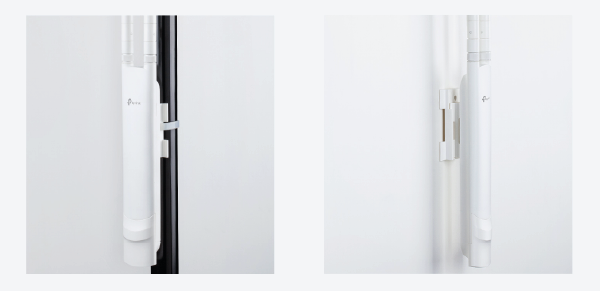

Flexible Placement

The EAP225-Outdoor can be easily installed on a wall or pole using the included mounting hardware.

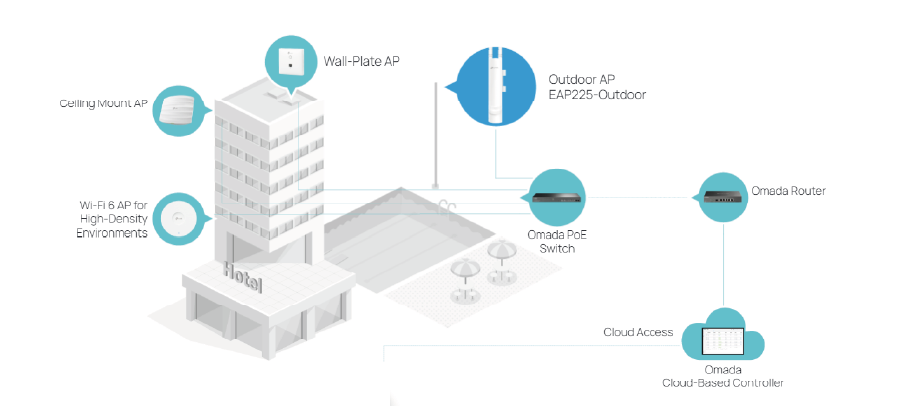

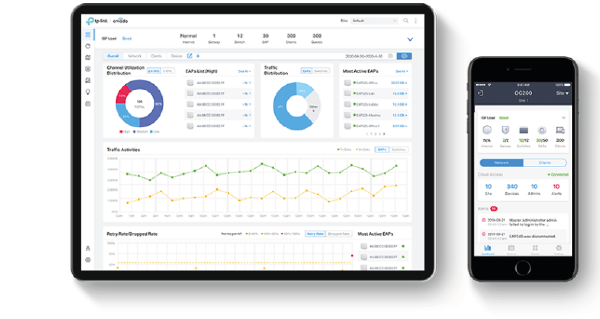

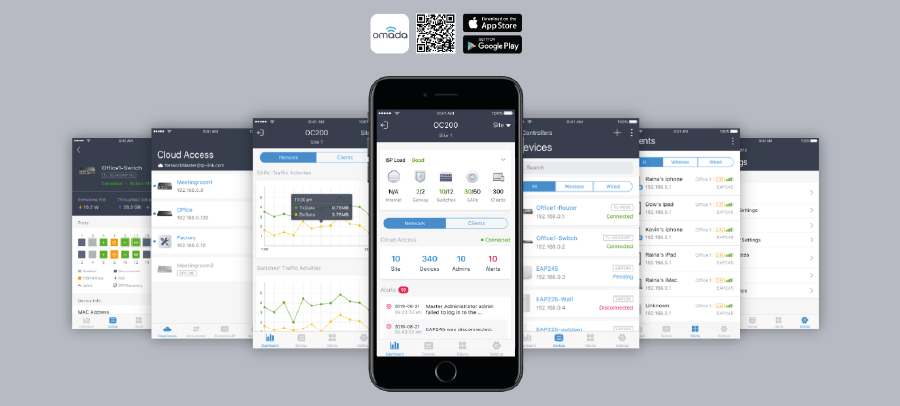

Seamless Centralized Cloud Management:

100% centralized cloud management of the entire network from different locations — everything controlled from one interface anytime, anywhere.

Specifications
