The TP-Link LS1008G network switch is a Layer 2 device equipped with eight RJ45 ports supporting 10BASE-T, 100BASE-TX, and 1000BASE-T standards. Each port features auto-negotiation and Auto MDI/MDIX, eliminating the need for crossover cables. The device operates on a store-and-forward frame delivery architecture, ensuring data integrity by verifying packet checksums before transmission. IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode prevent data loss during network congestion. The unit features passive cooling due to the absence of fans within its plastic desktop enclosure. Power is supplied via an external adapter providing 5 V DC at 0.6 A. The energy management system adjusts power consumption based on link status and Ethernet cable length. The device complies with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards.

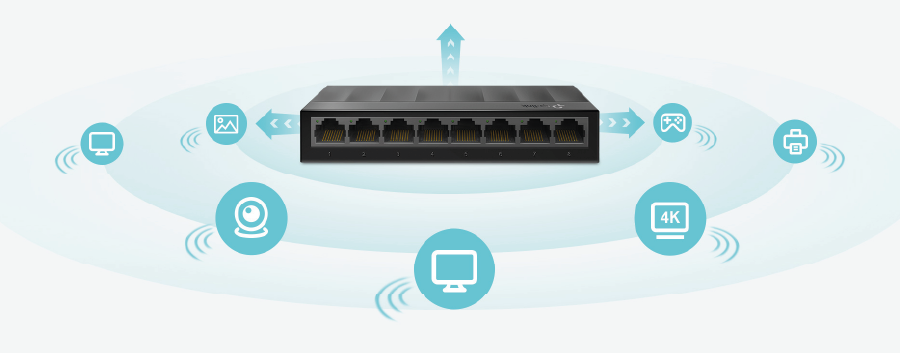

Gigabit Ports for Faster Speeds

The LS1008G increases the speed of your network and connected devices. With 8 non-blocking 10/100/1000 Mbps ports, you can transfer large, bandwidth-intensive files without interference. Enjoy high-definition video streaming, lightning-fast file downloads, and smooth online conferencing.

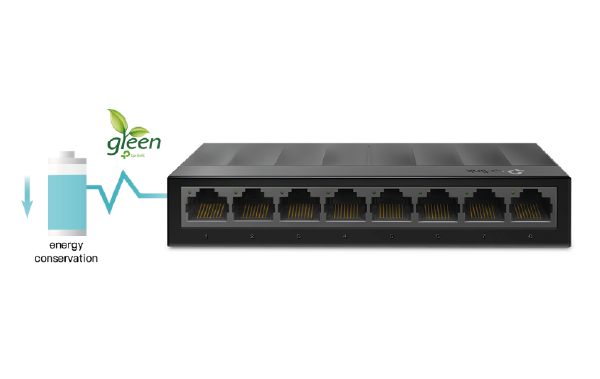

Eco-Friendly Ethernet Technology

The LiteWave series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.

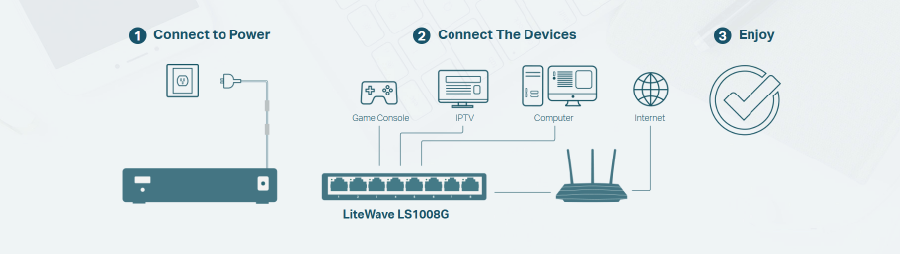

Plug and Play

The LS1008G features a user-friendly design with no configuration required. Simply connect the device to power and your network via Ethernet cables. Your high-speed wired network will be active and ready to use in seconds.

Fanless and Desktop Design

Compact desktop design and a fanless construction ensure quiet operation, making it ideal for noise-sensitive environments like home offices or libraries. The durable plastic casing protects internal components while maintaining a modern look.

Reliable Data Transfer

IEEE 802.3x flow control provides reliable data transfer and protects against packet loss. This ensures that your network remains stable and efficient even during periods of heavy use, providing a seamless experience for all connected devices.

Specification:
