TP-Link SG3428 managed switch JetStream L2/L2+ 24x GE, 4x SFP, Omada support

TP-Link SG3428 managed switch JetStream L2/L2+ 24x GE, 4x SFP, Omada support

Brand: TP-Link

Product Code: TL-SG3428

Catalog number: 8495

Warranty (months):

Price

156,44 €

192,42 € incl. tax

favoriteAdd to wishlist

Description

The SG3428 is a managed L2/L2+ layer JetStream network switch with Omada SDN support, equipped with 24 Gigabit Ethernet (GE) ports and 4 Gigabit SFP slots, designed for data distribution in corporate networks. It offers advanced features such as static routing, VLAN, and QoS, enabling traffic segmentation and optimization, and its total switching capacity is 56 Gbps. The device is suitable for 19" (1U) Rack mounting, and its integration with Omada SDN allows for centralized management and seamless cloud control of the network.

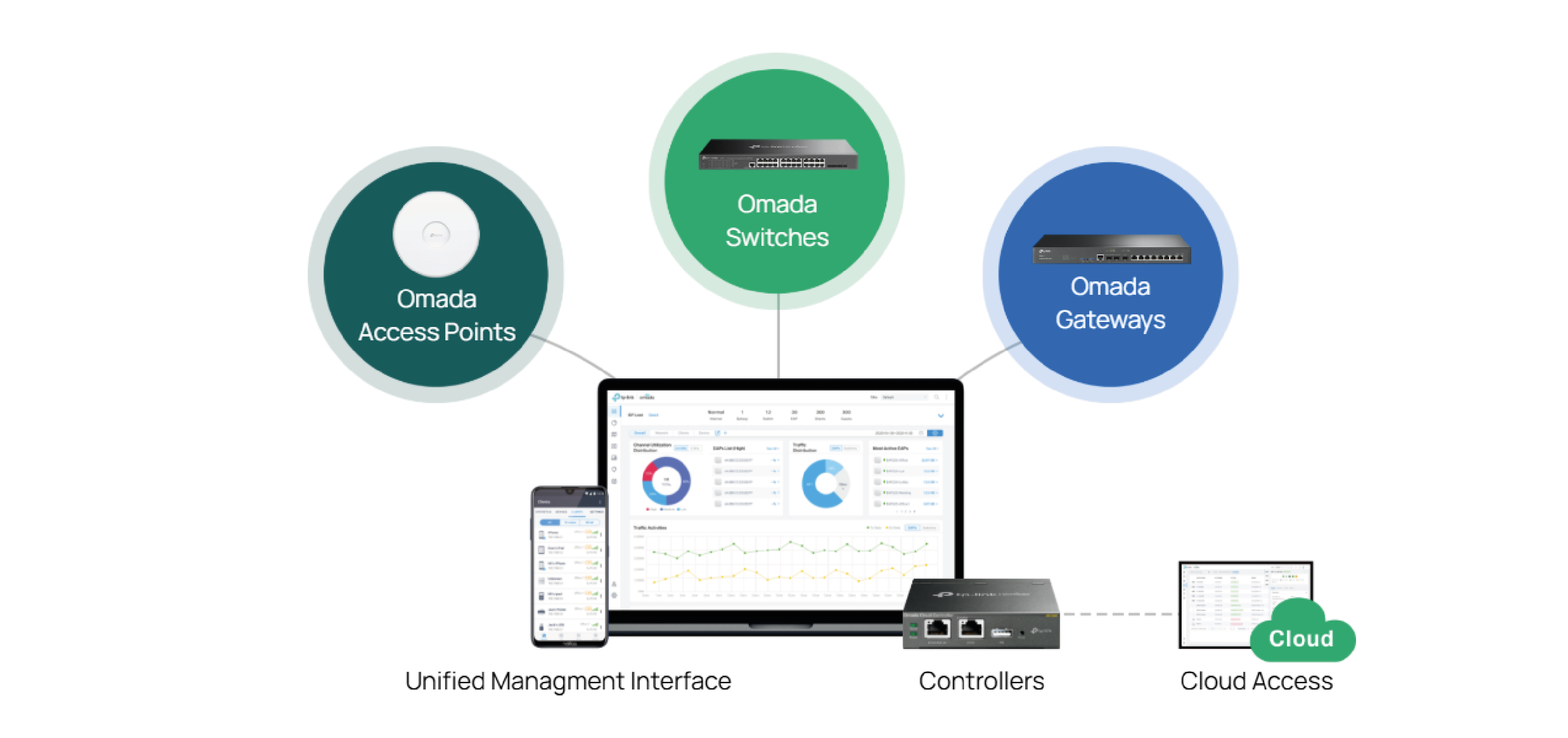

SDN Platform and Cloud Access

Remotely manage your Access Points, Switches, and Gateways located in multiple locations from a single interface.

Specifications

Hardware features
SG3428
Interface	24× 10/100/1000 Mbps RJ45 Ports 4× Gigabit SFP Slots 1× RJ45 Console Port 1× Micro-USB Console Port
Fan Quantity	Fanless
Power Supply	100-240 V AC~50/60 Hz
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	19.9 W (220 V/50 Hz)
Max Heat Dissipation	67.73 BTU/h (220 V/50 Hz)
Performance
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.66 Mpps
MAC Address Table	16K
Jumbo Frame	9 KB
Software features
Quality of Service	8 priority queues 802.1p CoS/DSCP priority Queue scheduling SP (Strict Priority) WRR (Weighted Round Robin) SP+WRR Bandwidth Control Port/Flow based Rating Limiting Smoother Performance Action for Flows Mirror (to supported interface) Redirect (to supported interface) Rate Limit QoS Remark
L2 and L2+ Features	Link Aggregation Static link aggregation 802.3ad LACP Up to 8 aggregation groups and up to 8 ports per group Spanning Tree Protocol 802.1d STP 802.1w RSTP 802.1s MSTP STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect Loopback Detection Port-based VLAN based Flow Control 802.3x Flow Control HOL Blocking Prevention Mirroring Port Mirroring CPU Mirroring One-to-One Many-to-One Tx/Rx/Both
L2 Multicast	Supports 511 (IPv4, IPv6) IGMP groups IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave IGMP Snooping Querier IGMP Authentication IGMP Authentication MVR MLD Snooping MLD v1/v2 Snooping Fast Leave MLD Snooping Querier Static Group Config Limited IP Multicast Multicast Filtering: 256 profiles and 16 entries per profile
VLAN	VLAN Group Max 4K VLAN Groups 802.1q Tagged VLAN MAC VLAN: 30 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 GVRP VLAN VPN (QinQ) Port-Based QinQ Selective QinQ Voice VLAN
Access Control List	Time-based ACL MAC ACL Source MAC Destination MAC VLAN ID User Priority Ether Type IP ACL Source IP Destination IP Fragment IP Protocol TCP Flag TCP/UDP Port DSCP/IP TOS User Priority Combined ACL Packet Content ACL IPv6 ACL Policy Mirroring Redirect Rate Limit QoS Remark ACL apply to Port/VLAN
Security	IP-MAC-Port Binding DHCP Snooping ARP Inspection IPv4 Source Guard IPv6-MAC-Port Binding DHCPv6 Snooping ND Detection IPv6 Source Guard DoS Defend Static/Dynamic Port Security Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control kbps/ratio/pps control mode IP/Port/MAC based access control 802.1X Port based authentication Mac based authentication VLAN Assignment MAB Guest VLAN Support Radius authentication and accountability AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP
L3 Features	16 IPv4/IPv6 Interfaces Static Routing 48 static routes Static ARP 512 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP L2 Relay
Management	Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
Advanced Features	Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning)
Others
Package Contents	TL-SG3428 Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
Environment	Operating Temperature: 0–45 ℃ (32–113 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
