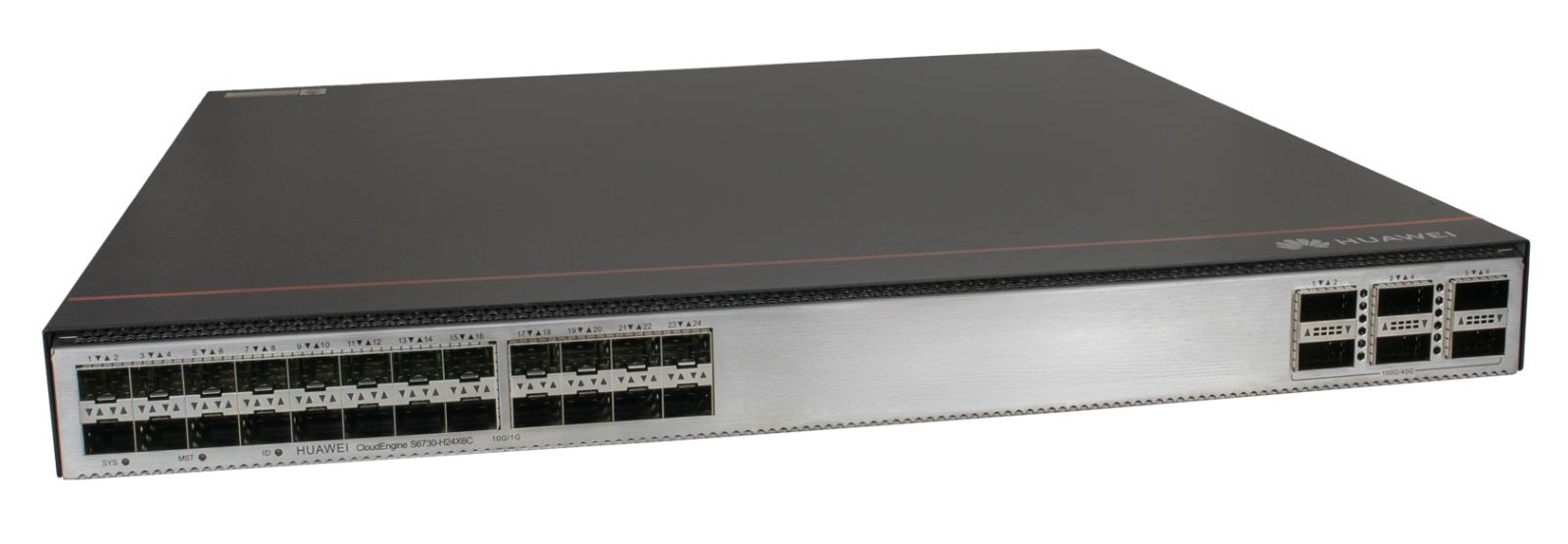

Huawei CloudEngine switch S6730-H24X6C 24x SFP+ 6x QSFP28 (100G) 100 Gb/s license 2x AC power supply
Price
4 255,58 €
5 234,36 € incl. tax
favoriteAdd to wishlist
CloudEngine S6730-H delivers 10 GE connectivity for enterprise campuses, carriers, higher education institutions, and governments. Integrating native WLAN AC capabilities to support up to 1024 WLAN APs, CloudEngine S6730-H enables you to converge your wired and wireless networks for simplified operations. It also offers free mobility to deliver consistent user experience and VXLAN-based virtualization to create a multi-purpose network. With built-in security probes, CloudEngine S6730-H supports abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception.
High-Density 10GE Access
Deliver industry-leading 10GE port density, with a single switch supporting up to 48 line-rate 10GE ports, ideal for Wi-Fi 6 upstream transmission.
Wired and Wireless Convergence
Manage 1,024 wireless APs and converge wireless and wired policy management for the Wi-Fi 6 era, avoiding the forwarding performance bottleneck on standalone WLAN ACs.
Intelligent Network O&M
Collect device data in real time through Telemetry and collaborate with the campus network analyzer CampusInsight to quickly detect network problems that affect user experience, accurately assuring user experiences.
The product has 100G license - without VxLAN! Contact us if you want to buy higher license.
Specification:
|
S6730-H24X6C |
|
| Ports | 24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |

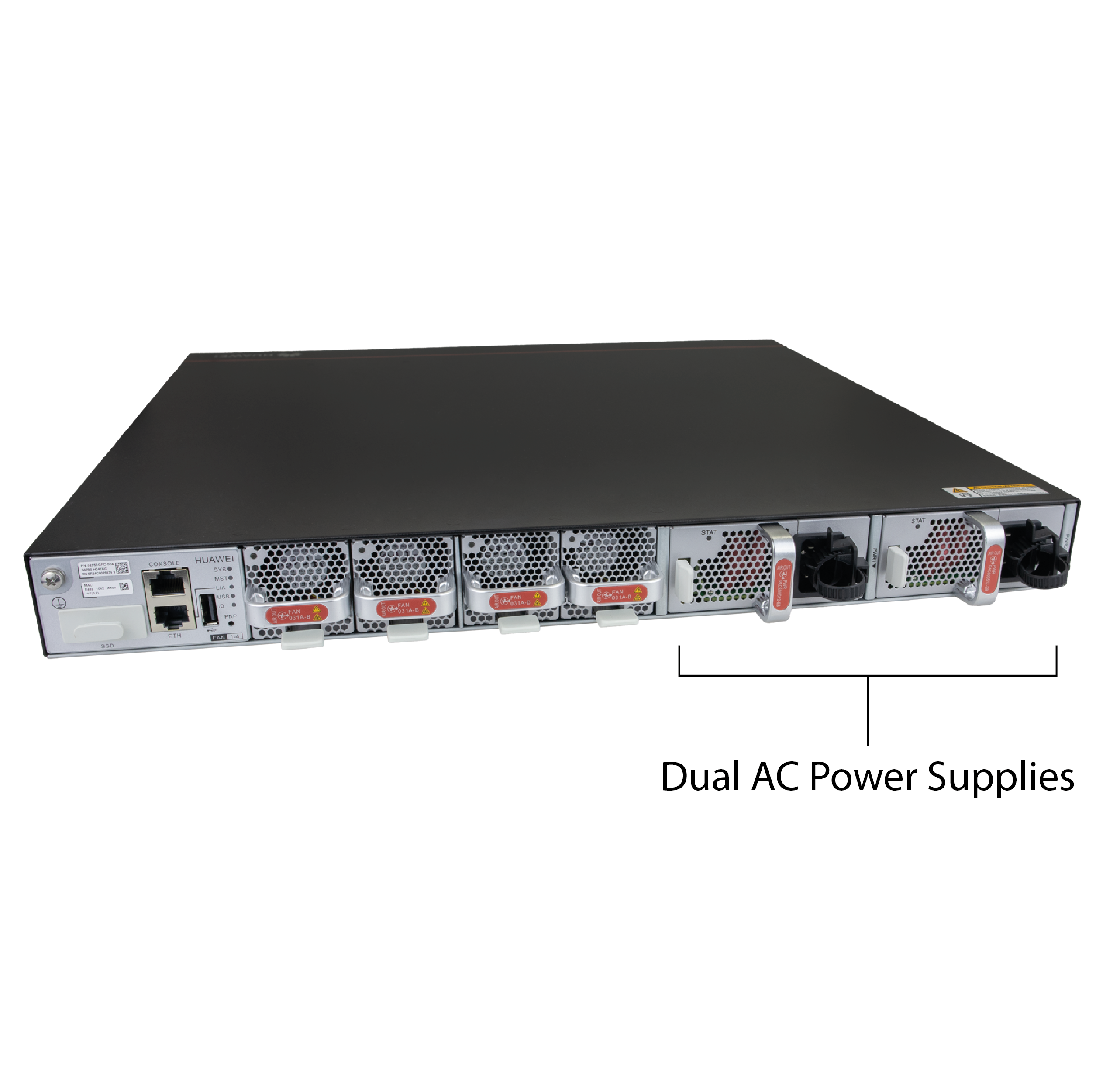

| Power supply | Dual pluggable power modules, 1+1 power backup |
| Switching capacity | 1.68Tbps/2.4Tbps |
| License | 100GE QSFP28 interfaces support 40GE and 100GE optical module auto-sensing. The default uplink port is 40GE, which needs to be upgraded to 100GE through the license. |
| Fan module FAN-031A-B | |
|---|---|
| Dimensions (W x D x H) | 40 mm x 100.3 mm x 40 mm |
| Number of fans | 1 |
| Weight | 0,1 kg |
| Maximum power consumption | 21,6 W |
| Maximum fan speed | 24500±10% revolutions per minute (RPM) |
| Maximum wind rate | 31 cubic feet per minute (CFM) |
| Hot swap | Supported |
| Power module - PAC600S12-CB | |
| Dimensions (H x W x D) | 40 mm x 90 mm x 215 mm |
| Weight | 0.95 kg |
| Rated input voltage range |
100 V AC to 240 V AC, 50/60 Hz 240 V DC |
| Maximum input voltage range |
90 V AC to 290 V AC, 45 Hz to 65 Hz 190 V DC to 290 V DC |
| Maximum input current | 100 V AC to 240 V AC: 8 A 240 V DC: 4 A |
| Maximum output current | 50 A |
| Rated output voltage | 12 V |
| Maximum output power | 600 W |
| Hot swap | Supported |
| Function and Feature | |
| Ethernet features | |
| Ethernet basics | |
| Rate auto-negotiation on an interface | Yes |
| Flow control on an interface | Yes |
| Jumbo frames | Yes |
| Link aggregation | Yes |
| Load balancing among links of a trunk | Yes |
| Transparent transmission of Layer 2 protocol packets |
Yes |
| Device Link Detection Protocol (DLDP) | Yes |
| Link Layer Discovery Protocol (LLDP) | Yes |
| Link Layer Discovery Protocol-Media Endpoint Discovery (LLDP-MED) |
Yes |
| Interface isolation | Yes |
| Broadcast traffic suppression on an interface |
Yes |
| Multicast traffic suppression on an interface |
Yes |
| Unknown unicast traffic suppression on an interface | Yes |
| VLAN broadcast traffic suppression | Yes |
| VLAN multicast traffic suppression | Yes |
| VLAN unknown unicast traffic suppression | Yes |
| VLAN | |
| VLAN specification | 4094 |
| VLANIF interface specification | 1024 |
| Access mode | Yes |
| Trunk mode | Yes |
| Hybrid mode | Yes |
| QinQ mode | Yes |
| Default VLAN | Yes |
| VLAN assignment based on interfaces | Yes |
| VLAN assignment based on protocols | Yes |
| VLAN assignment based on IP subnets | Yes |
| VLAN assignment based on MAC addresses |
Yes |
| VLAN assignment based on MAC address + IP address |
Yes |
| VLAN assignment based on MAC address + IP address + interface number |
Yes |
| Adding double VLAN tags to packets based on interfaces |
Yes |
| Super-VLAN | Yes |
| Super-VLAN specification | 256 |
| Sub-VLAN | Yes |
| Sub-VLAN specification | 1K |
| VLAN mapping | Yes |
| Selective QinQ | Yes |
| MUX VLAN | Yes |
| Voice VLAN | Yes |
| Guest VLAN | Yes |
| GVRP | |
| GARP | Yes |
| GVRP | Yes |
| VCMP | |
| VCMP | Yes |
| MAC | |
| MAC address | 384K max |
| Automatic learning of MAC addresses | Yes |
| Automatic aging of MAC addresses | Yes |
| Static, dynamic, and blackhole MAC address entries |
Yes |
| Interface-based MAC address learning limiting |
Yes |
| Sticky MAC | Yes |
| MAC address flapping detection | Yes |
| Configuring MAC address learning priorities for interfaces |
Yes |
| MAC address spoofing defense | Yes |
| Port bridge | Yes |
| ARP | |
| Static ARP | Yes |
| Dynamic ARP | Yes |
| ARP entry | 140K max (share) |
| ARP aging detection | Yes |
| Intra-VLAN proxy ARP | Yes |
| Inter-VLAN proxy ARP | Yes |
| Routed proxy ARP | Yes |
| Multi-egress-interface ARP | Yes |
| Ethernet loop protection | |
| MSTP | |
| STP | Yes |
| RSTP | Yes |
| MSTP | Yes |
| VBST | Yes |
| BPDU protection | Yes |
| Root protection | Yes |
| Loop protection | Yes |
| Defense against TC BPDU attacks | Yes |
| Loopback detection | |
| Loop detection on an interface | Yes |
| SEP | |
| SEP | Yes |
| Smart Link | |
| Smart Link | Yes |
| Smart Link multi-instance | Yes |
| Monitor Link | Yes |
| RRPP | |
| RRPP | Yes |
| Single RRPP ring | Yes |
| Tangent RRPP ring | Yes |
| Intersecting RRPP ring | Yes |
| Hybrid networking of RRPP rings and other ring networks |
Yes |
| ERPS | |
| G.8032 v1 | Yes |
| G.8032 v2 | Yes |
