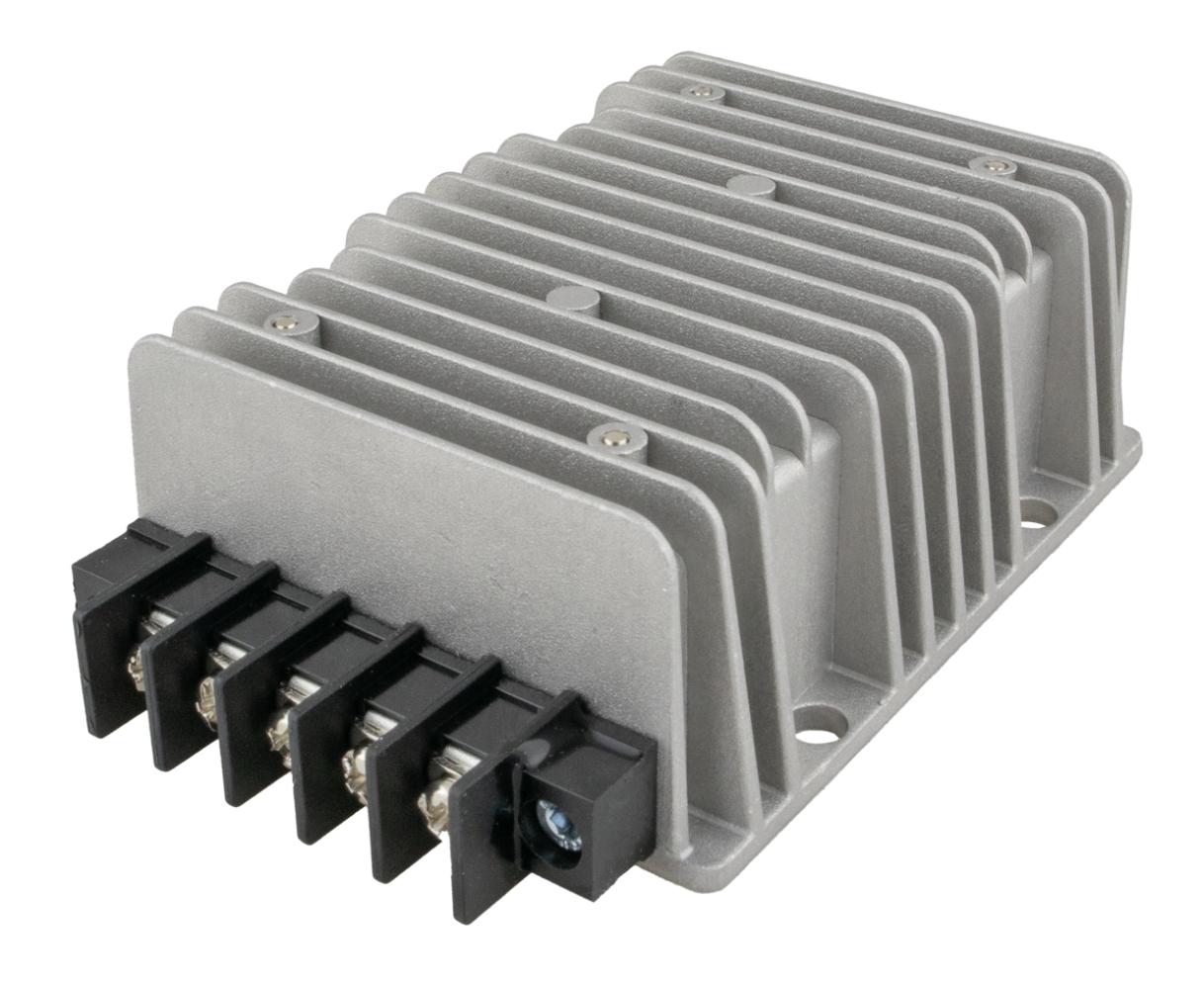

Cablemedia XS350 Isolated DC/DC Converter 36 - 72 V -> 12 V, 35 A
Brand: Cablemedia
Product Code: CABM-XS350
Catalog number: 9534
Warranty (months):
Price
64,27
79,05incl. tax
Qty.
-
+
favoriteAdd to wishlist
Description

The Cablemedia XS350 is an isolated DC/DC voltage converter. It accepts input voltages within the range of 36 to 72 V DC and provides an output of 12 V DC. The maximum current output is 35 A, delivering a power of 350 W. The PCB inside the housing is fully protected against moisture ingress, with an IP68 protection rating. When installing the converter outside a building or in challenging conditions, it's important to ensure proper protection for connectors that are not enclosed within the housing.

If you need a higher output voltage, you can connect two or more converters in series.

Specifications

Cablemedia XS350
Input voltage range

36 - 72 V

Nominal: 48 V

Idle current < 150 mA
Output voltage 12 V DC
Thermal protection 120° C
Output voltage stability < 1%
Output voltage tolerance < 1%
Efficiency 93%
Isolation 1500 V
Under-voltage protection 36 V
Over-voltage protection 14,5 V
Short-circuit protection 35 A
Operation control By activating the NPN !ctrl 1mA @ 0,8 V
Output power

Nominal: 30 A

Minimum: 0 A

Maximum: 35 A

Output voltage ripple < 100 mV
Maximum output capacitance 10000 uF
Ingress protection IP68 (does not apply to connectors)
Dimensions 120 x 79 x 40 mm
