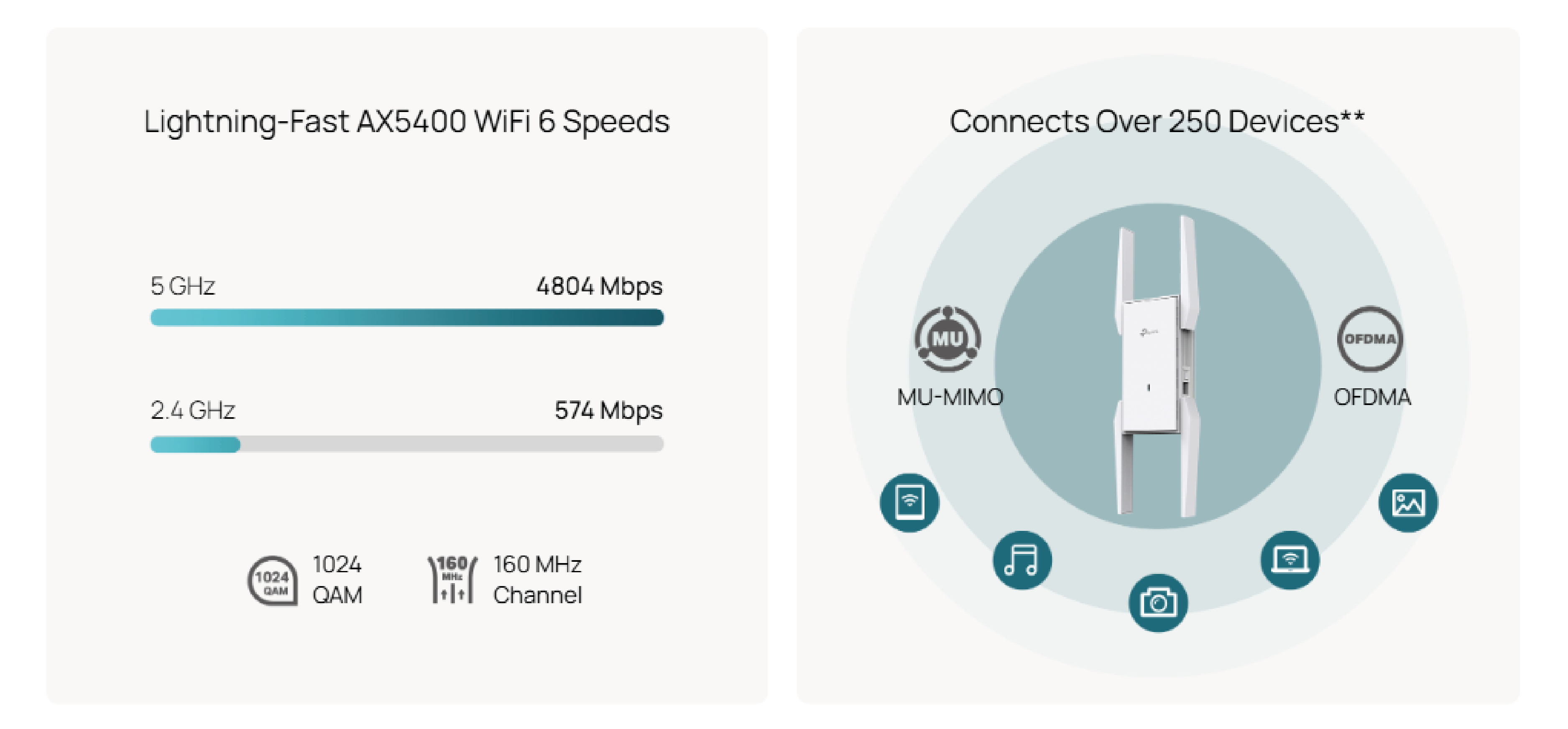

The TP-Link EAP673-Extender is an advanced signal booster supporting the Wi-Fi 6 standard (IEEE 802.11ax), providing ultra-fast connectivity and stable Mesh network operation. The device operates simultaneously on the 2.4 GHz and 5 GHz bands, offering a total throughput of up to 5400 Mb/s – up to 574 Mb/s on the 2.4 GHz band and up to 4804 Mb/s on the 5 GHz band. Thanks to Wi-Fi 6 technologies like OFDMA, 1024-QAM, MU-MIMO, and Beamforming, the EAP673-Extender guarantees high performance, reduced latency, and smooth operation even with a large number of active users.

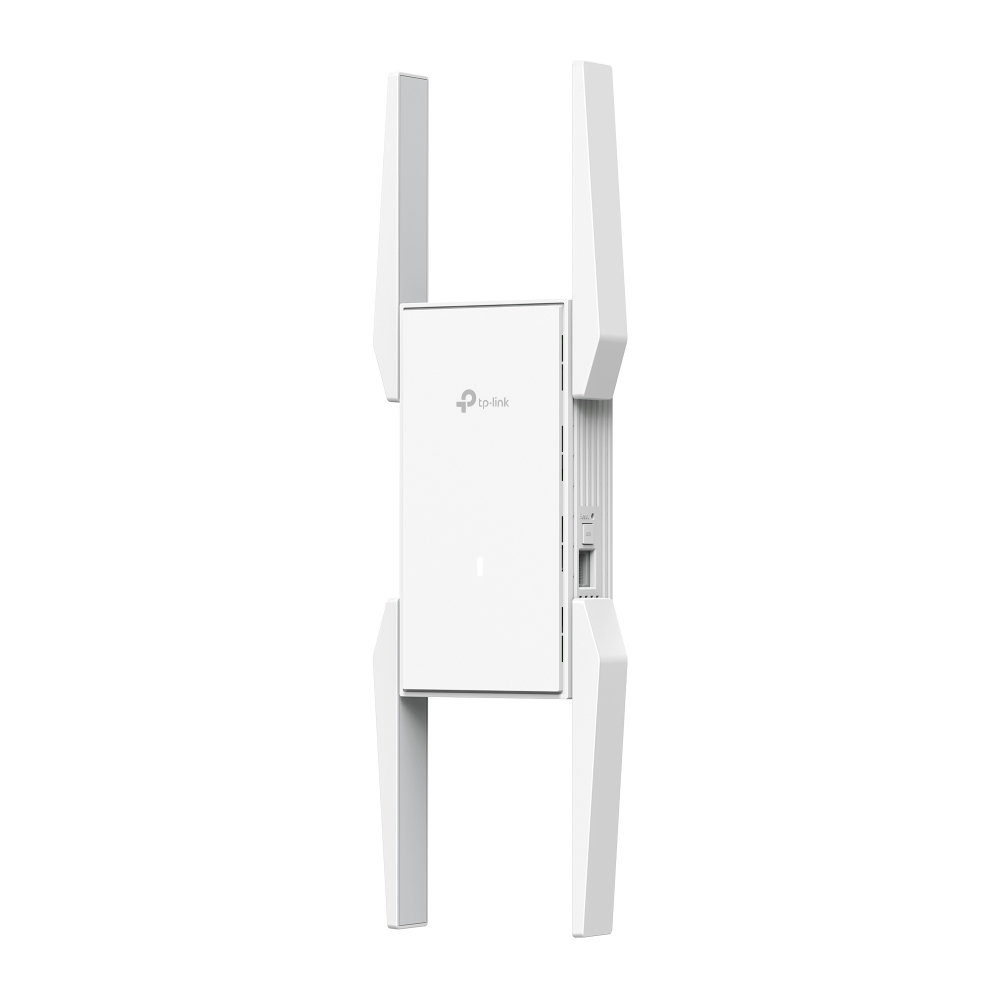

The compact wall-mounted design allows the device to be easily integrated into its surroundings, and the Mesh function enables seamless expansion of the existing network range without speed loss. The built-in LAN ports allow wired connection of devices such as computers or consoles, increasing application flexibility. The booster supports the latest WPA3 security, protecting the network against unauthorized access.
The EAP673-Extender can operate as a standalone device or be part of an extensive Mesh network, cooperating with other TP-Link access points and routers. Thanks to integration with the Omada SDN ecosystem, it offers central management, seamless roaming, and intelligent load balancing, making it an ideal solution for homes, offices, and environments requiring reliable, high-speed wireless connectivity.

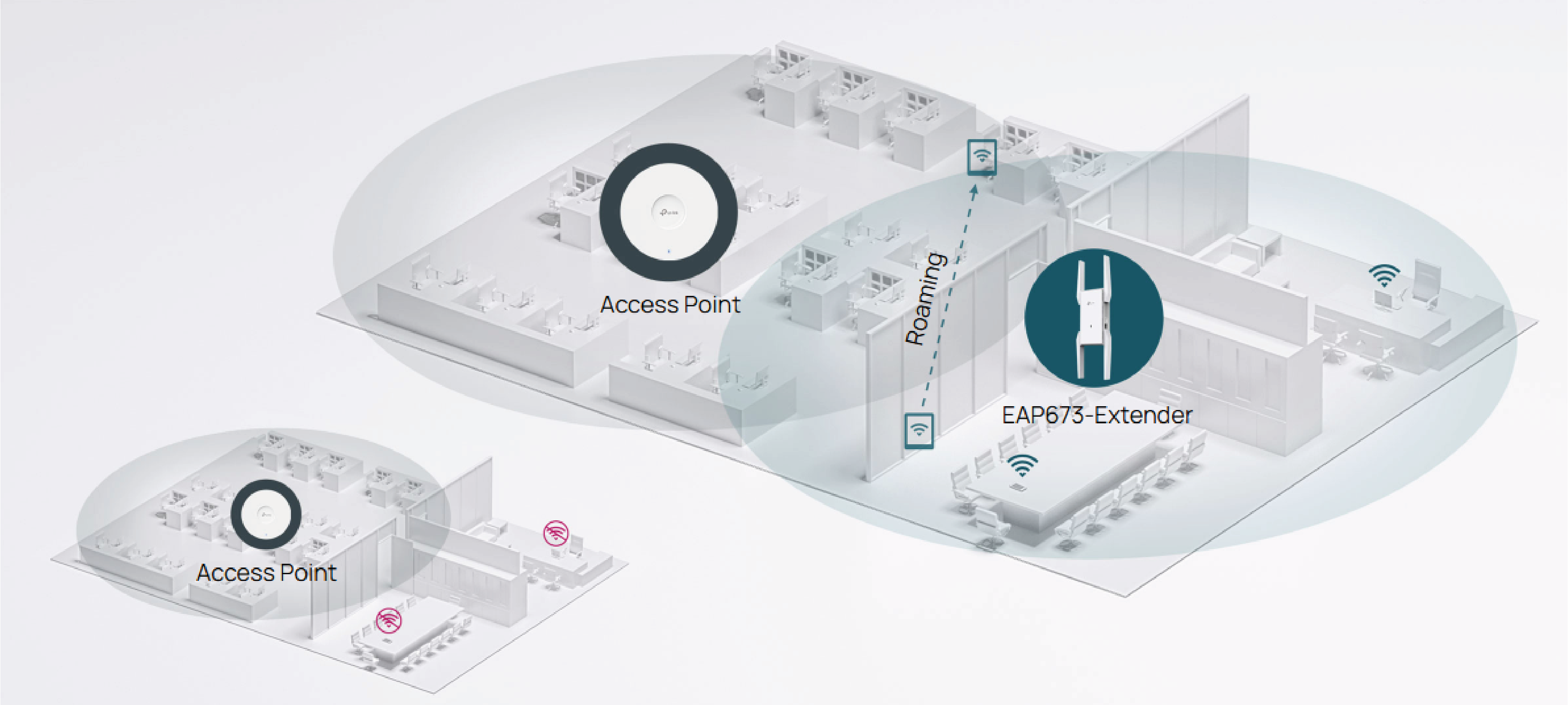

Seamless Coverage, Eliminating Dead Zones
The EAP673-Extender, equipped with high-performance antennas and Mesh technology, effectively eliminates signal dead zones, increasing coverage by up to 140m². Enjoy seamless roaming and uninterrupted connections!

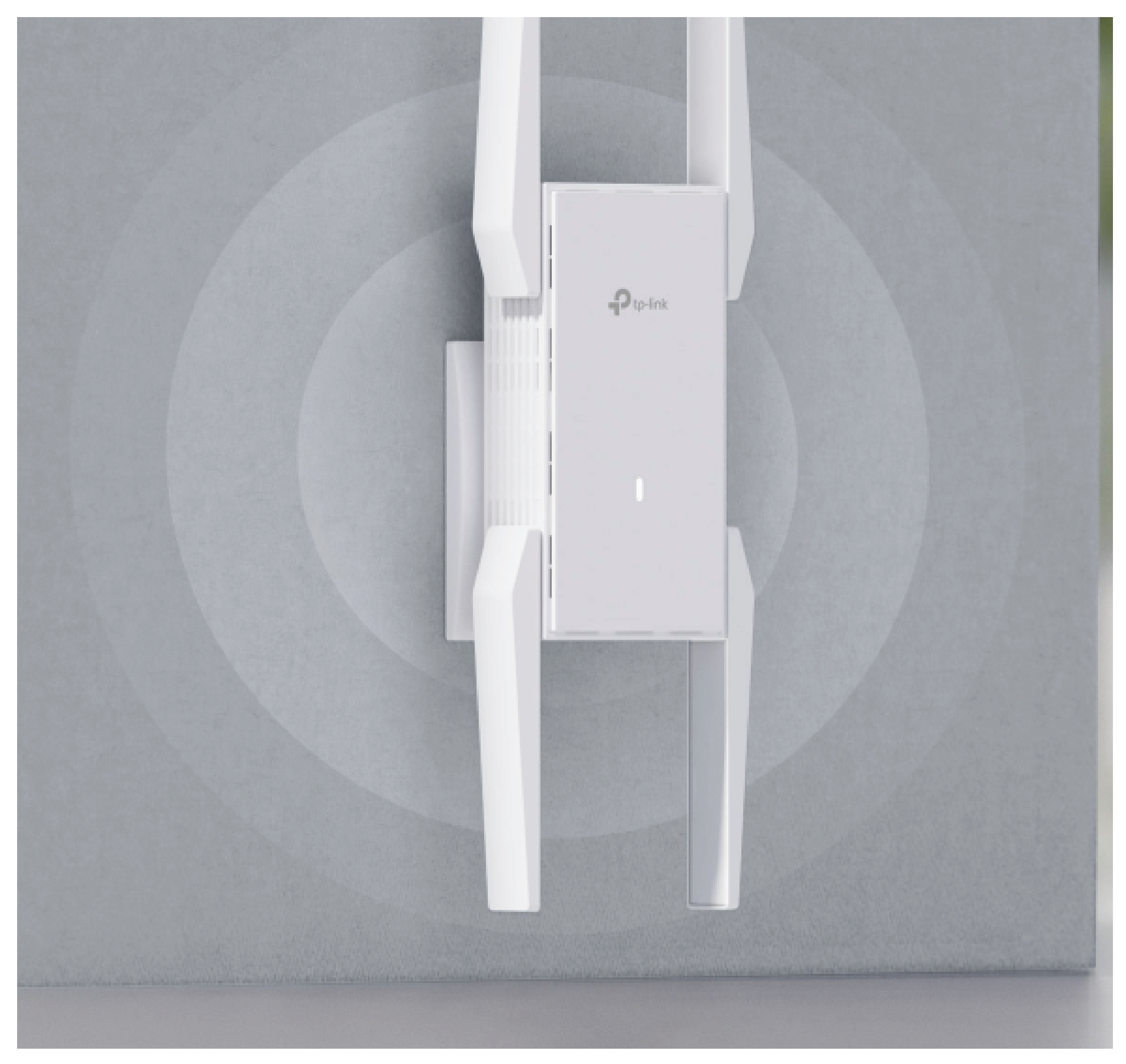

Practical Installation

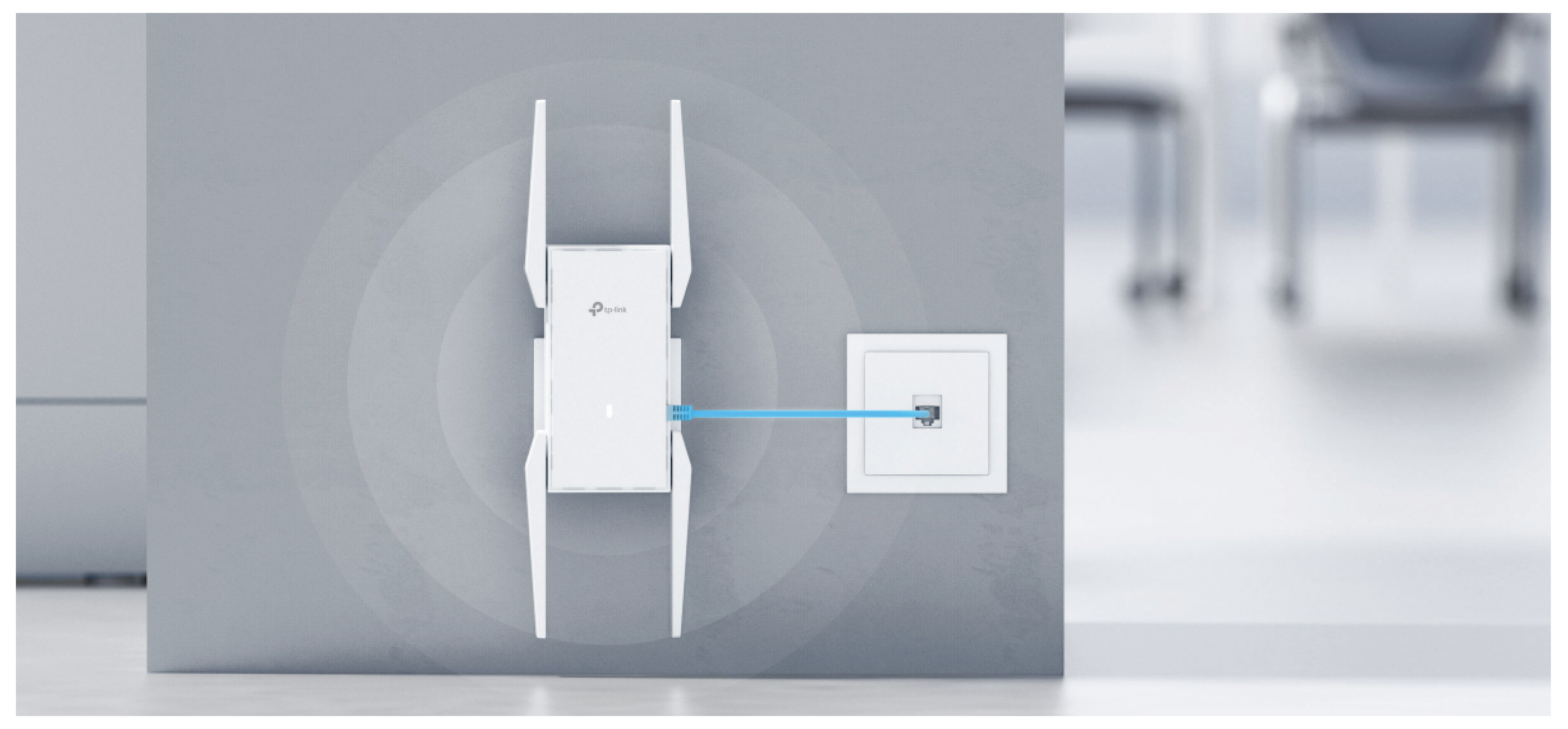

Overcome wiring challenges by using the EAP673-Extender. Plug it into a power outlet and enjoy seamless Wi-Fi. No additional cables are needed for a strong and stable signal.
Boost Your Business Efficiency with Wi-Fi 6

AP Mode Enhancing Deployment Capabilities
The built-in Access Point mode in the EAP673-Extender offers a strong and stable Wi-Fi signal without the need for a PoE switch or infrastructure upgrade. This functionality also increases flexibility and lowers deployment costs.

Specifications
TP-Link EAP673-Extender | |
HARDWARE FEATURES | |
---|---|
Ports | 1 Gigabit Ethernet Port |
Physical Security | None |
Buttons | Reset LED |
Power Supply | 100-240 V ~ 50/60 Hz |
Power Consumption | 18 W |
Dimensions (W x D x H) | 160 × 80 × 37.8 mm (6.3 × 3.1 × 1.5 inches) |
Antennas | 4 External Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 4× 5 dBi |
Mounting | Plug into Power Outlet |
WIRELESS FEATURES | |
Coverage Area | 140m² *** |
Concurrent Clients | 250+ ** |
Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
Frequency | 2.4 GHz and 5 GHz |
Transmission Rate | 5 GHz: Up to 4804 Mb/s 2.4 GHz: Up to 574 Mb/s |
Wireless Functions | 16 SSIDs (Up to 8 SSIDs per band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Power based on dBm) QoS(WMM) Seamless Roaming§ Beamforming Rate Limit Band Steering Airtime Fairness Band Load Balancing Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static/Dynamic IP |
Wireless Security | Captive Portal Authentication§ Access Control Wireless MAC Address Filtering Wireless Client Isolation VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
Transmit Power | <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz, Band 1 and Band 2, EIRP) <30 dBm (5 GHz, Band 3, EIRP) |
MANAGEMENT | |
Omada App | Yes |
Centralized Management | Omada Hardware Controller Omada Software Controller Omada Cloud-Based Controller |
Cloud Access | Yes. Requires use of an Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Email Alerts | Yes |
LED On/Off Control | Yes |
MAC Address Access Control | Yes |
SNMP |
v1, v2c, v3 |
System Log | System Log |
System Log | Yes |
SSH | Yes |
Web-based Management | Yes |
Management VLAN | Yes |
Zero-Touch Provisioning (ZTP) | Yes. Requires use of the Omada Cloud-Based Controller. |
OTHERS | |
Package Contents | EAP673-Extender Installation Guide |
Environment | Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–70℃ (-40℉–158℉) Operating Humidity: 10%–90% RH, non-condensing Storage Humidity: 5%–90% RH, non-condensing |
