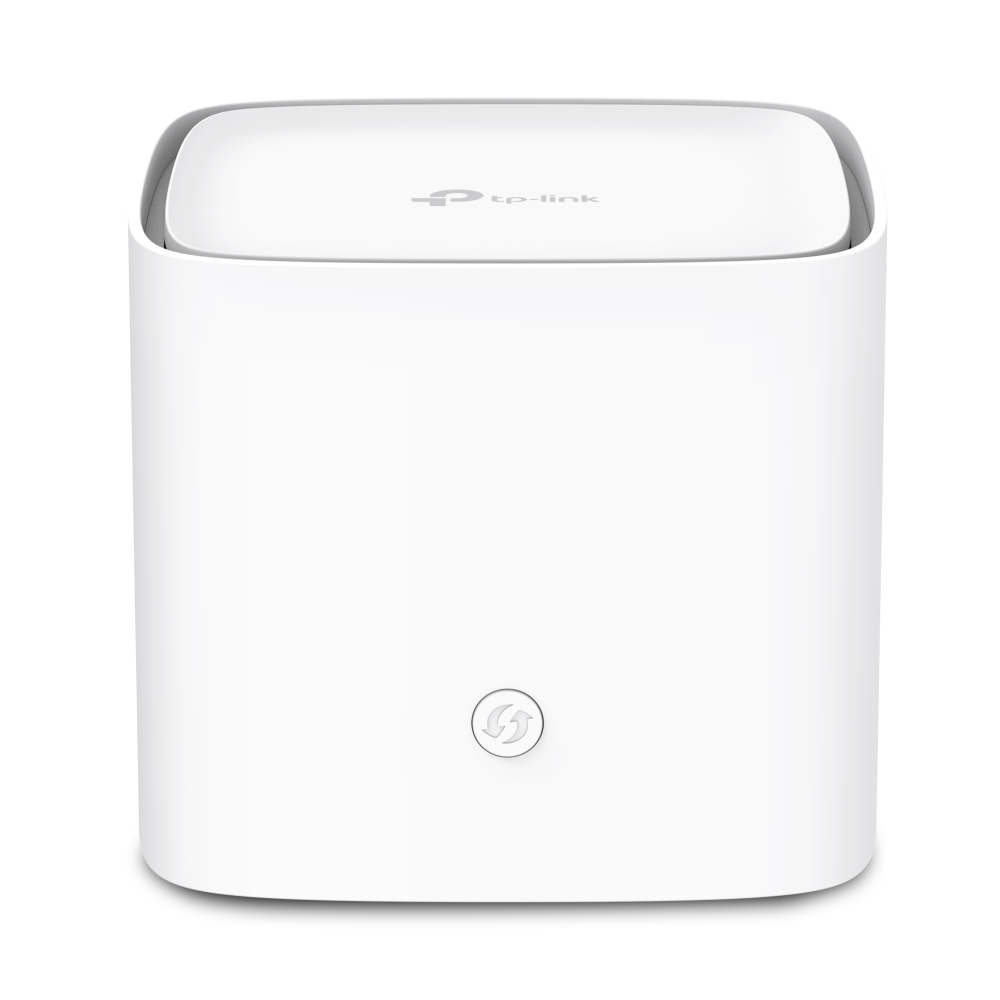

TP-Link HX141 is a wireless router supporting Wi-Fi 6 transmission and operating simultaneously in the 2.4 and 5 GHz bands. It supports IEEE 802.11 b/g/n protocols at 2.4 GHz and IEEE 802.11 a/n/ac/ax at 5 GHz. The maximum theoretical throughput is 300 Mb/s at 2.4 GHz and 1201 Mb/s at 5 GHz, respectively. The main function and advantage of the device is EasyMesh support, which allows the creation of an extensive, unified wireless network consisting of multiple routers / access points that communicate with each other wirelessly. The EasyMesh standard is universal — it is supported by solutions from various manufacturers. The HX141 features 3 1G Ethernet ports, one of which can operate as WAN or LAN, while the remaining ports can operate only as LAN. An additional advantage is support for automatic provisioning via TR-069 / TR-181 / TR-111 / TR-143 and compatibility with the Aginet management system. This makes the HX141 suitable for operator-grade deployments as well — it can be centrally managed from an ACS server.

Wi-Fi 6 AX1500

The device is designed to transmit Wi-Fi 6 networks. It supports the 2.4 and 5 GHz bands simultaneously, including IEEE 802.11 b/g/n protocols at 2.4 GHz and IEEE 802.11 a/n/ac/ax at 5 GHz. The maximum theoretical throughput is 300 Mb/s at 2.4 GHz and 1201 Mb/s at 5 GHz, respectively.

Integrated Antennas, Beamforming

The manufacturer has equipped the device with integrated omnidirectional antennas with high gain. Additionally, the router supports beamforming — a function that detects users located at the edge of the coverage area and shapes the signal to provide them with a stable connection.

EasyMesh System

The offered product supports the EasyMesh standard, allowing the creation of an extensive Mesh network consisting of multiple routers / access points. Within this network, individual devices communicate with each other wirelessly, making their placement very simple and eliminating the need to expand the cabling infrastructure. The HX141 also supports a wired connection if you want to use it. From the user's perspective, the Mesh network is visible under a single, unified name, while the system automatically selects which device and which band the user is connected to.

EasyMesh is a universal standard that connects solutions from different manufacturers. When purchasing a device, you do not need to worry about whether a particular router / access point is compatible — all EasyMesh solutions work together, regardless of the Wi-Fi generation and manufacturer.

Up to 120 Devices Simultaneously

The HX141 supports MU-MIMO (simultaneous data transmission and reception from multiple clients) and allows up to 120 devices to be connected simultaneously! This means you do not have to worry about network performance when connecting multiple client devices. In modern networks, the number of Wi-Fi devices can often reach high numbers, especially when using IoT.

Security

The router supports essential security features, provides WPA3 encryption and parental controls — allowing online time limits to be set and certain websites to be blocked. An additional security feature is the guest network, which allows traffic from temporary users to be isolated from the resources of the main network.

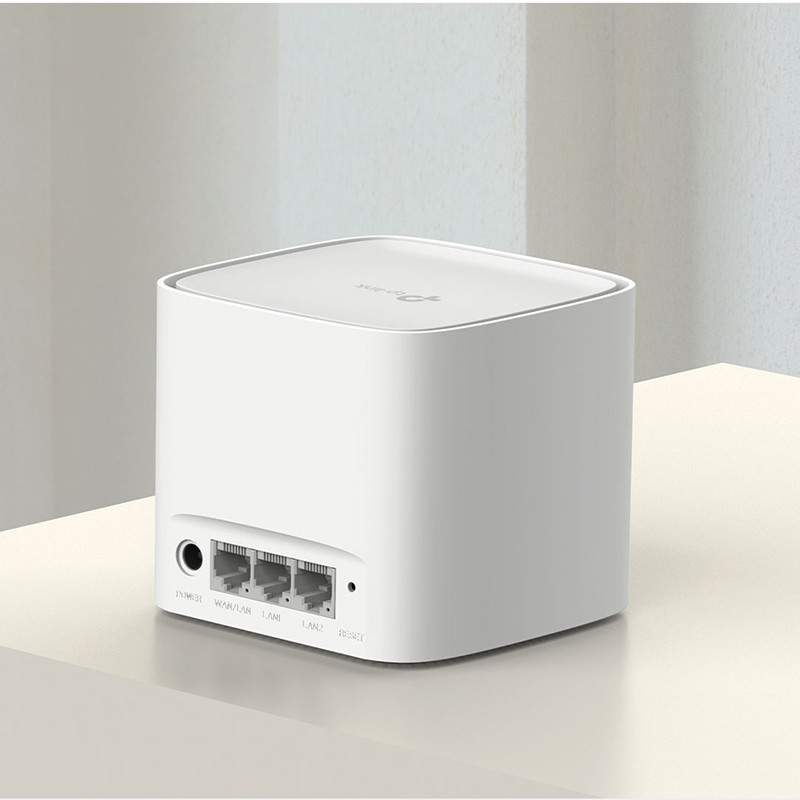

3x 1G Ethernet Ports

The use of 1G Ethernet ports provides an optimal wired connection speed. One of the ports can operate in WAN or LAN mode and supports automatic detection of the connection type, while the remaining ports can only function as LAN.

Easy Installation and Management

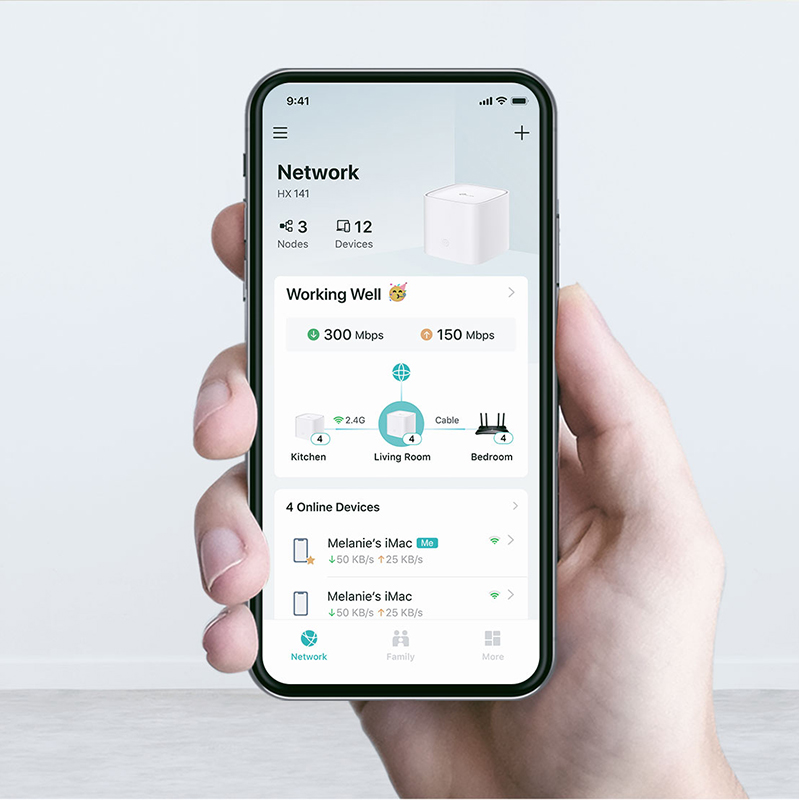

The Aginet application is available for mobile devices running Android / iOS and significantly simplifies HX141 management. It will easily guide you through the initial startup and basic configuration, and then allow you to monitor the operating status.

Aginet

The offered product belongs to the Aginet product series — it is designed to meet operator-grade (ISP) standards. It enables connection to an ACS server using the TR-069, TR-181, TR-111 or TR-143 protocols, allowing multiple devices to be configured simultaneously, factory settings to be changed, and a custom logo and favicon to be set.
