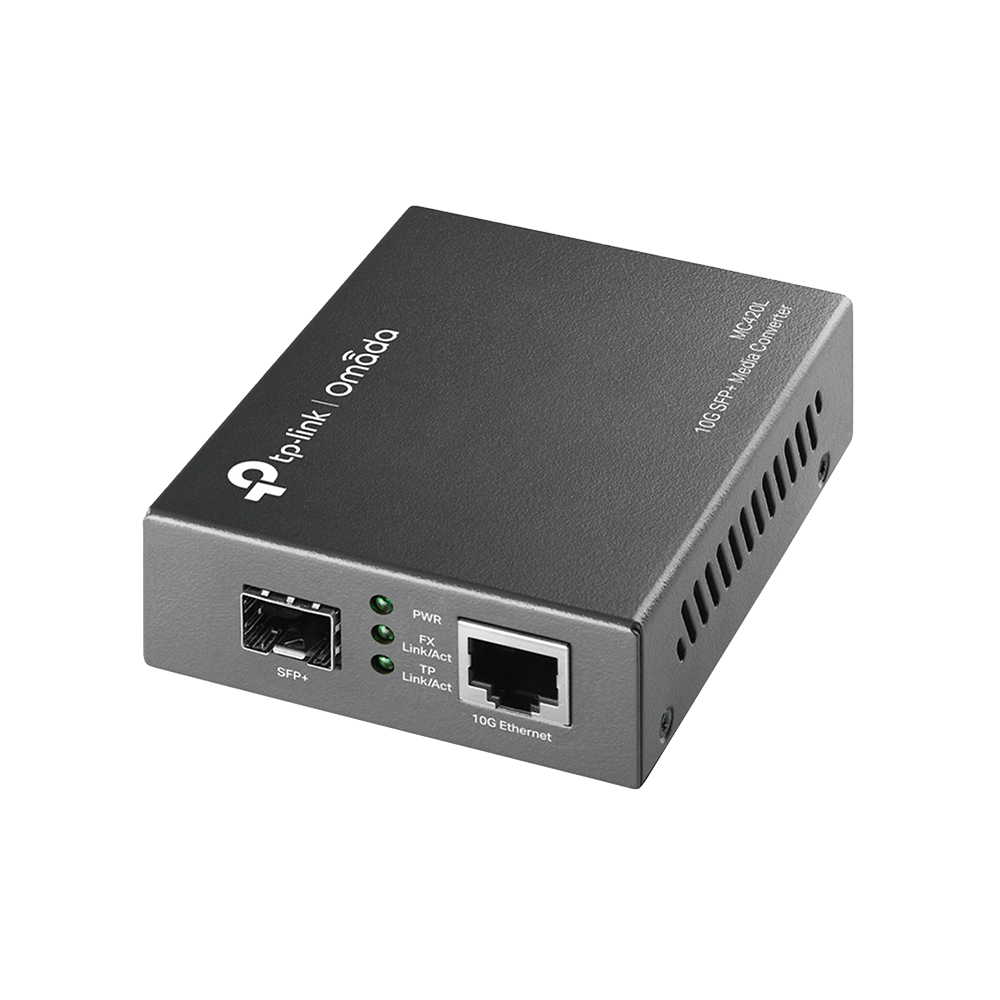

TP-Link MC420L Media Converter SFP+, 10 GB/s 1x GE

TP-Link MC420L Media Converter SFP+, 10 GB/s 1x GE

Brand: TP-Link

Product Code: TL-MC420L

Catalog number: 10713

Warranty (months):

Price

39,11 €

48,11 € incl. tax

favoriteAdd to wishlist

Description

The MC420L Media Converter enables the conversion of a 10GBASE-SR/LR, 10GBASE-LRM optical signal to a copper cable-transmitted 10GBASE-T signal and vice versa. When integrated with an SFP module, it easily increases the distance of an existing gigabit network via fiber optic cable. It operates in accordance with IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet and IEEE 802.3an 10GBASE-T 10G standards within the intended application with a multimode/single-mode SFP module.

The converter can operate as a standalone device or be mounted in a TP-LINK chassis. The TX port features automatic crossover (Auto MDI/MDI-X). LED indicators on the front panel display the device's operational status. Connecting an SFP module allows the MC420L converter to increase the optical signal transmission distance. However, the maximum transmission distance depends on the connected SFP module.

Specifications

Media Converter and Module
TP-Link MC420L
Standards and Protocols	IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Basic Functions	• Auto-Negotiation of Half-Duplex / Full-Duplex transfer • Maximum transmission range depends on the SFP module used
Ports	• 1 SFP+ port • 1× 1Gb/2.5Gb/5Gb/10Gbps RJ45 port
Wavelength	Depends on the SFP module used
Network Media 10GBASE-R	SFP+ module (single-mode or multi-mode)
Network Media 10GBASE-T	UTP cable 1000/2.5/5/10Gbps Cat 5e or higher (up to 100m) UTP cable Cat.6 (max. 55m), STP Cat. 6 or higher (max. 100m)
Dimensions (W×D×H)	94.5×73.0×27.0 mm (3.7×2.9×1.1 inches)
Power Supply	External Power Adapter
Maximum Power Consumption	4.12W
LEDs	PWR, Link/Act
Package Contents	• MC420L • Power Adapter • User Manual
Environment	Operating Temperature: 0℃~50℃ (32℉~122℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% RH, non-condensing Storage Humidity: 5%~90% RH, non-condensing
