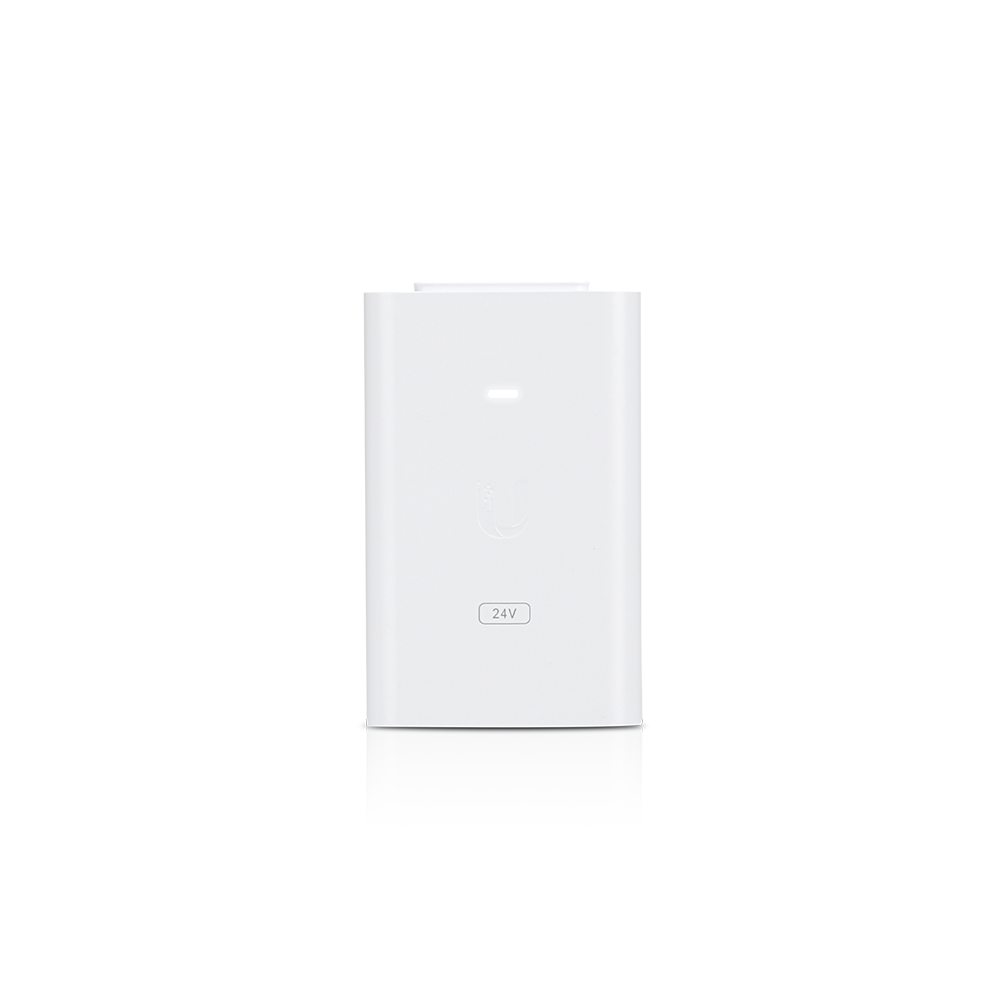

Ubiquiti POE-24-12W-G-WH PoE power supply 24V 12W gigabit white

Ubiquiti POE-24-12W-G-WH PoE power supply 24V 12W gigabit white

Brand: Ubiquiti Networks

Product Code: UQ-POE-24-12W-G-WH

Catalog number: 10722

Warranty (months):

Price

8,86 €

10,90 € incl. tax

favoriteAdd to wishlist

Description

Passive PoE Power Supply 24 V DC, 12 W, 1G Ethernet Port

The offered product is a power supply supporting passive PoE, with an output voltage of 24 V DC and a power of 12 W (current 0.5 A). Power is transmitted over 2 pairs (wires 4, 5+ / 7, 8–). The POE-24-12W-G-WH is equipped with a 1G Ethernet port and is designed for connecting modern wireless devices. The power supply features shielded RJ45 ports and surge protection.

Specifications

Ubiquiti PoE-24-12W-G
Dimensions	87 x 44 x 29 mm (3.4 x 1.7 x 1.1")
Weight	99 g (3.5 oz)
Output voltage	24V DC @ 0.5A
LAN activity indicator	No
Gigabit LAN port	Yes
Remote reset capability	Yes
Reset button	Yes
Rated voltage	100-240V AC @ 50/60Hz
Input current	0.3A @ 120V AC, 0.2A @ 240V AC
Inrush current	<30A peak @ 120V AC, <60A peak @ 230V AC
Efficiency	75+%
Output ripple	1% Max.
Switching frequency	50 kHz
Line regulation	≤ 3%
Load regulation	≤ 5%
2-pair powering	Pins 4, 5 (+) and pins 7, 8 (-)
4-pair powering	-
Storage temperature	-30 to 70°C (-22 to 158° F)
Ambient operating temperature	0 to 40° C (32 to 104° F)
Ambient operating humidity	35 to 95% noncondensing
AC connector	IEC-320 C6
Data IN / PoE	RJ45 shielded socket
Surge protection	Difference and common mode
Clamping protection	11V data 60V power
Max. surge discharge	1500A (8/20 μs) power
Peak pulse current	36A (10/1000 μs) data
Shunt capacitance	<5 pF
Response time	<1 ns
