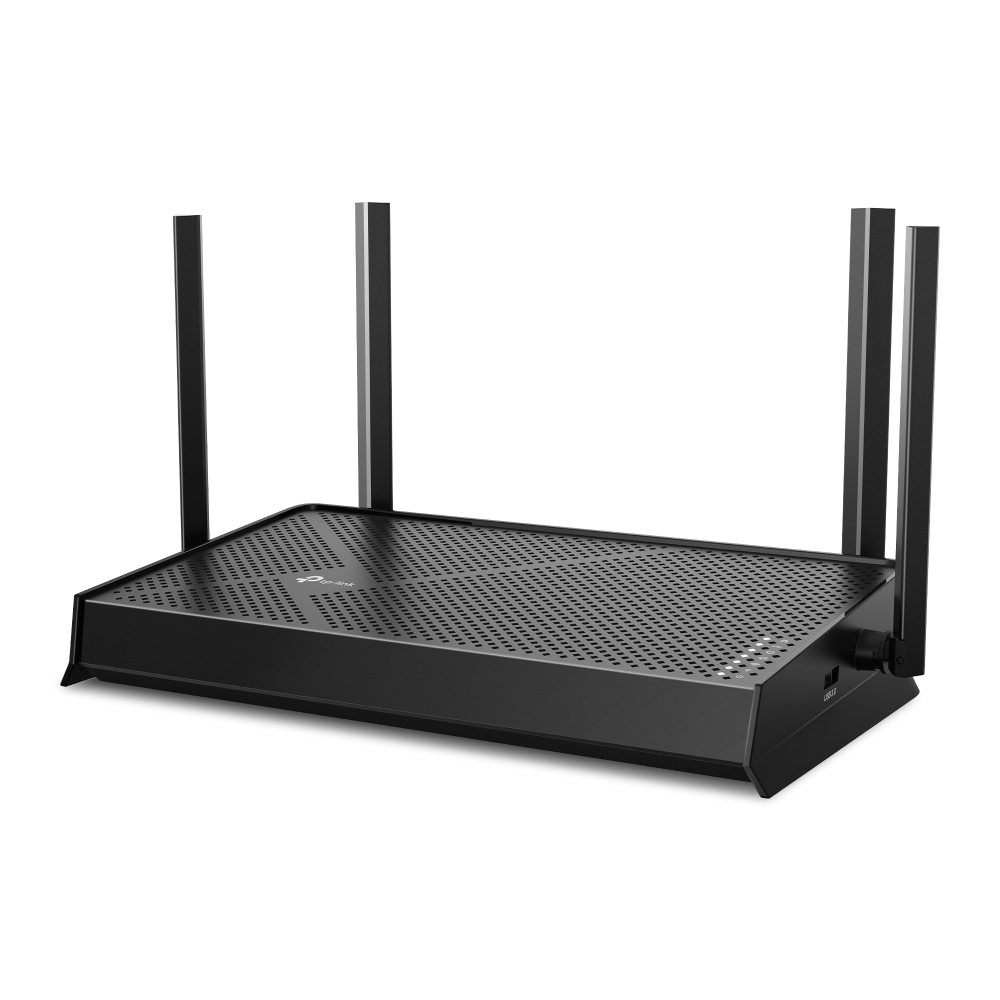

The TP-Link EB210 Pro is a dual-band wireless router that supports the Wi-Fi 7 standard. It is compatible with IEEE 802.11 b/g/n/ax/be protocols in the 2.4 GHz band and IEEE 802.11 a/n/ac/ax/be in the 5 GHz band. The maximum theoretical throughput reaches up to 688 Mbps on 2.4 GHz and up to 2880 Mbps on 5 GHz. The router features two 2.5G Ethernet ports, with one operating as WAN and the other as LAN. Additionally, it is equipped with three standard 1G Ethernet LAN ports. The device is EasyMesh compatible, allowing it to work seamlessly with other compliant solutions to create a large, unified wireless network. The EB210 Pro belongs to the ISP series, meaning it supports TR-069 auto-provisioning (along with other protocols listed in the specifications) and Aginet (enabling default configuration customization and simultaneous management of multiple devices).
Wi-Fi 7
The latest Wi-Fi 7 standard introduces many innovations that will revolutionize your wireless network. MLO (Multi-Link Operation) allows for simultaneous connectivity between the router and the client device across multiple bands instead of just one, which significantly increases connection throughput. The Multi-RU feature enables the allocation of more than one RU (Resource Unit) to a single user, resulting in much better utilization of the available frequency.

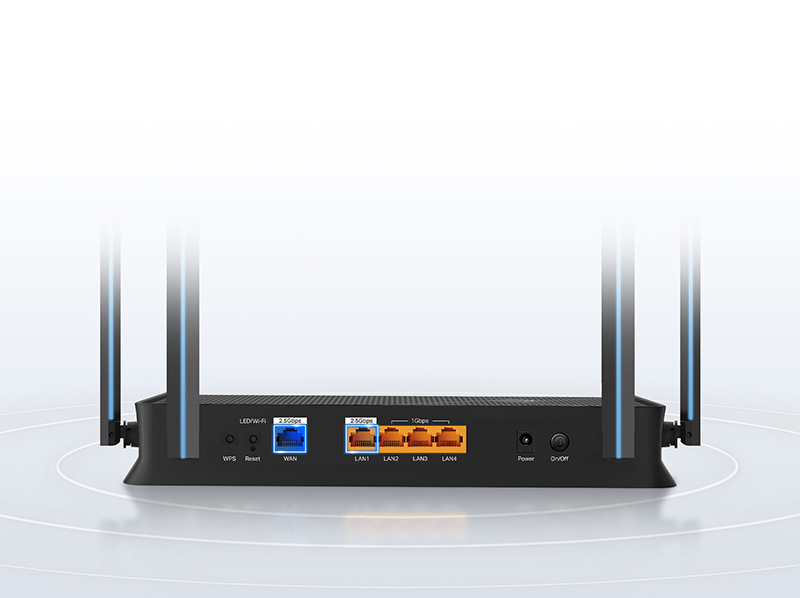

BE3600, two ports 2.5G Ethernet
The router supports IEEE 802.11 b/g/n/ax/be protocols in the 2.4 GHz band and IEEE 802.11 a/n/ac/ax/be in the 5 GHz band. The maximum theoretical throughput is up to 688 Mbps on 2.4 GHz and up to 2880 Mbps on 5 GHz, respectively. To fully utilize the capabilities offered by Wi-Fi 7, the router is equipped with two 2.5G Ethernet ports – one WAN port and one LAN port. Additionally, it features three standard 1G Ethernet LAN ports.

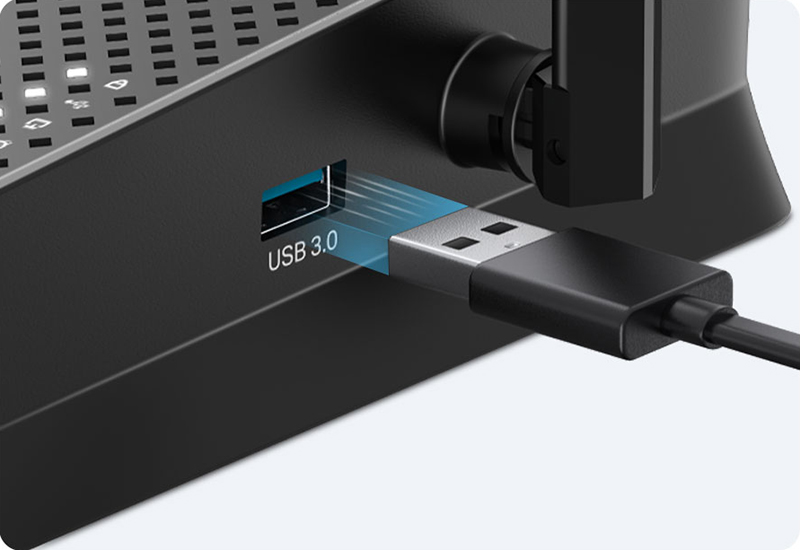

USB 3.0
You can connect external storage (such as a hard drive or flash drive) to the USB 3.0 port, which can then be used for file sharing, for example, as a media server or an FTP server.

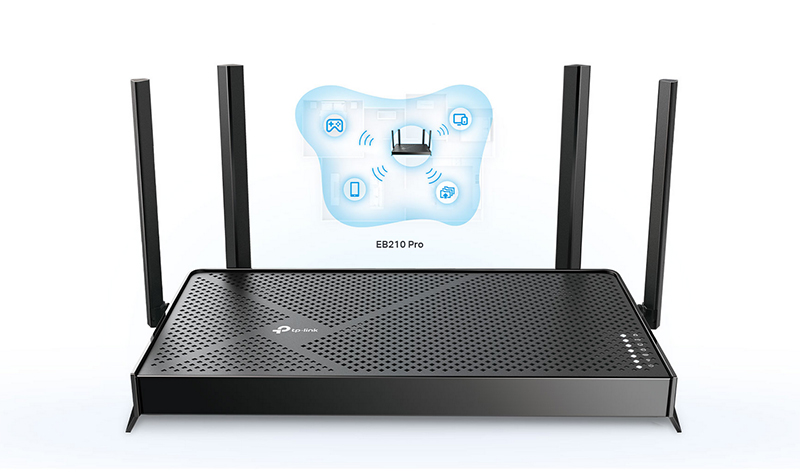

Long-range network coverage
Thanks to the use of four external antennas and Beamforming technology, the router ensures optimal connection coverage, even in challenging conditions.

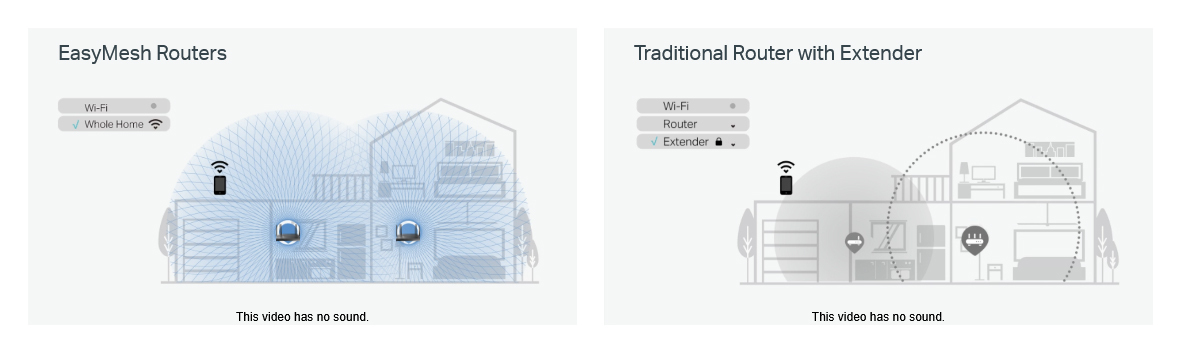

EasyMesh Support
The offered product supports the EasyMesh standard, which allows you to create a large, extended wireless network consisting of multiple routers / access points. The network is visible under a single name (SSID), and the system automatically chooses which device the user connects to at any given moment. EasyMesh is a vendor-neutral standard and supports solutions from various brands.

WPA3 Encryption


Parental Controls
Guest Network

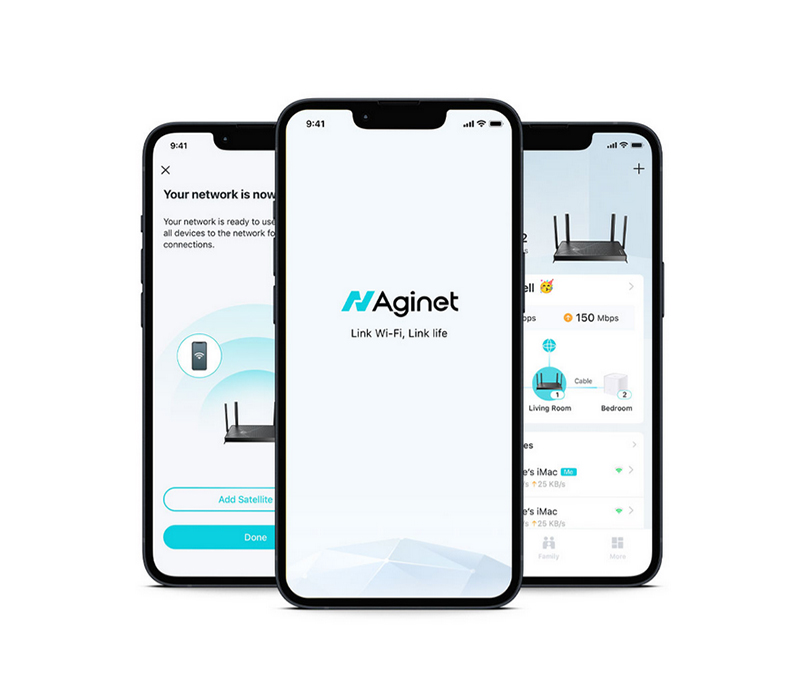

Aginet App
You can manage the device using the Aginet app, which is available for Android and iOS. The configuration process is very simple and intuitive, eliminating the need to connect to the management panel via a web browser. The app also makes it much easier to monitor the network and resource utilization, allowing you to check the current status at any time.

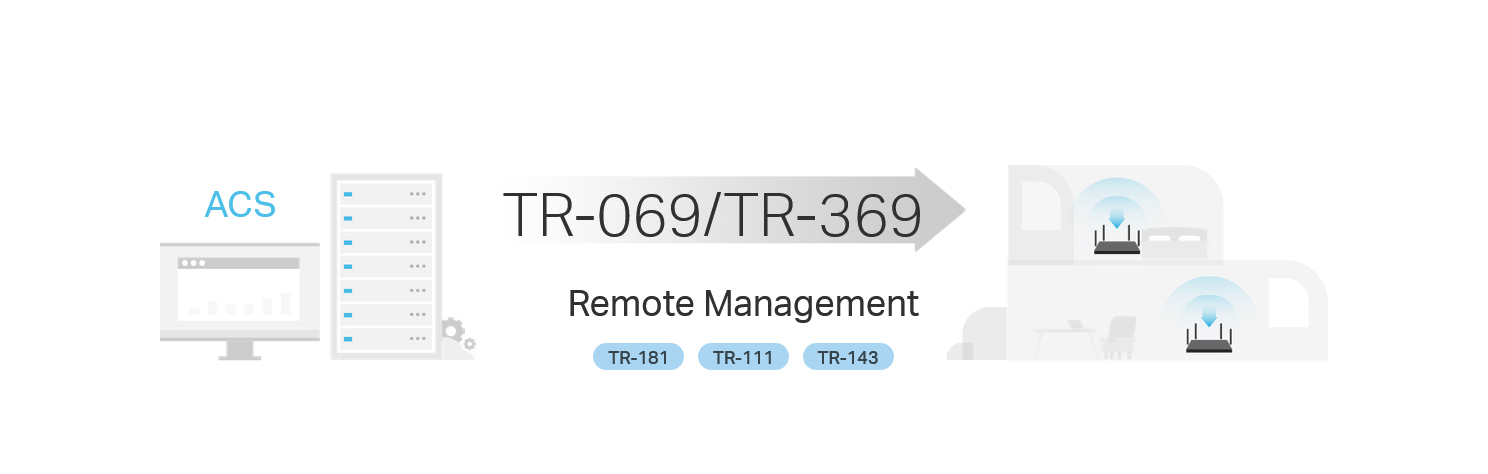

TR-069 Remote Management
The EB210 Pro supports TR-069, TR-098, TR-181, TR-369, TR-111, and TR-143 protocols, enabling communication with ACS servers and the implementation of auto-provisioning / remote configuration. This significantly simplifies large-scale network management.

Aginet - ISP Solution
The device supports Aginet tools – solutions dedicated to Internet Service Providers. You can change the router's default configuration, modify the logo and favicon, and configure multiple devices simultaneously. For more information, please visit the manufacturer's website.

Specifications
| TP-Link EB210 Pro | |
| Hardware Features | |
|---|---|
| Ports |
1 port WAN 2.5G Ethernet 1 port LAN 2.5G Ethernet 3 ports LAN 1G Ethernet 1 port USB 3.0 |
| Buttons | Power, reset, WPS, LED/Wi-Fi |
| Power Supply | External Power Supply 12 V DC / 2 A |
| Dimensions | 268,6 × 153 × 47,6 mm |
| Wireless Features | |
| Wireless Standards |
2,4 GHz: IEEE 802.11 b/g/n/ax/be 5 GHz: IEEE 802.11 a/n/ac/ax/be |
| Frequency | 2,4 and 5 GHz |
| Maximum Theoretical Throughput |
BE3600 2,4 GHz: up to 688 Mb/s 5 GHz: up to 2880 Mb/s |
| Wireless Transmission Security | WPA / WPA2 / WPA3-Personal |
| Transmit Power |
2,4 GHz: < 20 dBm 5 GHz: < 30 dBm |
| Multiple SSID | 2 SSIDs for each of the 2.4 GHz and 5 GHz bands |
| Mesh Technology | EasyMesh compliant, supporting IEEE 802.11k/v/r protocols |
| Software Specifications | |
| Quality of Service | WMM |
| Advanced Functions |
MLO (Multi-Link Operation) Bandwidth 160 MHz 4K-QAM Multi-RU OFDMA Beamforming BSS Coloring QoS (Quality of Service) Port Forwarding CWMP Parental Controls Wi-Fi Schedule Wireless Statistics Guest Network Band Steering Airtime Fairness Network Diagnostics Traffic Statistics |
| WAN | Dynamic IP / Static IP / PPPoE / PPTP / L2TP |
| Management |
Local Management: Web Interface, Aginet Application (for end users)
Management remote: TR-069, TR-098, TR-181, TR-369, TR-111, TR-143 Aginet App
Cloud Management: TP-Link Aginet Unified Cloud (TAUC) |
| VPN | PPTP, OpenVPN, IPSec |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols |
IPv4 IPv6 |
| Operation Modes |
Router Access Point |
| Other Features | |
| Kit |
EB210 Pro Supply Patch cord Ethernet Quick Installation Guide |
| Permissible Operating Temperature | 0°C to 40°C |
| Permissible Storage Temperature | -40°C to 60°C |
| Permissible Operating Humidity | 10%-90% non- condensing |
| Permissible Storage Humidity | 5%-90% non- condensing |
