3G On-the-Go TP-Link TL-MR3420 is a 3G/3.75G router that allows wireless sharing of a 3G connection to all users on the network in the N standard, providing transfers up to 300 Mbps. The device is equipped with 3G/WAN failover capability, ensuring an uninterrupted internet connection. It allows the primary connection to be set via 3G/3.75G or the WAN port (xDSL/Cable), and when the primary link connection is lost, the router automatically switches to the backup link and restores the primary link connection as soon as it is active again, thereby ensuring constant, reliable internet access.

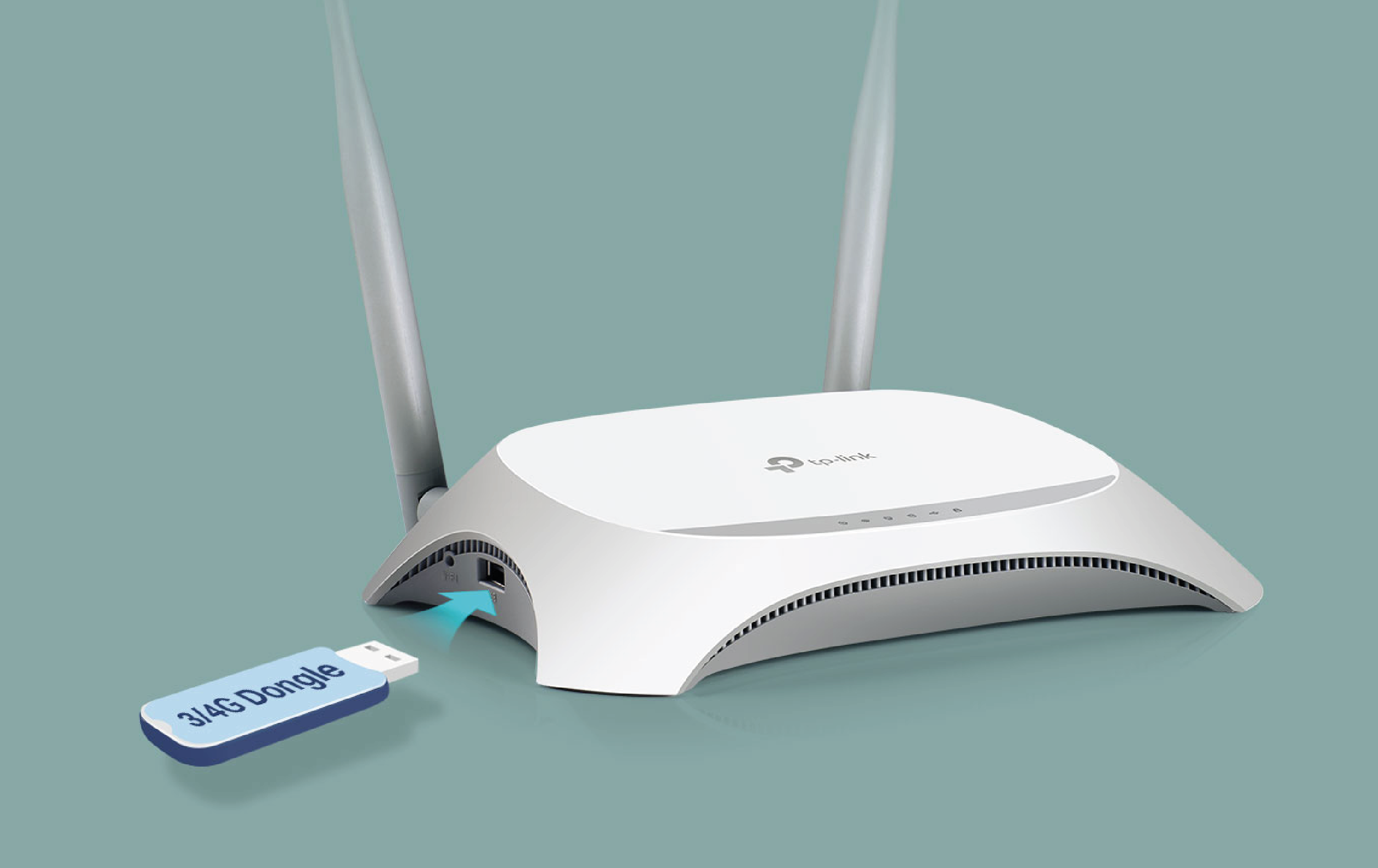

Convert 3G/4G Signal to Wi-Fi
Connect a 3G/4G USB dongle to the TL-MR3420 and instantly create your own Wi-Fi hotspot. Share a stable network connection with family and friends. The TL-MR3420 is compatible with devices from most manufacturers.

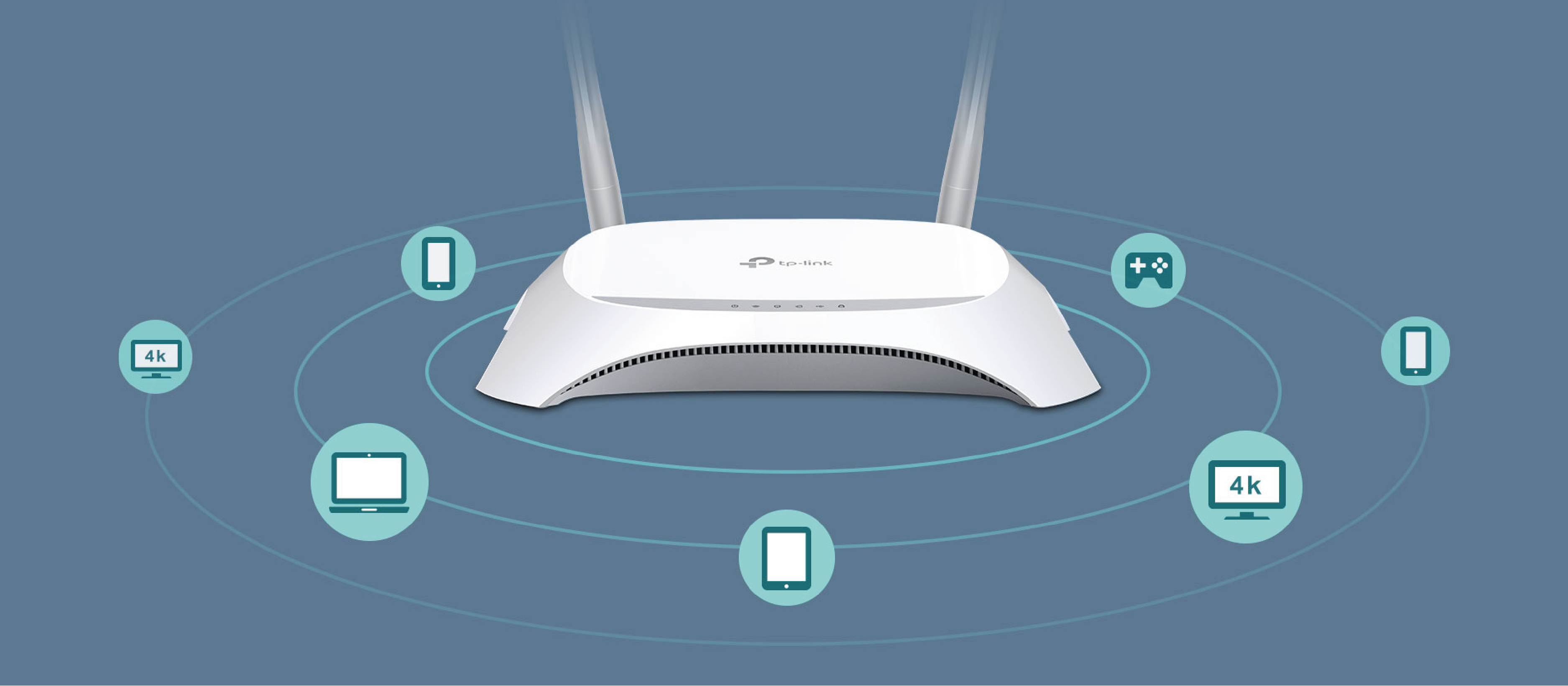

Connect to More Devices
Dreaming of a fast connection for more devices? The TL-MR3420 provides connections with speeds up to 300 Mbps to up to 32 internet devices simultaneously. You can connect to your smartphone, laptop, console, and more.

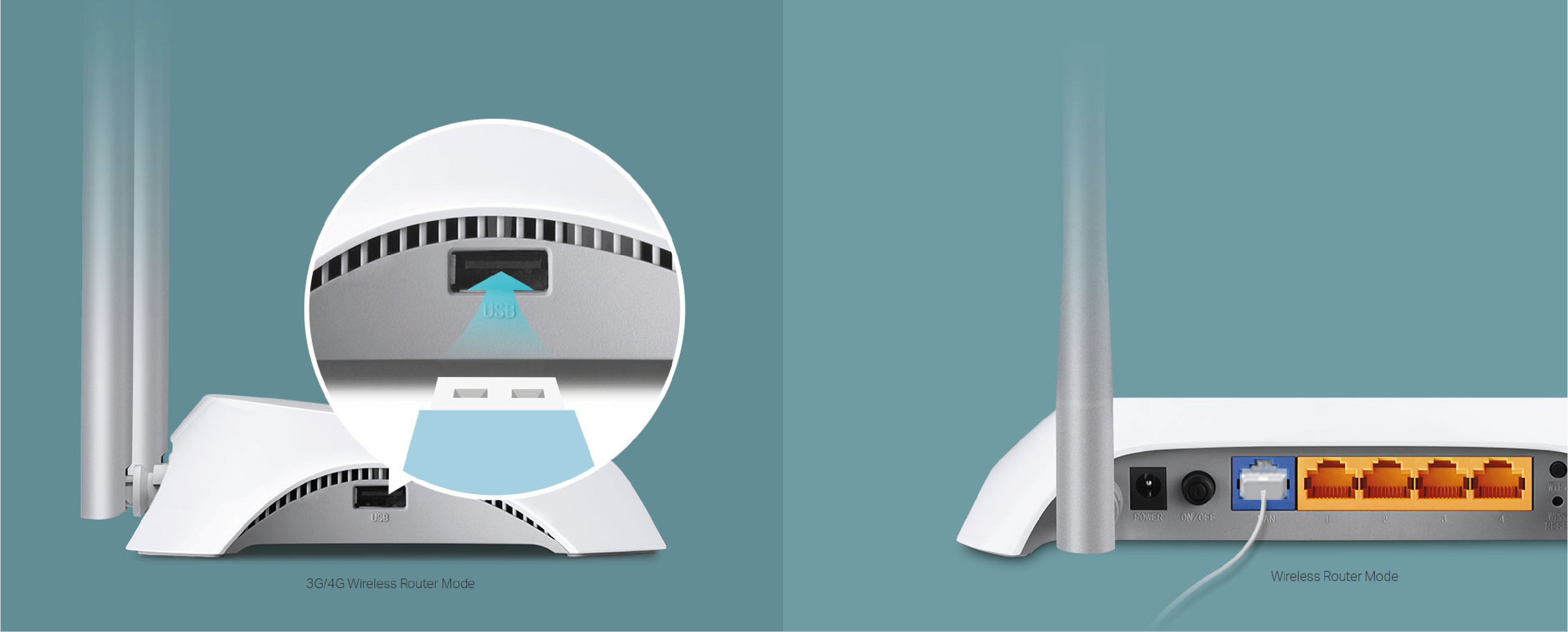

Two Modes, Unlimited Possibilities
The TL-MR3420 also supports WAN connection via Ethernet cable. This powerful and versatile router allows you to switch between wired WAN connection and wireless 3G/4G connection modes.

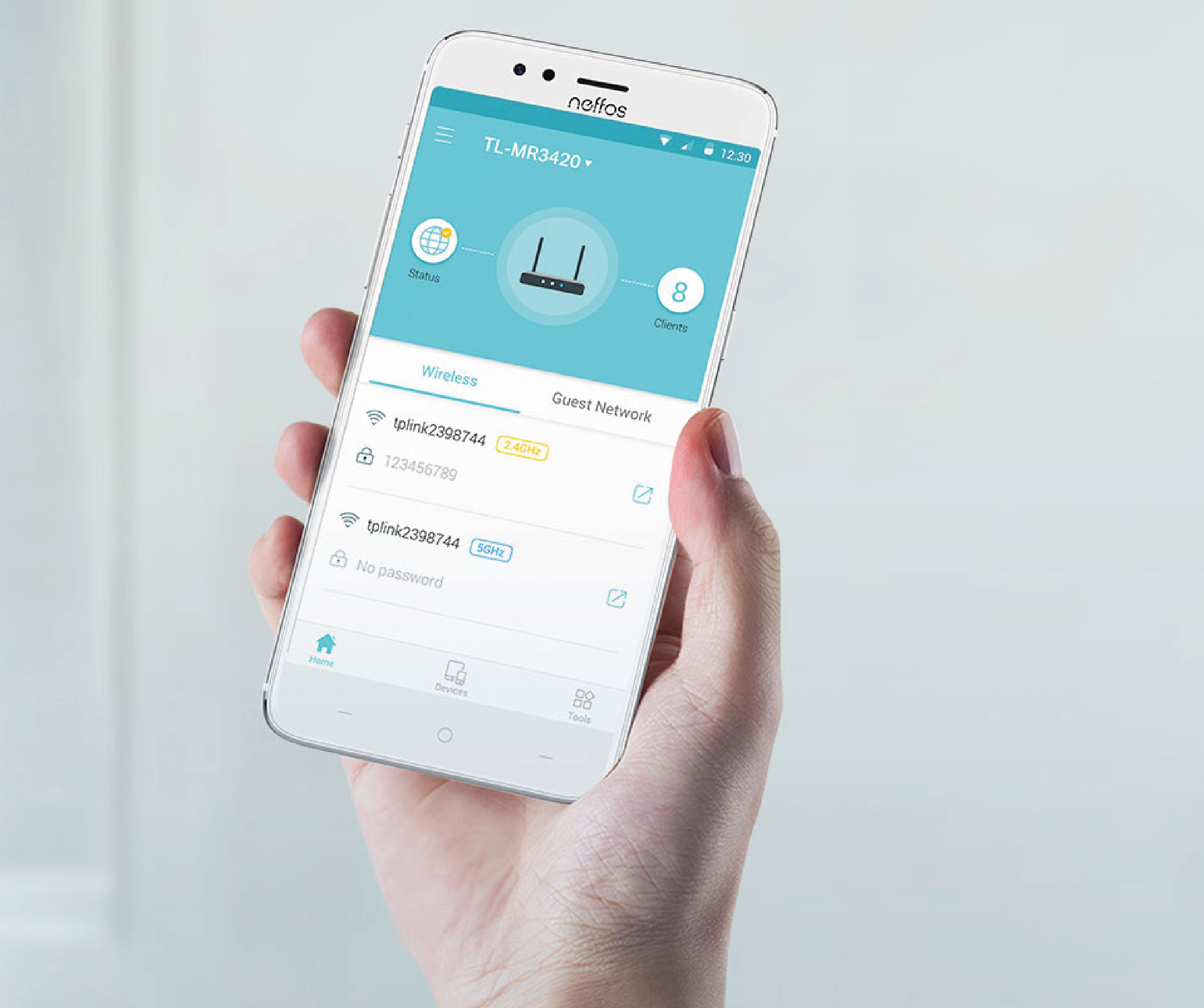

Easy Setup and Management
Thanks to the intuitive interface and the indispensable Tether app, you can configure the TL-MR3420 in minutes! Manage network settings, including parental control and access control, from any Android or iOS device. You can control your home network from anywhere, anytime.

Specifications
| MR3420 | |
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 USB 2.0 Port for LTE/HSPA+/HSUPA/HSDPA/UMTS/EVDO USB Modem 1 10/100Mbps WAN Port, 4 10/100Mbps LAN Ports, support the auto-Negotiation and auto-MDI/MDIX |
| Button | WPS/Reset Button Wireless On/Off Switch Power On/Off Button |
| External Power Supply | 12VDC/1A |
| Dimensions ( W x D x H ) | 8*5.4*1.7 in. (204*138*44 mm) |
| Antenna Type | V1&V2 Omni directional, Detachable, Reverse SMA V3&V4 Omni directional, Undetachable, Reverse SMA |
| Antenna Gain | 2x5dBi |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency | 2.4-2.4835GHz |
| Transmit Power | <20dBm |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
| SOFTWARE FEATURES | |
| Security | NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
| Management | Web Based Configuration(HTTP), Web Based Firmware Upgrade |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | 3G/4G Wireless N Router TL-MR3420 2 Antennas Power supply unit Ethernet Cable Resource CD Quick Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ Windows 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
