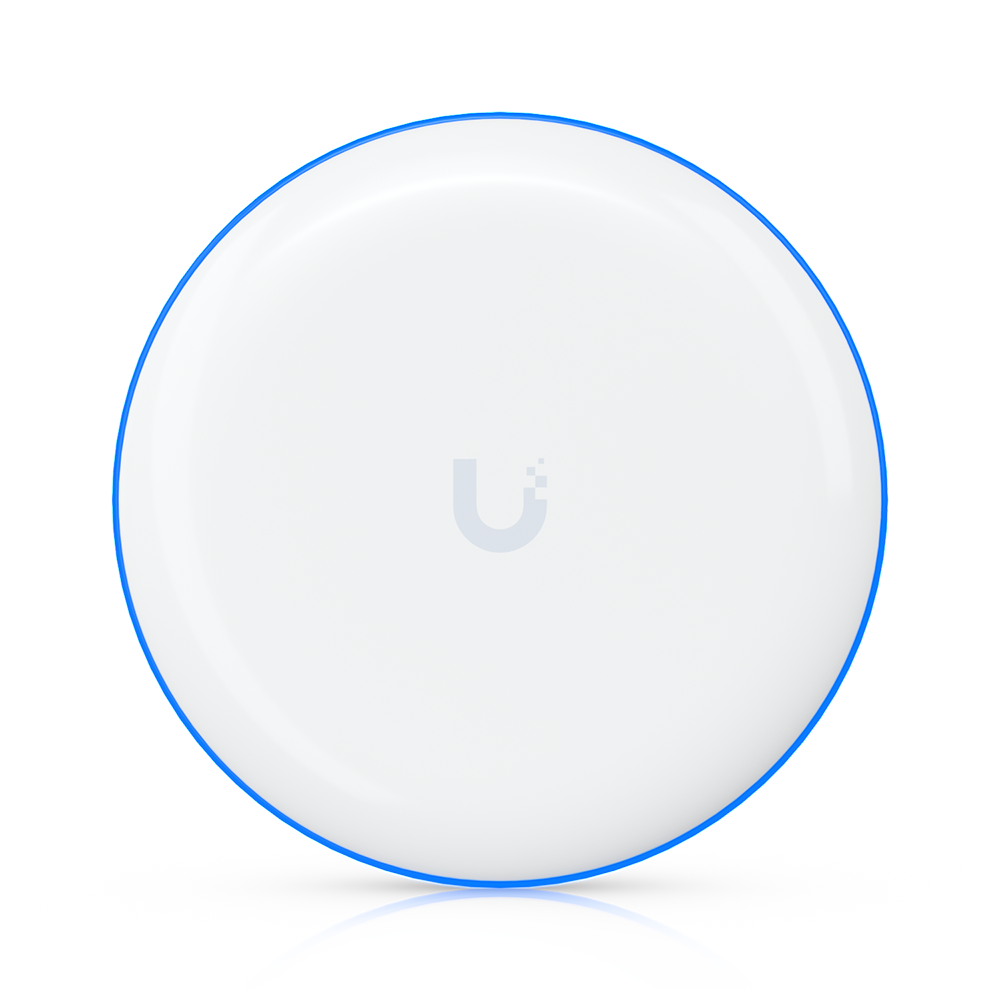

The Ubiquiti Building Bridge is a complete wireless bridge solution that integrates a radio with a built-in antenna. It operates primarily in the 60 GHz band and includes a 5 GHz backup radio to maintain connectivity if the 60 GHz link is interrupted. Designed for point-to-point (PtP) bridge deployments, the UBB supports wireless links over distances of up to 500 meters while delivering throughput of up to 1.7 Gb/s. It is intended for use within the UniFi ecosystem and does not support standalone operation. The device is designed to connect two nearby buildings, such as separate office locations or company facilities, using a high-speed wireless bridge. The UBB is fully designed for outdoor installations and features an IPX6 weather-resistance rating. The package includes a mounting bracket for installation on either a wall or a pole. For network connectivity, the device is equipped with a single Gigabit Ethernet port, which also serves as the PoE input and supports the IEEE 802.3af standard. A compatible power injector is included in the package.

Point-to-Point Wireless Bridge for Distances up to 500 m

The offered product is a complete wireless solution designed to establish point-to-point (PtP) links over distances of up to 500 meters. The Building Bridge operates exclusively within the UniFi ecosystem, providing centralized management and seamless integration with the rest of your UniFi infrastructure. It is an ideal solution for connecting two buildings located within a relatively short distance of each other. By deploying a UBB at each location, you can create a single, unified network with high-speed wireless connectivity between the buildings.

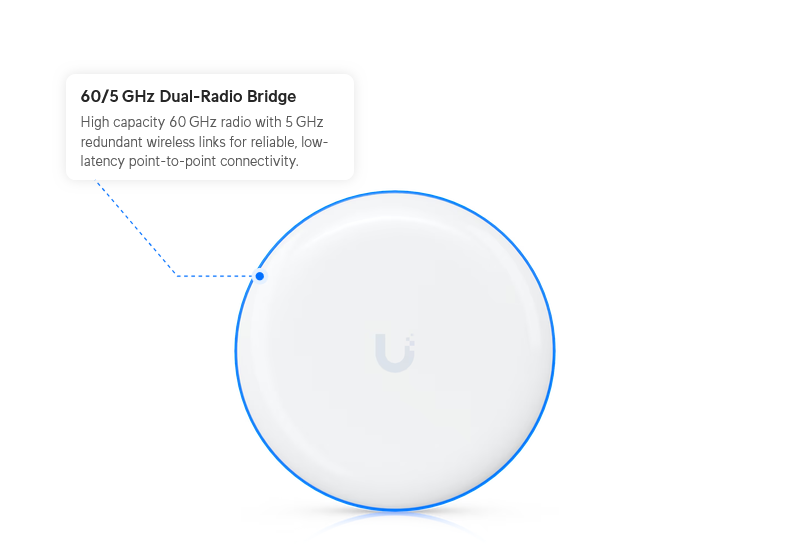

60 GHz Wireless Link with 5 GHz Backup, Up to 1.7 Gb/s Throughput

The primary wireless link operates in the 60 GHz band, delivering a maximum throughput of up to 1.7 Gb/s, closely matching the capacity of the integrated Gigabit Ethernet interface. The UBB also features a 5 GHz backup radio, which maintains connectivity during severe weather conditions when the 60 GHz link may become unstable or temporarily unavailable. The maximum theoretical throughput of the 5 GHz backup link is 866.6 Mb/s. The Building Bridge is equipped with integrated directional antennas optimized for both frequency bands. The antenna provides a gain of 17.2 dBi in the 60 GHz band and 10 dBi in the 5 GHz band, ensuring reliable point-to-point performance over long distances.

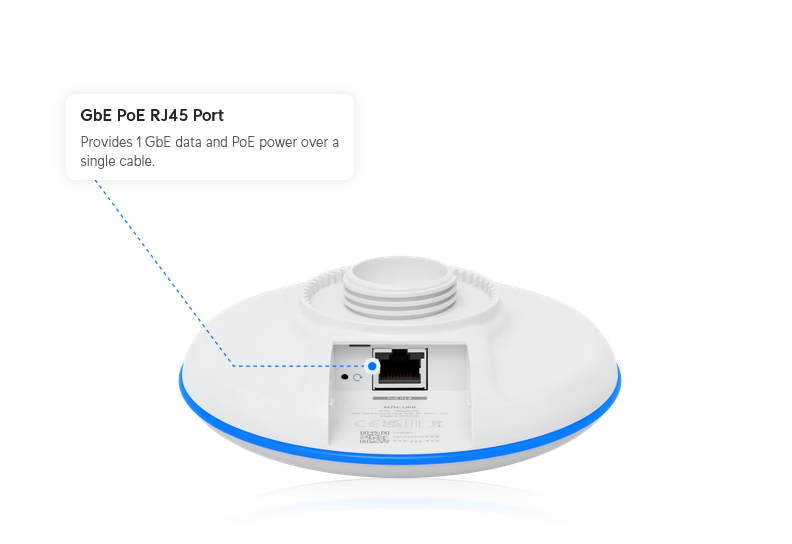

1G Ethernet Port with PoE Power Input

The device is equipped with a Gigabit Ethernet port, which also serves as the PoE power input. It supports both IEEE 802.3af PoE and 48 V passive PoE. The maximum power consumption is 11 W, and a compatible PoE power injector is included in the package.

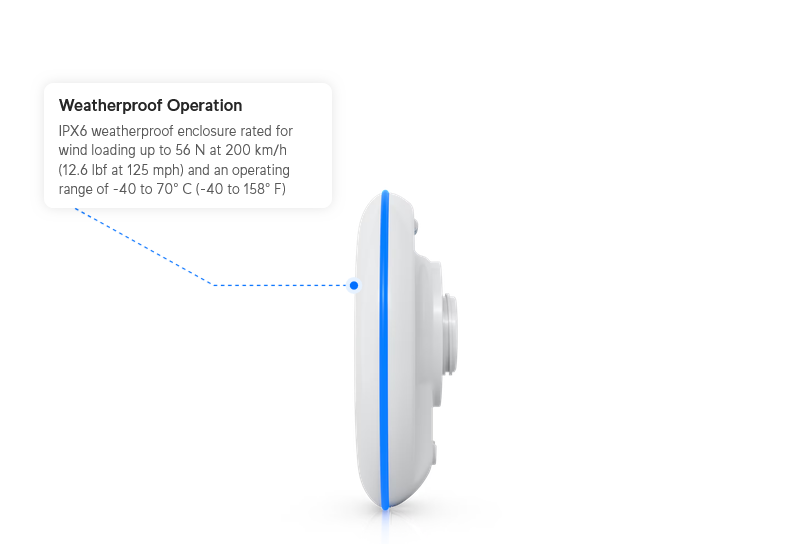

Designed for Outdoor Use

The device enclosure is fully designed for outdoor installations and features an IPX6 protection rating. It is protected against water ingress and UV radiation, ensuring reliable operation in demanding outdoor environments. The package includes a mounting bracket that allows installation on both a pole and a wall.

Specifications
