Ubiquiti 42U Rack Cabinet 1000mm, Glass Front Door, load up to 800kg
Price
991,42 €
1 219,45 € incl. tax
favoriteAdd to wishlist

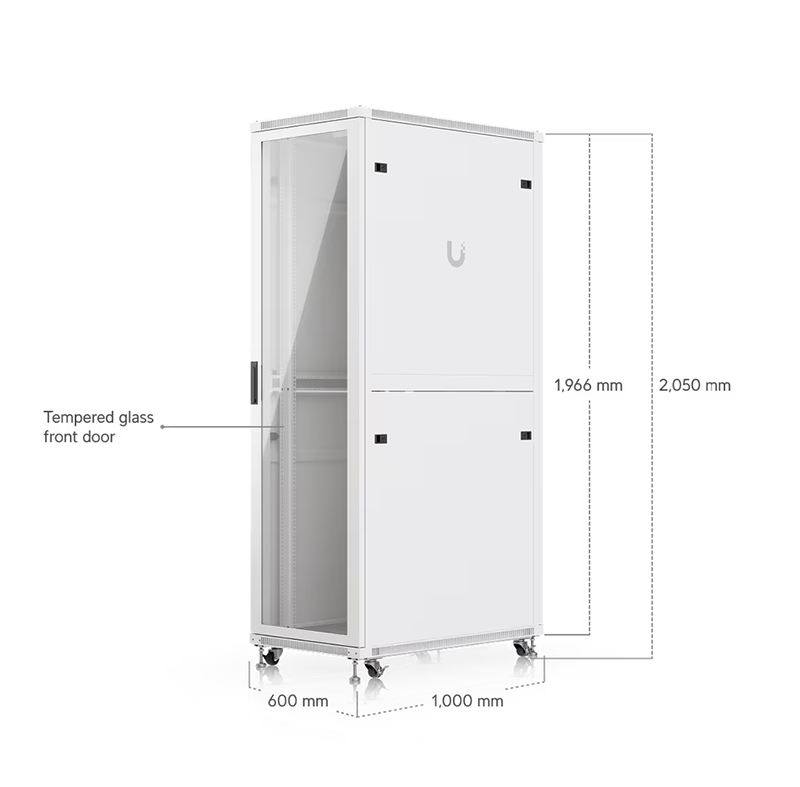

The Ubiquiti UACC-Rack-42U-1000-G is a 42U, 1000 mm deep standard 19" rack cabinet. It features tempered glass front doors and solid rear doors, while the side panels are removable. The cabinet has a maximum load capacity of 800 kg and is delivered fully assembled. Rectangular cable entry openings are located at the top and bottom of the cabinet. The package includes four pre-installed 120 x 120 x 38 mm cooling fans. The cabinet walls feature dedicated cable management openings that allow you to secure cabling using cable ties. The cabinet is made of SPCC steel.
19" 42U Rack Cabinet, 1000 mm Deep
The offered product is a standard 19" telecommunications rack cabinet. It features a height of 42U and a depth of 1000 mm (mounting depth up to 877.3 mm) and is made entirely of SPCC steel. The manufacturer has equipped it with four rack mounting rails, allowing you to install large and heavy devices. The maximum static load capacity is 800 kg.
Perforated Doors, Removable Side Panels
The manufacturer has equipped the cabinet with front doors featuring tempered glass and solid rear doors. Each side of the cabinet features two removable panels that can be taken off when needed to provide easier access to the cabling. Every panel and door is fitted with a lock.
Cooling Fans Included, Dedicated Cable Management Points

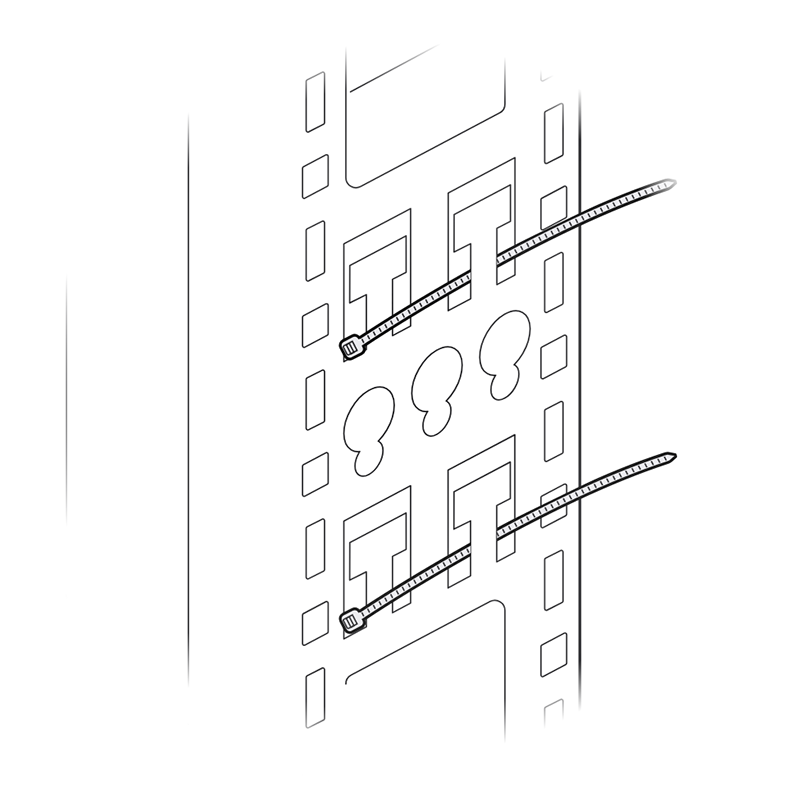

The top of the cabinet houses four 120 x 120 x 38 mm cooling fans powered by a standard AC supply (220–240 V). Dedicated cable management points are located on both sides of the cabinet, allowing you to secure cabling with cable ties. The top and bottom panels each feature two rectangular cable entry openings (335 x 52.5 mm) for routing cables into and out of the cabinet.
Specifications
| Ubiquiti UACC-Rack-42U-1000-G | |
| Overview | |
|---|---|
| Dimensions |
Packaging: 740 x 1,165 x 2,223 mm (29.1 x 45.9 x 87.5") Rack with caster: 600 x 1,000 x 2,050 mm (23.6 x 39.4 x 80.7") Rack without caster: 600 x 1,000 x 1,966 mm (23.6 x 39.4 x 77.4") |
| Weight |
Packaging: 120.6 kg (265.9 lb) Rack: 92.4 kg (203.7 lb) |
| Enclosure Material |
SPCC steel Door/side panels: 1.2 mm (0.05") Main body: 1 mm (0.04") Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| U Height |
42U |
| Rack Type | 4 post, enclosed cabinet |
| Mounting Hole Type | Square |
| Adjustable Mounting Depth |
Default 652.3 mm (25.7") Max. 877.3 mm (34.5") Adjustable pitch 15 mm (0.6") |
| Max. Weight Capacity |
Static 800 kg (1764 lb) Rolling 320 kg (705 lb) |
| Front Door |
Tempered glass Default left-hand outswing, reversible |
| Rear Door |
Solid Default left-hand outswing, reversible |
| Side Panels | (4) Solid, removable and lockable |
| Mounting | Floor stand |
| Lockable Casters | Yes |
| Leveling Stands | Yes |
| Cabinet Interconnect | Yes |
| Floor Anchor | Yes |
| Fan Module | (4) Pre-installed 120 x 120 x 38 mm AC fan units (input volrage: 220 - 240 V AC) |
| Grounding Lugs | Yes |
| Vertical Cable Management | Yes |
| Cable Entry Opening |
(2) Top: 335 x 52.5 mm (13.2 x 2.1") (2) Bottom: 335 x 52.5 mm (13.2 x 2.1") |
| Security |
(1) Front door lock (1) Rear door lock (8) Side panel locks (3) Keys |
| NDAA Compliant | Yes |
