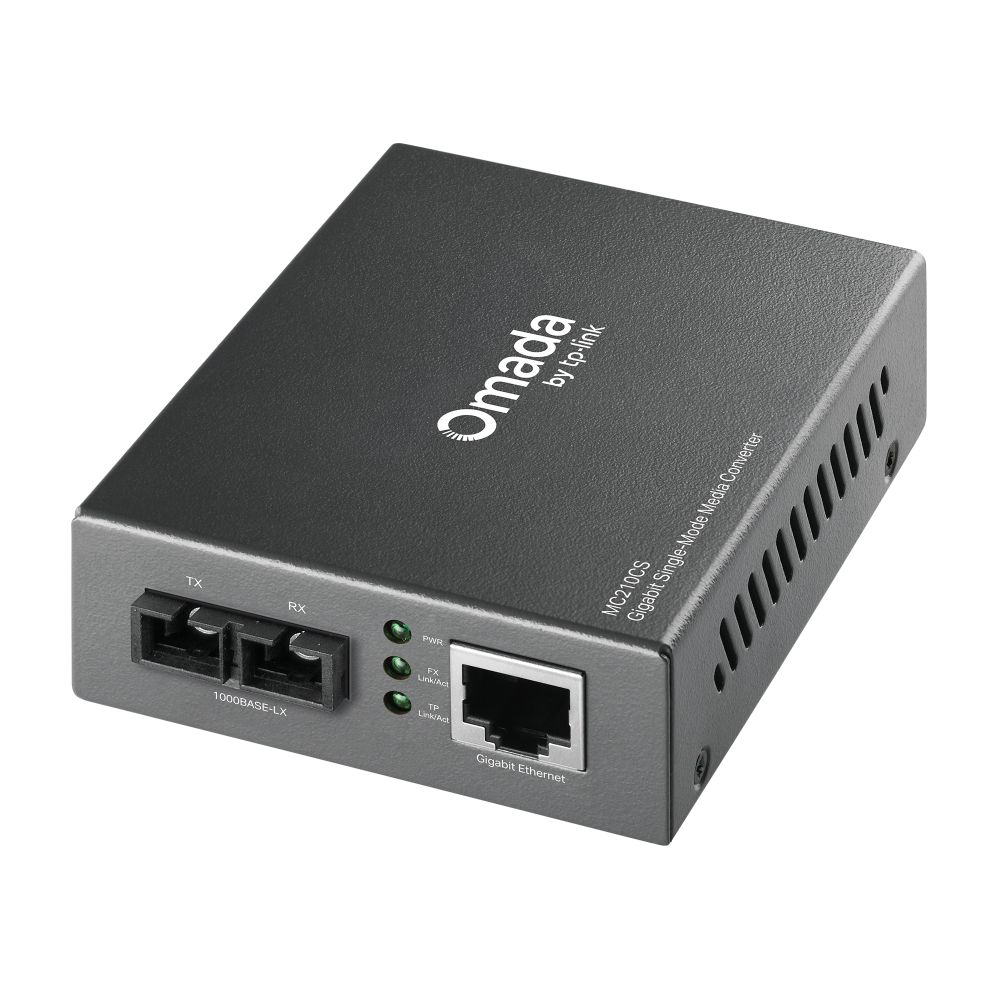

Omada Gigabit Single-Mode Media Converter

The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

Specifications

TP-Link MC210CS
Standards and Protocols	• IEEE 802.3i 10BASE-T • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-LX • IEEE 802.3x Flow Control
Basic Function	Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 20km
Interface	• 2× 1000M SC/UPC ports • 1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length	1310nm
Network Media 1000BASE-LX	Single-mode Fiber
Network Media 1000BASE-T	UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Dimensions ( W x D x H )	3.72.91.1 in. (94.573.027.0 mm)
Power Supply	External Power Adapter
Max. Power Consumption	1,8W
LED	PWR, Link/Act
Safety & Emission	FCC, CE, RoHS
Package Content	• MC210CS • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0℃~50℃ (32℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
