TP-Link WN822N wireless USB adapter 300Mb/s
Brand: TP-Link
Product Code: TL-WN822N
Catalog number: 1698
Warranty (months):
Price
9,48
11,66incl. tax
Qty.
-
+
favoriteAdd to wishlist
Description

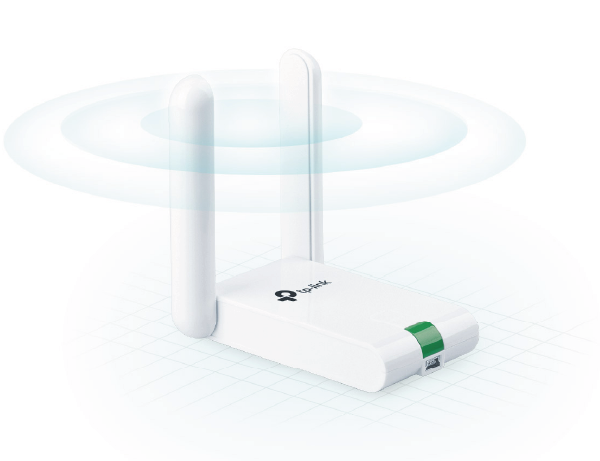

TP-Link WN822N is a wireless network adapter / USB adapter operating in the 2.4 GHz band. It is compatible with IEEE 802.11 b / g / n standards and uses dual polarization (2x2 MIMO), which allows it to achieve up to 300 Mb / s of theoretical throughput. The device has two external omni-directional antennas with a gain of 3 dBi each, thanks to which it has a much better range than small adapters having built-in antennas. The housing has been designed to be placed on a desk, in the set there is a 1.5-meter cable that allows you to set the product to get the best connection. An additional advantage is the WPS button, which allows you to quickly connect to many wireless routers available on the market.

Features:

  •     work in the 2.4 GHz band;
  •     IEEE 802.11 b / g / n standards;
  •     2 external antennas with 3 dBi gain;
  •     double polarization / 2x2 MIMO;
  •     up to 300 Mb / s theoretical throughput;
  •     cables with a length of 1.5 meters;
  •     USB connector;
  •     WPS button.

Specification

WN822N
HARDWARE FEATURES
Ports

Mini USB 2.0

(mini USB / USB cable included)

Buttons WPS
Dimensions 90 x 68 x 16,8 mm
Type of antennas omnidirectional
Energy gain 3 dBi
WIRELESS FEATURES
Standards IEEE 802.11 b/g/n
frequency range 2400 - 24835 MHz
Capacity

11b: do 11 Mb/s

11g: do 54 Mb/s

11n: do 300 mb/s

Czułość odbioru

270M: -68 dBm

130M: -68 dBm

108M: -68 dBm

54MB: -68 dBm

11M: -85 dBm

6M: -88 dBm

1M: -90 dBm

EIRP < 20 dBm
Modes of operation Ad-hoc /infrastructure
Security

64/128 it WEP encryption

WPA-PSK / WPA2-PSK

MAC address filtering

Modulation DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Advanced features WMM
OTHERS
Certifications CE, FCC, RoHS
The composition of the set

Device

CD

USB cable

Quick guide

System requirements

32 / 64 bit system:

Windows XP

Windows Vista

Windows 7

Windows 8

Windows 8.1

Permissible operating temperature From  0 to 40 . C
Permissible storage temperature From  -40 to 70 st. C
Permissible air humidity 10%-90% non-condensing
Permissible air humidity during storage 5%-90% non-condensing
