TP-Link CPE210 2.4GHz 300Mb/s 9dBi Outdoor CPE
Brand: TP-Link
Producer code: CPE210
Product Code: TL-CPE210
Catalog number: 4432
Warranty (months):
Price
33,78
41,55incl. tax
Qty.
-
+
favoriteAdd to wishlist
Description

TL-CPE210 is an access point adapted for outdoor use. It has a built-in double polarized directional antenna with 9 dBi gain (65 ° horizontal, 35 ° vertical). The offered product works in the 2.4 GHz band, supports IEEE 802.11 b/g/n standards, the maximum theoretical throughput is 300 Mb/s

The device housing is waterproof, complies with IPX5 standards, protection against electrostatic discharge 15 KV and atmospheric discharge 6000 V has been built-in. TL-CPE210 is powered by passive PoE 24 V allowing its installation in a place where there is no easy access to the power grid . The PoE range is 60 m (adapter is included).

The device uses Pharos MAXtream TDMA TP-LINK technology, which improves data transfer efficiency and reduces transmission delays. This is very useful for point-to-multipoint connections. This technology is intended to reduce interference caused by other transmitters and to prevent collisions between CPE and other devices.

The offered product is equipped with 1 fast Ethernet port, the set includes PoE power supply and accessories necessary for the installation. The device can work as an access point (AP), client, signal booster, AP router or WISP mode.


The most important features:

  •     work in the 2.4 GHz band;
  •     built-in double polarized directional antenna with 9 dBi gain;
  •     bandwidth up to 300 Mb/s;
  •     protection against electrostatic and atmospheric discharge;
  •     power supply via 24 V passive PoE (range 60 m);
  •     TP-LINK Pharos MAXtream TDMA technology;
  •     central Pharos Control management system.

Specification:

TL-CPE210

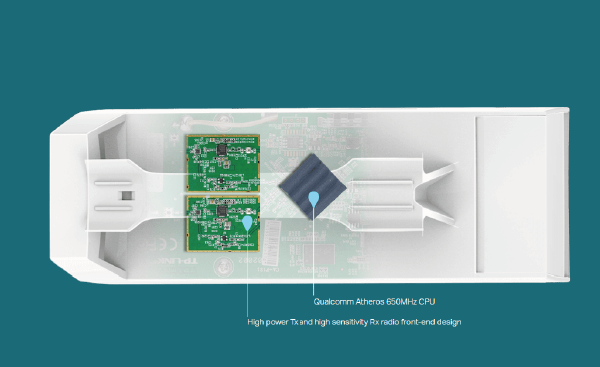

Procesor Qualcomm Atheros 560 MHz, MIPS 74Kc
Memory

64 MB DDR2 RAM

8 MB Flash

Ports

1 shielded Ethernet 10/100 Mb / s port (LAN0, passive PoE)

1 grounding terminal

Power

Passive PoE via LAN0 (+4.5 pin, -7.8 pin)

Voltage: 16 - 27 V DC

Dimensions 224x79x60 mm


10.5 W maximum

Note: when using passive PoE, power consumption may be higher depending on the cable length

Antenna type

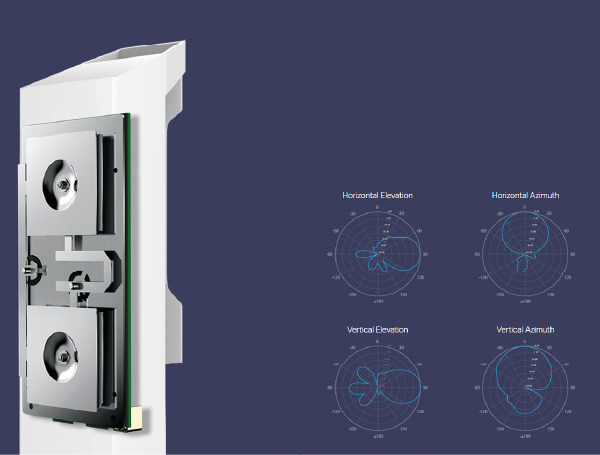

Built-in, dual polarized 9 dBi directional antenna, 2x2

Beam width: 65 ° (in H plane) / 35 ° (in E plane)

Protection

Protection against electrostatic discharge 15 KV

6000 V lightning protection

Housing

Outdoor ASA stabilized plastic

IPX5 certificate

Wireless transmission properties
Standardy bezprzewodowe

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Patented protocol TDMA mode (with Pharaos MAXtream enabled)
Wireless network speed

Up to 144.4 Mb / s (20 MHz, dynamic)

Up to 72.2 Mb / s (10 MHz, dynamic)

Up to 36.1 Mb / s (5 MHz, dynamic)

Wireless network speed

2,4 - 2,483 GHz

Note: Available frequencies may vary depending on the region selected

Receiver sensitivity

802.11b:

11M: -95dBm, 5,5M: -96dBm, 2M: -96dBm

1M: -96dBm

802.11g:

54M: -79dBm, 48M: -80dBm, 36M: -84dBm

6-24M: -88dBm

802.11n:

MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm

MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm

MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm

MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm

MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm

MCS0: -96dBm

Transmission power

27 dBm /500 mw (power can be changed with an accuracy of 1 dBm)

Note: the maximum transmission power may vary depending on the region selected

Software features
Wireless network configuration

Pharos MAXtream TDMA technology

802.11b / g / n modes

Channel width: 5/10/20/40 MHz

Automatic channel selection

Transmission force control

Dynamic frequency selection (DFS)

Enable / disable WDS

WPA / WPA2, WPA-PSK / WPA2-PSK (AES / TKIP), 64/128/152 WEP security

Enable / disable SSID broadcast

Multi-SSID with VLAN tagging (only in AP mode)

Distance / ACK timeout settings

Filtering by MAC addresses

Advanced WiFI settings:

Beacon interval / RTS threshold / Fragmentation threshold / DTIM interval / AP isolation / short GI / multimedia WiFi

Management

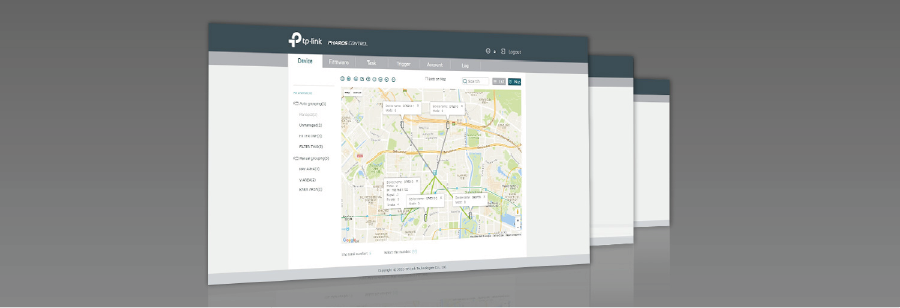

Device detection and management by Pharos Control

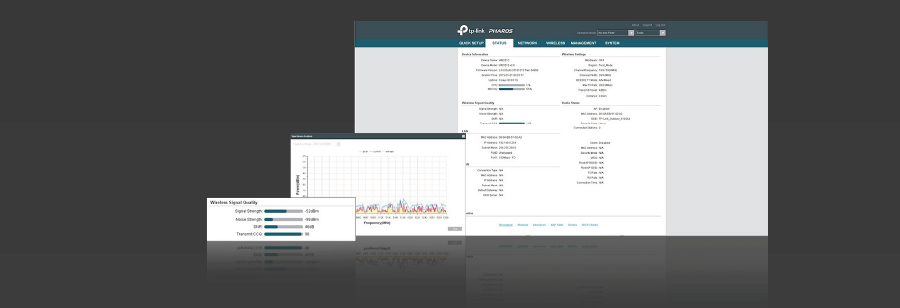

Web management via HTTP / HTTPS

System log

SNMP agent (v2c)

Ping watch dog

Dynamic DDNS

SSH server

System Tools

Wireless signal quality indicators

Signal strength / noise / CCQ transmission / processor / memory

Monitors: bandwidth / stations / ARP / routes / WAN / DHCP

Spectrum analysis

Speed test

ping

traceroute

System optimizations

IGMP Snooping / proxy optimized for multicast applications

Hardware watch dog

PoE adapter properties
Ports

1 power plug with ground

1 shielded 10/100 Mb / s Ethernet port (power supply + data)

Efficiency > 80%
buttons Remote reset
Certifications CE / FCC / UL / IC / GS / PSB / C-tick / SAA / S-Mark / KC-mark
LED status

0 - 0,8 A: green

0,8 - 1 A: red

Output

24 V DC, 1 A

+4,5pin; -7.8 pin (PoE supply, range up to 60 meters)

Input Voltage 100 - 240 V AC przy 50 / 60 Hz
Dimensions 110x57x33,5 mm
Input current Maksymalnie 0,8 A przy 100 V AC
NOutput voltage 24 V DC
Other
Certyfikations CE, FCC, RoHS, IPX5
Contents of the package

CPE210

24 V 1 A passive PoE adapter

Mounting straps

Power cord

Quick Installation Guide

System requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista, 7 OR 8

MAC OS

NetWare

UNIX OR Linux

We recommend using Google Chrome, Safari and Firefox

Working environment

Permissible operating temperature: -30 to 70 degrees Celsius

Permissible storage temperature: -40 to 70 degrees Celsius

Permissible air humidity: 10% -90% non-condensing

Permissible storage humidity: 5% -95% non-condensing
