Huawei ETP48100-B1-50A power supply 48 V DC, 100 A

Huawei ETP48100-B1-50A power supply 48 V DC, 100 A

Brand: Huawei

Product Code: HUAWEI-ETP48100-KITB

Catalog number: 5395

Warranty (months):

Price

392,48 €

482,75 € incl. tax

favoriteAdd to wishlist

Description

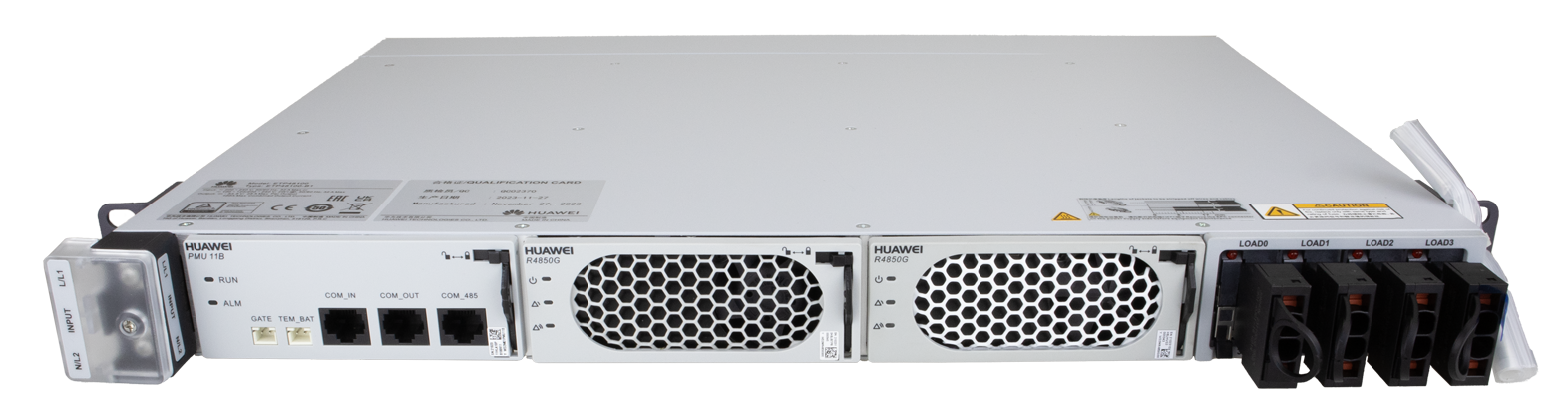

Huawei ETP4100-B1-100A is a power system with 4 power outputs. It is equipped with two R4850G rectifiers with a current of 50 A, the total output current - 100 A. The output voltage is 48 V. The PSU has an AC input (220 V), it is not equipped with a battery port. The device has a number of protections, the rectifiers used are distinguished by high efficiency - over 96%. Output power cables are easily connected to the power.

The total output power is 4800 W with a voltage of 48 V. The maximum output voltage is 58 V, theoretically it can reach even 5800 W. Maximum power for one output - 1200 W (48 V) / 1450 W (58 V).

The most important features:

AC input power;
output voltage 48 V;
current 100 A;
2 R4850G rectifiers;
4 output power ports;
25 A maximum per output port;
no battery port.

Specification:

Input
ETP48100-B1-100A
Voltage	85 - 300 V AC
Frequency	45 - 65 Hz
Rated input current	< 17 A
Power factor	> 0,99
THD	< 5%
Output
Voltage	42 - 58 V DC Default value: 53.5V DC
Maximum power	4800 W at 48 V (up to 5800 W at 58 V)
Environmental features
Permissible working temperature	From -40 to 75 °C
Permissible storage temperature	From -40 to 75 °C
Permissible air humidity	5%-95% non-condensing
Protection (rectifier)
Overvoltage (input)	> 300 V AC
Undervoltage (input)	< 80 V AC
Overvoltage (output)	58.5 - 60.5 V DC (to be set in the PMU)
Short circuit protection (output)	Yes
Against overheat	> 75 °C
Certificates (rectifier)
Safety	TUV, CE, UL CB UL60950-1 IEC60950-1 EN60950-1 CAN/CSA C22.2 No. 60950-1
EMC	EN55022 class B EN55024 EN61000-3-2 EN61000-3-3 ETSI EN300 386 ETSI EN301489 ITU-T K.20
Lightning protection	YD 5098-2005 5KA
