The TP-Link WA860RE is a range extender (repeater) operating in the 2.4 GHz band. It is equipped with one Ethernet port and plugs directly into a wall power outlet (EU plug). Configuration is simple and intuitive. One of the management options is the Tether app, available for mobile devices. Additionally, the device features an integrated power socket (AC passthrough), ensuring that you do not lose access to an electrical outlet while using the repeater.
The product features two external omnidirectional antennas and supports 2x2 MIMO technology (dual-chain). It operates in the 2.4 GHz band in accordance with IEEE 802.11 b/g/n standards. This allows it to reach up to 300 Mbps of theoretical wireless transmission throughput. The extender also supports several useful functions, such as WMM, MAC address filtering, and wireless transmission statistics.

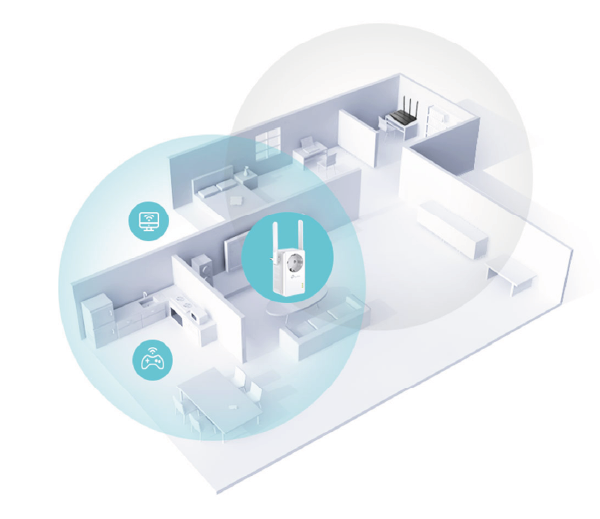

Eliminate "dead zones" from your home
The TL-WA860RE is a device designed to extend coverage and improve the signal of your wireless network. Two external antennas ensure that Wi-Fi access is possible in every room of your home, providing all mobile devices, media players, and computers with a constant connection to a stable network.

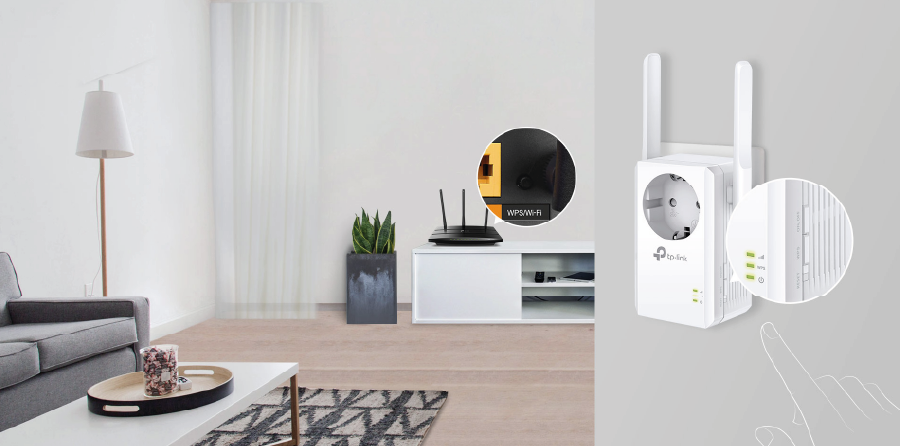

Plug and Play — installation simpler than you think
To connect to the network, simply press the WPS button on your router and then the WPS button on the extender. That is it! Once connected to the router, you can move your extender to any location within the router's network range.

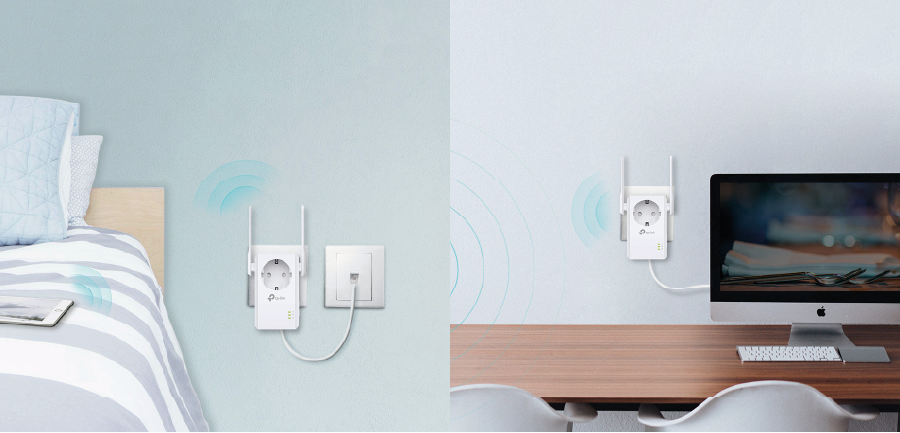

Practical design for convenient use
The TL-WA860RE extender is equipped with its own power socket, so plugging it into a contact does not block the ability to power other devices. The number of available outlets remains the same!

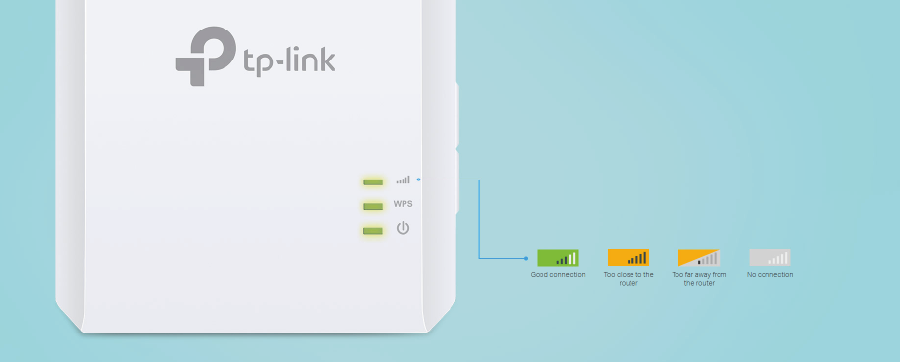

Smart signal indicator
The smart signal indicator informs you of the strength of the received signal and helps you find the best location for the extender.

TL-WA860RE is more than just a signal booster
The TL-WA860RE also supports AP mode, using a wired Internet connection to create a wireless access point. It can also function as a wireless network adapter to provide connectivity for wired devices — such as Blu-ray® players, game consoles, digital TV set-top boxes, or smart TVs.


Multifunctional Tether App
TP-Link Tether is an intuitive application that allows users to constantly monitor the status of the range extender, control its functions, and change settings on any mobile device running Android or iOS.
Specifications
| WA860RE | |
| HARDWARE FEATURES | |
|---|---|
| Plug Type | EU, UK, US |
| Standards and Protocols | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Interface | 1 x 10/100Mbps Ethernet Port (RJ45) |
| Button | RE (Range Extender) Button, Reset Button |
| Power Consumption | About 3W |
| Dimensions ( W x D x H ) | 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm) |
| Antenna | 2 x external |
| WIRELESS FEATURES | |
| Frequency | 2.4~2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic) |
| Reception Sensitivity | 270M: -69dBm@10% PER 130M: -69dBm@10% PER 108M: -69dBm@10% PER 54M: -69dBm@10% PER 11M: -86Bm@8% PER 6M: -89dBm@10% PER 1M: -91dBm@8% PER |
| Transmit Power | < 20 dBm (EIRP) |
| Wireless Modes | Range Extender/Access Point |
| Wireless Functions | WMM (Wi-Fi Multimedia) Wireless MAC Address Filtering Wireless Statistic Domain Login Function LED control Power Schedule |
| Wireless Security | 64/128/152-bit WEP WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification | CE, RoHS, FCC |
| Package Contents | 300Mbps Wi-Fi Range Extender with AC Passthrough TL-WA860RE Quick Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
