The TP-Link RE200 is a dual-band signal extender (repeater) capable of operating in the 2.4 and 5 GHz bands simultaneously. It is equipped with one Fast Ethernet port and plugs directly into an electrical socket (EU plug). Configuration is simple and intuitive, and one of the pairing options is WPS.
The offered product features three built-in omnidirectional antennas: two operating in the 2.4 GHz band (2x2 MIMO / dual-chain) and one operating in the 5 GHz band (SISO / single-chain). It utilizes the IEEE 802.11 b/g/n (2.4 GHz) / IEEE 802.11 a/n/ac (5 GHz) standards. This allows for a maximum theoretical throughput of 300 Mbps (2.4 GHz) / 433 Mbps (5 GHz). The extender also supports several useful features such as WMM and wireless transmission statistics.

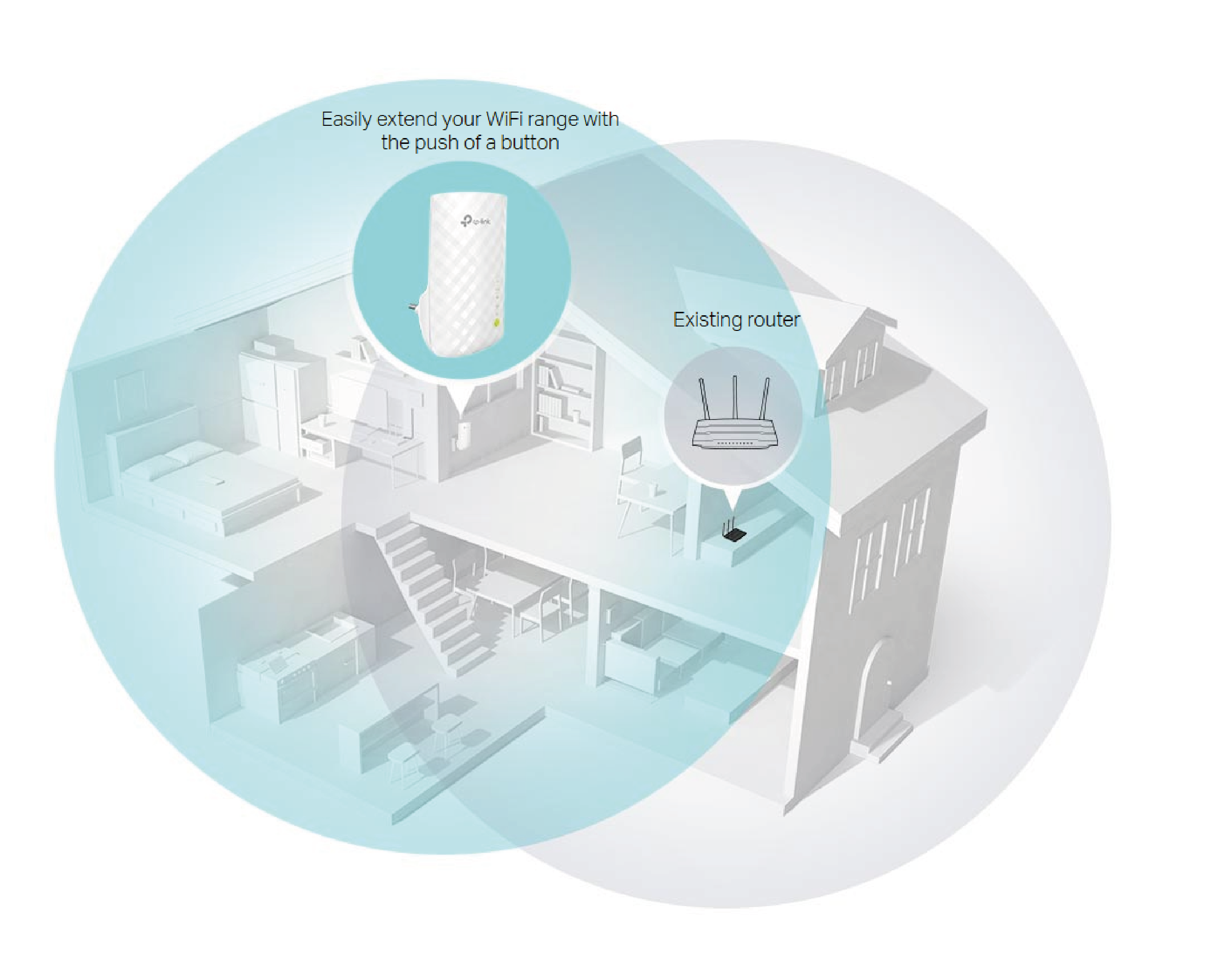

Boost Your Network and Use the Internet Without Limitations
Place the RE200 between your router and your wireless devices to extend your Wi-Fi coverage and get rid of "dead zones". Enjoy an excellent wireless connection throughout your home or office. Two Wi-Fi bands with a combined throughput of up to 750 Mbps will cover an area of up to 185 m2 in the extended network and allow the user to benefit from fast connections, thus enabling uninterrupted HD video streaming, online gaming, and many other network-intensive activities.

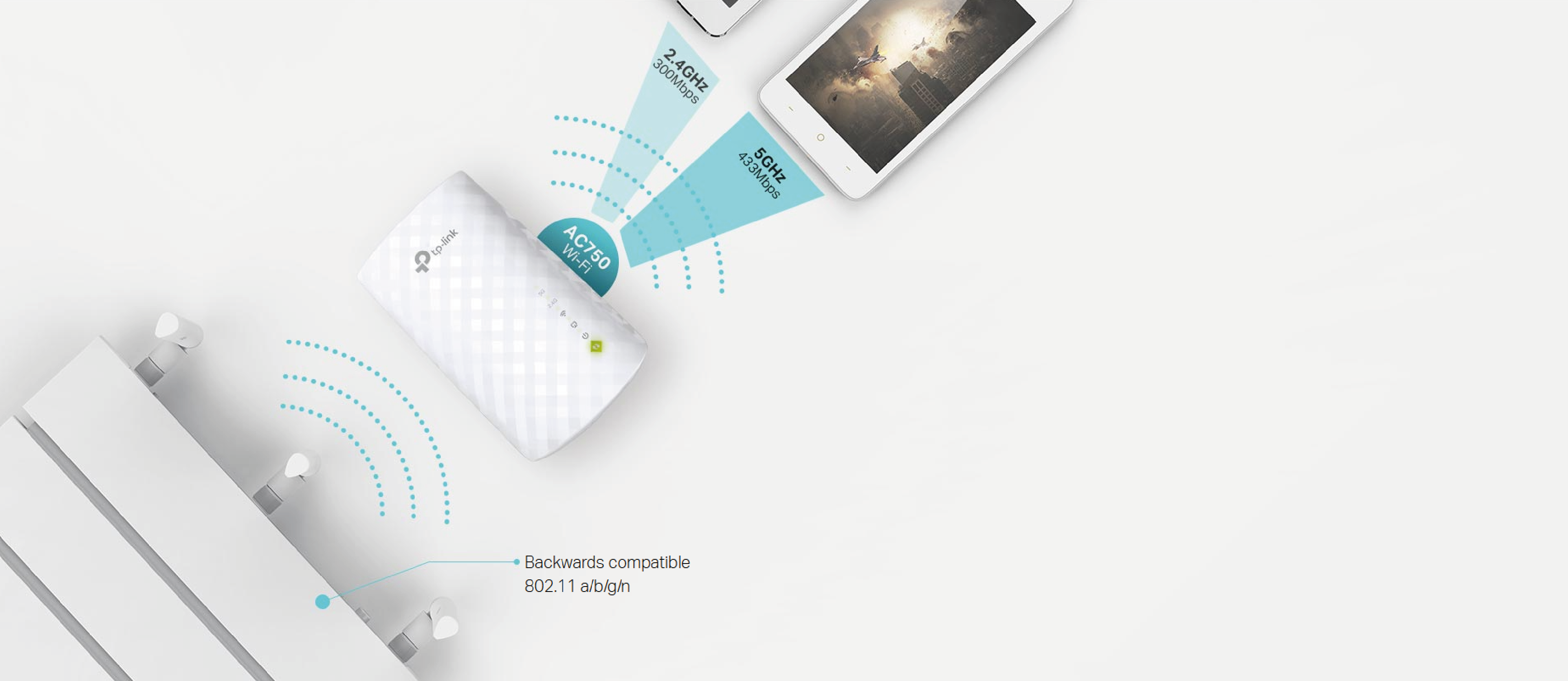

AC750 Wi-Fi Guarantees Compatibility
The AC wireless technology of the RE200 extender enables strong connections throughout the home. Furthermore, the device works with all standard routers or access points, making it easy to provide stable dual-band wireless connections to multiple devices simultaneously.

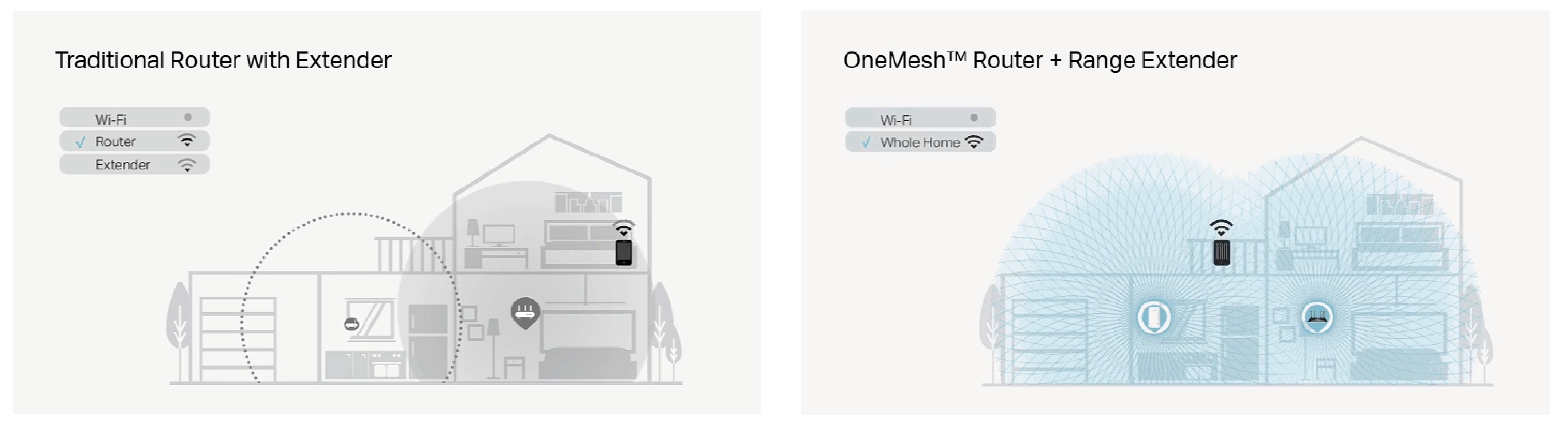

Flexible Creation of a Home Wi-Fi Mesh Network
If you have Wi-Fi dead zones in your home, simply add other EasyMesh-compatible devices to expand your home Wi-Fi Mesh network. Forget about searching for a stable connection signal.
Wi-Fi Dead Zone Eliminator
Eliminates areas of weak Wi-Fi signal throughout the home
Smart Roaming
Uninterrupted streaming as you move around the house
One Wi-Fi Name
No more switching between Wi-Fi networks

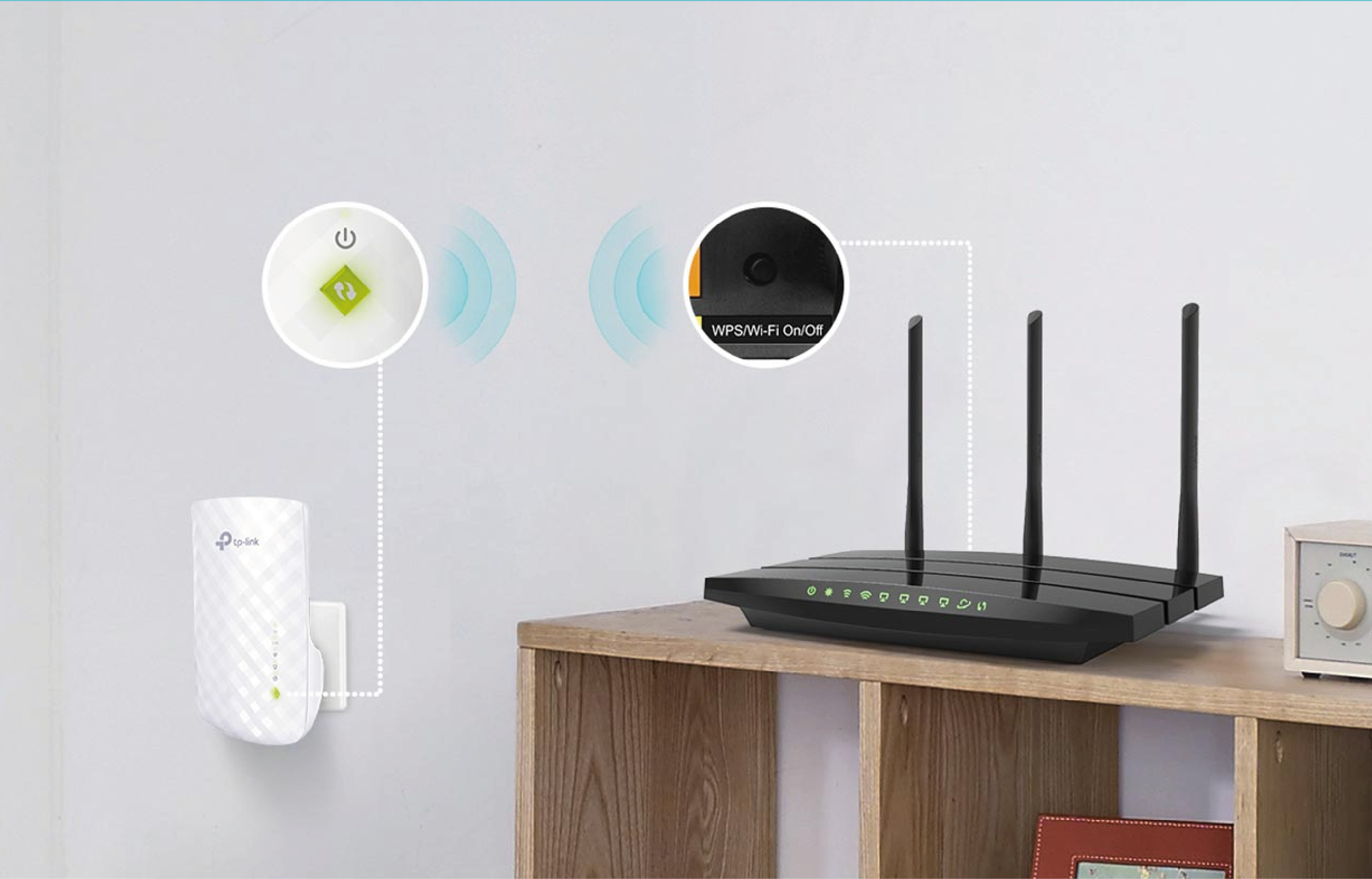

Simple Setup
Just press the WPS button on your router, and then the RE button on the extender. Once connected to the router, you can move the RE200 to any location within the wireless network range.

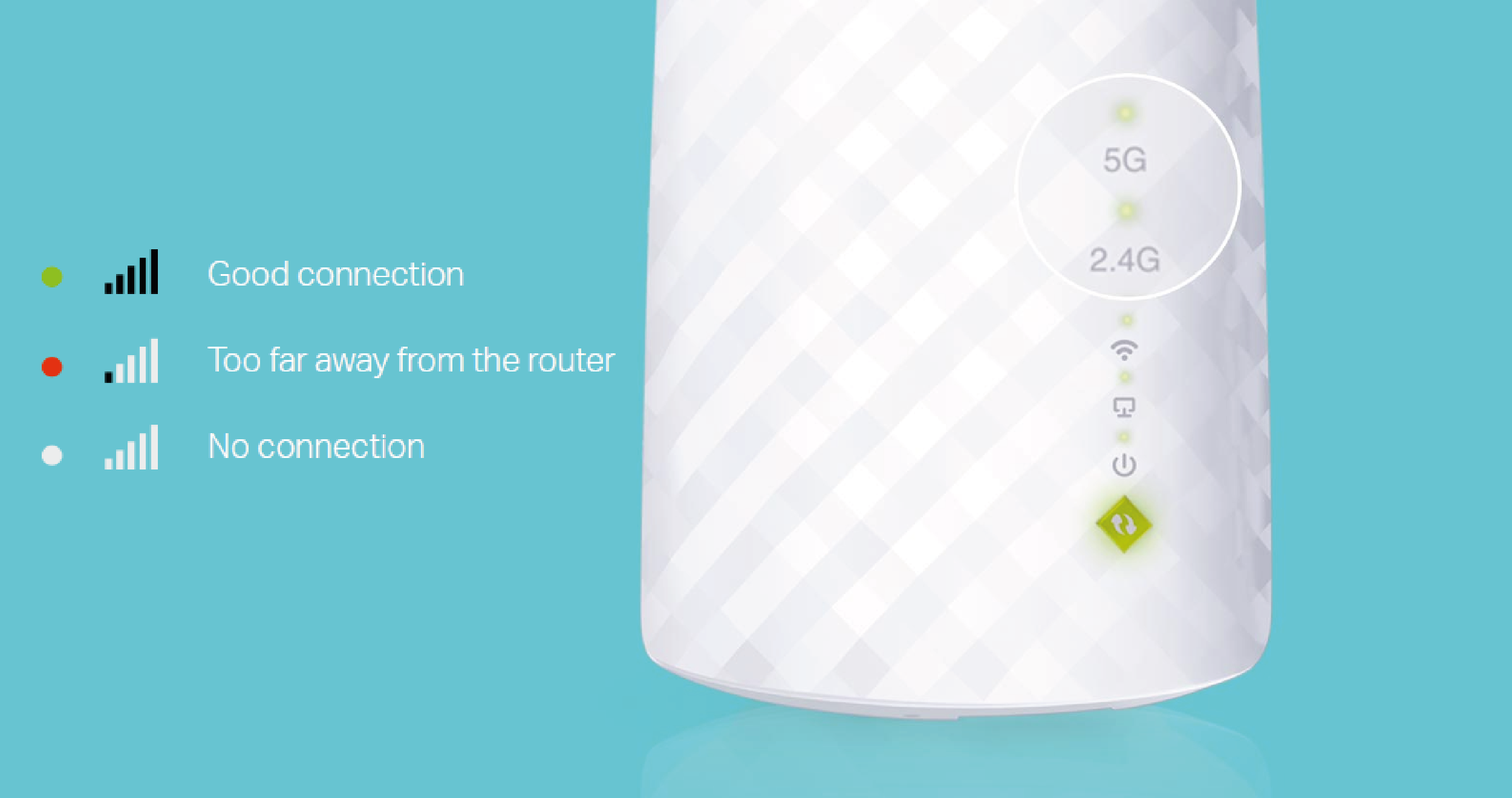

Signal Strength Indicator
The wireless signal strength indicator helps you find the optimal location for the extender.

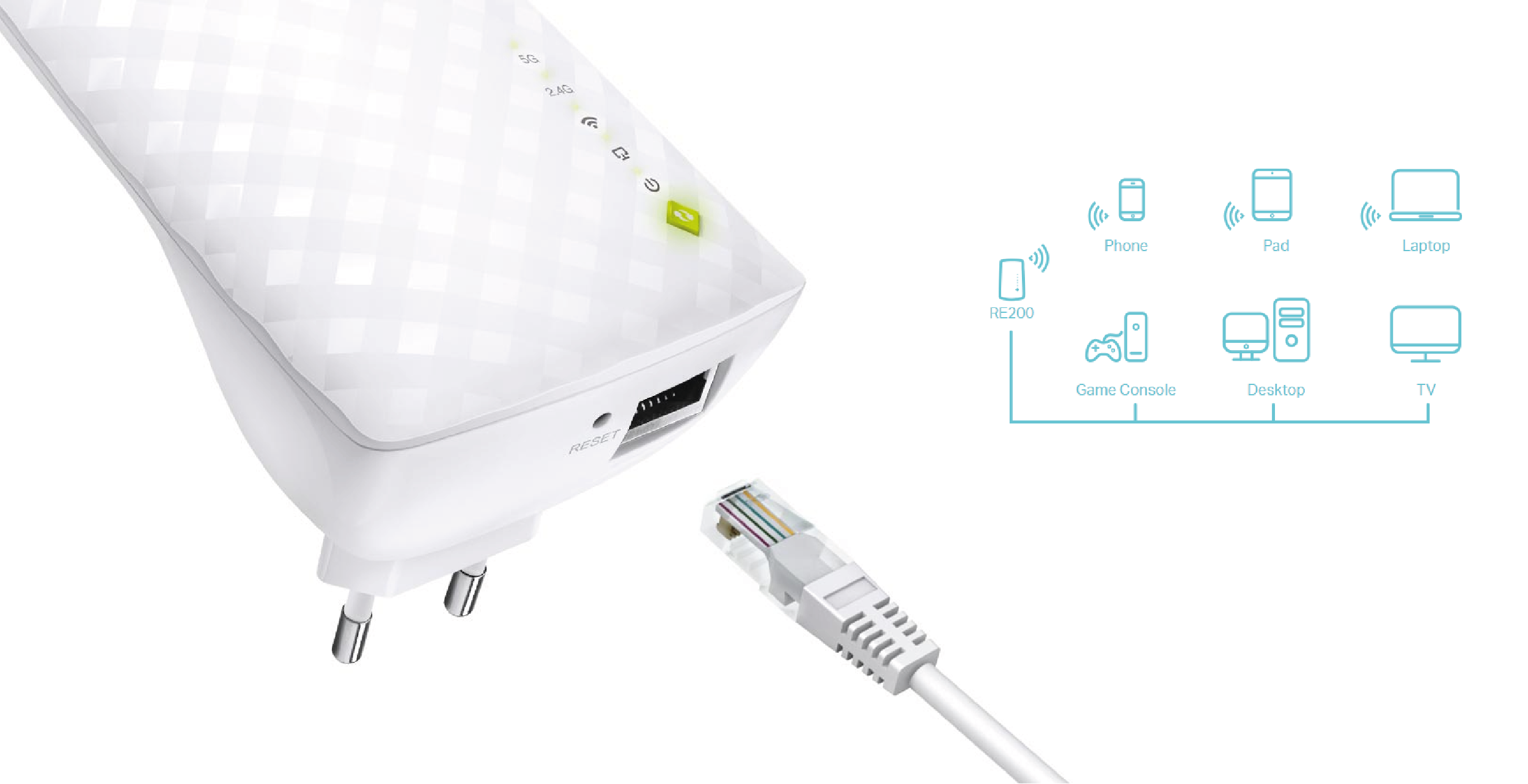

Adapter for Multimedia Devices
The RE200 signal extender can act as a wireless network adapter, allowing devices such as Blu-ray players, gaming consoles, or internet-enabled TVs to connect to the wireless network using an Ethernet cable. The extender simultaneously provides network access to wireless devices.
20 Years of Experience in the Networking Device Market
For 20 years, TP-Link has been delivering networking products, distinguished by their professionalism and reliability proven over the years.

Specifications
| RE200 | |
| Plug Type | EU, UK, US, AU |
| Standards and Protocols | IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Interface | 1 x 10/100M Ethernet Port (RJ45) |
| Button | RE (Range Extender) Button, Reset Button |
| Power Consumption | About 6.5W |
| Dimensions ( W x D x H ) | 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm) |
| Antenna | 3 x internal |
| WIRELESS FEATURES | |
|---|---|
| Frequency | 2.4GHz & 5GHz |
| Signal Rate | 5GHz:Up to 433Mbps 2.4GHz:Up to 300Mpbs |
| Reception Sensitivity | 2.4G: 270M: -70dBm@10% PER 130M: -70dBm@10% PER 108M: -73dBm@10% PER 54M: -75dBm@10% PER 11M: -86dBm@8% PER 6M: -92dBm@10% PER 1M: -94dBm@8% PER 5G: 390M: -60dBm@10% PER 29.3M: -83dBm@10% PER 180M: -64dBm@10% PER 13.5M: -87dBm@10% PER 78M: -68dBm@10% PER 6.5M: -90dBm@10% PER 54M: -75dBm@10% PER 6M:-90dBm@10% PER |
| Transmit Power | < 20 dBm (EIRP) |
| Wireless Modes | Range Extender |
| Wireless Functions | WMM (Wi-Fi Multimedia) Wireless Statistic Domain Login Function |
| Wireless Security | 64/128/152-bit WEP WPA-PSK / WPA2-PSK |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | AC750 Wi-Fi Range Extender RE200 Quick Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
