The TP-Link EAP110 is an access point designed for use in large hotspot networks, shopping centers, businesses, schools, and hotels. It operates on the $2.4\text{ GHz}$ band, utilizes 2x2 MIMO and IEEE $802.11 \text{ b/g/n}$ standards. The maximum theoretical throughput of the wireless connection is $300\text{ Mb/s}$. The device structure is based on an efficient Qualcomm chipset clocked at $560\text{ MHz}$, and the enclosure is made of LSZH material, providing resistance to dust ingress. The access point has $1$ Fast Ethernet port ($10/100\text{ Mb/s}$) and is powered via $24\text{ V}$ DC Passive PoE.

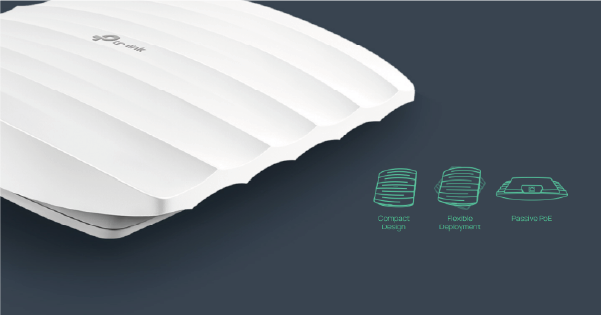

Placement Flexibility

Easy Installation and PoE Power Supply
The modern design and ease of installation allow the EAP110 to seamlessly fit into any interior. Passive PoE power supply enables quick and convenient installation of the device without the use of additional cables.

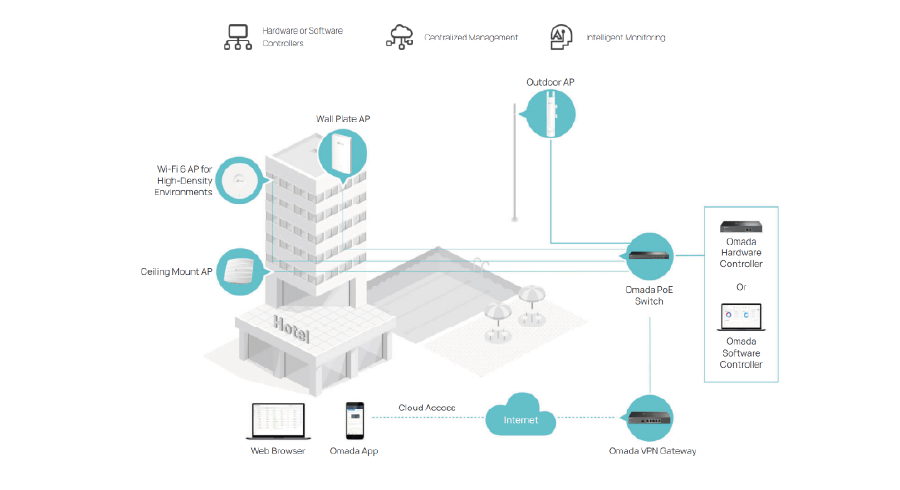

Omada SDN — Smart Cloud Solutions for Business Networks

The Omada Software Defined Networking (SDN) platform integrates the operation of network devices, including access points, switches, and gateways, providing access to a functional business network with higher performance, better security, and greater reliability.

Centralized Cloud Management:
Comprehensive central management of the entire network, divided across different locations, from a single interface — anywhere and anytime.

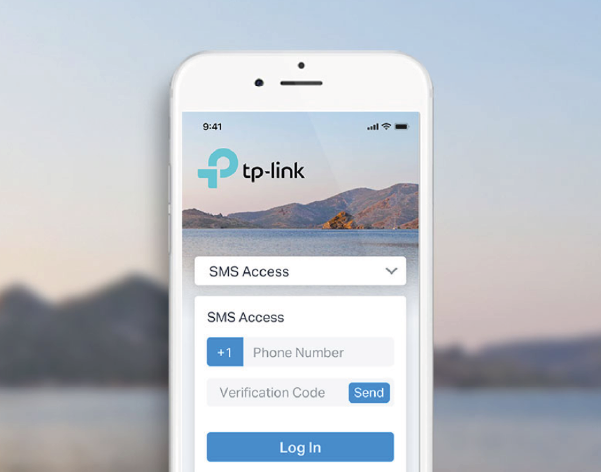

Guest Identification via SMS

Wireless network client authentication via the splash page is extremely convenient. SMS authentication support further simplifies client access to your network and creates additional opportunities for your business.

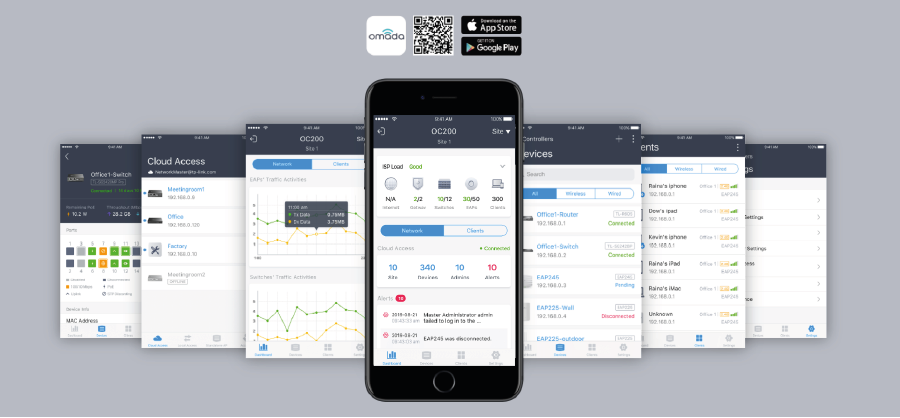

Easy Management with the Omada App

Download the free Omada app today and remotely configure your devices, monitor network traffic, and manage clients using your smartphone or tablet from anywhere in the world.

Specification
