Features
- Performance: 300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
- Guest Network: provides separate access for guests while securing the home network
- IPv6: compatible with IPv6 (Internet Protocol version 6)
- WPS button: easy wireless security encryption at a push of WPS button
- IPTV: supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Bandwidth Control: assigns your preferred devices with more bandwidth
- Parental Controls: manage when and how connected devices can access the internet
300Mbps in N standard - fast downloading
TL-WR841N is a fast router operating in compliance with the IEEE 802.11 b/g/n standard. Thanks to 802.11n technology, the TL-WR841N delivers transmission speeds up to 300 Mbps, making it perfectly suited for the highest demands of a home network, ensuring smooth HD video streaming, uninterrupted online gaming, or large file downloading.

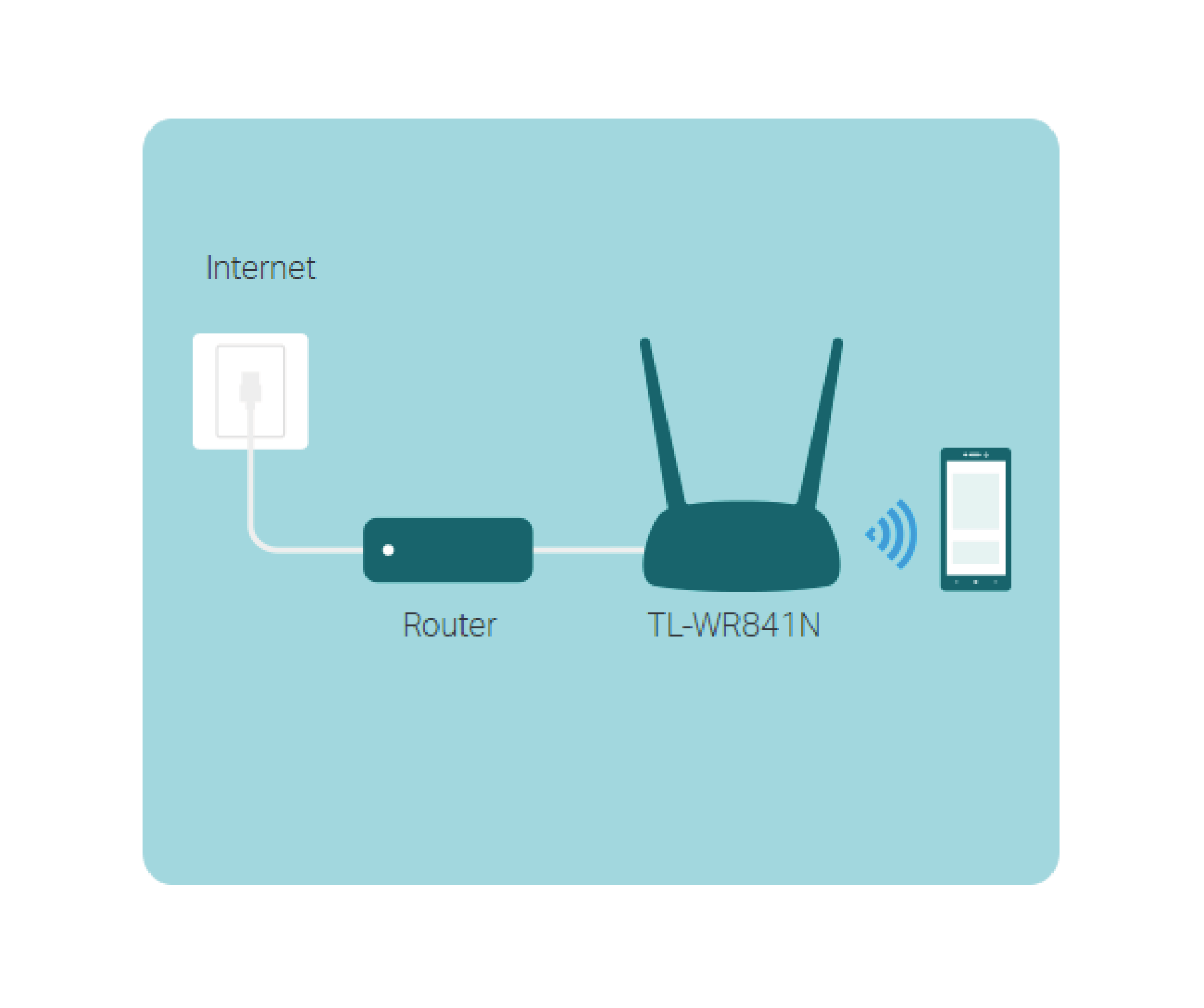

Access Point Mode
Convert your wired network
into a wireless network.

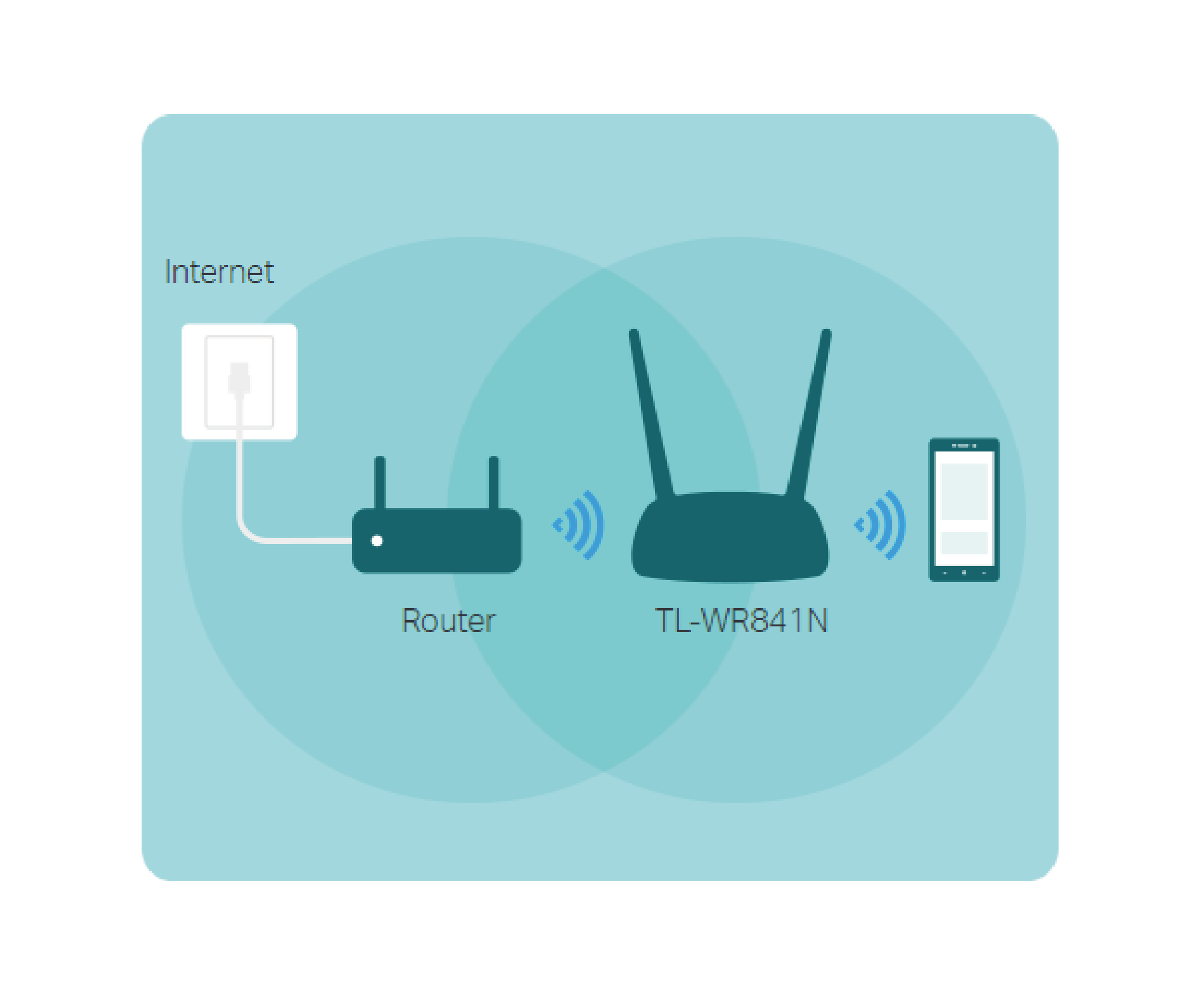

Range Extender Mode
Enjoy greater wireless network
coverage.

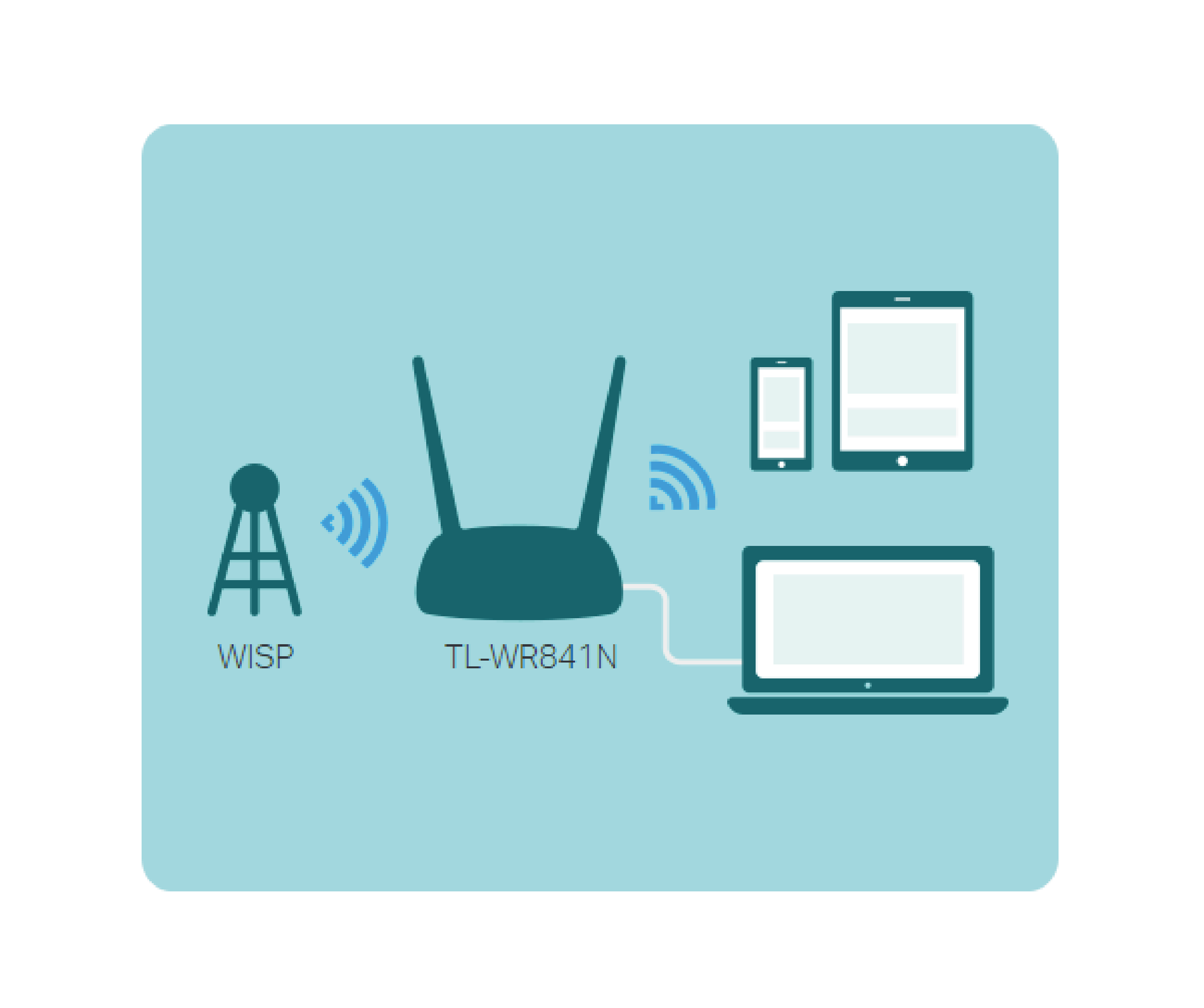

WISP Mode
Where wired service does not reach,
connect to the ISP network wirelessly.

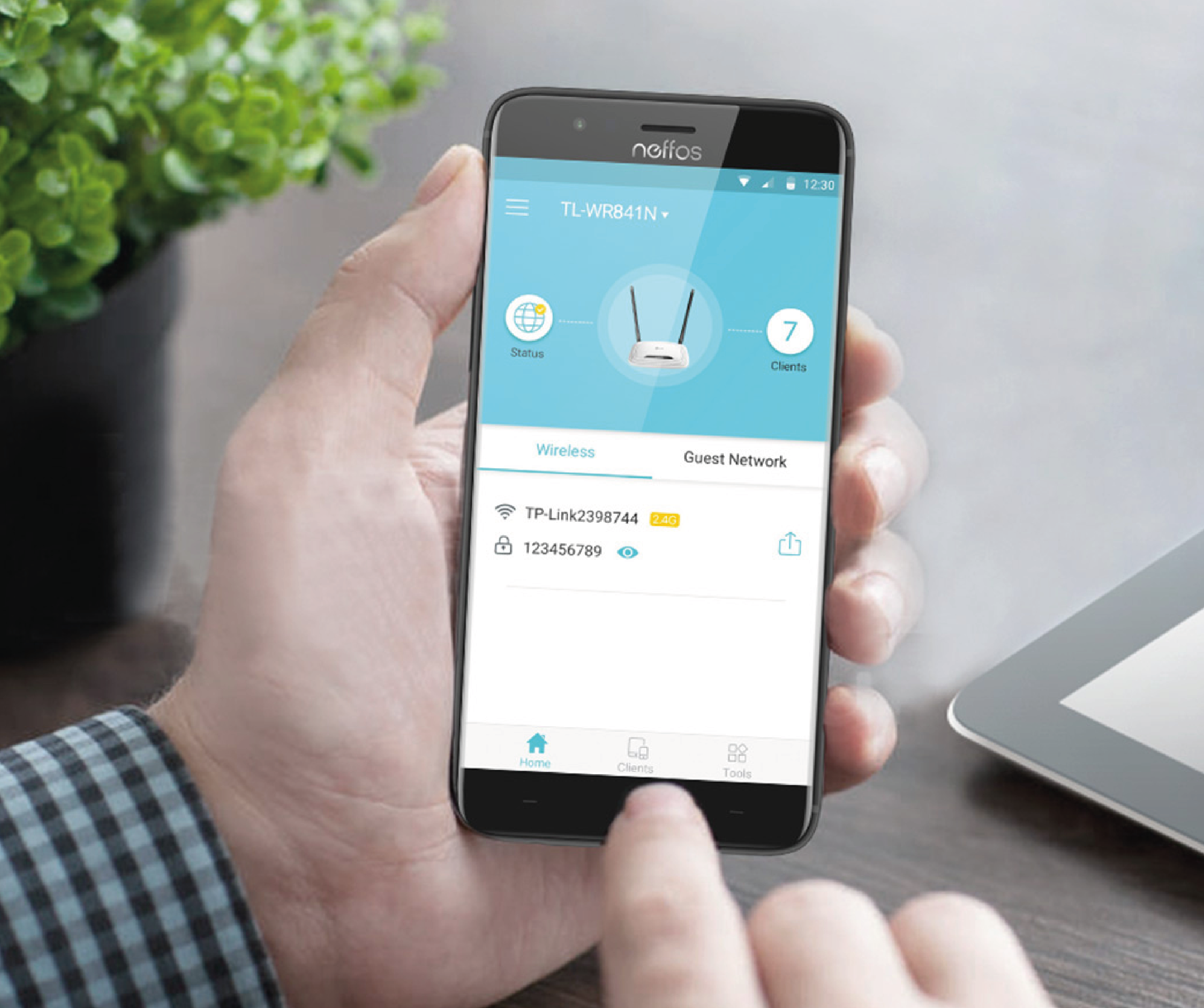

Easy Setup and Management with the Tether App
With the Tether app, you can configure the TL-WR841N in just a few minutes! Download it today on your Android or iOS device, and you'll be able to manage network settings, such as parental control or access control, from your smartphone.


Specifications
| TL-WR841N | |
| HARDWARE FEATURES | |
|---|---|
| Ports | 4 × 10/100Mbps LAN Ports, 1 × 10/100Mbps WAN Port |
| Button | WPS/Reset Button |
| External Power Supply | 9VDC / 0.6A |
| Dimensions ( W x D x H ) | 6.9 x 4.6 x 1.3 in. (173 x 118 x 33mm) |
| Antenna | 2 Fixed Omni Directional Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.412~2.472GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -77dBm@10% PER 11M: -87dBm@8% PER 6M: -90dBm@10% PER 1M: -98dBm@8% PER |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| SOFTWARE FEATURES | |
| Quality of Service | WMM,Bandwidth Control |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual Access), Bigpond |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| Access Control | Parental Controls, Local Management Control, Host list, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Guest Network | 2.4GHz Guest Network |
| Working Modes | Wireless Router, Range Extender, Access Point, WISP |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | Wireless Router TL-WR841N Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| System Requirements | Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
