TP-Link M7000 is a portable mobile router/hotspot that enables sharing a 4G LTE connection over a single-band 2.4 GHz Wi-Fi network in the 802.11b/g/n standard. The device supports LTE data download speeds up to 150 Mb/s and upload speeds up to 50 Mb/s, requiring only a micro-SIM card to establish a connection. The hotspot can share the network with up to 10 devices simultaneously. It is powered by a built-in 2000 mAh battery, which provides up to 8 hours of continuous operation. It requires manual configuration via the web interface or through the dedicated tpMiFi application. It features LED indicators informing about the network connection status, Wi-Fi status, and battery charge level.
Faster Connections, More Possibilities
The M7000 supports the latest generation of 4G FDD/TDD-LTE connections, allowing you to connect to the Internet easily in most countries and regions. Watch HD movies, download files instantly, and make video calls without interference.

Easy Wireless Connection Sharing for up to 10 Devices
The M7000 works with all wireless devices. The 4G/3G connection can be instantly shared with up to 10 devices simultaneously – tablets, mobile phones, laptops, game consoles, and many more.

Up to 8 Hours of Shared 4G Connection
Thanks to the powerful 2000 mAh battery, the M7000 can operate for up to 8 hours at full power, making it an indispensable companion during travel.


Quick Network Setup

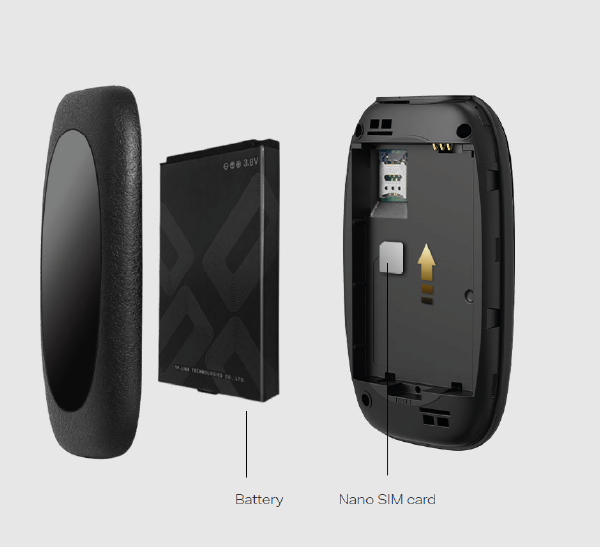

The M7000 has a user-friendly design; just insert the SIM card and power it on. Your portable hotspot will be active in half a minute.

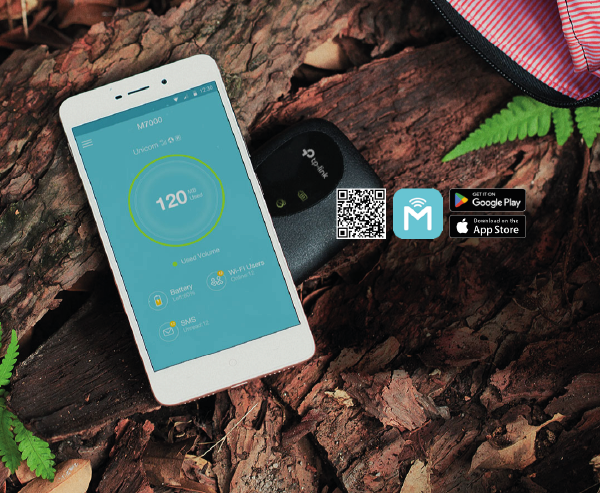

Easy Management with the tpMiFi App
The tpMiFi app allows you to manage the M7000 using connected devices with iOS/Android. tpMiFi enables setting download limits, controlling devices connected to the network, and sending messages.

Specification
| TP-Link M7000 | |
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 micro USB port for power supply 1 SIM card slot |
| Button | Power Button, Reset Button |
| Power Supply | Internal 2000 mAh Rechargeable Battery External 5V/1A |
| Network Type | 4G: FDD-LTE B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz) TDD-LTE B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA+/HSPA/UMTS: B1/B5/B8(2100/850/900 MHz |
| Data Rates | DL: 150 Mbps, UL: 50 Mbps |
| Dimensions ( W x D x H ) | 3.7×2.2×0.8 in. (94×56.7×19.8 mm) |
| Antenna | Internal Antennas |
| LED Display | Wi-Fi status, Internet connection status, Battery status |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b/g/n |
| Wireless Speeds | Up to 300 Mbps |
| Frequency | 2.4 GHz |
| Reception Sensitivity | 11b 11Mbps: -87.5dBm; 11g 54Mbps: -74dBm; 11n HT20 MCS7: -70dBm; 11n HT40 MCS7: -68dBm; |
| Transmit Power | <20dBm |
| Wireless Security | Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast |
| DHCP | Server, Client, DHCP Client List |
| OTHERS | |
| Package Contents | Mobile Wi-Fi M7000 Micro USB Cable 2000 mAh Battery Quick Installation Guide |
| System Requirements | Windows 10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone |
| Certifications | CE, RoHS |
| Environment | Operating Temperature: 0℃~35℃ (32℉ ~95℉) Storage Temperature: -20℃~60℃ (-4℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
