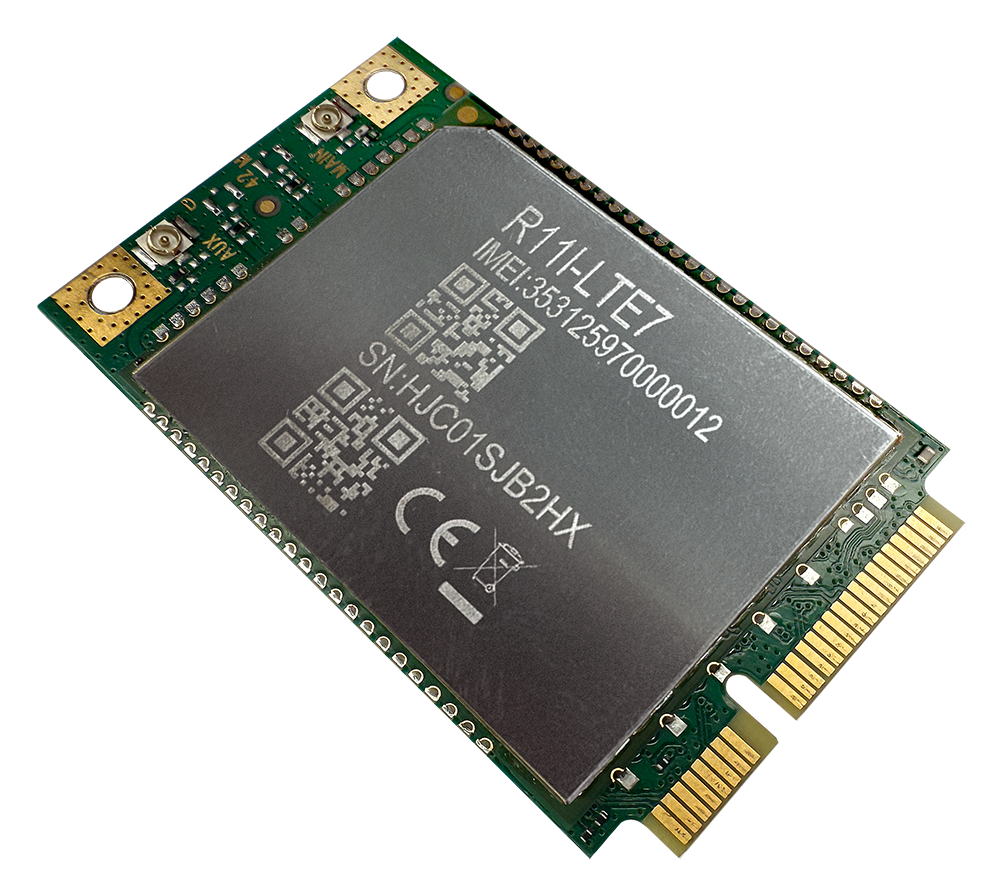

MikroTik R11e-LTE7 miniPCIe LTE cat 7 modem

MikroTik R11e-LTE7 miniPCIe LTE cat 7 modem

Brand: Mikrotik

Product Code: RB-R11E-LTE7

Catalog number: 10763

Warranty (months):

Price

41,59 €

51,16 € incl. tax

favoriteAdd to wishlist

Description

The MikroTik R11e-LTE7 is an LTE Cat 7 modem with a miniPCIe interface. It is the successor to the previously sold FG621-EA, offering better throughput and additional bands 32 and 28. It is also smaller in size, which facilitates installation in devices with compact enclosures. The maximum theoretical mobile transmission speed is 300 Mb/s for downloading and 100 Mb/s for uploading. The module is equipped with two uFL connectors, to which antennas must be connected.

LTE Cat 7 modem

The offered product is an LTE Cat 7 modem, which is the successor to the previously sold FG621-EA. The maximum theoretical connection speed is 300 Mb/s for downloading and 100 Mb/s for uploading. The modem has a miniPCIe interface and can be used in a wide variety of devices. External antennas can be connected using uFL connectors.

Specifications

Supported bands combinations
MikroTik R11e-LTE7
LTE modem	ASR1828
TAC	35312597
Format	miniPCIe
LTE Category	7 (300Mbps Downlink, 100Mbps Uplink)
MIMO DL	2x2
MIMO UL	1x1
LTE FDD bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
3G Category	R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
RF connector type	2x uFL
Operating system	RouterOS
Max power consumption	5 W
Operating temperature	-10°C do 55°C
2x CA	B1+B1/3/5/7/8/20/28/32/40/41 (100MHz) B3+B1/3/5/7/8/20/28/32/40/41 (100MHz) B5+B1/3/5/7/28/40/41 (100MHz) B7+B1/3/5/8/20/28 B8+B1/3/7/20/32/40/41 (100MHz) B20+B1/3/7/32/38/40 B28+B1/3/5/7/32 B38+B38 B40+B40 B41+B41 (100MHz)
2x CA (UL)	B1+B1 B3+B3 B5+B5 B7+B7 B8+B8 B38+B38 B40+B40 B41+B41
