Professional High Power 18-Port Gigabit Easy Smart Switch with 16-Port PoE+ - Easy to Use, Multi-Purpose PoE Switch with Powerful Performance TL-SG1218MPE.
Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications - Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

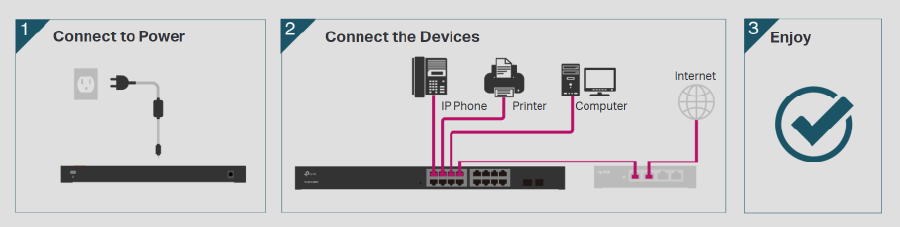

Plug and Play:
- Plug In
- Connect Devices (IP Camera, IP phone, Access Point, etc.)
- Enjoy
Value-Added Features Bring Unexpected Experiences:
- QoS for a Lag-Free Experience - Ensures smooth traffic for latency sensitive applications, such as voice and video
-
IGMP Snooping for Multicast Optimization - Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
-
VLAN for Security - Helps to create network with higher security and better overall performance by dividing network into smaller groups

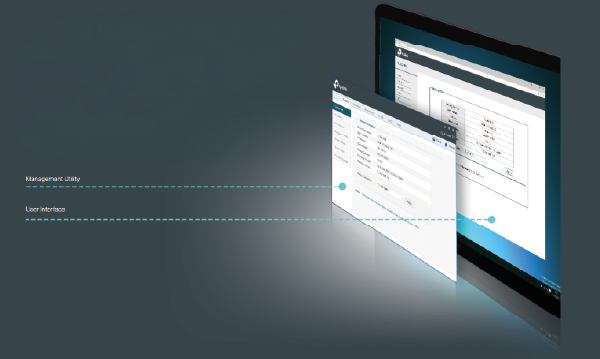

Making Management Easy - TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Multiple Factors Guarantee Stable Operation:
- System Self-Healing with PoE Auto Recovery - The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
-
Intelligent Power Management to Prevent Power Overload - Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.
Wide Operating Temperature with Good Heat Dissipation - Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

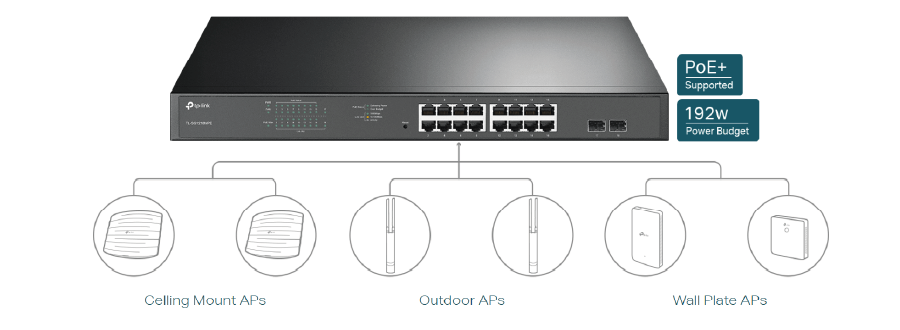

Multiple Application Scenarios - The TL-SG1218MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

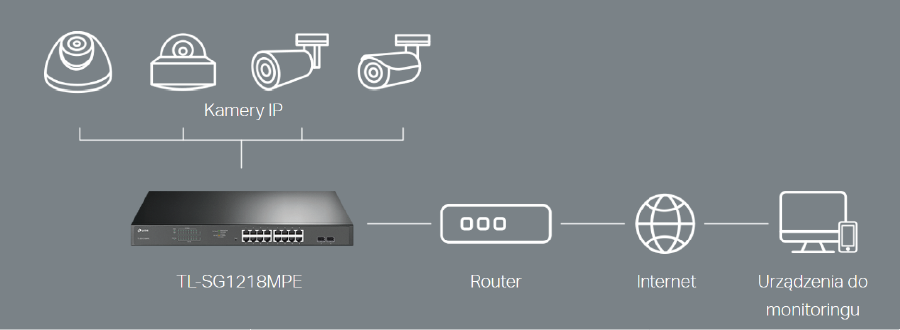

- Surveillance - Works with IP Cameras,
-
Conference - Call Works with IP Phones
-
Wi-Fi Coverage - Works with Omada EAPs
-
Wired Connections - Works with PCs and Printers
The most important features:
- 16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots.
- PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.*
- Port Priority is able to guarantee the quality of sensitive application like video monitor.
- PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
- Intelligent power management protects the switch from overload.
- QoS ensures smooth traffic for latency sensitive applications.
- IGMP Snooping optimizes multimedia traffic delivery, such as IPTV.
Specification:
TP-LinkTL-SG1218MPE | |
---|---|
HARDWARE FEATURES | |
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
Interface | 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2× Combo Gigabit SFP Ports |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
Fan Quantity | 2 Fans |
Physical Security Lock | Yes |
Power Supply | 100–240V AC, 50/60 Hz |
PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE+ Ports: Ports 1–16 Power Supply: 250 W |
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | 21.4 W (220/50Hz. no PD connected) 296.3 W (220/50Hz. with 250 W PD connected) |
Max Heat Dissipation | 72.97 BTU/h (no PD connected) 1010.38 BTU/h (with 250 W PD connected) |
PERFORMANCE | |
Switching Capacity | 36 Gbps |
Packet Forwarding Rate | 26.78 Mbps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 10 KB |
SOFTWARE FEATURES | |
Quality of Service | Support Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
VLAN | Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
Management | Web-based GUI Easy Smart Configuration Utility |
Transmission Method | Store-And-Forward |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | TL-SG1218MPE Power Cord Installation Guide Rackmount Kit Rubber Feet |
Environment | Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
