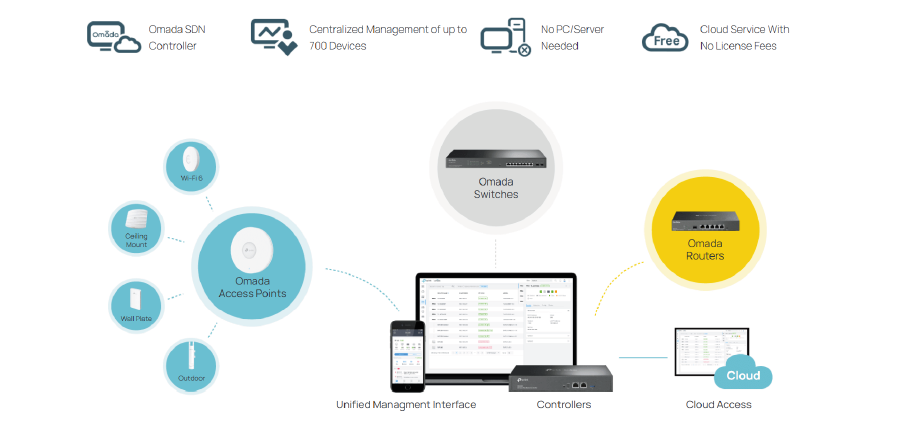

Centralized Management for Access Points, Switches, and Gateways - OC300, the hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of access points, switches, and gateways—all controlled from a single interface.
Omada SDN Controller - Centralized Management of up to 500 Devices and 15,000 Clients. No PC/Server Needed Cloud Service With No License Fees.

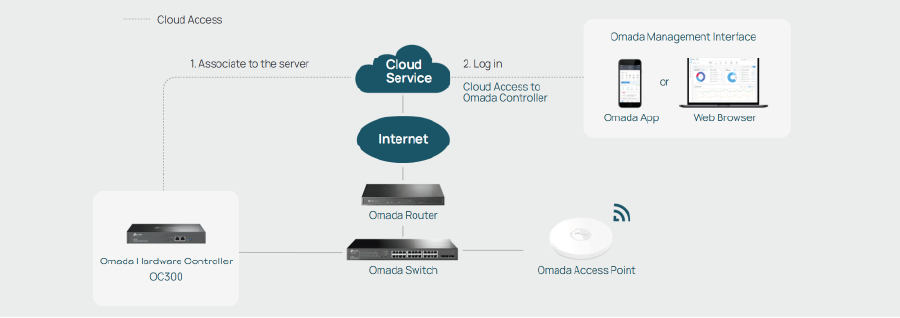

Hybrid Cloud for Maximum Convenience - Featuring hybrid cloud technology, the Omada Hardware Controller OC300 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.

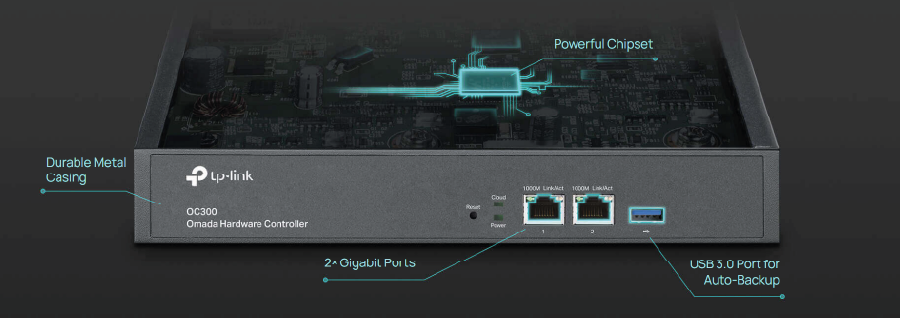

Industry-Leading Hardware Design - Equipped with an advanced design and the latest chipset, OC300 has enough processing power to support the massive management of your business network. Rackmount/desktop design benefits easier and flexible installation.

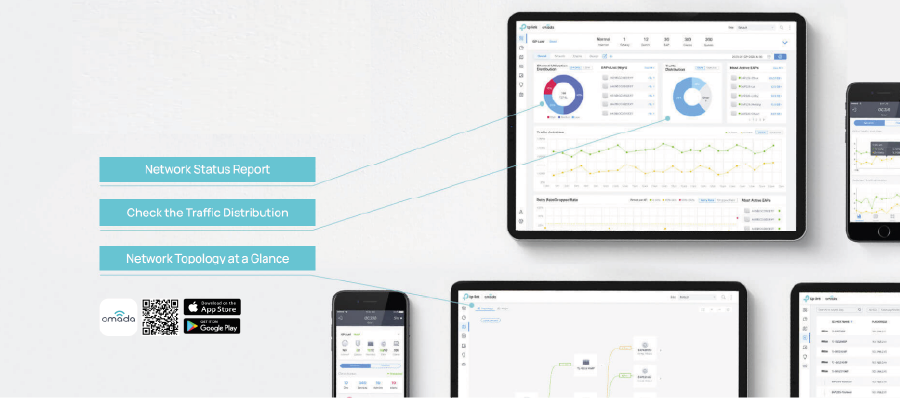

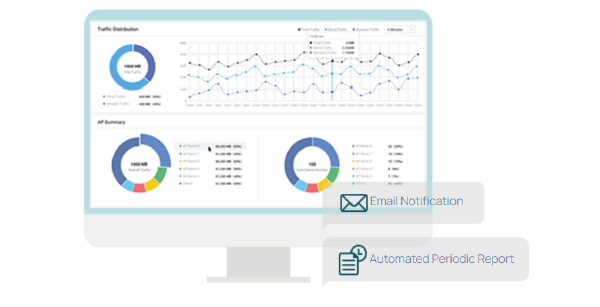

Easy and Intelligent Network Monitoring - The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.
Multiple Factors Guarantee Easier Network Maintenance -

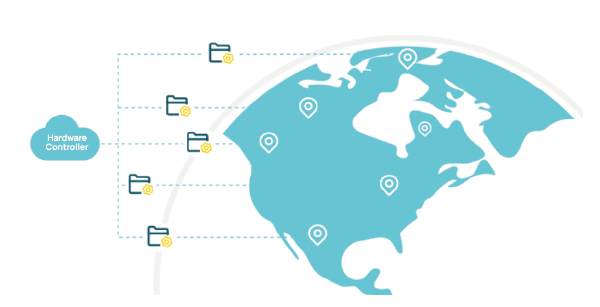

- Batch Management, Multi-Site Management, and Remote Firmware Updates - Improve network maintenance without needing to configure on-site or manage devices one by one.

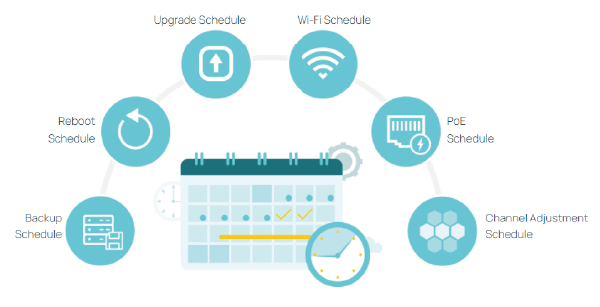

- Powerful Scheduling - Maintain your network easily with more agile and effective processing. No manual tasks required.

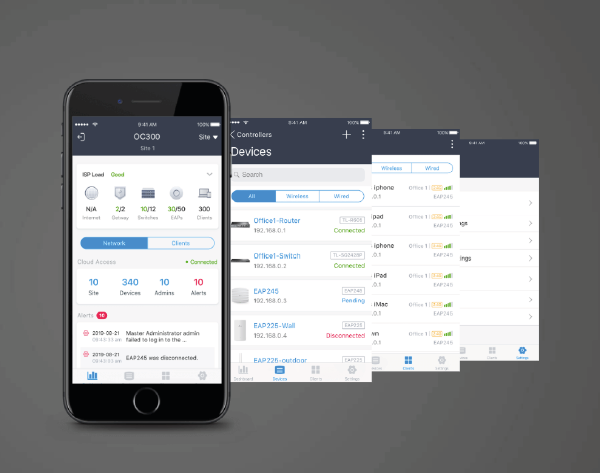

Greater Convenience with the Omada App - Remotely access and configure your whole network with a tap of your phone from anywhere in the world.
Choose the Right Controller that Fits Your Business
Omada On-Premises Controller | Omada Cloud-Based Controller | |||
---|---|---|---|---|
Hardware Controller (OC300) |
Hardware Controller (OC200) |
Software Controller | ||
Management Scale | <500 Devices | <100 Devices | <1,500 Devices* | Unlimited** |
Usage Method | Connect to the intranet | Deploy to intranet servers or private clouds |
Log in and use | |
Network Type | Small/Medium local network | Medium/Large network | Medium/Large multi-site network | |
Pricing Model | Hardware costs | Free | Service subscription fee*** | |
Cloud Access | √ | √ | √ | √ |

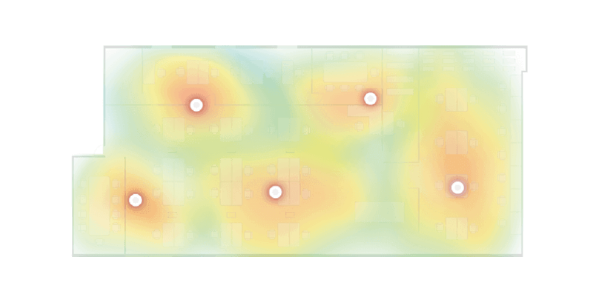

Automatic Channel Selection |
- | - | - | √ |
Zero-Touch Provisioning |
- | - | - | √ |
The most important features:
- Centralized management for up to 500 Omada access points, JetStream switches, and SafeStream routers.
- Cloud access to manage from anywhere, anytime.
- Locally monitor and manage devices with the ultimate security and stability.
- The Omada app for convenient management.
- Industry-leading hardware design with a powerful chipset, durable metal casing, and USB 3.0 port for auto backup.
- Batch management, multi-site management, and remote firmware updates benefit network maintenance.
- The easy-to-use dashboard makes it easy to see your real-time network status and check network usage and traffic distribution.
- Network topology helps IT admins quickly see and troubleshoot connections at a glance.
Specification
TP-Link OC300 | |
---|---|
HARDWARE FEATURES | |
Interface | 2× 10/100/1000 Mbps Ethernet Ports 1× USB 3.0 Port |
Power Supply | 100–240 V~50/60 Hz, 0.6 A |
Dimensions | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
MANAGEMENT | |
Omada App | Yes |
Centralized Management |
*Only some JetStream switches and Safestream gateways can be centrally managed by OC300, please refer to www.tp-link.com/business-networking/all-omada/ to find all the models supported by OC300 |
Cloud Access | Yes |
L3 Management | Yes |
Multi-site Management | Yes |
Management Features | Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | Omada Hardware Controller OC300 Quick Installation Guide Ethernet Cable Power Cord Rackmount Kit |
System Requirements | Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
Environment | Operating Temperature: 0–50 ℃ (32–122 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
*Actual management scale of the Omada Software Controller depends on the PC/server’s hardware specifications.
**The management scale of the Omada Cloud-Based Controller may vary according to the service subscription fee.
***Subscription services of the Omada Cloud-Based Controller is differentiated by tier.
