TP-Link Archer AX90 WiFi 6 dual band router AX6600, 1x 2.5GE, 4x GE

TP-Link Archer AX90 WiFi 6 dual band router AX6600, 1x 2.5GE, 4x GE

Brand: TP-Link

Product Code: TL-ARCHER-AX90

Catalog number: 8175

Warranty (months):

Price

237,78 €

292,47 € incl. tax

favoriteAdd to wishlist

Description

The Archer AX90 is a tri-band wireless router (AX6600) operating on the Wi-Fi 6 (802.11ax) standard, offering a combined theoretical throughput of up to 6600 Mbps across its bands: 2.4 GHz (up to 574 Mbps) and two 5 GHz bands (1201 Mbps and 4804 Mbps). The router is equipped with one 2.5 Gigabit Ethernet (2.5GE) port which can function as a WAN or LAN port, and four Gigabit Ethernet (GE) ports, with the option of using one GE as an additional WAN port. The device features a 1.5 GHz quad-core processor, eight external antennas, two USB ports (USB 3.0 and USB 2.0), and utilizes OFDMA and MU-MIMO technologies for efficient handling of multiple devices, as well as the Smart Connect function for connection optimization. Security features are provided by TP-Link HomeShield.

Power Enclosed in a Stylish Casing

Thanks to tri-band technology and Wi-Fi 6, the Archer AX90 allows simultaneous data transmission through eight streams, enabling communication with multiple devices at the same time. The eight high-performance antennas are not only used to bring the network signal to every room in your home but are also a decorative element.

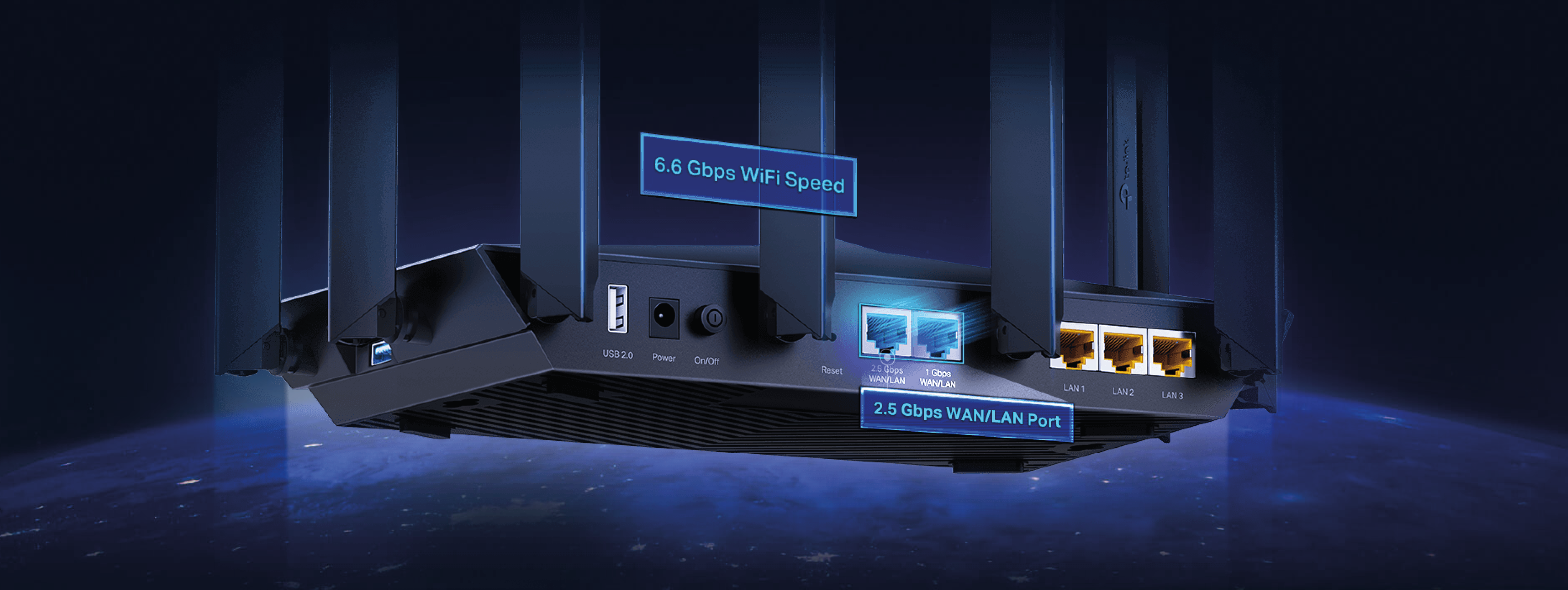

Opt for Higher Speeds — Wired or Wireless

The Archer AX90 provides wireless connections with an impressive speed of 6.6 Gbps, but that's not all it can do. Equipping the router with a 2.5 Gbps port and a 1 Gbps port also provides wired connections. Therefore, the gigabit speeds offered by your internet service provider are not limited by the hardware capabilities. You can easily exceed the 1 Gbps barrier, and your devices will be able to operate at maximum efficiency. The two LAN/WAN ports offer wide configuration possibilities — allowing you to tailor network settings to your needs.

Your Security is Our Priority

Entrust Home Protection to Specialists Use the extensive capabilities of TP-Link HomeShield to create a customized and secure wireless network. Whether you want to protect sensitive data or limit network access for children and guests, HomeShield will provide you with the tools necessary for comprehensive network management.

WPA3 — Higher Level of Cybersecurity

With the latest WPA3 protocol, your home network gains better protection and uninterrupted operation.

Protection against "brute force" attacks
Improved device onboarding systems
Higher level of Wi-Fi encryption reliability

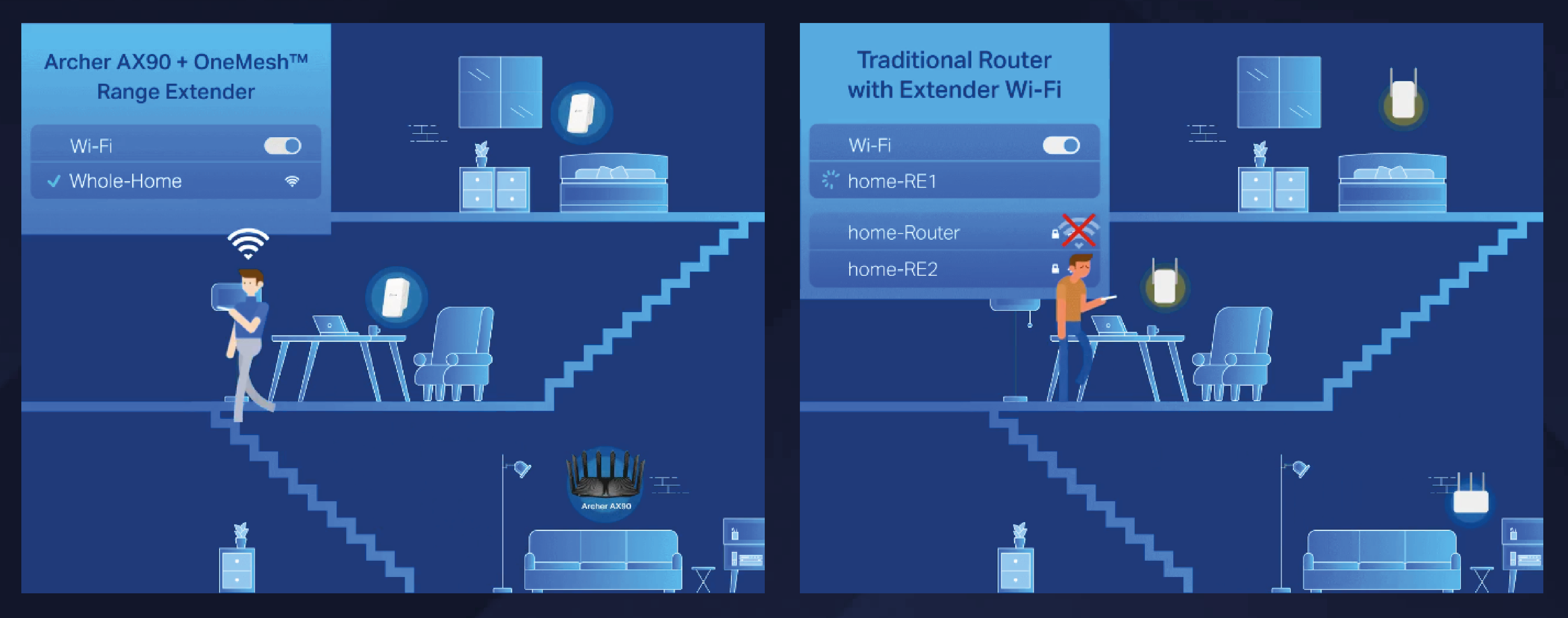

TP-Link OneMesh™ :
Flexibility in Creating a Whole-Home Wi-Fi Network

OneMesh™ technology is an easy way to create a unified mesh network that covers the entire area of your home. All you need to do is connect a range extender with OneMesh™ technology to a OneMesh™ router. You no longer have to wander around the house looking for a stable connection!

Wi-Fi Dead Zone Killer

Weak Wi‑Fi signal is no longer a problem. Network coverage extends throughout the entire home.

Intelligent Roaming

Seamless streaming even when you move around the house.

One Wi-Fi Name

All Wi-Fi networks share a single name.

Simplified Management

The TP-Link Tether app allows you to manage the entire network from your smartphone.

Specifications:

HARDWARE FEATURES
TL-SG3210XHP-M2
Ports	8× 100/1000/2500 Mbps RJ45 Ports 2× 10G SFP+ Slots 1× RJ45 Console Port 1× microUSB Console Port
Fanless	No, 2 fans
Power Supply	100-240 V AC~50/60 Hz
Dimensions (W x D x H)	440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)
Mounting	Rack Mountable
Max Power Consumption	17.24 W (110 V/50 Hz) (no PoE device connected) 291.49 W (110 V/50 Hz) (with 240 W power draw)
Max Heat Dissipation	58.82 BTU/h (no PoE device connected) 994.56 BTU/h (with 240 W power draw)
PERFORMANCE
Switching Capacity	80 Gbps
Packet Forwarding Rate	59.52 Mpps
MAC Address Table	16 K
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service (QoS)	8 priority queues Supports 802.1p CoS/DSCP priority Priority Scheduling Mode: SP (Strict Priority) WRR (Weighted Round Robin) SP+WRR Bandwidth Control Port/Flow based Rating Limiting Smoother Performance Action for Flows Mirror (to supported interface) Redirect (to supported interface) Rate Limit QoS Remark
L2 and L2+ Features	Link Aggregation Static Link Aggregation 802.3ad LACP Up to 8 aggregation groups and up to 8 ports per group Spanning Tree Protocol (STP) 802.1D STP 802.1w RSTP 802.1s MSTP STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect Loopback Detection Port-based VLAN based Flow Control 802.3x Flow Control HOL Blocking Prevention Mirroring Port Mirroring CPU Mirroring One-to-One transmission Many-to-One transmission Tx/Rx/Both Ports
L2 Multicast	IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave IGMP Snooping Querier IGMP Authentication IGMP Authentication MVR MLD Snooping MLD v1/v2 Snooping Fast Leave MLD Snooping Querier Static Group Config Limited IP Multicast Forwarding Multicast Filtering: 256 profiles and 16 entries per profile
VLAN	VLAN Groups Max 4K VLAN Groups 802.1Q Tagged VLAN MAC VLAN: 7 Entries Protocol VLAN GVRP VLAN VPN (QinQ) Port-Based QinQ Selective QinQ Voice VLAN
Access Control List (ACL)	Time-based ACL MAC ACL Source MAC Destination MAC VLAN ID User Priority Ethertype IP ACL Source IP Destination IP Fragment IP Protocol TCP Flag TCP/UDP Port DSCP/IP TOS User Priority IPv6 ACL Packet Content ACL Combined ACL Access Control Policy Mirroring Rate Limit Redirect QoS Remark ACL apply to Port/VLAN
Security	IP-MAC-Port Binding 512 entries DHCP Snooping ARP Inspection IPv4 Source Guard: 100 entries IPv6-MAC-Port Binding 512 entries DHCPv6 Snooping ND Detection IPv6 Source Guard: 100 entries DoS Defend Static/Dynamic/Permanent Port Security Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control Control mode (kbps/ratio) 802.1X Authentication Port based authentication Mac based authentication VLAN Assignment MAB Guest VLAN Support Radius authentication and accountability AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 encryption Secure Command Line Interface (CLI) management with SSHv1/SSHv2 encryption IP/Port/MAC based Access Control
IPv6	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery ICMP v6 TCP v6/UDP v6 IPv6 Applications: DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP
L3 Switch Features	16 IPv4/IPv6 Interfaces Static Routing 48 static routes Static ARP Entries 128 static entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP Interface Relay DHCP VLAN Relay DHCP L2 Relay
Management	Web-based GUI Command Line Interface (CLI) SNMP v1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
Advanced Features	Supports Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Zero-Touch Provisioning (ZTP)
MIBs	MIB II (RFC1213) Port MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Ping and Traceroute MIB (RFC2925) Supports TP-Link Private MIBs
OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SG3210XHP-M2 Switch Power Cord Installation Guide Rackmount Kit Rubber Feet
Environment	Operating Temperature: 0℃~45℃ (32℉~113℉); Storage Temperature: -40℃~70℃ (40℉~158℉); Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~90% RH non-condensing

Specifications:

WIRELESS
Archer AX90
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX6600 5 GHz: 4804 Mbps (802.11ax, HE160) 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	4 Bedroom Houses 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity	Very High Tri-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth
Working Modes	Router Mode Access Point Mode
HARDWARE
Processor	1.5 GHz Quad-Core CPU
Ethernet Ports	1× 2.5 Gbps WAN/LAN Port 1× 1 Gbps WAN/LAN Port 3× 1 Gbps LAN Ports
USB Support	1× USB 3.0 Port 1× USB 2.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
Buttons	Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button
Power	12 V ⎓ 3.3 A
SECURITY
WiFi Encryption	WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 5 GHz-1 Guest Network 1× 5 GHz-2 Guest Network 1× 2.4 GHz Guest Network
VPN Server	OpenVPN PPTP
SOFTWARE
Protocols	IPv4 IPv6
Service Kits	HomeShield
OneMesh™	OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	QoS by Device
Cloud Service	Auto Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP Virtual Server
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link NO-IP DynDNS
Management	Tether App Webpage
PHYSICAL
Dimensions (W×D×H)	12.2 × 8.1 × 6.8 in (311 × 207 × 174 mm)
Package Contents	Wi-Fi Router Archer AX90 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power	CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity	2.4GHz: 11n HT20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm 11ax HE40 MCS11:-62dBm 5GHz-1: 11ac VHT20 MCS0:-92dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 5GHz-1: 11ac VHT20 MCS0:-95dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 11ax HE160 MCS11:-53dBm
