Description

Realize More Possibilities with Omada

JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart PoE+ Switch

Centralized Cloud Management
Omada SDN Platform Integration

Advanced L2+ Features
L2/L3/L4 QoS, ACL, Static Routing and More

Abundant Security Strategies
LAN Area Investment Protection

PoE+ Output
24 PoE+ Ports with Total 250 W Power Budget

Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× 10/100Mbps PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

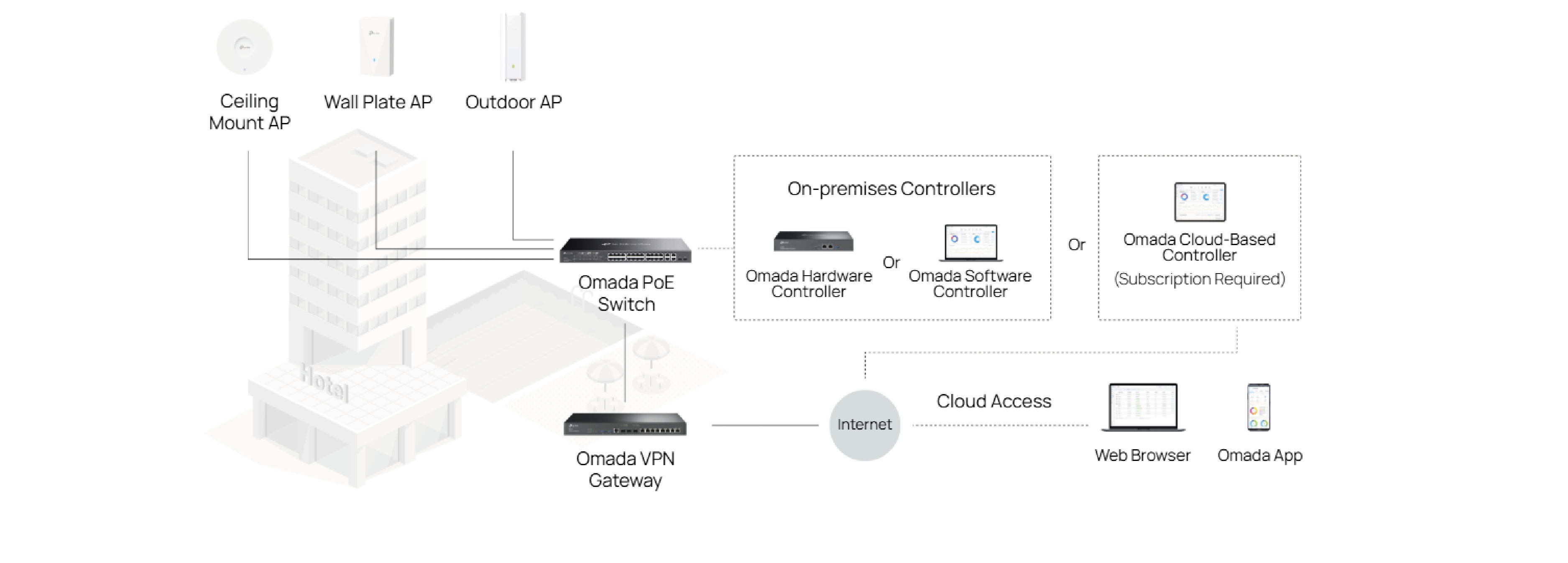

Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
Gigabit Ports: 2× Gigabit RJ45 ports and 2× Combo Gigabit RJ45/SFP Ports provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Specifications:

Hardware features
SL2428P
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Combo Gigabit Uplink RJ45/SFP Ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF
Fan Quantity	2
Physical Security Lock	Yes
PoE Budget	250 W
Dimensions ( W x D x H )	17.37.11.7 in.(44018044 mm)
Mounting	Rack Mountable
Max Power Consumption	18.8 W (220 V / 50 Hz with no PD connected) 286.7 W (220 V / 50 Hz with 250 W PD connected)
Max Heat Dissipation	64.1 BTU/h (with no PD connected) 977.6 BTU/h (220 V / 50 Hz with 250 W PD connected)
Performance
Switching Capacity	12.8 Gbps
Packet Forwarding Rate	9.5 Mpps
MAC Address Table	8K
Jumbo Frame	9216 Bytes
Software features
Quality of Service	802.1p CoS/ DSCP priority 8 priority queues Priority Schedule Mode SP (Strict Priority) WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control Port/Flow based Rating Limit Smoother Performance Actions for flows Mirror(to supported interface) Redirect(to supported interface) Rate Limit QoS Remark Storm Control Multiple Control Modes(kbps/ratio/pps) Broadcast/Multicast/Unknown-Unicast Control
L2 Features	Link Aggregation Static link aggregation Up to 8 aggregation groups and up to 8 ports per group 802.3ad LACP Spanning Tree Protocol 802.1D STP 802.1w RSTP 802.1s MSTP STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect Loopback Detection Port based VLAN based Flow Control 802.3x Flow Control HOL Blocking Prevention Mirroring Port Mirroring One-to-One Many-to-One Tx/Rx/Both CPU Mirroring
L2 Multicast	Supports 511 (IPv4, IPv6) IGMP groups IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave IGMP Snooping Querier IGMP Authentication IGMP Authentication MVR MLD Snooping MLD v1/v2 Snooping Fast Leave MLD Snooping Querier Static Group Config Limited IP Multicast Multicast Filtering: 256 profiles and 16 entries per profile
IPv6 Support	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery(MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP
VLAN	VLAN Group Max 4K VLAN Groups 802.1Q Tagged VLAN MAC VLAN: 12 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN (QinQ) Port-Based QinQ Selective QinQ Voice VLAN
Access Control List	Time-based ACL MAC ACL Source MAC Destination MAC VLAN ID User Priority Ether Type IP ACL Source IP Destination IP Fragment IP Protocol TCP Flag TCP/UDP Port DSCP/IP TOS User Priority Combined ACL Packet Content ACL IPv6 ACL Policy Mirroring Redirect Rate Limit QoS Remark ACL apply to Port/VLAN
Security	IP-MAC-Port Binding DHCP Snooping ARP Inspection IPv4 Source Guard IPv6-MAC-Port Binding DHCPv6 Snooping ND Detection IPv6 Source Guard DoS Defend Static/Dynamic Port Security Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control kbps/ratio/pps control mode IP/Port/MAC based access control 802.1X Port based authentication Mac based authentication VLAN Assignment MAB Guest VLAN Support Radius authentication and accountability AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP
L3 Features	16 IPv4/IPv6 Interfaces Static Routing 48 static routes Static ARP 128 static entries 316 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP interface relay DHCP VLAN relay DHCP L2 Relay
Management	Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
MIBs	MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs
Others
Package Contents	TL-SL2428P Power Cord Installation Guide Rackmount Kit Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~50℃ (32℉~122℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
