MikroTik GPERx6 is a switch designed for outdoor installation, featuring an IP66 protection rating. Its flexible design makes it a versatile solution for pole mounting. It is equipped with 3 Gigabit Ethernet ports (10/100/1000 Mb/s) and 3 SFP+ slots (10 Gb/s), providing high-capacity fiber connectivity, potentially over long distances. The GPERx6 can be powered via PoE++ (802.3bt) or a DC socket, with the latter supporting a wide input voltage range of 12–57 V DC. The switch provides 2 PoE+ outputs (802.3af/at) and 3 DC power outputs, allowing the connection of both PoE-enabled and non-PoE devices. Thanks to these features, the GPERx6 is suitable for a wide range of installations, including connecting base stations, IP cameras, sensors, or various IoT devices. Additionally, the multiple SFP+ slots allow fiber connections to other poles located at greater distances.

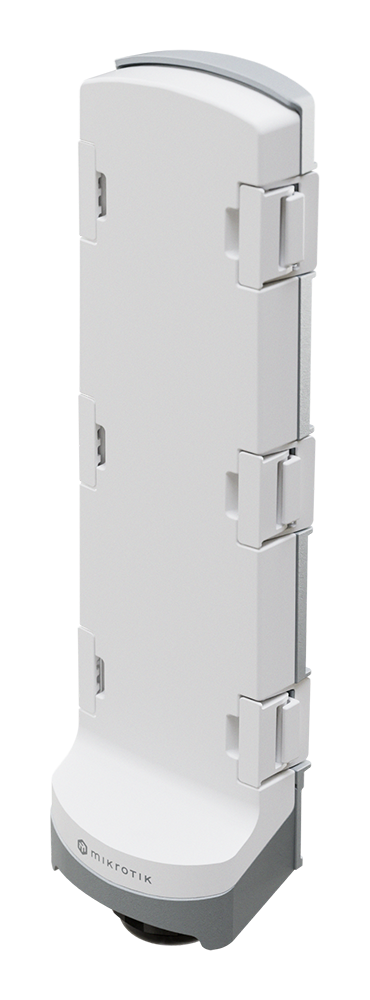

Outdoor IP66 switch

The offered product is a switch with an IP66-rated enclosure designed for outdoor installation. Using the accessories included in the package, you can mount the GPERx6 on a pole or wall. The device runs SwOS and provides Layer 2 management. The manufacturer uses a switch chip known from other popular solutions, such as the netPower Lite 7R.

PoE++ (802.3bt) or DC power input

You can power the device using the PoE input (the manufacturer recommends the PoE++ 802.3bt standard) or the DC socket. In the latter case, the advantage is a very wide input voltage range: 12–57 V DC. The package does not include a power supply, which must be purchased separately.

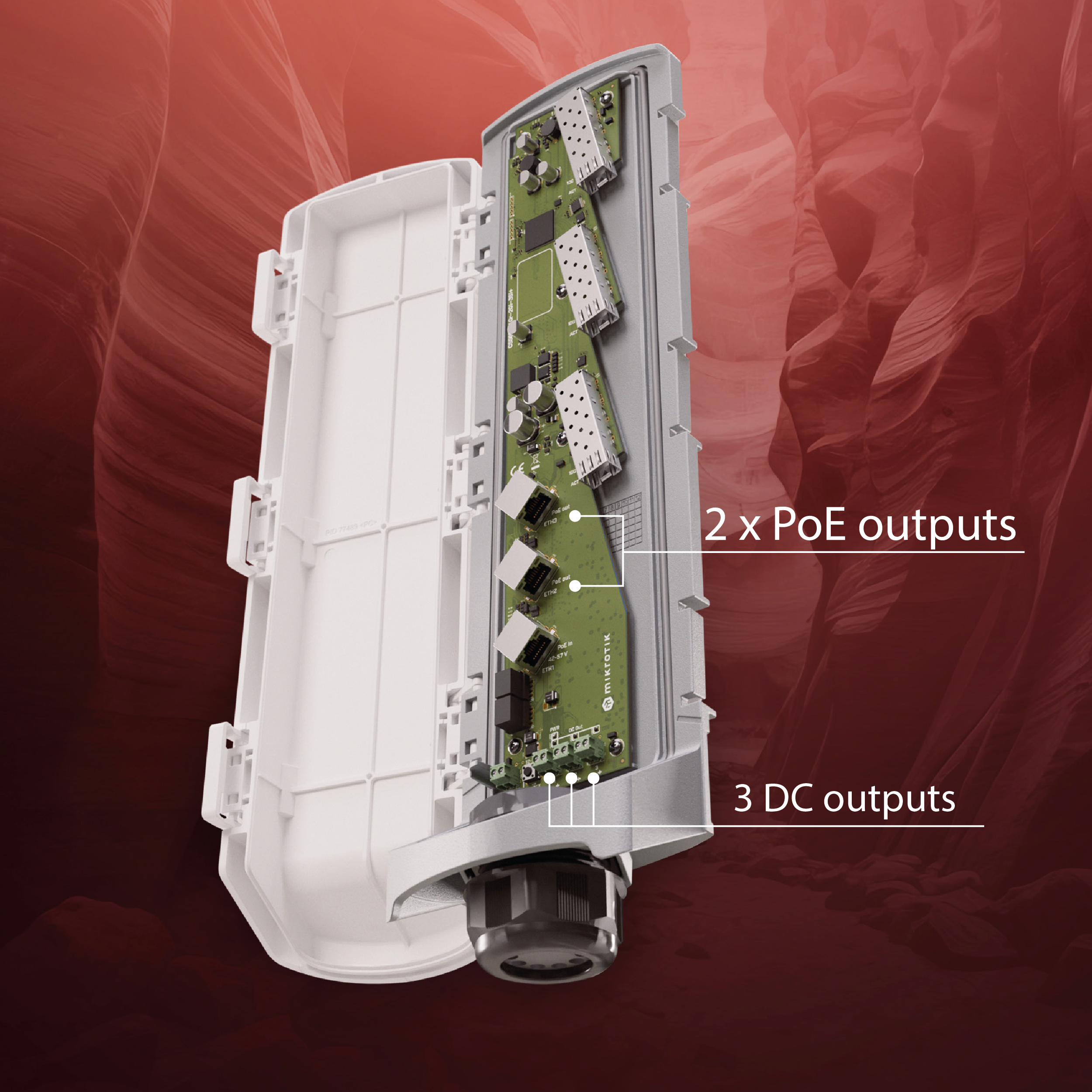

2 PoE outputs, 3 DC outputs

One of the key advantages of the GPERx6 is its ability to power other devices. The switch has 2 PoE outputs (passive PoE) and 3 DC outputs. This allows you to connect and power devices that do not support PoE. The maximum total output current is 2.4 A for PoE-powered devices and 3.6 A when powered from the DC terminals.

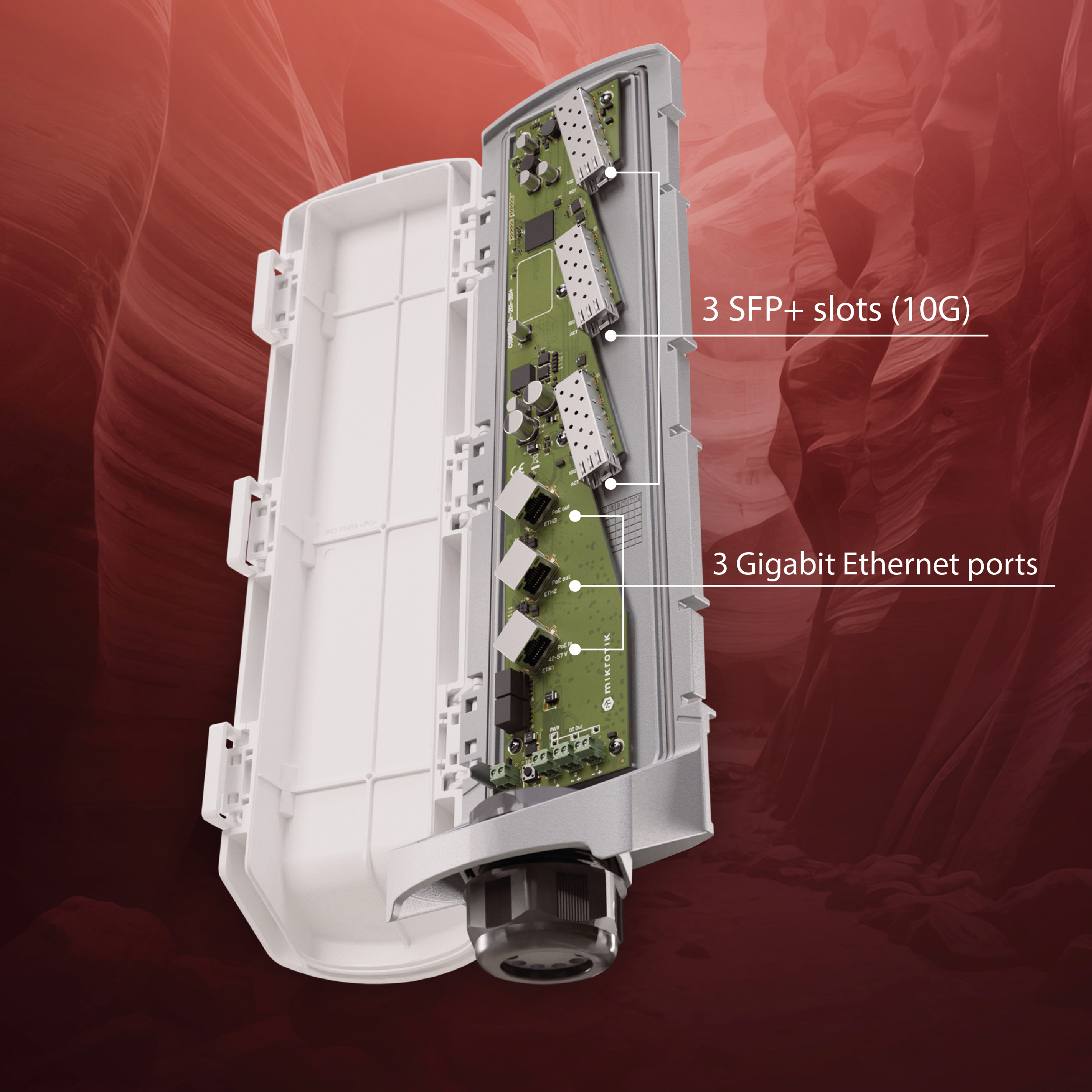

3 Gigabit Ethernet ports, 3 SFP+ slots (10G)

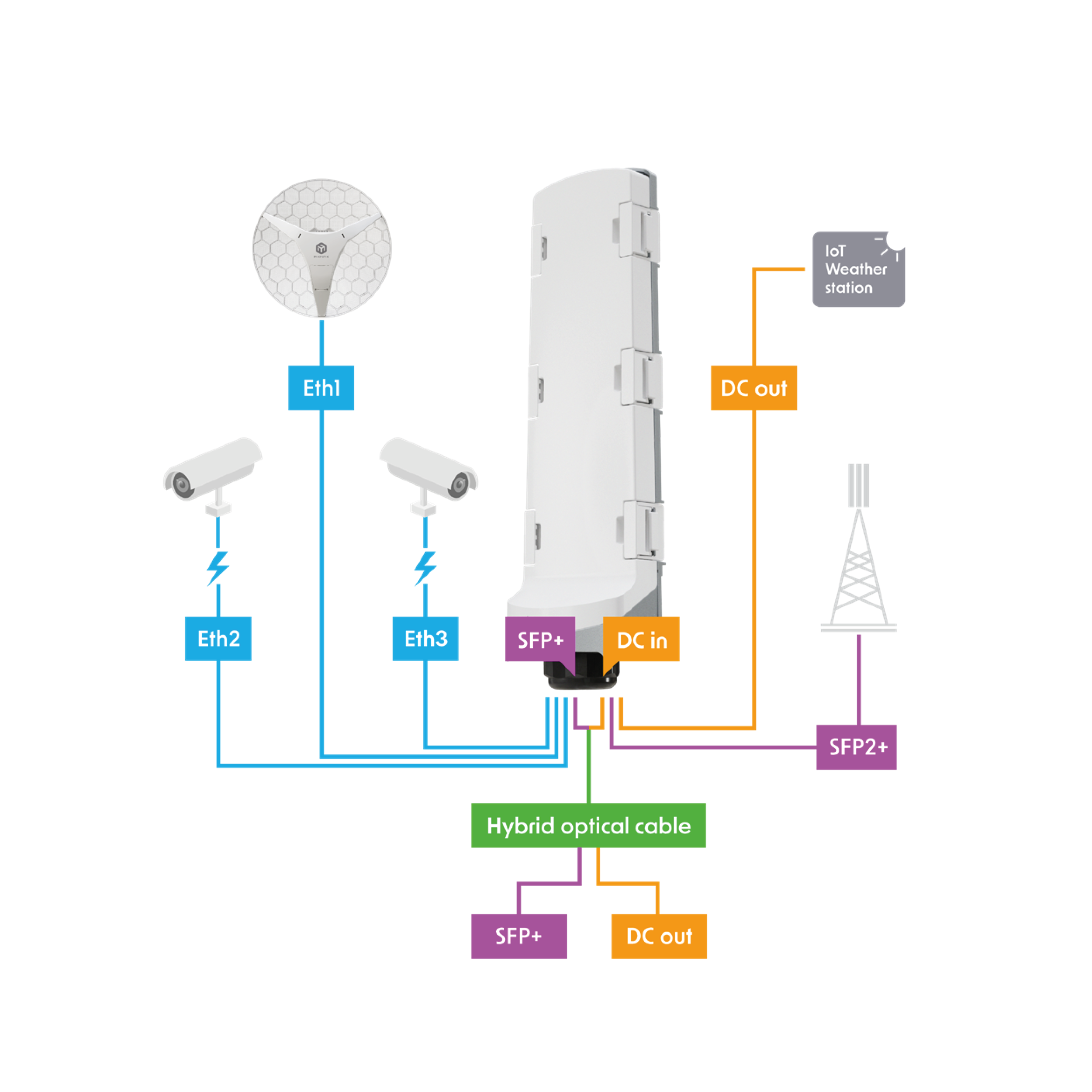

The GPERx6 is equipped with 3 1G Ethernet ports (10/100/1000 Mb/s) and 3 SFP+ slots. This large number of interfaces provides flexibility and allows you to connect various types of devices, using either fiber optic cables or standard Ethernet cabling. An SFP+ slot combined with the DC socket enables the use of hybrid cables (fiber + copper), which can transmit both data and power over long distances.

Applications

The offered product is designed as a switch for direct pole mounting, allowing the connection and simultaneous powering of other devices. Thanks to the use of various interfaces (fiber and Ethernet) and PoE and DC power outputs, it offers great flexibility. It is suitable for working with typical network devices such as base stations, IP cameras, or access points, as well as for connecting IoT solutions, such as various sensors. Additionally, the high-capacity SFP+ slots make it easier to connect two different locations from pole to pole without worrying about range.
