MikroTik CRS804 DDQ is a high-performance switch equipped with 4 × QSFP56-DD slots with up to 400 Gb/s throughput and 2 × 10G Ethernet ports (1 / 2.5 / 5 / 10G). It comes with the RouterOS operating system preinstalled with a Level 6 license, providing advanced Layer 3 management features. The manufacturer has equipped it with a powerful quad-core AL52400 processor clocked at 2000 MHz and 4 GB of RAM. It stands out in terms of capabilities and performance compared to competing switches. The offered product is ideal for a wide range of applications requiring maximum speed. It can be successfully used in a server room to connect critical devices and is an excellent solution for data centers and AI clusters. The package includes two AC hot-swap power supplies designed for redundant operation—if one fails, the other takes over. The ventilation modules are also hot-swap, allowing replacement without interrupting the operation of the device. The package also includes an RMK-2x10/19 rack mount, enabling you to install two switches in a single 19" rack location. The CRS804 DDQ can also be mounted individually in a 19" rack.

4x QSFP56-DD (400G), 2x 10G Ethernet

The offered product is a switch equipped with 4 × QSFP56-DD slots providing speeds of up to 400 Gb/s and 2 × 10G Ethernet ports. The device ensures very high switching throughput, and each interface also offers backward compatibility, making it much easier to upgrade an existing network. The QSFP56-DD slots can operate in 40G, 50G, 100G, 200G, or 400G modes, and the Ethernet ports support full speed negotiation—1 / 2.5 / 5 / 10 Gb/s.

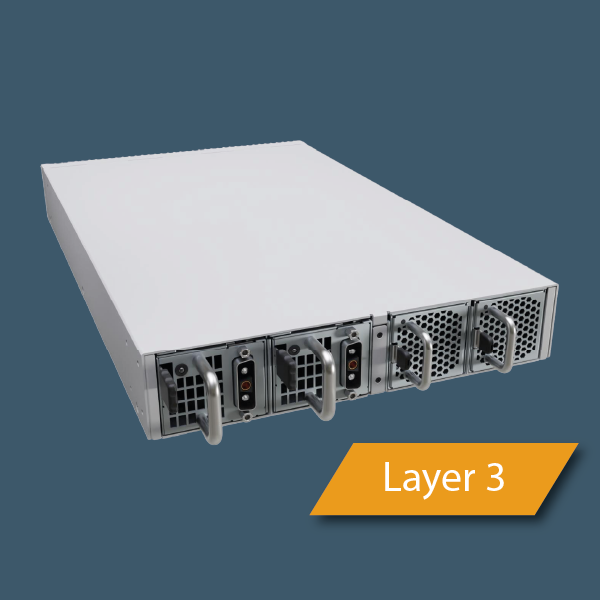

Layer 3 management, AL52400 processor (4 cores 2 GHz), 4 GB RAM

The CRS804-4DDQ-hRM comes with the RouterOS operating system preinstalled with a Level 6 license. It provides all the advanced configuration capabilities found in other MikroTik solutions. At the same time, the device is equipped with a powerful processor featuring 4 cores clocked at 2 GHz and 4 GB of RAM. This ensures outstanding performance compared to other CRS series solutions, which is essential given the high throughput it is designed to handle.

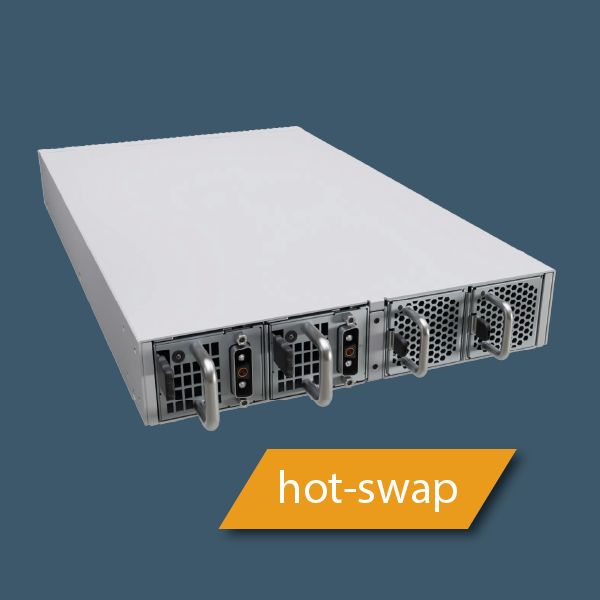

Hot-swap power and ventilation modules

The manufacturer has equipped the switch with hot-swap power and ventilation modules—you can replace them during operation without turning off the entire device. The power modules operate redundantly; if one fails, the other takes over. This makes the CRS804-4DDQ-hRM highly reliable and suitable for use in mission-critical locations.

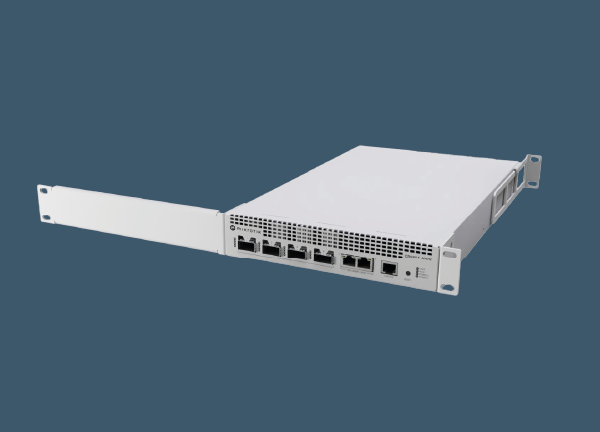

Compact enclosure, 19" Rack mountable

The switch features a compact external size, and the package includes a bracket for mounting in a 19" rack. Additionally, you can use the RMK-2x10/19 (also included) to mount two switches side by side in a rack. The device should be installed using 4 rails.

Application

The offered product is ideal wherever you need a high-performance switch that provides maximum transmission throughput. It is primarily designed for AI clusters and data centers, allowing you to connect multiple servers with 400 Gb/s bandwidth. It is also appreciated by users with smaller networks, as the CRS804-4DDQ-hRM is much more affordable than large 400G solutions and allows for upgrading connections in locations where large, power-hungry switches are not necessary.

Specifications
