MikroTik TG-LR82 LoRaWAN sensor tag (868 MHz, 2.4 GHz)

MikroTik TG-LR82 LoRaWAN sensor tag (868 MHz, 2.4 GHz)

Brand: Mikrotik

Product Code: RBTG-LR82

Catalog number: 10914

Warranty (months):

Price

18,61 €

22,89 € incl. tax

favoriteAdd to wishlist

Description

Humidity, temperature sensor, and accelerometer

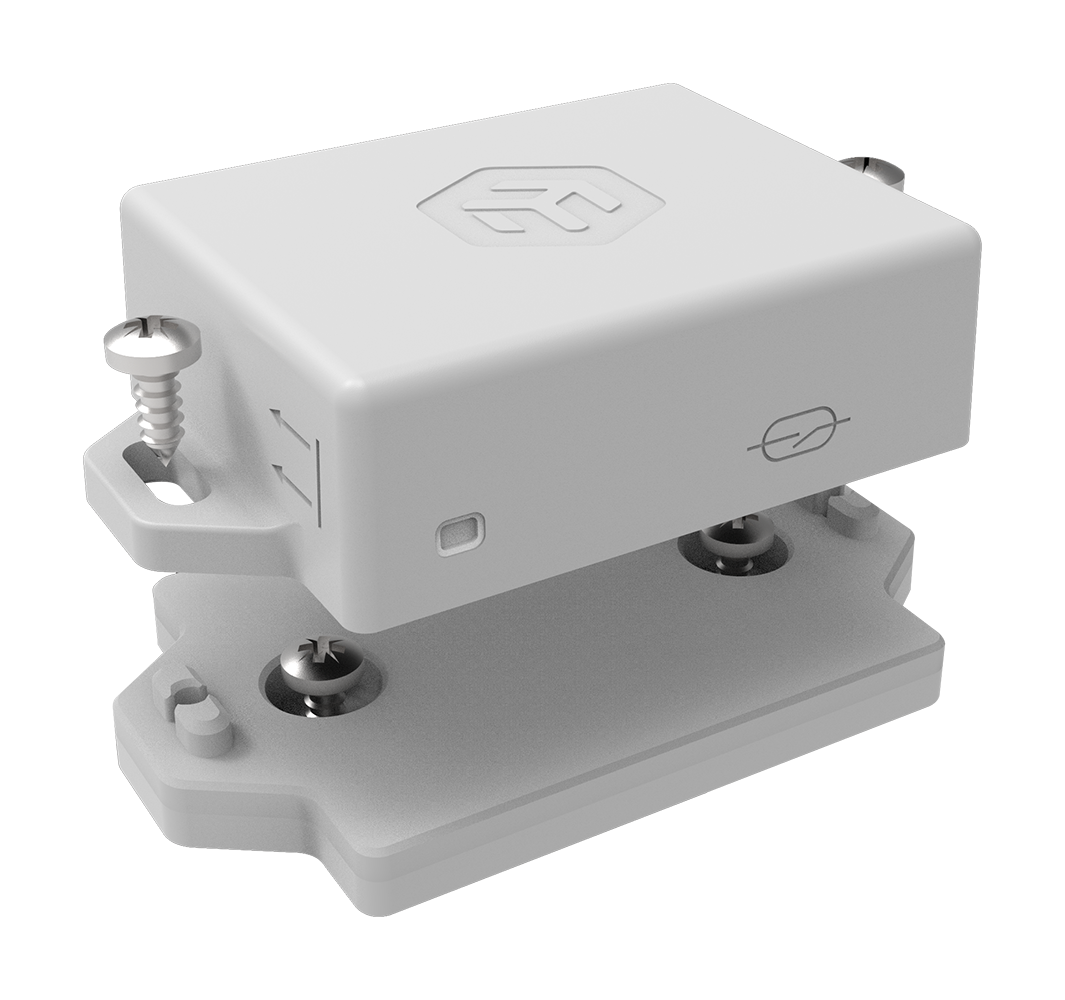

The offered product is a wireless humidity and temperature sensor with a built-in accelerometer. It has a battery with a capacity of 1100 mAh, which lasts for approximately 5 years of operation. The device is perfect for monitoring environmental conditions in a given location.

LoRaWAN, 868 MHz and 2.4 GHz bands

The device operates wirelessly in accordance with the LoRaWAN 1.0.4 Class A and B protocol, supporting 868 MHz and 2.4 GHz bands. Depending on the gateway used and environmental conditions, the range can reach up to 1.5 km. Thanks to this, the TG-LR82 can be used not only in small rooms but also in large areas, such as warehouse halls and various industrial environments.

Specifications

MikroTik TR-LR2
LoRa transceiver	LR1120
LoRa band	868 MHz / 2.4 GHz
Supported LoRaWAN protocol	LoRaWAN 1.0.4 Class A, B
RF Transmit power	868 MHz: 10.5 dBm 2,4 GHz: 13 dBm
RF Receive sensitivity	868 MHz: -141 dBm (BWL = 125kHz, SF = 12) 2.4 GHz: -130 dBm (BWL = 812kHz, SF = 12)
Antenna gain	868 MHz: -4 dBi 2.4 GHz: 2 dBi
Additional LoRaWAN features	ADR (Adaptive Data Rate)
ID LoRa Region	EU868
Sensor type	Temperature, humidity, accelerometer
Temperature sensor	NIST traceable TMP116N sensor
Temperature sensor accuracy	±0.2°C typical (±0.3°C max) for -25°C to +85°C
Humidity sensor	0%-100% RH
Dimensions	76 x 45 x 19 mm
Battery	1100mAh LiMnO₂, Non-replaceble
Operating temperature	-10°C to +70°C *
