TP-Link TL-WR820N 300 Mbps Multi-Mode Wi-Fi Router

TP-Link TL-WR820N 300 Mbps Multi-Mode Wi-Fi Router

Brand: TP-Link

Product Code: TL-WR820N

Catalog number: 8000

Warranty (months):

Price

10,87 €

13,37 € incl. tax

favoriteAdd to wishlist

Description

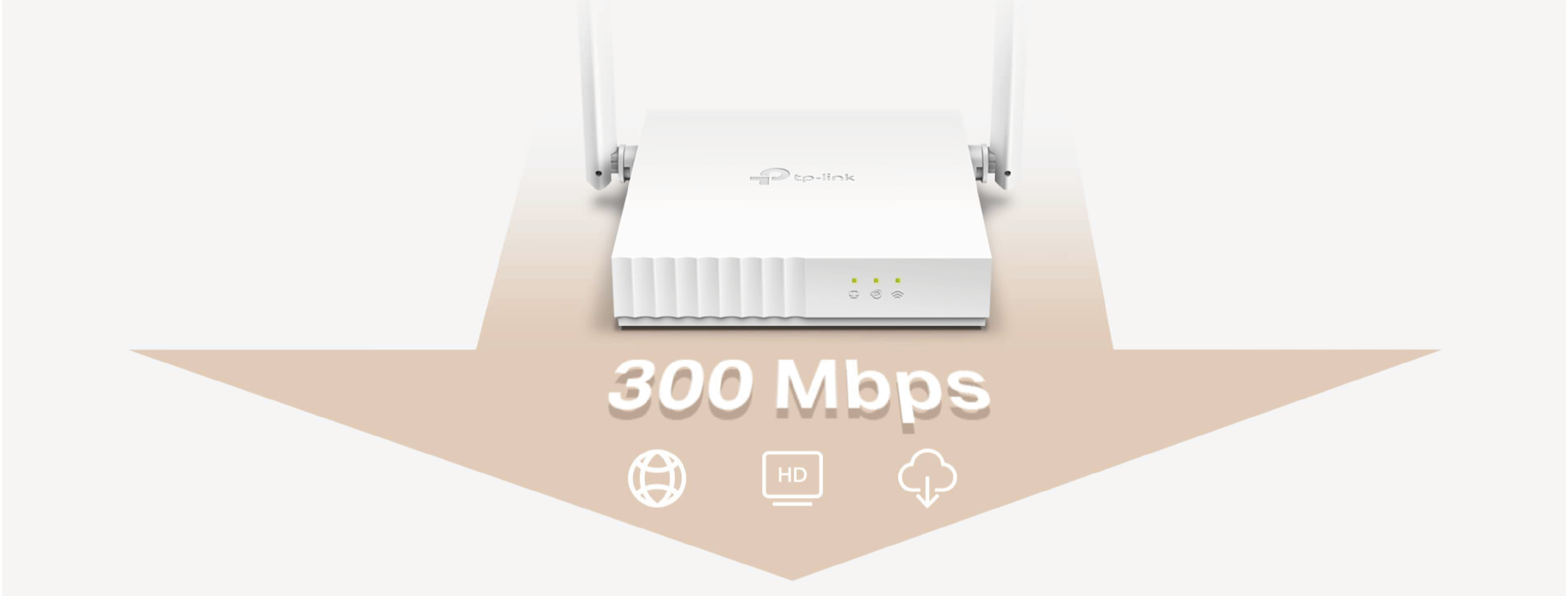

High-Speed Wi-Fi - Enjoy web browsing, HD streaming, and downloading with your family. 300 Mbps wireless speeds on the 2.4 GHz band meet your daily needs.

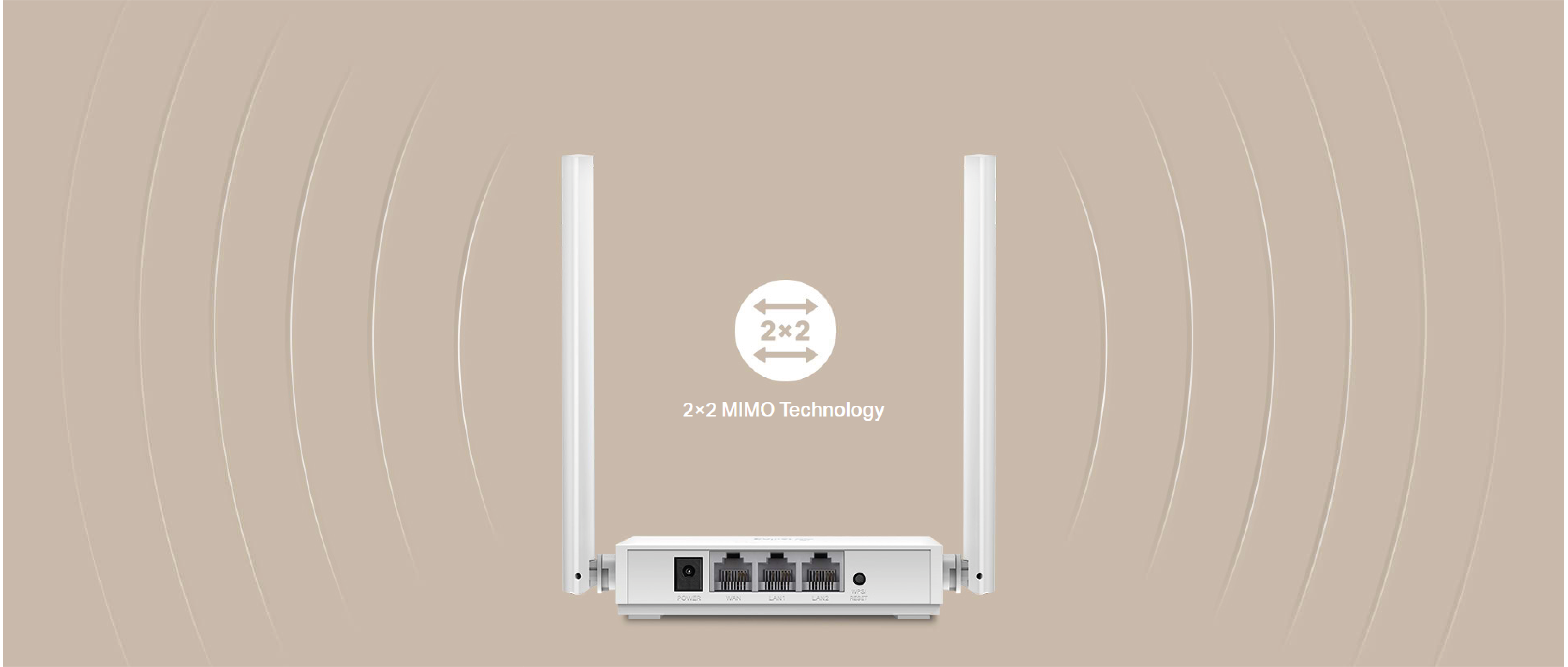

Strong Signal, Great Coverage - Two powerful 5 dBi antennas and 2×2 MIMO enhance wireless transmission to deliver broader wireless coverage with stronger signal intensity.

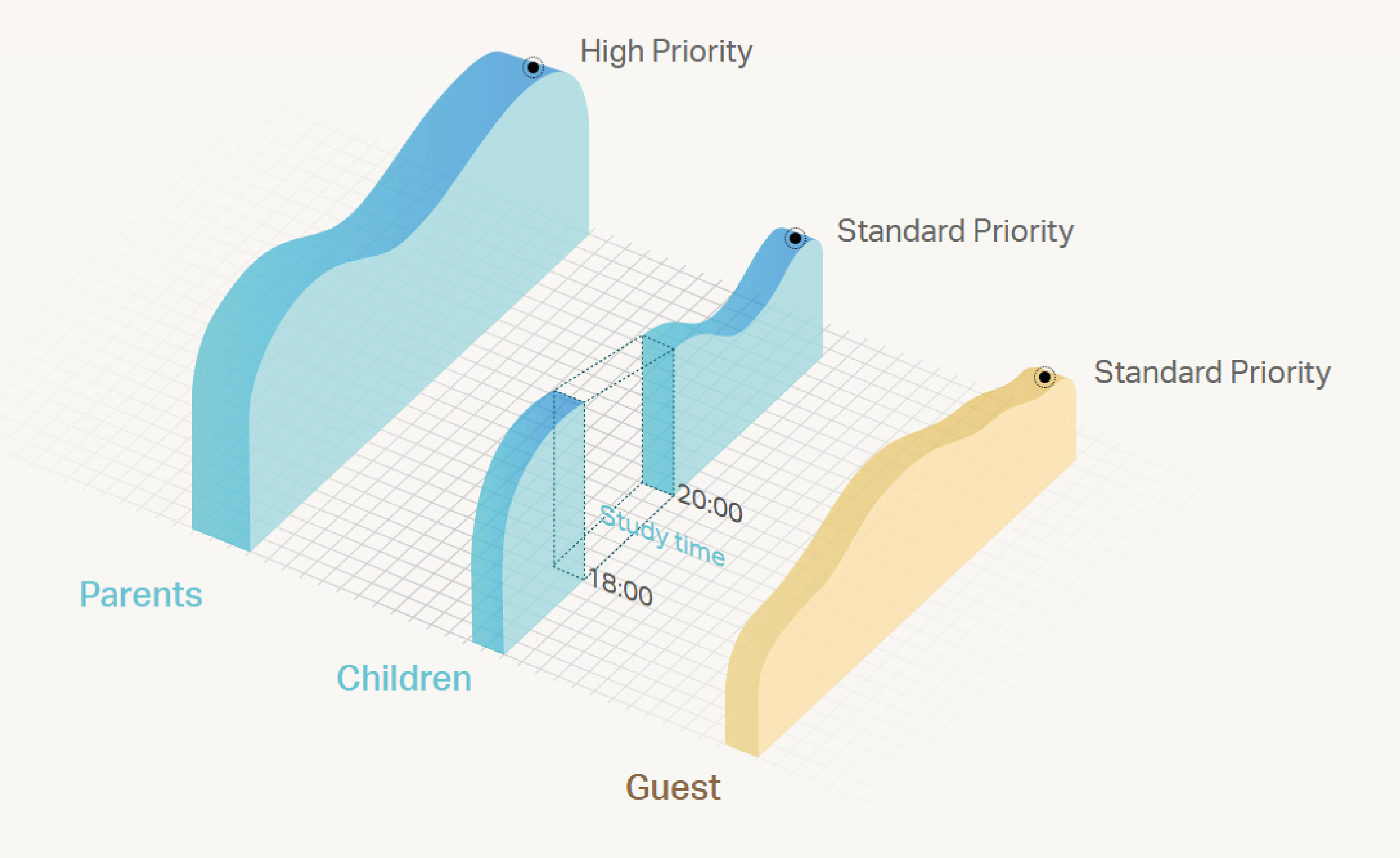

Versatile Management - Easily manage your home network with versatile built-in tools, including Parental Controls, Guest Network, QoS, and more.

Multi-Mode 4 in 1:

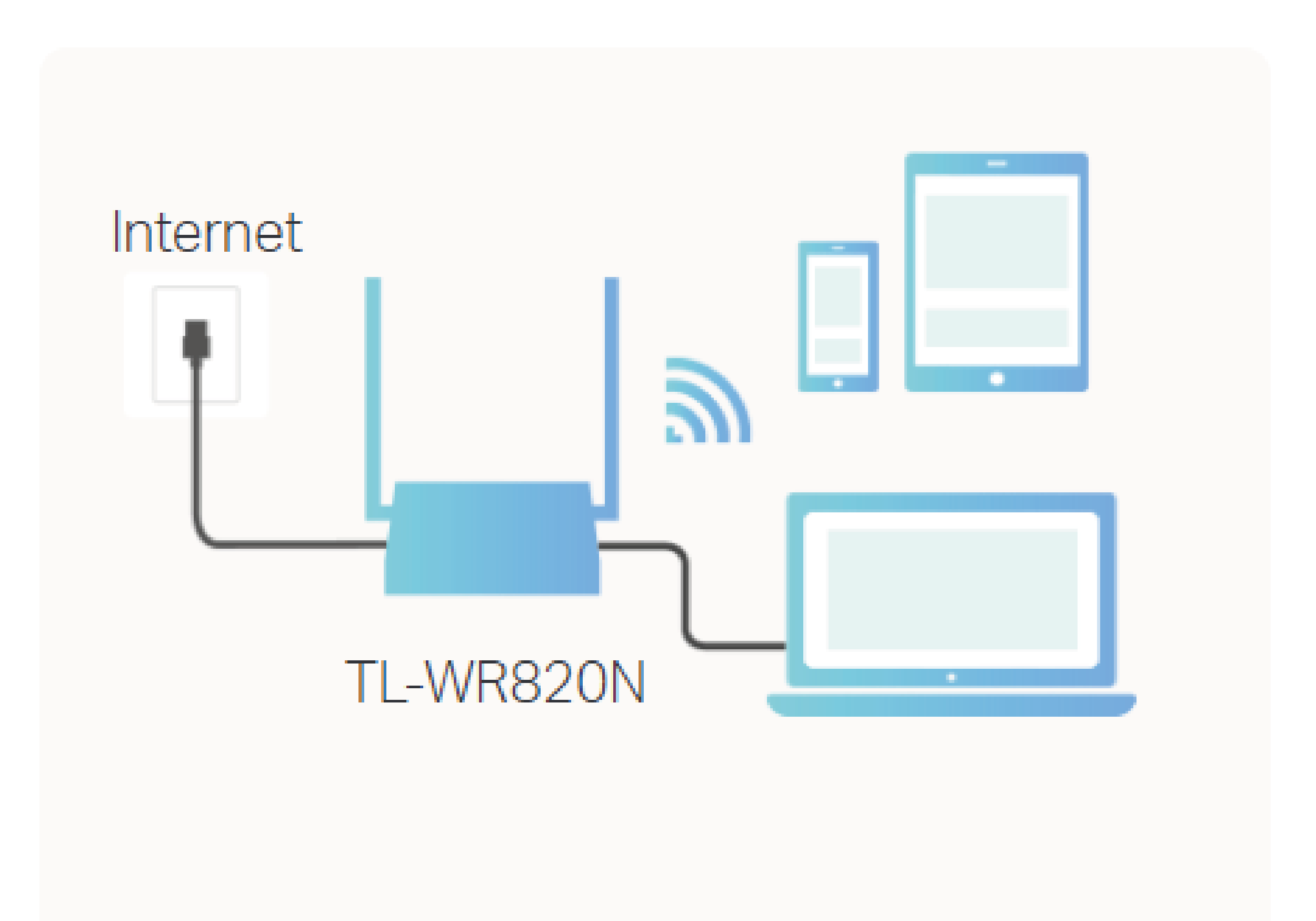

Router Mode (Default) - Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.

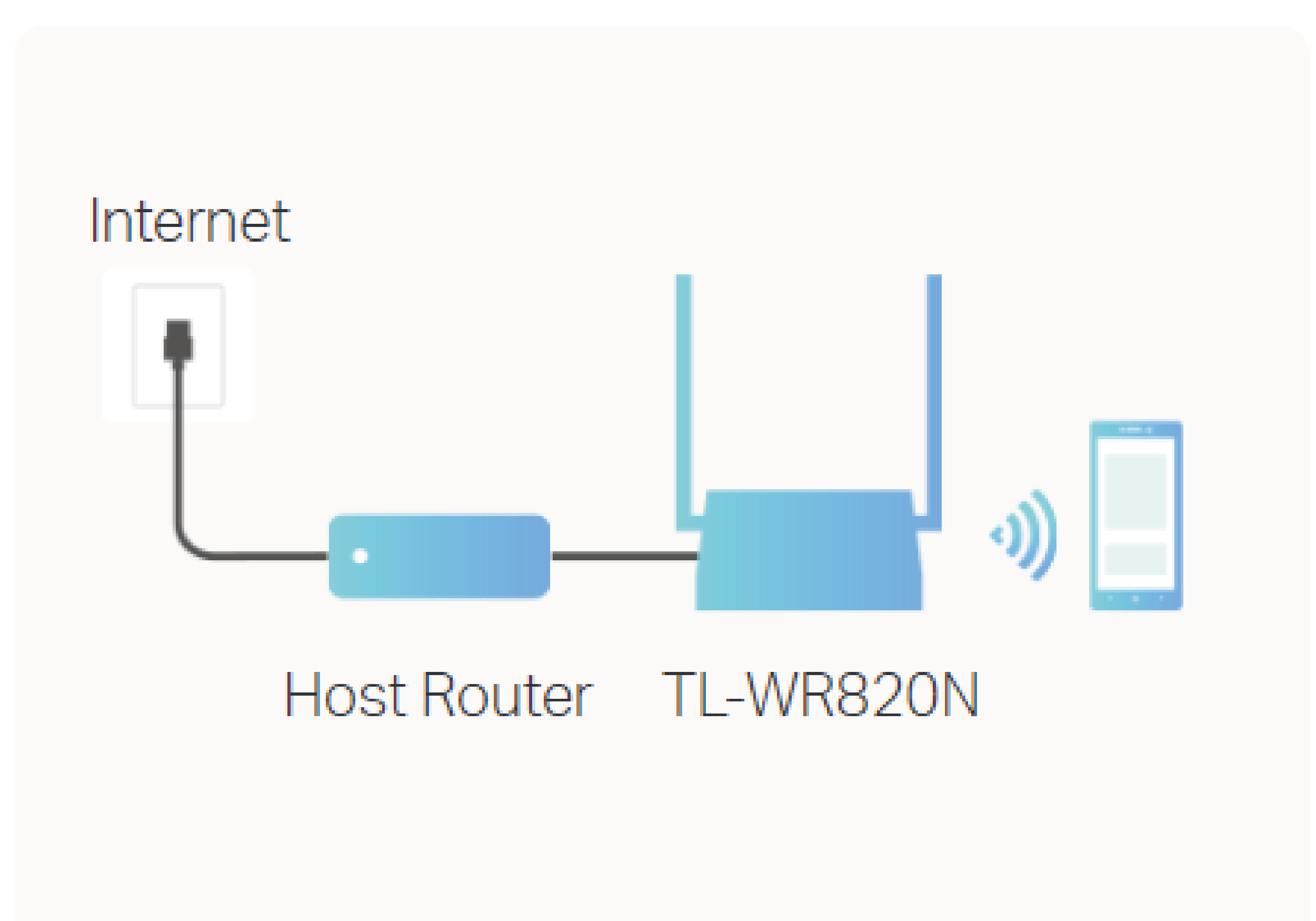

Access Point Mode - Transform your existing wired network into a wireless one.

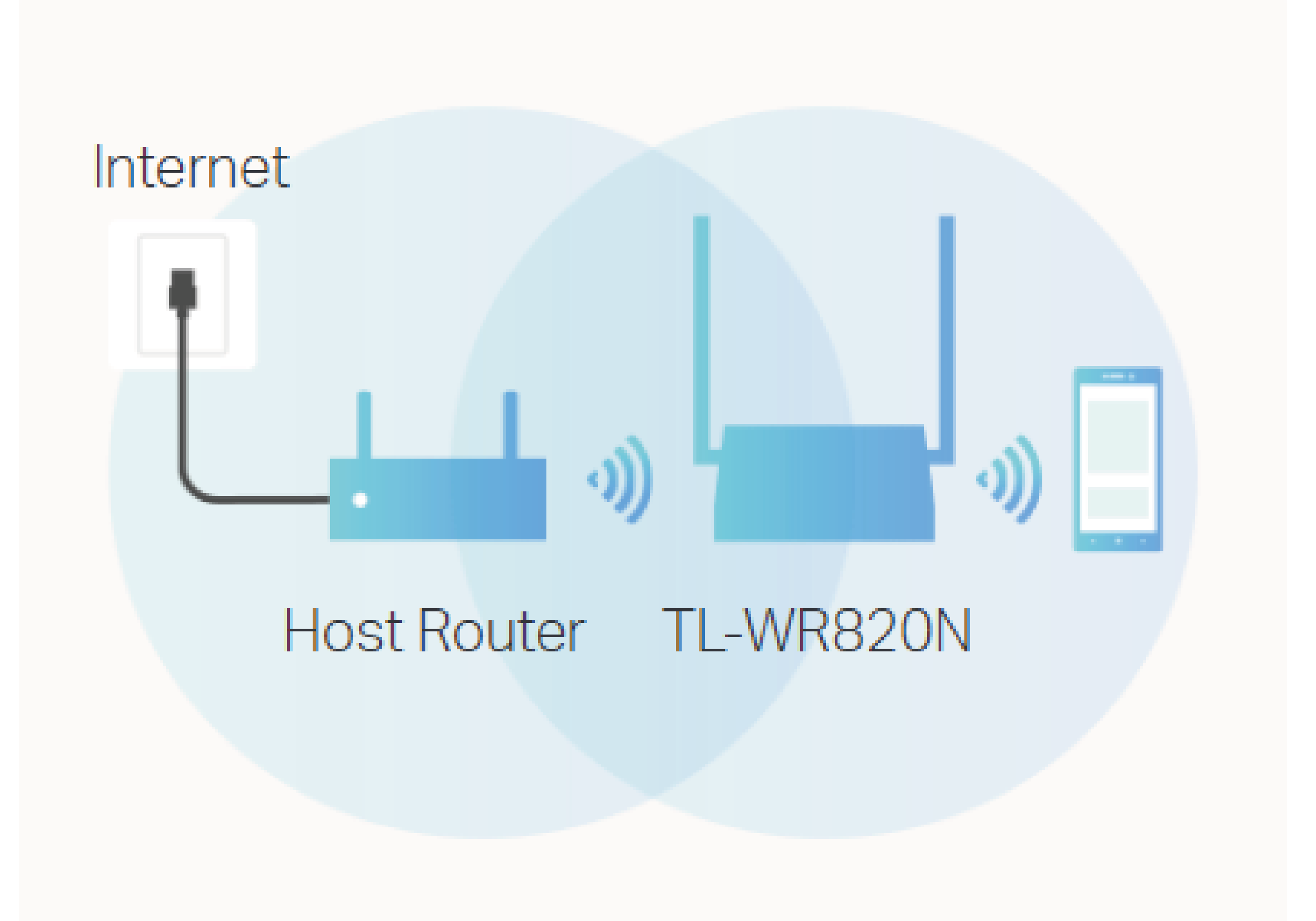

Range Extender Mode - Boost the existing wireless coverage in your house.

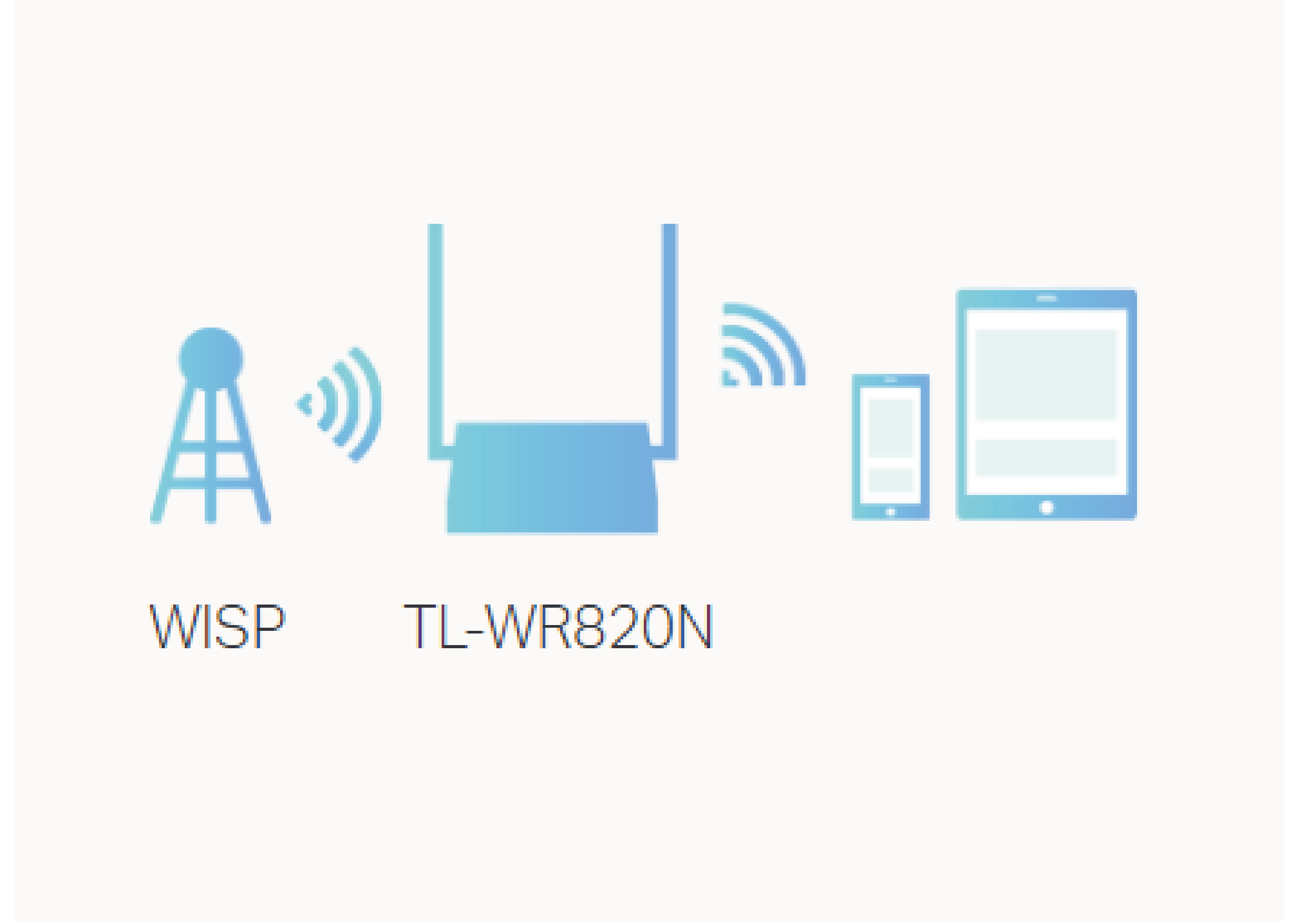

WISP Mode - Connect to the ISP network wirelessly in areas without wired service.

Smooth Video Streaming - IGMP Proxy/Snooping, Bridge, and Tag VLAN support optimizes IPTV streaming so you can enjoy your favorite movies and shows lag-free.

IPv6 Compatible - Compatible with the most recent Internet Protocol version (IPv6). Keep your router future-proof and enjoy the IPv6 services provided by your ISP.

Elegant Design - Designed to conserve space and complement virtually any décor while delivering stable Wi-Fi to your home.

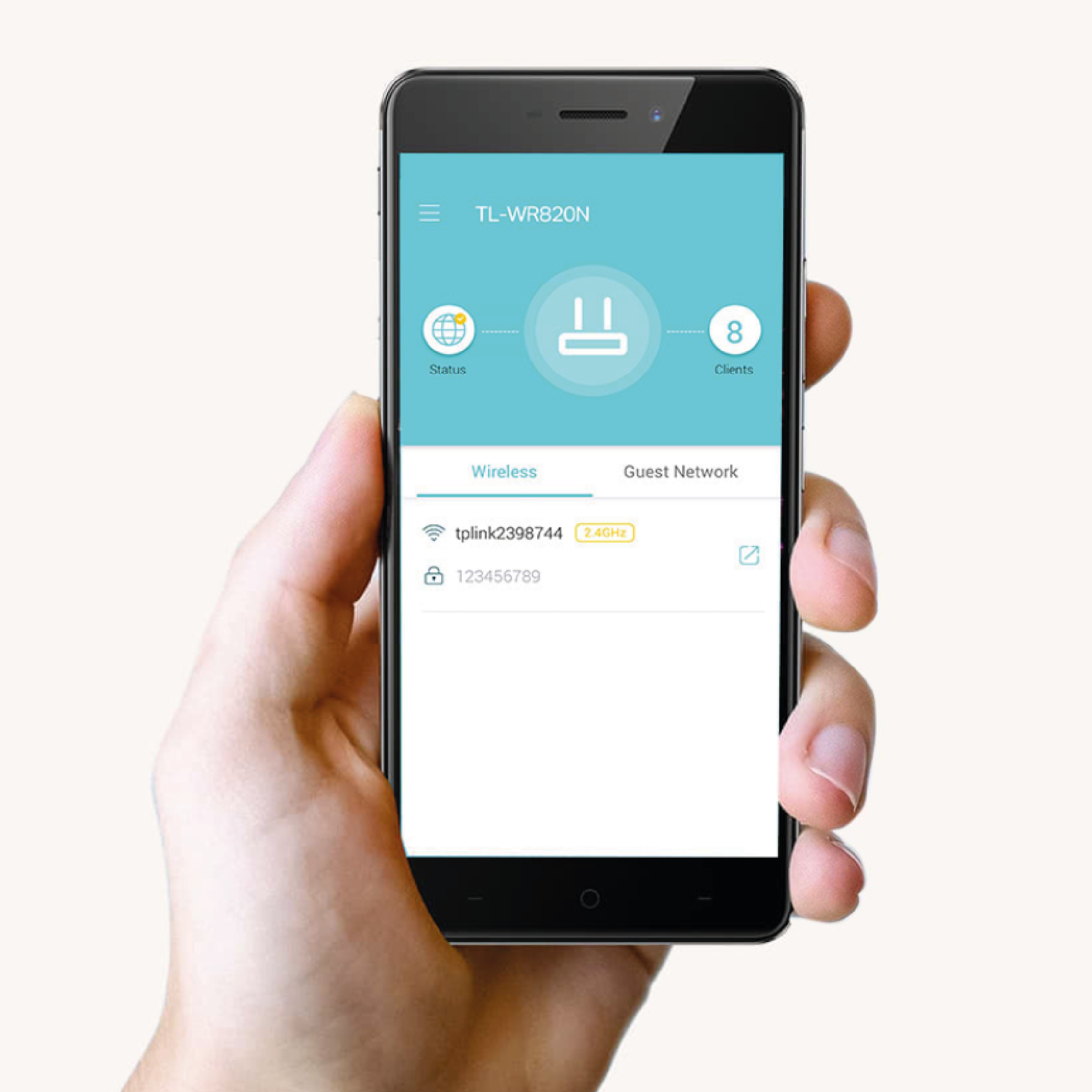

Easy Setup at Your Fingertips - Set up Wi-Fi in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device. With the app you can configure among others LED Control, Wi-Fi Schedule and Easy Wi-Fi Sharing.

The most important features:

300 Mbps Wi-Fi speed is ideal for daily tasks including browsing, emailing, and video streaming
IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
Guest Network provides separate access for guests while securing the host network
Parental Controls manage when and how connected devices can access the internet
SPI firewall and wireless encryption protect your home network
Compatible with IPv6 (Internet Protocol version 6)

Specification

WIRELESS
TP-Link TL-WR820N
Standards	Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds	N300 2.4 GHz: 300 Mbps (802.11n)
WiFi Range	2 Bedroom Houses 2× Fixed Antennas
WiFi Capacity	Legacy
Working Modes	Router Mode Access Point Mode Range Extender Mode WISP Mode
HARDWARE
Processor	Single-Core CPU
Ethernet Ports	1× 10/100 Mbps WAN Port 2× 10/100 Mbps LAN Ports
Buttons	Reset Button
Power	5 V ⎓ 0.6 A
SECURITY
WiFi Encryption	WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x)
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
Guest Network	1× 2.4 GHz Guest Network
SOFTWARE
Protocols	IPv4 IPv6
Parental Controls	URL Filtering Time Controls
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	QoS by Device
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	NO-IP DynDNS
Management	Tether App Webpage
PHYSICAL
Dimensions (W×D×H)	4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)
Package Contents	Wi-Fi Router TL-WR820N Power Adapter RJ45 Ethernet Cable Quick Installation Guide
OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power	CE: <20dBm(2.4GHz) FCC: <30dBm
WiFi Reception Sensitivity	270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -77dBm@10% PER 11M: -87dBm@8% PER 6M: -90dBm@10% PER 1M: -98dBm@8% PER

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and the maximum number of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
