Voltage converter 12 -> 48V, 300W

Voltage converter 12 -> 48V, 300W

Brand: Cablemedia

Product Code: CABM-12/48-300W

Catalog number: 5551

Warranty (months):

Price

36,27 €

44,61 € incl. tax

favoriteAdd to wishlist

Description

A high-quality converter from Cablemedia. It boosts the voltage from 10-20 V to 48 V. The output power is 300 W, with a current of 6 A. The device is notable for its high efficiency, reaching 93% at 50% load. The converter should be installed with the power connector positioned at the bottom of the device to allow for proper gravitational cooling. An additional advantage of the device is the use of a CTRL input, which enables operational control (a positive voltage must be applied to turn the converter on).

Specifications

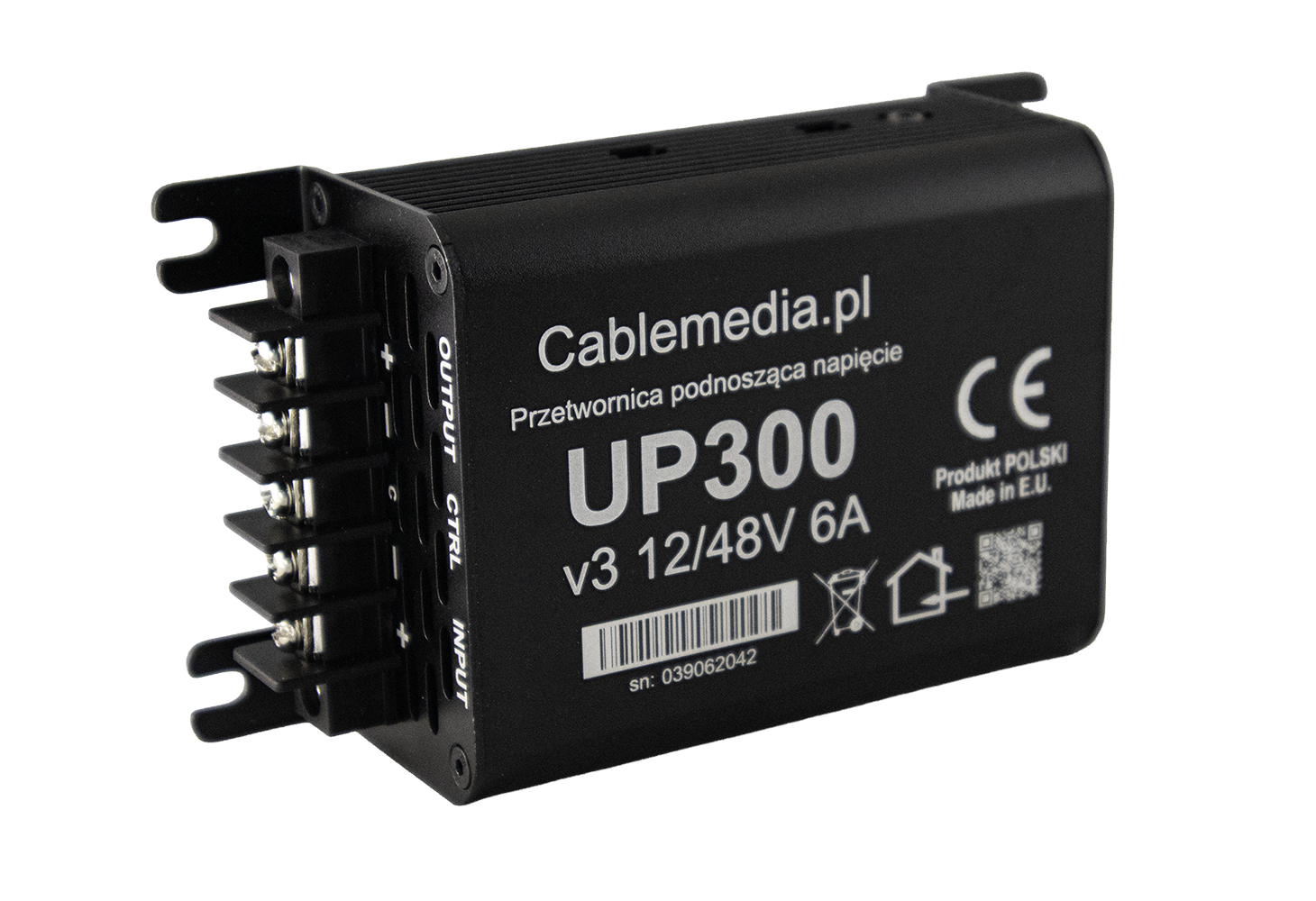

Cablemedia UP-300 12/48V 6A 300W
Input voltage		10 - 20 V
Output voltage		48 V
Output power		300 W
Output current		6 A
Thermal protection		75°
Output voltage stability		1%
Output voltage tolerance		2%
Efficiency		93% at 50% load
No-load current consumption		< 40 mA
