TP-Link WR850 is a wireless router operating in the 2.4 GHz band according to the IEEE 802.11 b/g/n standards. The maximum theoretical transmission throughput is 300 Mb/s. The device has 5 Fast Ethernet ports, including 4 LAN ports and 1 WAN port. The router is equipped with two external, omnidirectional antennas. An additional advantage is the CCA (Clear Channel Assessment) function, which allows the device to automatically select the least congested channel.
Program, instructions, and software for Agile Config 2.0 support

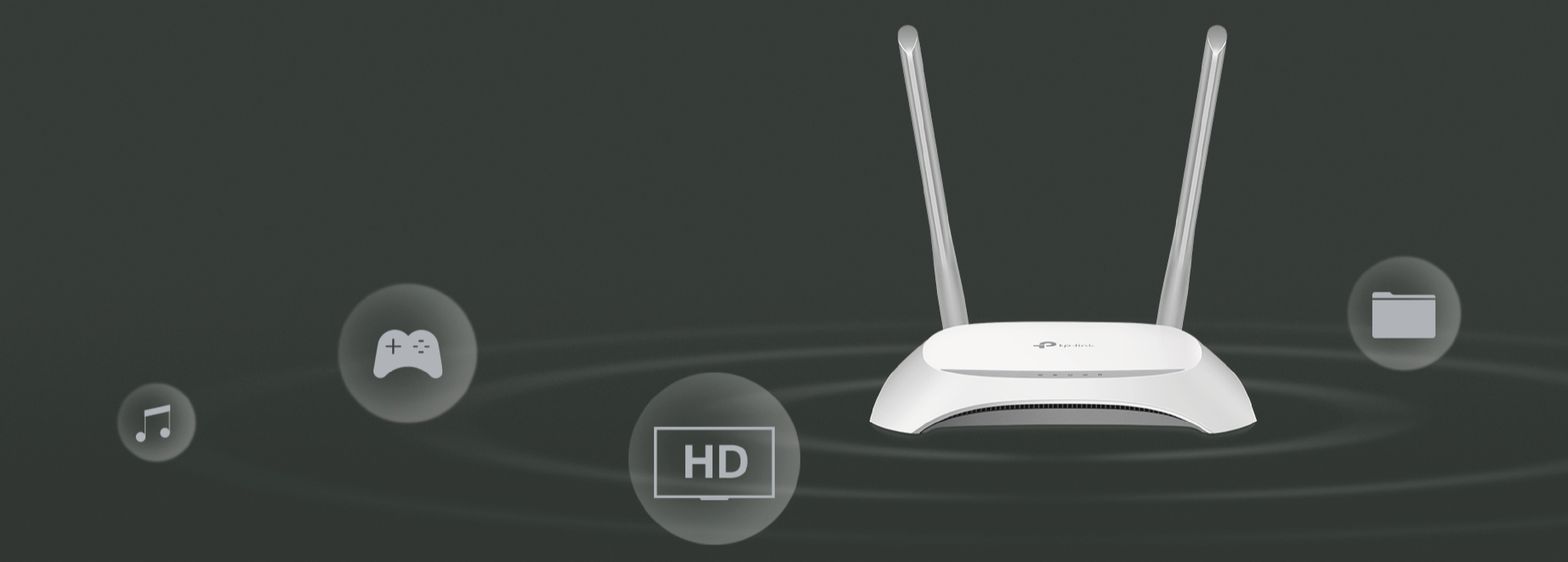

300 Mb/s in N Standard - Fast Downloading
TL-WR850N is a fast router operating according to IEEE 802.11b/g/n standards. Thanks to 802.11n technology, the device provides transmission speeds of up to 300 Mb/s, effortlessly meeting the highest demands of a home network, ensuring smooth HD video streaming, constant access to online games, and fast downloading of large files.

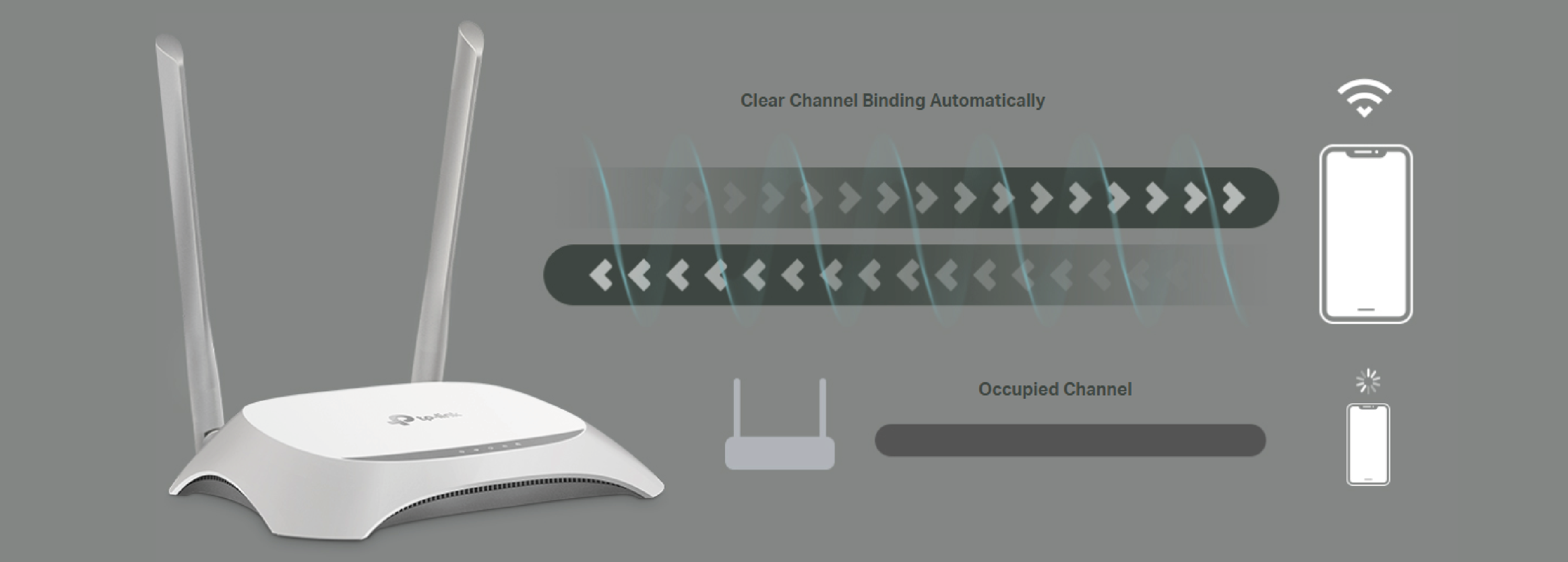

CCA Technology - Stable Wireless Network
Thanks to the CCA (Clear Channel Assessment) function, the router automatically selects the least congested channel for wireless transmission. This increases network performance through optimal use of the available transmission band.


IP QoS Function
The IP-based bandwidth control function allows the administrator to allocate a specific portion of the bandwidth to each computer on the network.
Easy Installation
Using the clear web interface or configuration utility, you can connect to the Internet quickly and easily.

Specifications
| TL-WR850N | |
| HARDWARE FEATURES | |
|---|---|
| Interface | 4 10/100Mbps LAN PORTS 1 10/100Mbps WAN PORT |
| Button | WPS/RESET Button |
| External Power Supply | 9VDC / 0.6A |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 7.2 x 5.0 x 1.4in.(182 x 128 x 35 mm) |
| Antenna | 2 Antennas |
| WIRELESS FEATURES | |
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Transmit Power | CE: <20dBm FCC: <30dBm |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Wireless Security | 64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK |
| SOFTWARE FEATURES | |
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/ PPTP/L2TP |
| Management | Access Control Local Management Remote Management Agile Config (Optional) |
| Port Forwarding | Virtual Server,Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
| Protocols | Support IPv4 and IPv6 |
| Guest Network | 2.4GHz Guest Network x1 |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents | Wireless N Router TL-WR850N Power supply unit Ethernet Cable Quick Installation Guide |
| System Requirements | Windows 2000/XP/Vista™, Windows 7, Windows 8, Windows 8.1, Windows 10 or Mac OS or Linux-based operating system |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
