0,25 € netto
Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+ - Plug and Play, Multi-Purpose PoE Switch with Powerful Performance.

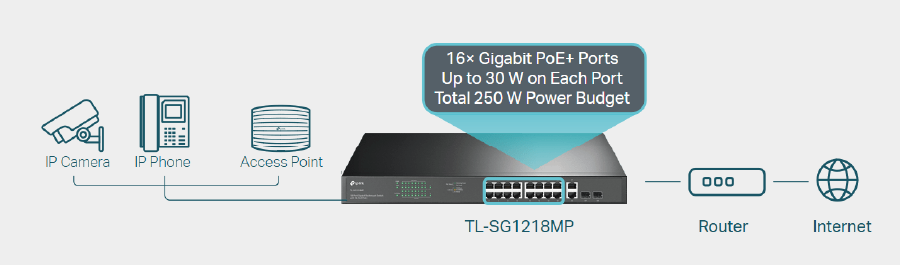

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications - Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
QoS for a Lag-Free Experience - Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).

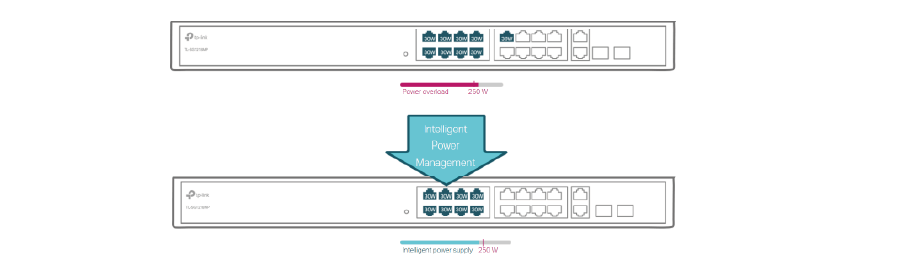

Intelligent Power Management to Prevent Power Overload - When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

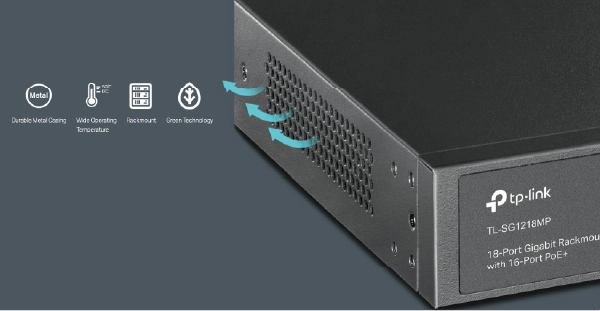

Wide Operating Temperature with Good Heat Dissipation - Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
Multiple Application Scenarios - The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. Usage examples:
- Surveillance - Works with IP Cameras
- Conference - Call Works with IP Phones
- Wi-Fi Coverage - Works with Omada EAPs
- Wired Connections - Works with PCs and Printers
The most important features:
- 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
- Working with IEEE 802.3af/at compliant PDs

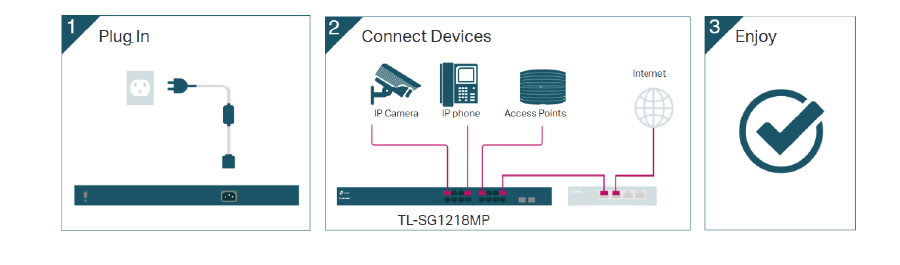

- Plug and play, with no configuration and installation needed
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)
Specification:
TP-Link TL-SG1218MP | |
---|---|
HARDWARE FEATURES | |
Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
Interface | 16× PoE+ gigabit RJ45 ports 2× gigabit non-PoE RJ45 ports 2× combo gigabit SFP slots |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
Fan Quantity | 2 |
Physical Security Lock | Yes |
Power Supply | 100–240 VAC, 50/60 Hz |
PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Ports 1–16 PoE Power Budget: 250 W |
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | 21.4 W (220/50 Hz. no PD connected) 286.64 W (220/50 Hz. with 250 W PD connected) |
Max Heat Dissipation | 72.97 BTU/h (no PD connected) 977.44 BTU/h (with 250 W PD connected) |
PERFORMANCE | |
Switching Capacity | 36 Gbps |
Packet Forwarding Rate | 26.78 Mbps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1 Mbit |
Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs 802.1p/DHCP QoS Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
Jumbo Frame | 10 KB |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Contents | TL-SG1218MP Installation Guide Power Cord Rackmount Kit Rubber Feet |
Environment | Operating Temperature: 0–50 °C (32–122 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
