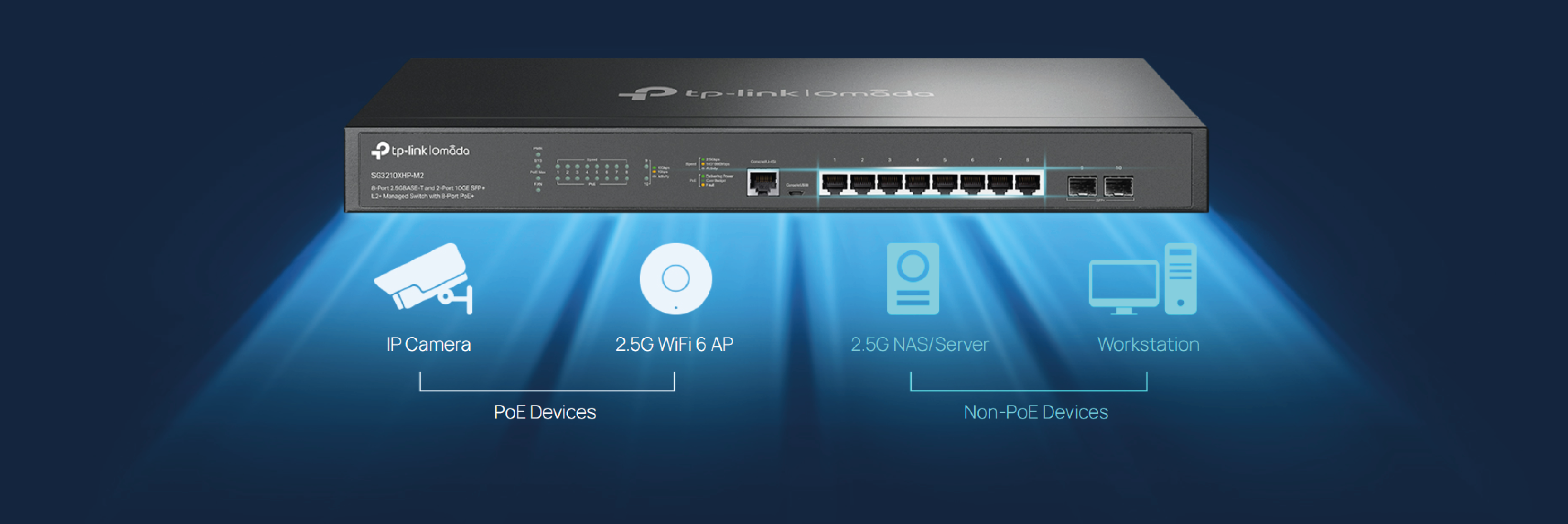

The SG3210XHP-M2 is a managed L2+ layer JetStream network switch integrated with the Omada SDN system, designed for environments requiring high throughput and high-power PoE supply. The device is equipped with 8 ports of 2.5 Gigabit Ethernet (2.5G), all supporting the PoE+ standard (802.3at/af), with a total PoE power budget of 240 W (up to 30 W per port). Additionally, the switch features 2 SFP+ 10 Gigabit (10 Gbps) slots, which serve as uplink ports for high-speed connection to the backbone network or servers. The switch supports L2/L2+ features, including static routing, VLAN 802.1Q, Link Aggregation Control Protocol (LACP), and advanced Quality of Service (QoS) mechanisms. The total switching capacity is 80 Gbps. Thanks to integration with Omada SDN, it enables centralized cloud management. The device is suitable for 13-inch Rack mounting and is equipped with an active cooling system (fans).

Software Defined Networking (SDN) Control with Cloud Access

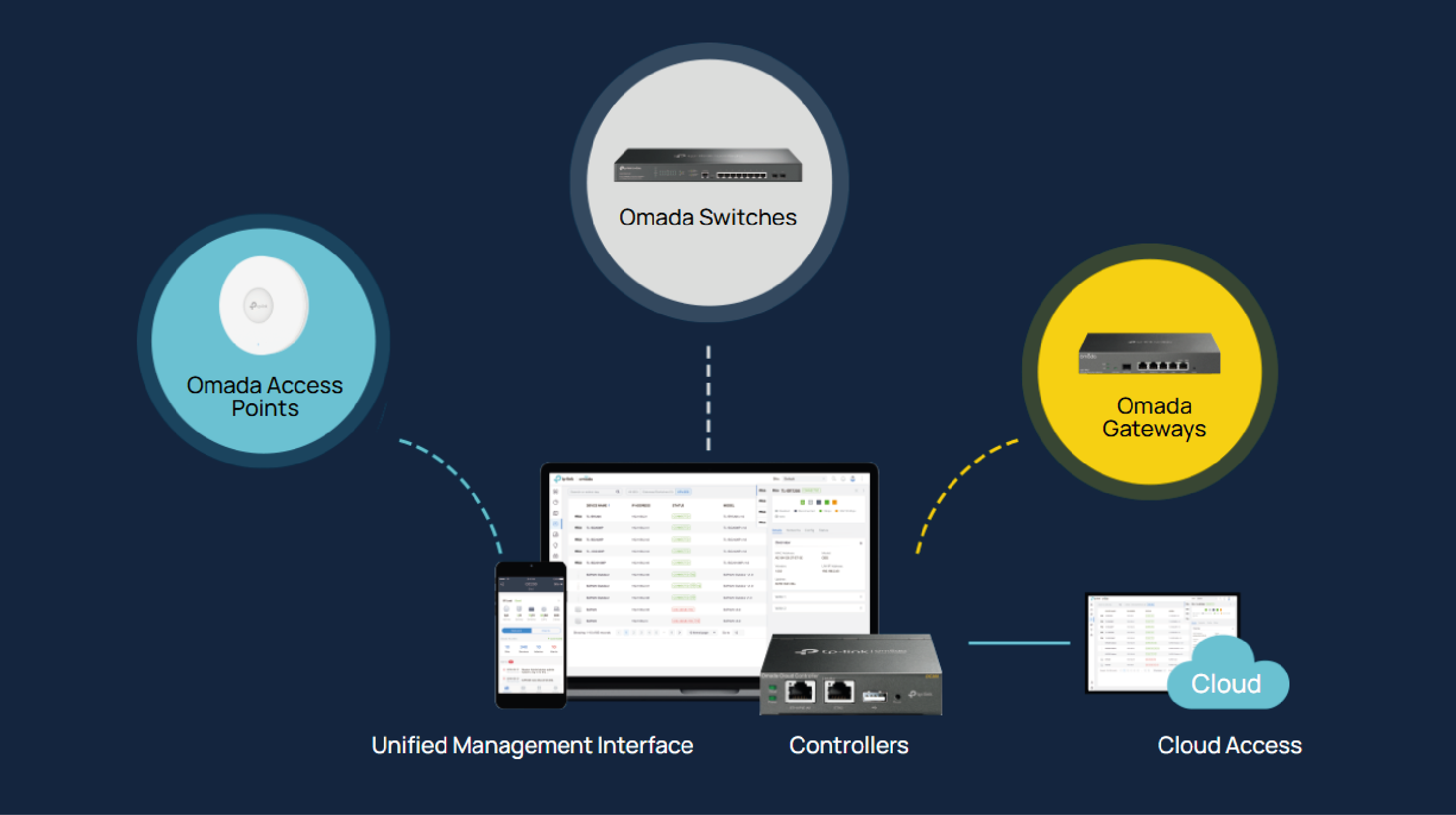

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada enables the creation of a highly scalable network — fully controlled from a single interface. This translates into seamless wired and wireless connections essential in hospitality, education, retail, offices, and many other industries and facilities.

Effective Security
IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping are SG3210XHP-M2 switch features that protect the network from threats. The device has an integrated list of the most common DoS attacks, allowing it to detect and prevent them early. Additionally, the ACL function (L2 to L4) is applied to block access to sensitive network resources. Denial of packet transmission can be set for specific source or destination MAC addresses, IP addresses, TCP or UDP ports, or VLAN IDs. Furthermore, the switch uses 802.1X authentication in conjunction with RADIUS/Tacacs+ server functions to verify users attempting to access the network. The server will only grant access to users who provide valid authentication credentials.

L2+ Layer Features
Thanks to extensive Layer 2 features, including 802.1Q VLAN support, Port Mirroring, STP/RSTP/MSTP, Link Aggregation (LACP), and 802.3x Flow Control, the SG3210XHP-M2 switches are highly versatile. The IGMP Snooping function enables intelligent routing of multicast streams only to specific subscribers, and IGMP Throttling and IGMP Filtering effectively restrict access to multicast transmissions for unauthorized users. The SG3210XHP-M2 also supports the Static Routing function, which allows network segmentation, internal traffic steering through the switch, and increased network efficiency.

Advanced QoS
To ensure better audio and video transmission in a single network traffic stream, network administrators can prioritize traffic, e.g., for specific IP addresses, MAC addresses, TCP or UDP ports, etc. This ensures smooth and delay-free audio and video transmission.

Features for Service Providers
The SG3210XHP-M2 is an excellent solution for Internet Service Providers due to the availability of the following features: QinQ, L2PT, PPPoE ID Insertion, and IGMP Authentication. The 802.3ah OAM functions and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
The switch supports numerous IPv6 features, such as IPv4/IPv6 Dual Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, PMTU Discovery, and IPv6 Neighbor Discovery, ensuring your network conforms to NGN standards, and hardware replacement will not be necessary.

Specifications:
